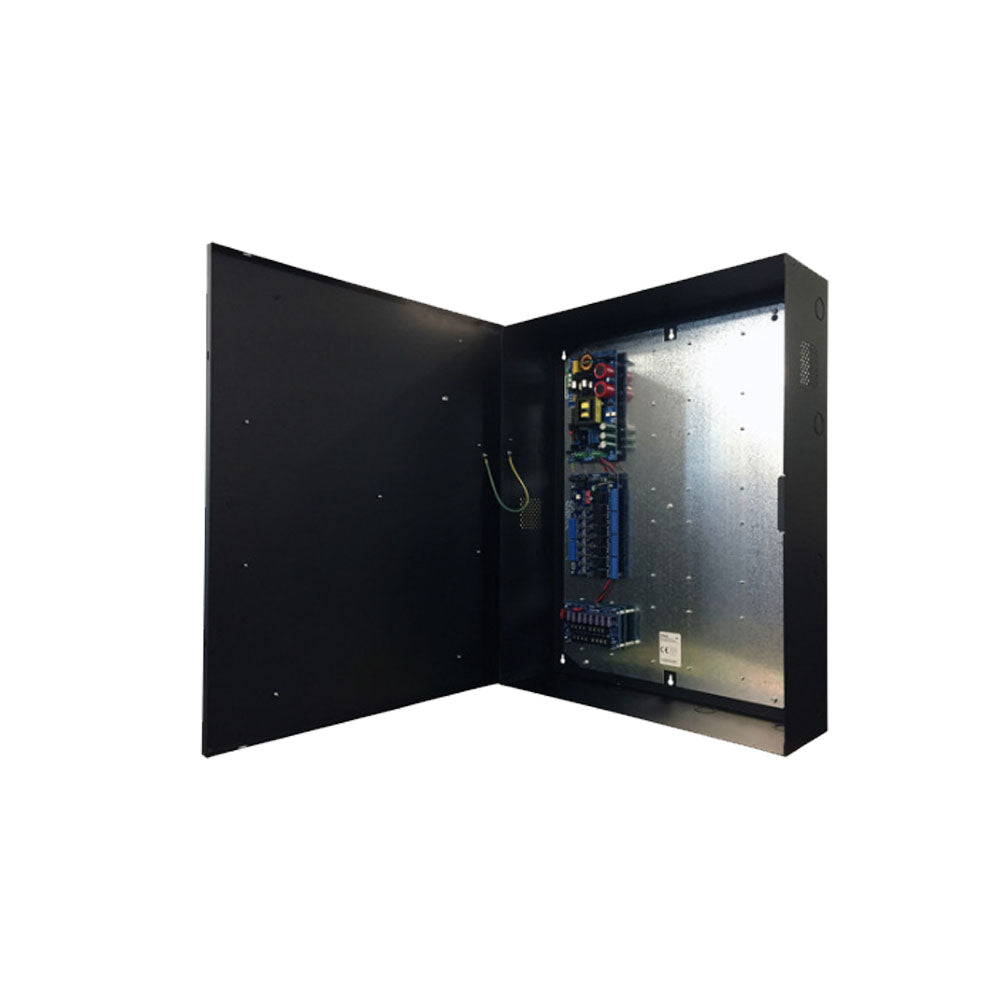

Altronix - T2PXK7F8 - 8-Door Altronix or Paxton Access and Power Integration Kit

Altronix - T2PXK7F8 - 8-Door Altronix or Paxton Access and Power Integration Kit

Ideal for a multitude of purposes, including CCTV, Fire Alarm and POIP. A leading global provider of power and transmission technologies for professional security system applications, Altronix develops innovative solutions that integrate disparate infrastructure and maximize overall performance and efficiency.
Altronix Power Supplies are ideal for a multitude of purposes, including:

• General Use
• CCTV
• Fire Alarm
• POIP

eFlow104NB Power Supply/Charger:

Input:

• Voltage: 120VAC, 60Hz, 4.5A max.
• Main Fuse: 6.3A / 250V.

Output:

• Voltage: 24VDC @ 10A.
• Auxiliary: 1A (unswitched).
• Protection: Overvoltage protection. Filtered and regulated.

Battery Backup:

• Type: Sealed lead acid or gel type.
• Fuse Rating: 10A @ 32VDC.
• Failover: Upon AC loss, instantaneous.

Fire Alarm Disconnect:

• Supervised: Latching or non-latching.
• EOL: 10K Resistor.

Supervision:

• AC Failure: Form “C” contacts.
• Battery: Form “C” contacts.
• Low DC Power Shutdown: Shuts down DC output terminals if battery voltage drops below 70-75% for 24V units. Prevents deep battery discharge.

Indicators LED:

• AC Input: 120VAC is present.
• DC Output: Powered.
• Battery: Discharged or not connected.

PDS8 Dual output Power Distribution Module:

Input:

• Voltage Range: 5VDC to 24VDC, up to 10A each, 20A total input.
• Main Fuse Rating: 10A.

Output:

• Fuse protected outputs rated @ 3A per output, non power-limited. Total output 20A max.
• Do not exceed the individual power supply ratings.
• Any of the eight (8) fuse protected power outputs are selectable to follow power Input 1 or Input 2.
• Individual outputs may be set to OFF position for servicing.

Indicators LED:

• DC Output: Individual voltage LEDs indicate 12VDC (Green) or 24VDC (Red/Green).

Outputs Ratings:

• Voltage Range: 4.8VDC - 24VDC.

Features:

• Multiple units may be daisy-chained to accommodate larger systems.

ACMS8 Access Power Controller:

Input:

• Voltage: 24VDC from eFlow104NB.
• Main Fuse: 10A / 32V.

Output:

• Voltage: 12VDC.
• Eight (8) 24VDC independently controlled fused outputs:
• a) Fail-Safe and/or Fail-Secure power outputs. Form “C” Relays rated 28VAC or VDC @ 2.5A.
• b) Auxiliary power outputs (unswitched).
• c) Any combination of the above.
• Output Fuses: 3.5A / 32VDC.

Indicators LED:

• Red LEDs: Outputs are triggered (relays energized).
• Blue LED: FACP disconnect is triggered.

VR6 Voltage Regulator:

Input:

• Voltage Range: 24VDC @ 10A = Output: 12VDC @ 6A.

Output:

• Voltage: 12VDC regulated output.
• Output rating: 6A max.
• Other: Surge suppression.

Indicators LED:

• Input: Indicates input voltage is present.
• Output: Indicates normal operating condition.

Environmental:

Temperature:

• Operating: 0° C to 49° C (32° F to 122° F).
• Storage: - 20° C to 70° C ( - 4° F to 158° F).
• Relative Humidity 85% +/- 5%.
• BTU/Hr (approx.): 113 BTU/Hr.

Download:

• Installation Instruction
