Yale - AU-NTB623-NR - NexTouch Generation 3 Cylindrical Lock with C...
Description
Description

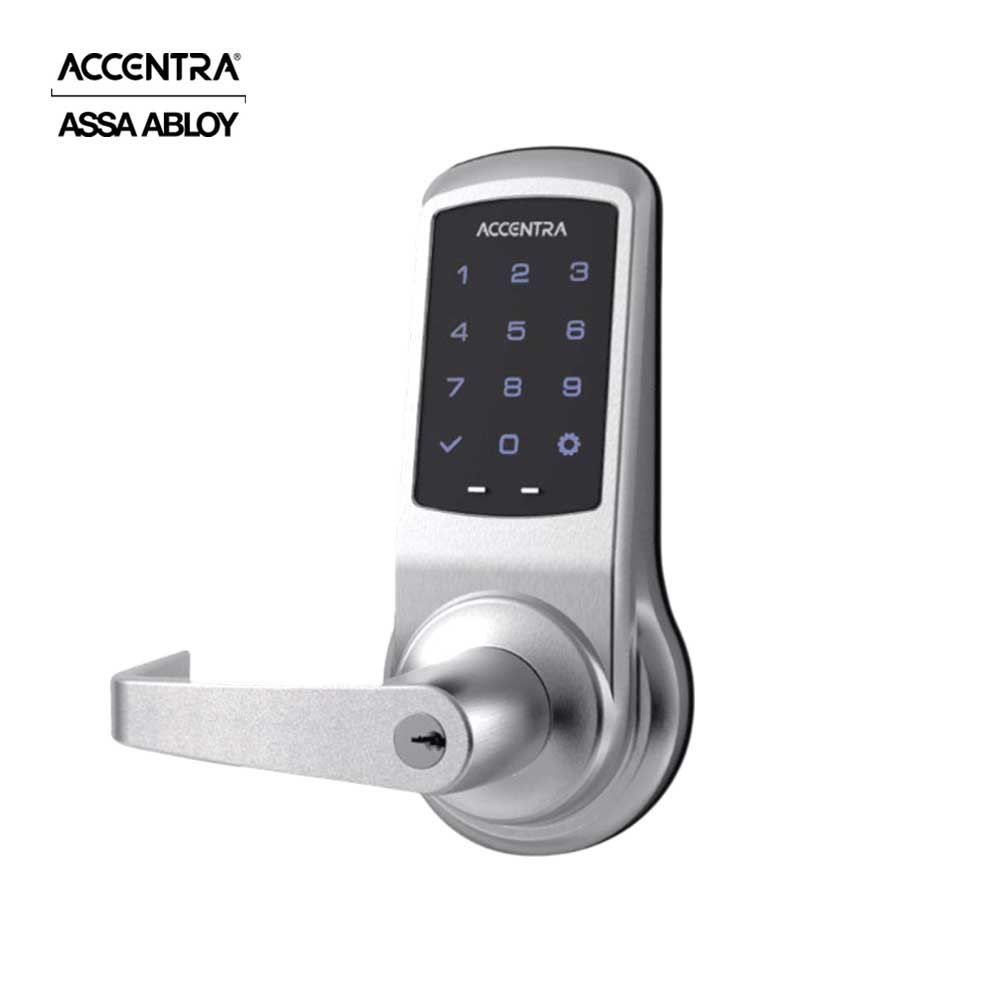

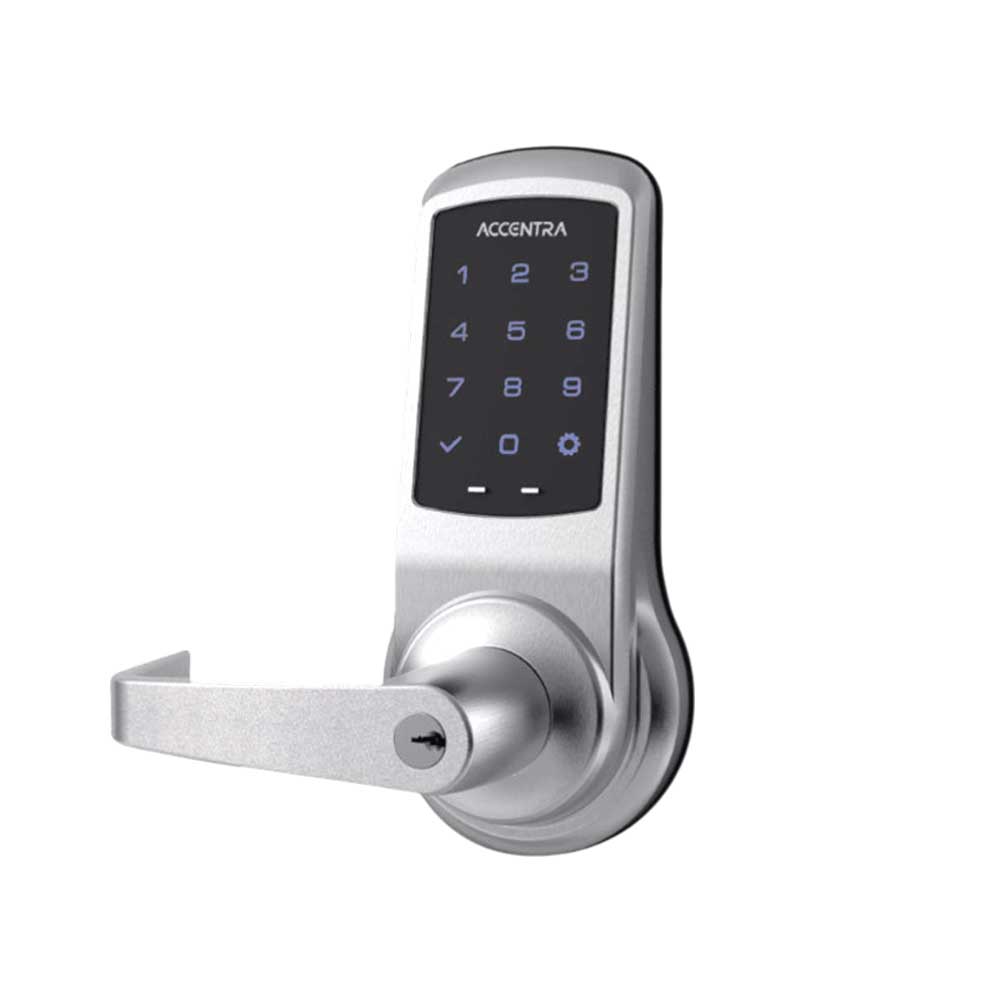

Yale - AU-NTB623-NR - NexTouch Generation 3 Cylindrical Lock with Capacitive Touchscreen Keypad and Conventional Cylinder - Schlage C Keyway - Augusta Lever - 626 (Satin Chrome)
The fully modular design of NexTouch allows users to easily upgrade to more advanced security technologies as their requirements grow and change. Features solutions for standalone, multi-family and small business applications.
Ideal for: Management offices, restrooms, staff lounges, access to airport apron, storage closets, new construction or renovation projects of multi-family facilities with individual units and common areas, small to medium-sized businesses with new or existing automation systems.
Benefits:
- Easy Traffic Control: Engineered to provide a comprehensive, easy-to-use access control solution to protect your facility and personnel.
- Modular Technology: Unique and versatile design enables upgrade of the lock’s technology when needed.
- Key-free Convenience: Reduces investment and maintenance costs.
- Strong and Reliable: ANSI/BHMA Grade 1 certification ensures long life and reliability.
Features:
- Modular technology allows users to upgrade to Data-on-Card or ZigBee/ZWave wireless technologies as system requirements change and grow.
- Capacitive touchscreen or pushbutton keypad available, for tactile environments and ADA compliance.
- Privacy mode enabled by a button push.
- Up to 100 user codes in keypad-only operation.
- 9V battery power backup prevents lockout even if the batteries fail.
Product Specifications:
| Grade | Grade 1 |
| BAA Qualified | Yes |
| Installation | Commercial |
| ADA Compliance | Yes |
| UL Listing | UL/cUL Listed |
| Fire Rating | 3 Hours |
| Application | Capacitive Touchscreen |
| ANSI | ANSI/BHMA A156.2, Series 4000 Grade 1, A117.1 |
Technical Specifications:
| Handing | Non-Handed |
| Door Thickness | 1-3/4" |
| Latch Backset Dim | 2-3/4" |
| Bolt Projection | 1/2" |
| Std. Strike Height | 4-7/8" |
| Std. Strike Width | 1-1/4" |
| Cylinder Type | Conventional Cylinder |
| Pins | 6 |
| Keying | Keyed Different |
| Lever/Knob Design Family | Straight Return Lever |
| Latch Bore Diameter | 1" |
| Std. Latch Type | Dead Latch (Guarded) |
| Rose/Escutcheon Dimensions | 2-9/16" Diameter |
| Std. Latch Number | 694 |
| Key(s) | Cut |
| Std. Strike Number | 497 |
| Lever/Knob Design | AU - Augusta Lever |
| Std. Keyway | Schlage C |
| Power | Battery Pack |
| Reader Technology | Keypad Only |
| Latch Backset Dimension | 2-3/4" |
| Access Function | Software Programmable |
| Operating Voltage | 4 AA Batteries |
| Cam Number | 2160 |
| Keypad Type | Capacitive Touchscreen |
| Function | No Deadbolt With Cylinder Override |
| Software | Accentra |
| Series Name | NexTouch (Generation 3) |
| Std. Strike Type | ANSI |
| Finish | US26D - Satin Chromium Plated (626) |
