Von Duprin - 22L-06-3-689-RHR - Rim Exit Device with Trim Lever - 3...
Description
Description

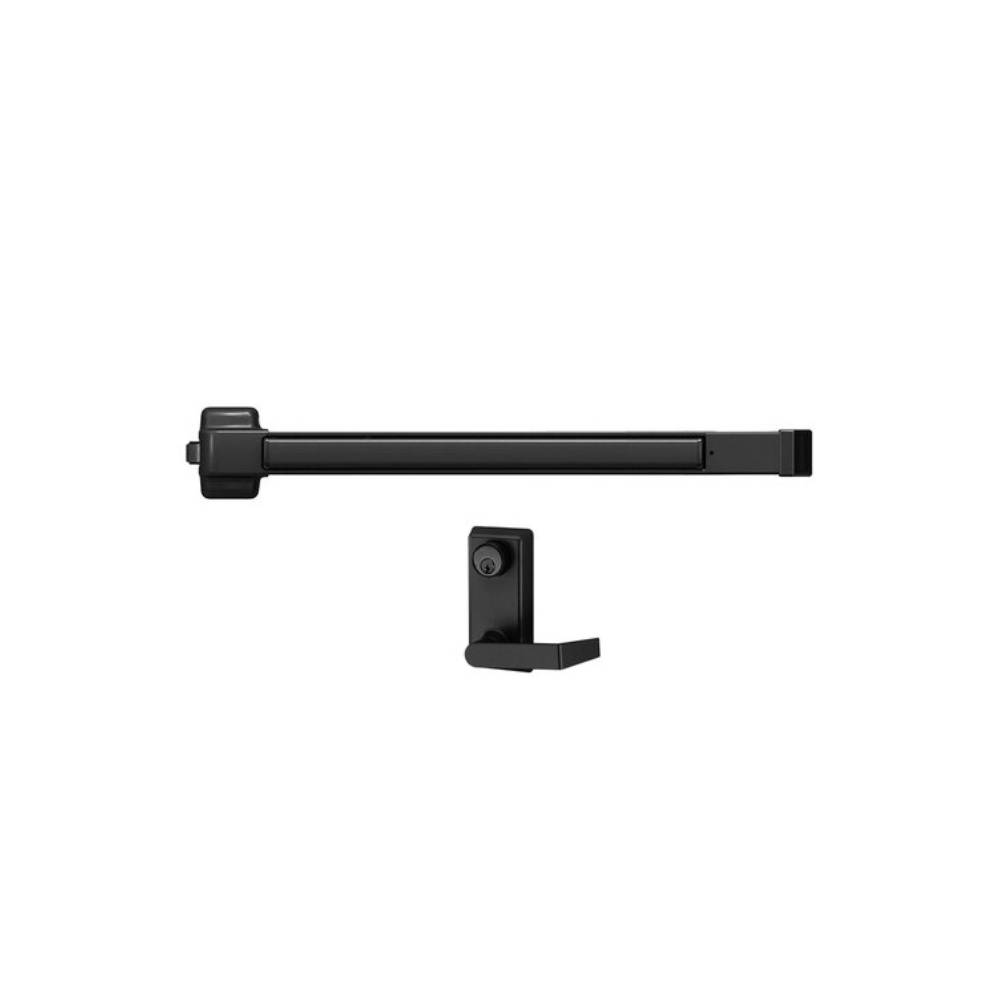

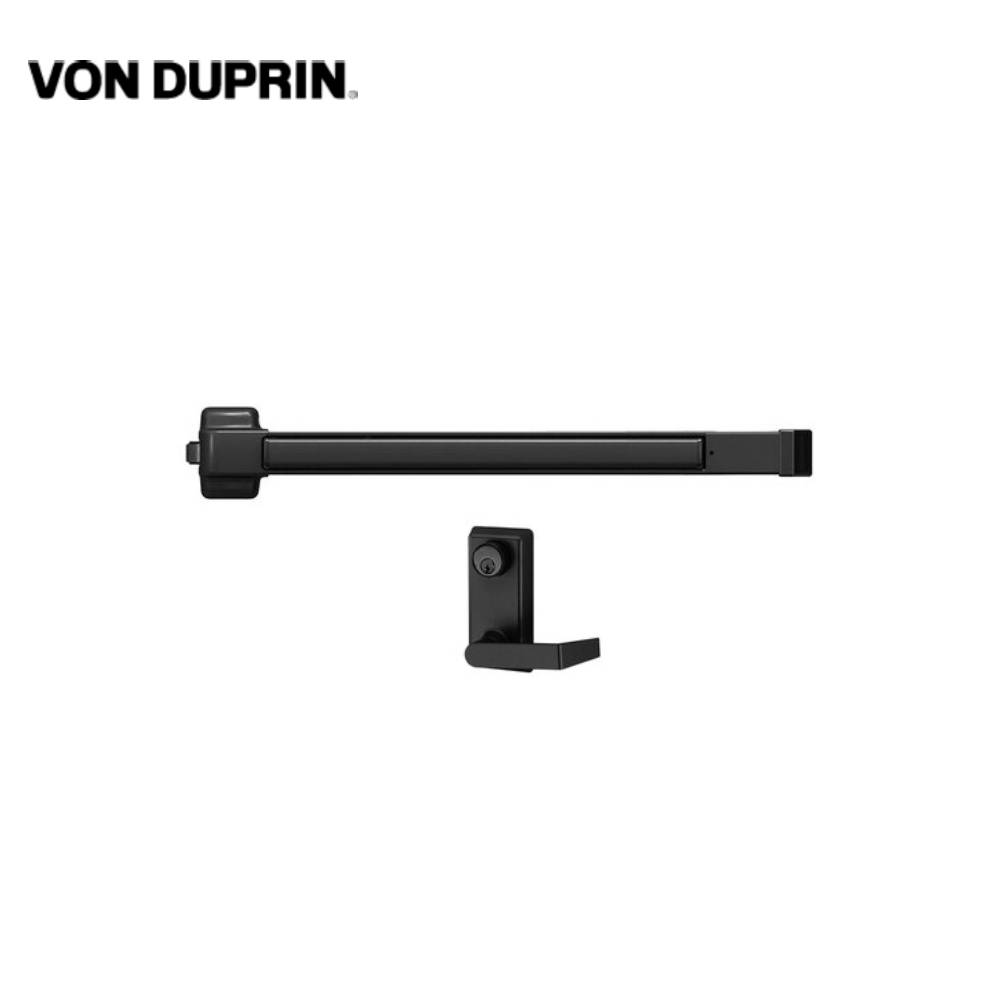

Von Duprin - 22L-06-3-689-RHR - Rim Exit Device with Trim Lever - 36" - Wide Stile Pushpad - Classroom Function - Aluminum Painted Finish - Grade 1
The 22 Series is well constructed from heavy gauge rolled steel section with the proven heavy duty touch bar mechanism that has been used so successfully in all architectural grade Von Duprin touch bar devices. The 22 Rim exit device is the economical alternative, incorporating a modern touch bar styling for all types of single and double doors with mullion and the hardware is UL listed for panic exit hardware.
Features:
- Device functions: Ships ready for all functions, EO, DT, NL, TP, K, L
- Device lengths: 3' (914 mm), 4' (1219 mm)
- Device centerline from finished floor: 39 13/16" (1011 mm) 39 11/16" (1008 mm) with mullion
- Center case dimensions: 4 1/4" (108 mm) x 1 3/8" (41 mm) x 2 3/8" (60 mm)
- Mechanism case dimensions: 2" (51 mm) x 3 3/4" (95 mm)
- Projection push bar: Push bar neutral - 3 3/4" (95 mm) push bar depressed - 3" (76 mm)
- Latch bolt: Deadlocking, 3 /4" (19 mm) throw
- Fasteners sex bolts (SNB): Includes screw pack for 1 3/4" (44mm) and 2 1/4" (57mm) thick metal or wood doors. Optional SNB available
- Electric options: LX latchbolt monitor switch RX pushpad monitor switch RX2 double pushpad monitor switch ALK alarm exit kit CON Allegion Connect
- Mechanical options: GBK glass bead kit AX accessible device
- Dogging feature: Hex key dogging standard
- Dogging options: LD less dogging
- Strikes: 299 – Dull black
Product Specifications:
| Vendor | Allegion |
| Manufacturer | Von Duprin |
| SKU | 22L-06 3 689 RHR |
| UID | VON10022L063SP28 |
| Grade | Grade 1 |
| Installation | Commercial |
| Origin | USA |
| Unit of Measure | Each |
| ANSI Number | A156.3 2008 |
| Restrictions | No |
| BAA Qualified | Yes |
Technical Specifications:
| Physical Appearance | Wide Stile Pushpad |
| Device Type | Rim |
| Mechanical Function | Classroom |
| Device Length | 36" |
| Hand | Non-Handed |
| Dogging Options | Hex Key Dogging |
| Includes Trim | Yes |
| Trim Type | Lever |
| Trim Design | Lever with Escutcheon |
| Includes Cylinder(s) | No |
| Cylinder Type | 1-1/4" Mortise |
| Minimum Stile Size | 3-13/16" |
| Door Material | Metal or Wood |
| Door Width | 26-1/2" to 36" |
| Door Thickness | 1-3/4" to 2-1/4" |
| Reversible | Yes |
| Product Type | Rim Exit Devices |
