Trans-Atlantic - DL-DXML Series - Mortise Lock - Grade 1 - Brushed Chrome-US26D
$13799
$16559
Unit price
/
Unavailable
Shipping calculated at checkout.
Secure transactionCouldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
All orders are shipped between 24 hours or less Monday through Friday from 9:00 am to 6:00pm. Orders placed after 4 p.m. EST will be shipped next business day.
Learn more
Trans-Atlantic - DL-DXML Series - Mortise Lock - Grade 1 - Brushed ...
From
$13799
$16559
Unit price
/
Unavailable
Description
Description

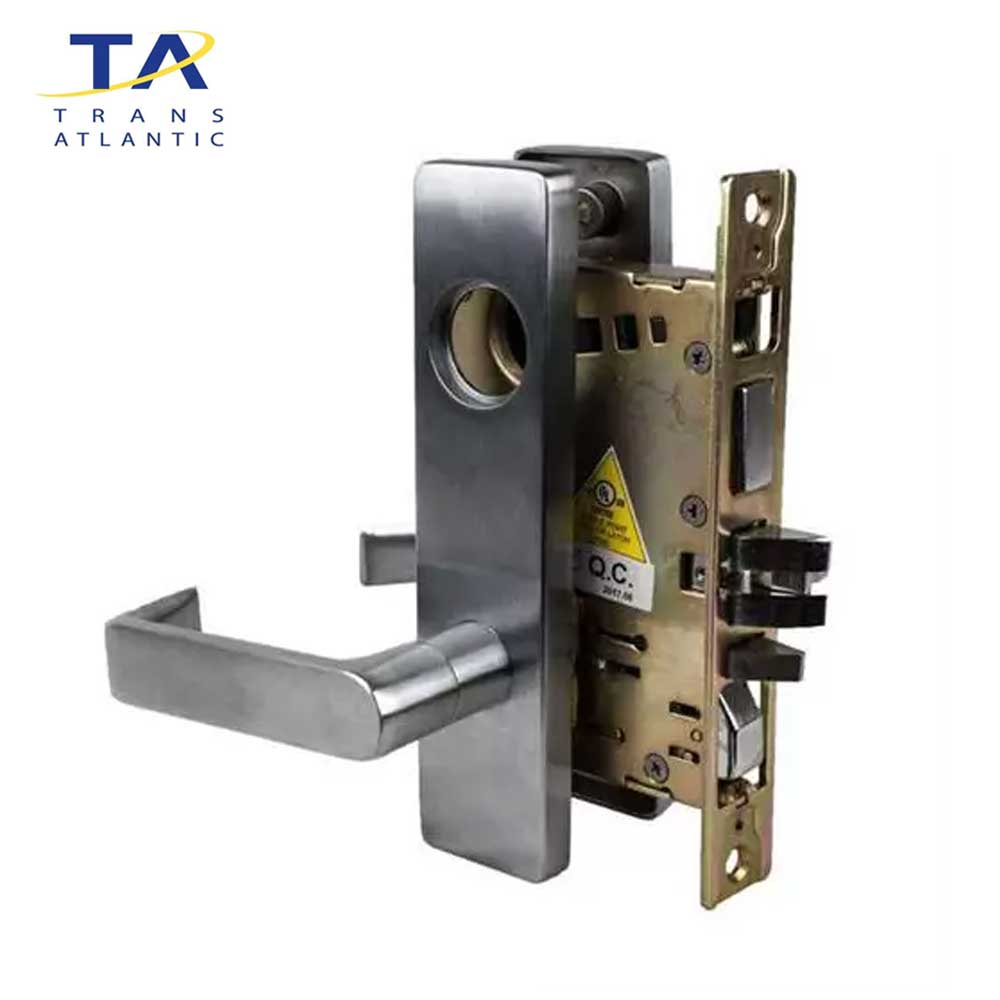

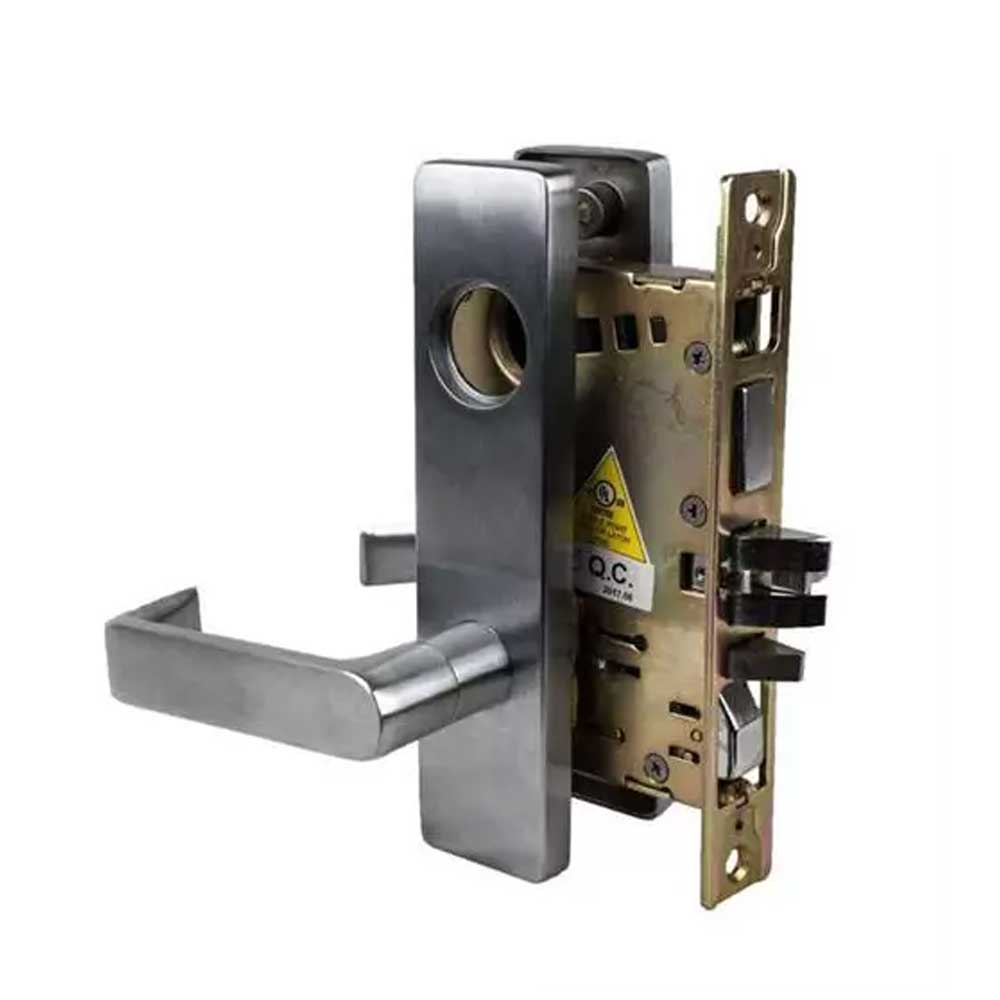

Trans-Atlantic - DL-DXML Series - Mortise Lock - Grade 1 - Brushed Chrome-US26D
The DL-DXML mortise lockset is designed for all heavy duty commercial and industrial applications. This series meets ADA handicap requirements and meets a 3 hour fire listing.
Specifications:
- Door Thickness: 1-3/4”
- Backset: 2-3/4"
- Face plate: 1-1/4" x 8"
- UL 3 Hour fire Listed Latch
- 1" Throw Bolt
- 1-1/8" Mortise Cylinder
- SC6 Schlage “C” 6 pin keyway
- Sectional and escutcheon trim available
- Barrier free levers and returns within 1/2" from door face
- Handed (must specify LH or RH) yet field reversible
- Dead or spring latch
- Levers to be SS or SE
- Warranty: 3 years Trim Specifications
- Heavy duty commercial; Grade 1

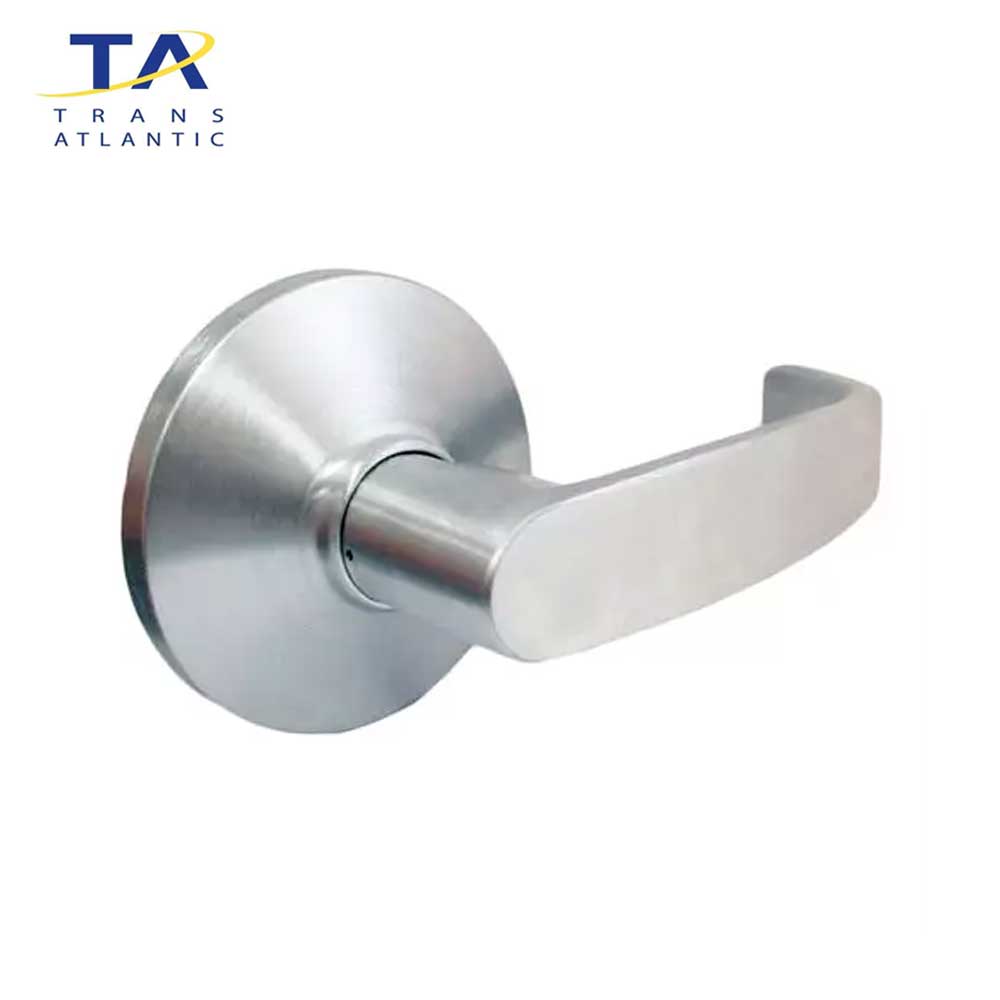

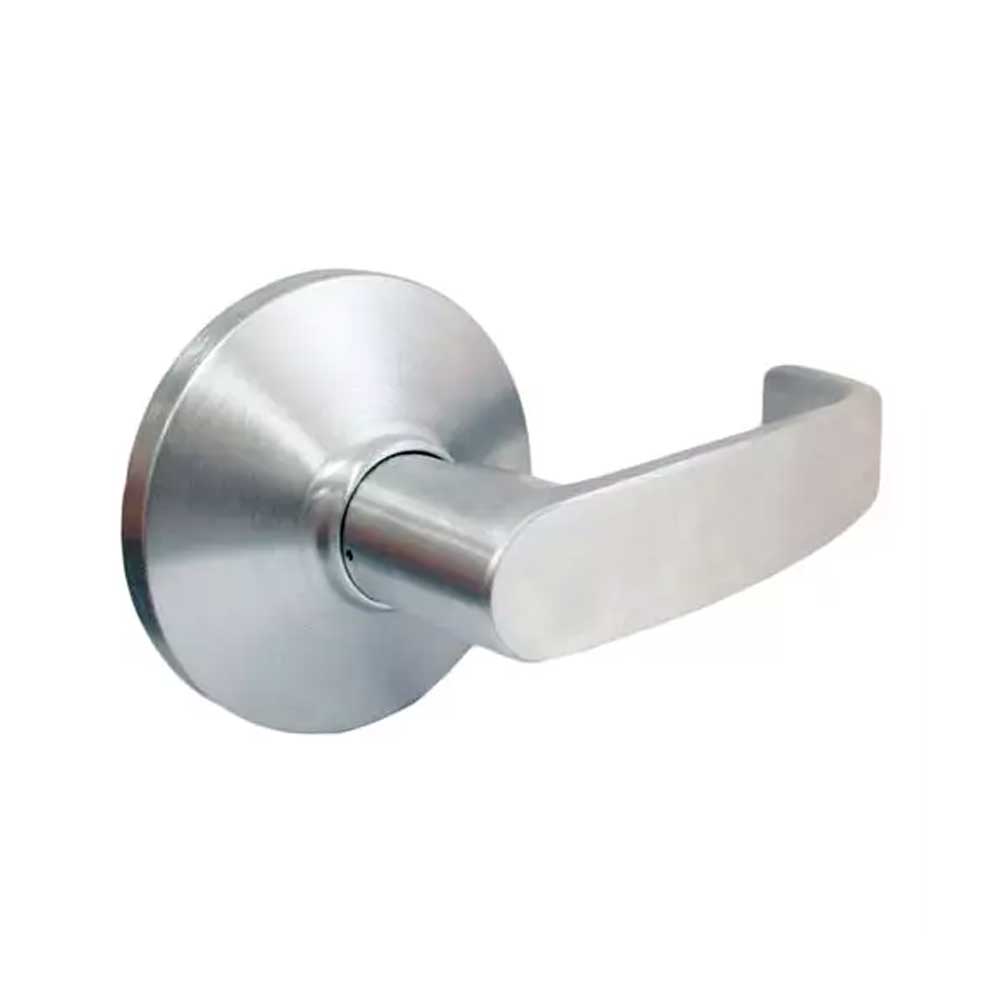

- DL-SS: Leverset; Solid Brass/Brushed Chrome-US26D
- DL-SE: Handleset; Solid Brass/Brushed Chrome-US26D
