SECO-LARM SR-2212-C5AQ Relay Modules - 12/24VDC Trigger Voltage, On...
Description
Description

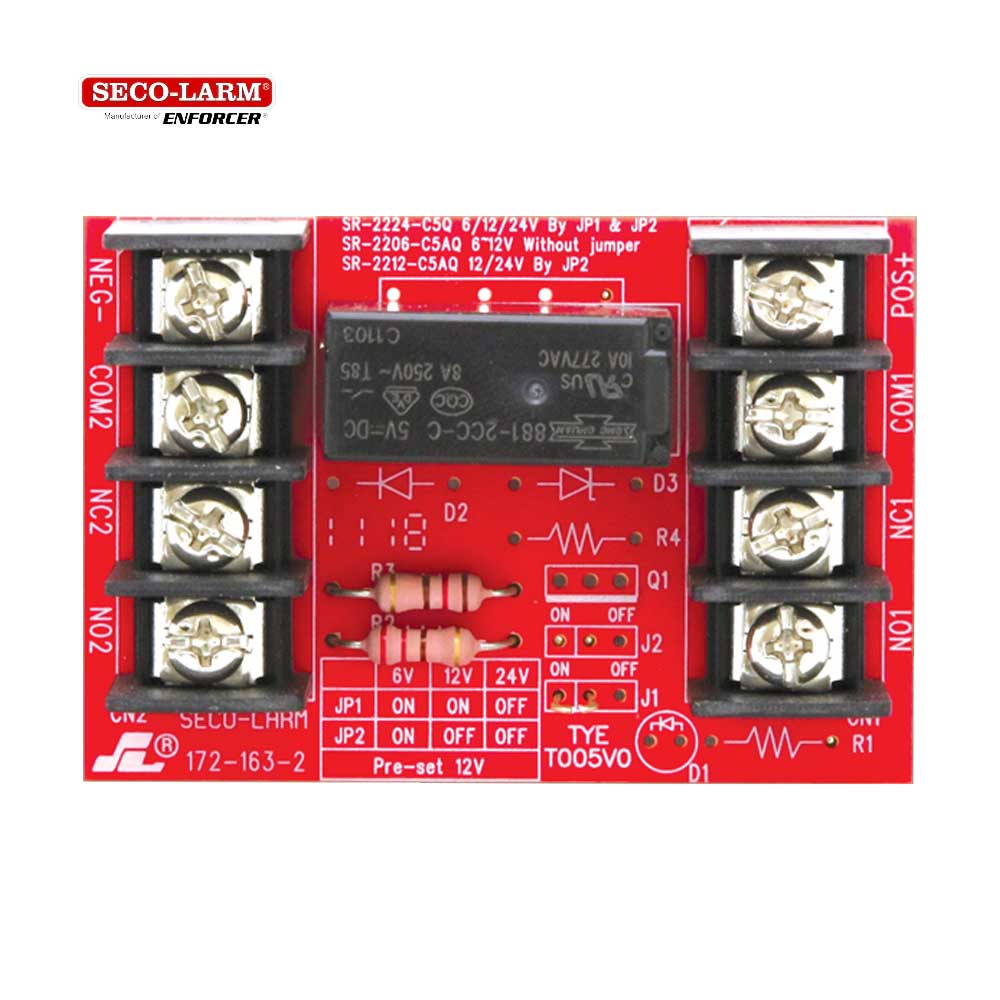

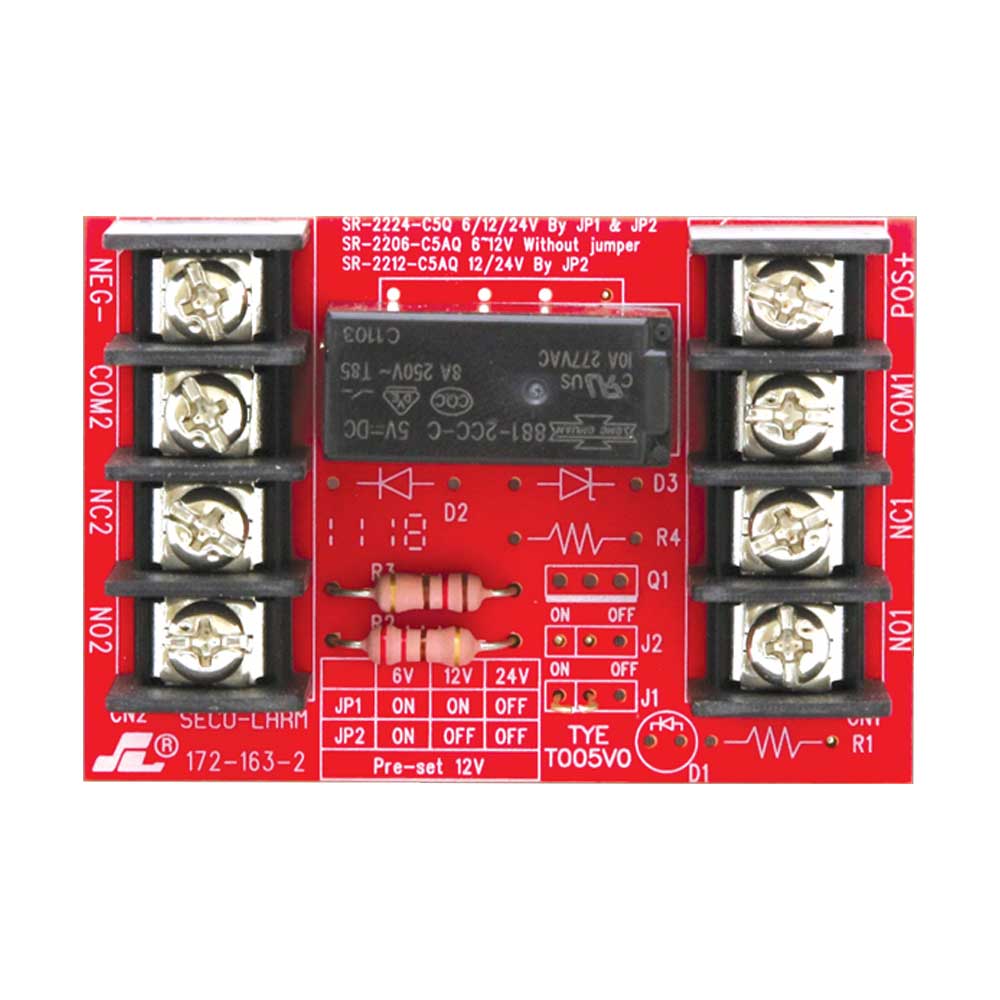

SECO-LARM SR-2212-C5AQ Relay Modules - 12/24VDC Trigger Voltage, One 5A Form C DPDT Relay
The SECO-LARM SR-2212-C5AQ Relay Modules are versatile and reliable components designed to provide flexible relay control in various applications. With a trigger voltage of 12/24VDC, these modules can be easily integrated into different systems, offering seamless compatibility. Each module features a 5A Form C DPDT relay, allowing it to handle both low and high-power switching tasks with ease. This dual-pole, double-throw relay configuration provides the flexibility to control multiple circuits or devices simultaneously. These relay modules are ideal for use in automation projects, security systems, or any application that requires efficient and dependable relay control for enhanced functionality and convenience. Their robust design and performance make them a valuable addition to any electronic setup, ensuring reliable and precise switching operations.
Features:
- 12/24VDC Trigger Voltage, One 5A Form C DPDT Relay
- For any application where relays are required
- Pre-wired to easy-to-install modules
- Screw terminals allow easy installation without soldering or other time-consuming connections
- Wide-selection of additional relays is available: Choose single or dual relays, low-current or heavy-duty operation, and high-sensitivity or normal-sensitivity
Specifications:
| Operating Voltage | 12/24 VDC |
| Trigger Voltage | 12/24 VDC |
| Voltage Selection | Jumper |
| Relay Type | DPDT |
| Relay Ratings | 5A |
| No. of Relays | 1 |
| Current Draw | 70mA@12/24VDC |
| Dimensions | 2-3/4″ x 1-7/8″ x 3/4″ (70 x 48 x 20 mm) |
| Weight | 2-oz (55g) |
