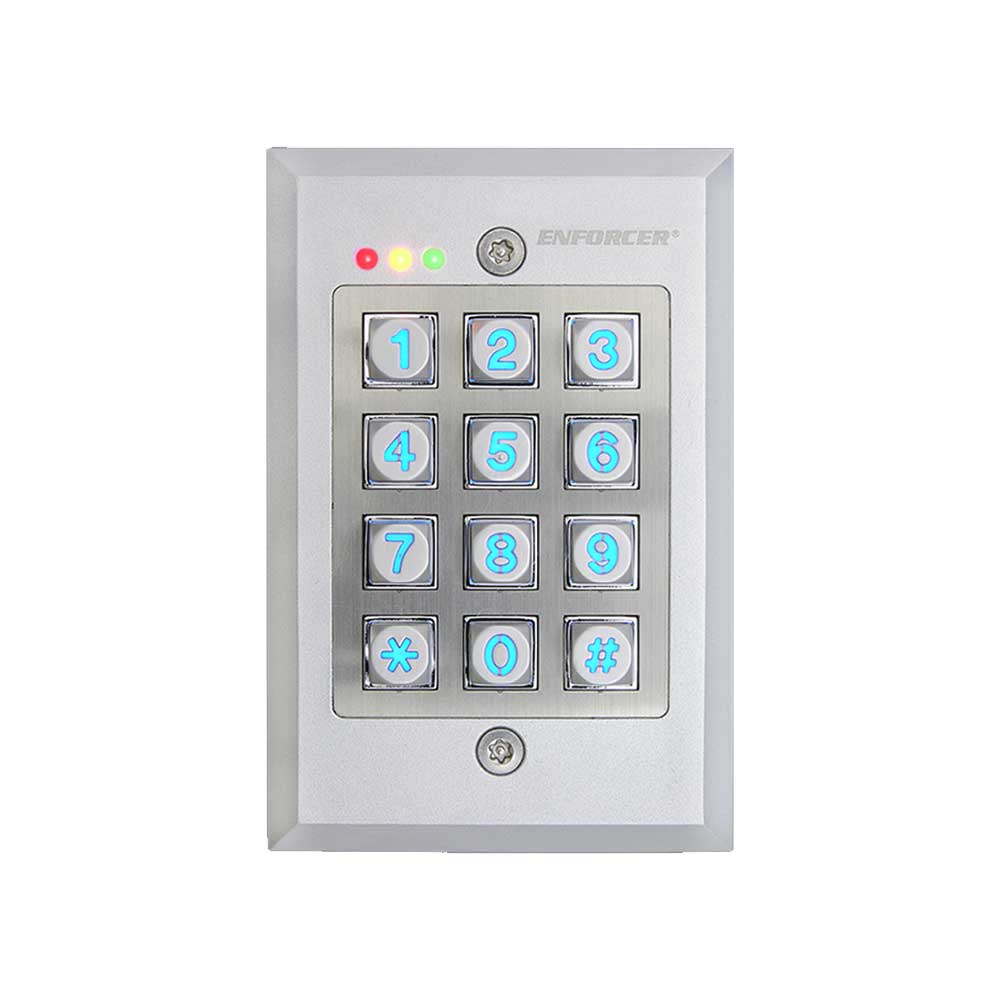

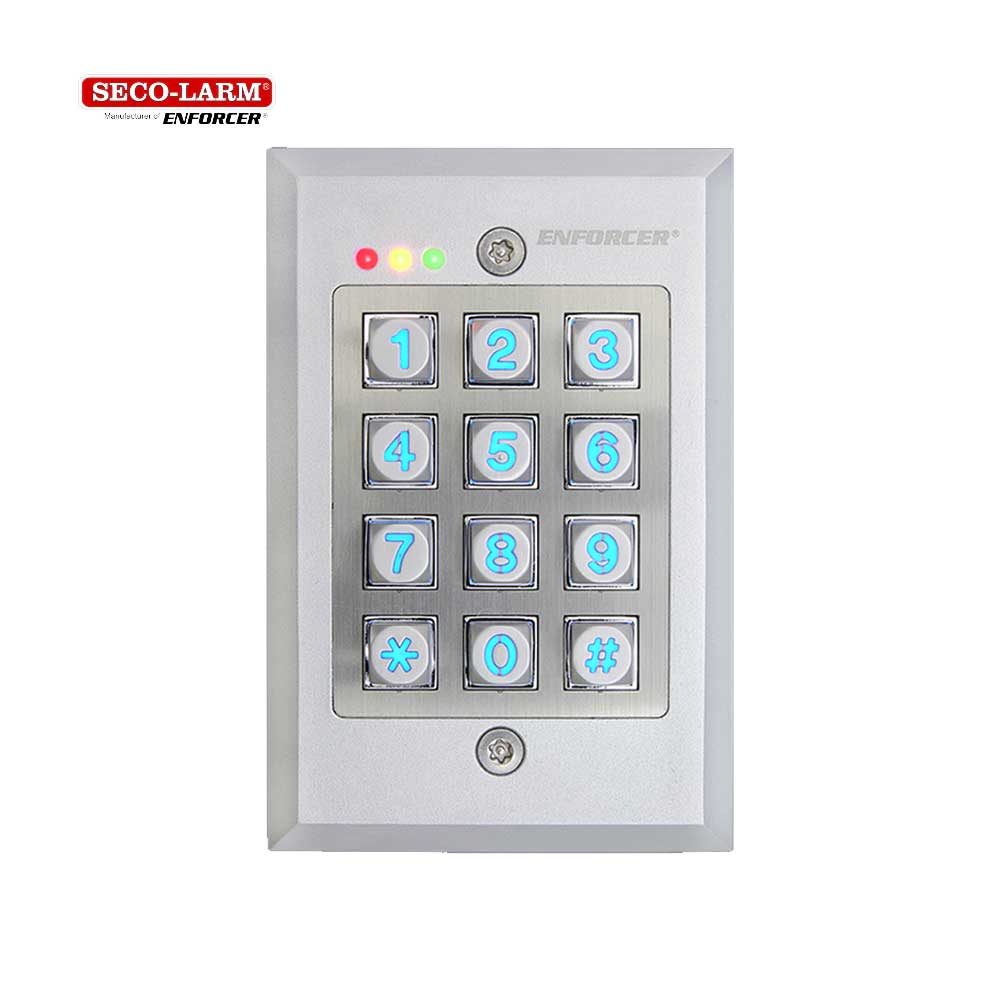

SECO-LARM SK-1123-FDQ Vandal Resistant Flush-Mount Access Control Keypad

Name: SECO-LARM SK-1123-FDQ Vandal Resistant Flush-Mount Access Control Keypad
Brand: SECO-LARM
SKU: SECO-SK-1123-FDQ
Price: 108.75 USD
Availability: InStock

$108⁷⁵ ~~$141²³~~

Shipping calculated at checkout.

Secure transaction

Pickup available at MIAMI MAIN WAREHOUSE

Usually ready in 1 hour

Found a better price? Call for Price Match!
Shop with confidence knowing you’re getting the best deal.

Delivery and Shipping

All orders are shipped between 24 hours or less Monday through Friday from 9:00 am to 6:00pm. Orders placed after 5 p.m. EST will be shipped next business day.
Learn more

Return Policy

At Locksmith Keyless, we prioritize your satisfaction and offer a simple return process. Returns are accepted within 30 days of purchase for unused items in original packaging. Certain items, including OEM keys, Lishi tools, and customized orders, are non-returnable. A restocking fee of up to 30% may apply. For a full list of non-returnable items and more details, please refer to our complete return policy.

For damaged, missing, or incorrect items, please contact us within 48 hours of delivery. All returns require an RMA number. Shipping costs for returns are the responsibility of the customer.

View Full Return Policy

Description

SECO-LARM SK-1123-FDQ Vandal Resistant Flush-Mount Access Control Keypad

Feature:

12~24 VAC/VDC auto-adjusting operation
Up to 1,000 possible user codes (000~999) programmable for output #1 and 100 (001~100) for output #2
Up to 50 (01~50) possible temporary visitor codes, which can be programmed for one-time or limited-time use (1~99 hours)
Output #1: Form C relay, 1A@30VDC max.
Output #2: Transistor ground, 100mA@24VDC
Outputs #1 and #2 can be programmed to activate for up to 99,999 seconds (nearly 28 hours)
Tamper output: N.C. Dry contact, 50mA@24VDC max
Mounts to standard single-gang back box
IP66 Weatherproof rating
Keypad illuminates when a button is pressed; back-light can be programmed for FULL or AUTO in standby mode
All features are programmed directly from the keypad: No need for an external programmer
EEPROM Memory protects programmed information in case of power loss
Up to 50 (01~50) duress codes for output #1, 10 (01~10) for output #2
Duress code signals a silent alarm if an authorized user is forced to open the door under duress
Egress input lets users exit the premises without keying in the code
Door sensor input for anti-tailgating operation
Interlocking input for connecting to a second keypad

Specifications:

Operating Voltage	12~24 VDC/VAC
Current Draw – Standby	15mA@12VDC
Current Draw – Keypress	40mA@12VDC
Current Draw – Output 1 Active	65mA@12VDC
Current Draw – Output 1 & 2 Active	66mA@12VDC
Current Draw – Total Max	100mA@12VDC
Output- #2 Transistor Ground	100mA@24VDC
Output 1	1A@30VDC
Output – Duress	100mA@24VDC
Output – Interlock	100mA@24VDC
Output- Tamper	50mA@24VDC
IP Rating	Weatherproof IP66
Input – Egress	N.O. Ground
Input – Door Sensor	N.C. Ground
Input – Door Inhibit	N.O. Ground
Operating Temperature	-4°~158° F (-20°~70° C)
Operating Humidity	5~95% Non-condensing
Dimensions	4-3/4″x3-1/8″x1-13/16″ (120x80x46mm)
Weight	16.2-oz (300g)
