Sargent | SKU: SAR-8204-LNL-BSP

Sargent - 8204 - Storeroom Mortise Lock with 2-3/4 Inch Backset and 4-7/8 Inch ANSI Strike - L Lever - LN Rose - LA Keyway - Grade 1 - Optional Color

$715⁹⁵ ~~$830⁵⁰~~

Shipping calculated at checkout.

Color: BSP (Black Suede Powder Coat)

Sargent - 8204 - Storeroom Mortise Lock with 2-3/4 Inch Backset and 4-7/8 Inch ANSI Strike - L Lever - LN Rose - LA Keyway - Grade 1 - Optional Color

Product variants

Secure transaction

Found a better price? Call for Price Match!
Shop with confidence knowing you’re getting the best deal.

Delivery and Shipping

All orders are shipped between 24 hours or less Monday through Friday from 9:00 am to 6:00pm. Orders placed after 5 p.m. EST will be shipped next business day.
Learn more

Return Policy

At Locksmith Keyless, we prioritize your satisfaction and offer a simple return process. Returns are accepted within 30 days of purchase for unused items in original packaging. Certain items, including OEM keys, Lishi tools, and customized orders, are non-returnable. A restocking fee of up to 30% may apply. For a full list of non-returnable items and more details, please refer to our complete return policy.

For damaged, missing, or incorrect items, please contact us within 48 hours of delivery. All returns require an RMA number. Shipping costs for returns are the responsibility of the customer.

View Full Return Policy

Description

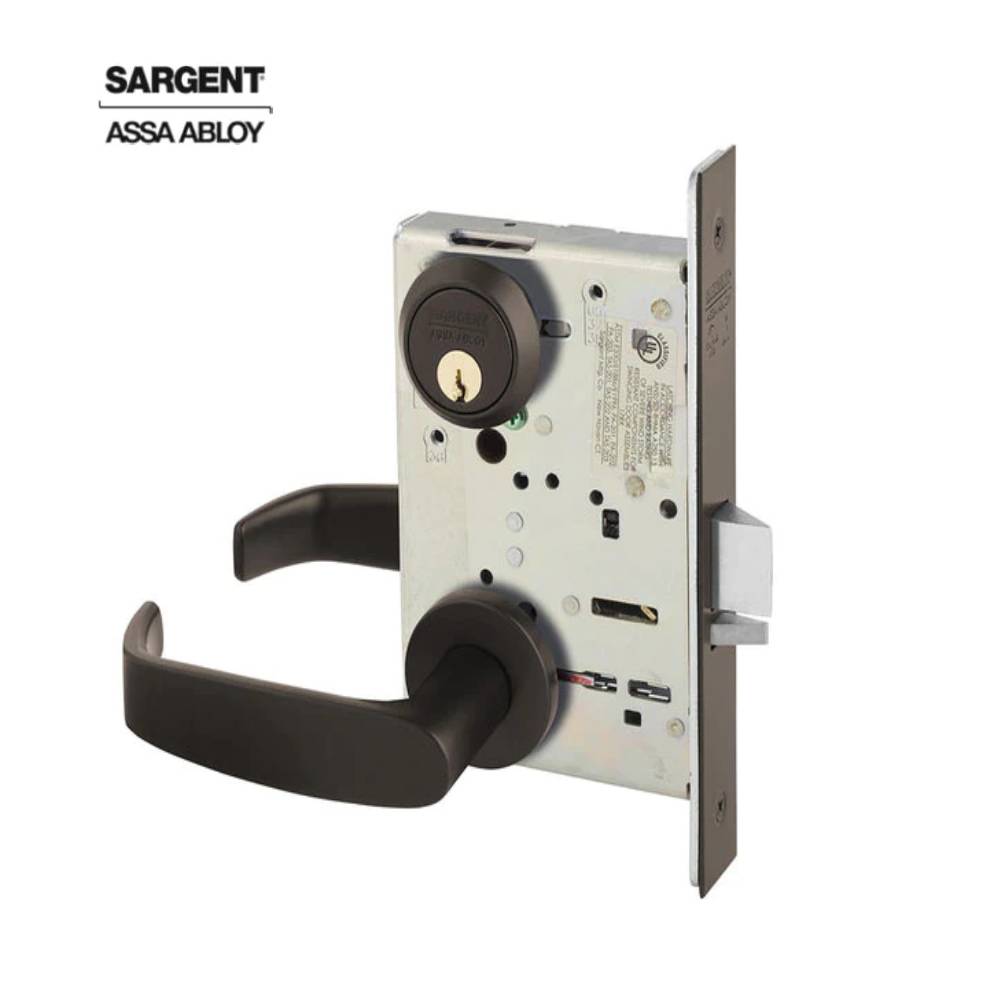

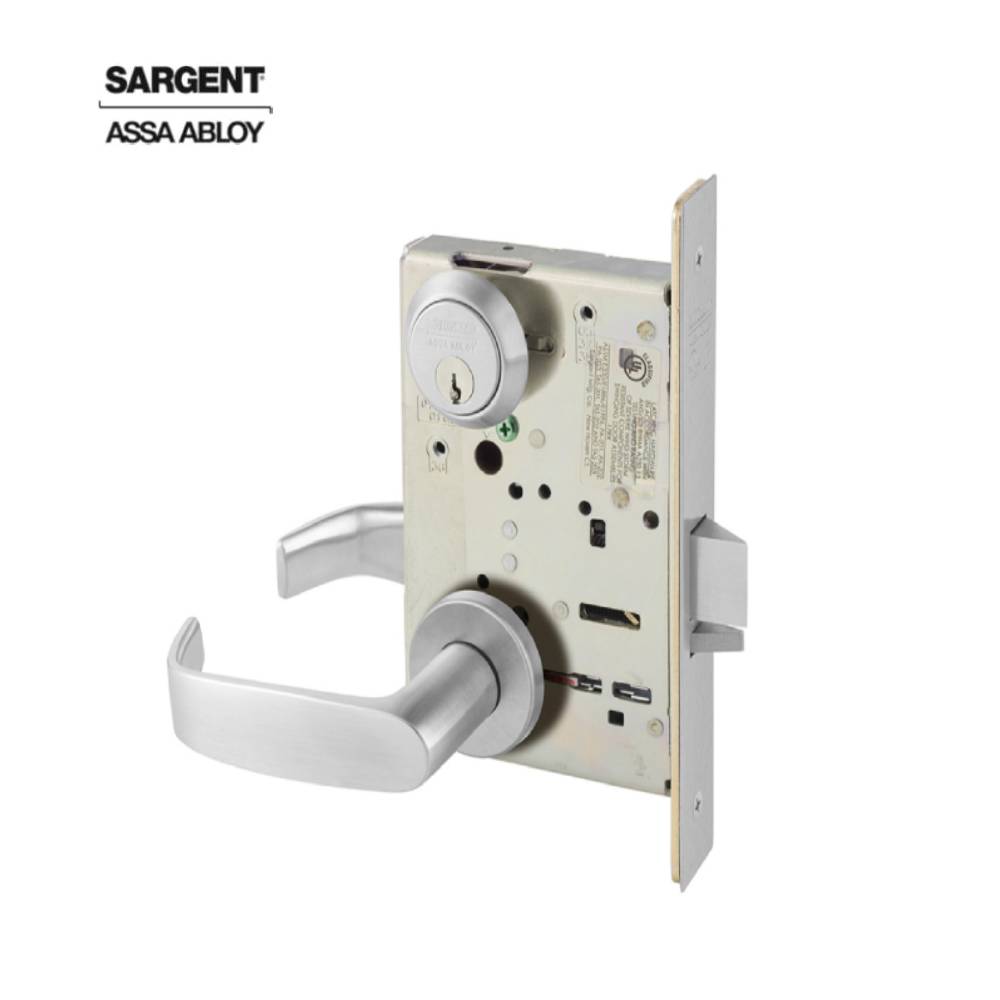

Sargent - 8204 - Storeroom Mortise Lock with 2-3/4" Backset and 4-7/8" ANSI Strike - L Lever - LN Rose - LA Keyway - Grade 1 - Optional Color

The 8200 Series mortise lock is designed and constructed with the highest quality components to provide maximum security, performance, and durability, making it the strongest lock on the block. Considered the industry benchmark for all mortise locks on the market today, the robust lock is an attractive solution with a multitude of lever and escutcheon styles available.

With its innovative, multi-functional lock body, the 8200 Series Mortise Lock, is considered the industry benchmark for all mortise locks on the market today. It is also the strongest and most durable far surpassing ANSI/BHMA A156.13 Series 1000 Grade 1 standards in independently verified testing for additional resistance against vandalism and unauthorized entry.

Feature:

ANSI/BHMA Grade 1 certified for cycle and strength requirements
UL-cUL listed for 3 hour fire fdoors and windstorm applications
Thru-bolted lever trim and strengthened cylinder retainer
Available with security key systems (Degree, Signature, KESO, and XC)
Available in 58 different functions, including electromechanical, security (freewheeling, security escutcheon, anti-vandal pull trim) and monitoring
6 lever designs, 2 roses/escutcheons designs, and 14 architectural finishes offered
Available with behavioral health trim
Patented design and construction

Product Specifications:

Manufacturer	Sargent
SKU	8204 LNL BSP 8204 LNL 26D 8204 LNL 10BE
UID	SAR8204LNLBSP SAR1008204LNL26D SAR8204LNL10BE
Grade	Grade 1
Origin	USA
Unit of Measure	Each
BAA Qualified	Yes
Fire Rated	2 Hours {B}
Finish	BSP US26D US10BE

Technical Specifications:

Function	04-Storeroom or Closet
ANSI Function	F07 - Storeroom/Exit
Lever/Knob Design	L - Lever
Rose/Escutcheon Design	LN - Rose
Cylinder Type	Conventional Cylinder
Num Pins	6
Std. Keyway	LA
Keying	Keyed Different
Key(s)	Cut
Num of Keys	2
Handing	Field Reversible
Door Thickness	1-3/4 In.
Std. Latch Type	Dead Latch (Guarded)
Std. Latch Backset Dim	2-3/4 In.
Lock Face Size	8 In. x 1-1/4 In.
Bolt Projection	3/4 In. Latch
Std. Strike Number	82-0110
Std. Strike Type	ASA Strike
Std. Strike Height	4-7/8 In.
Std. Strike Width	1-1/4 In.
Screws	Combination
Product Type	Mortise Lock
