Rosslare | SKU:
RSL-MD-W11GR
39% off

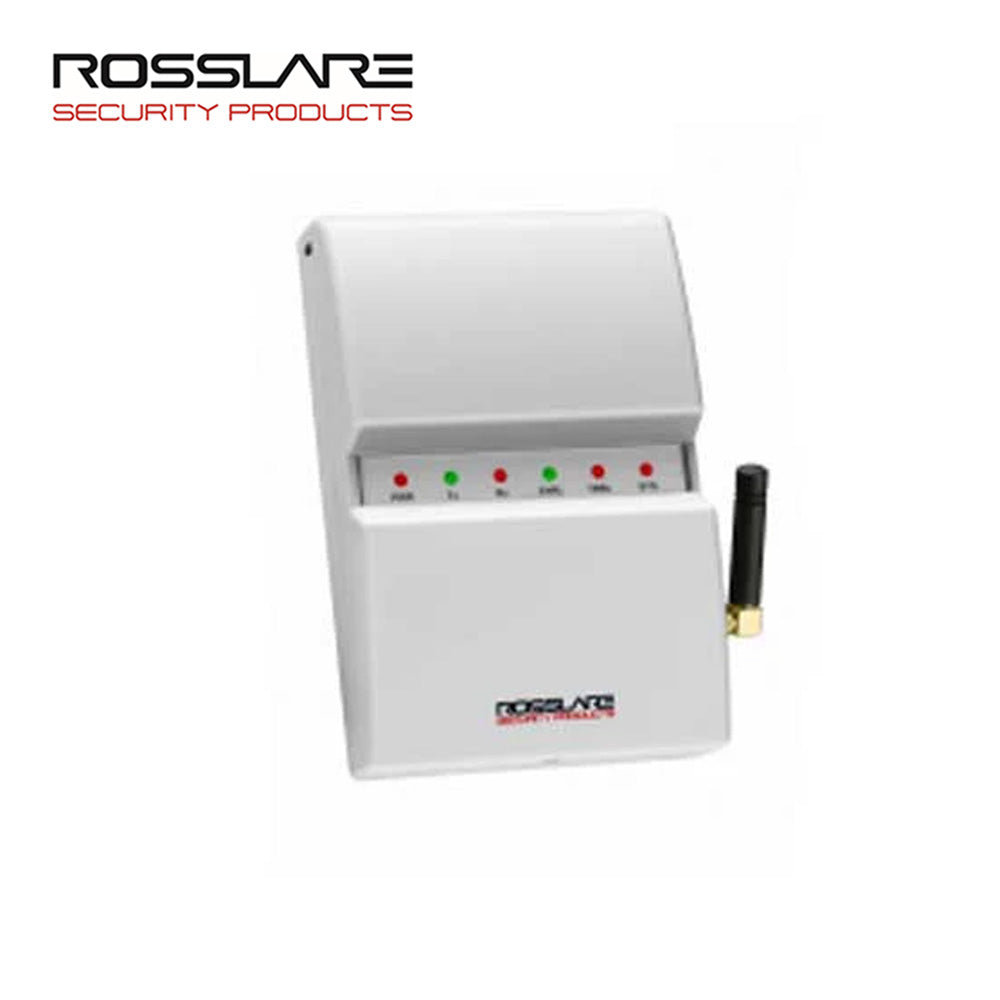

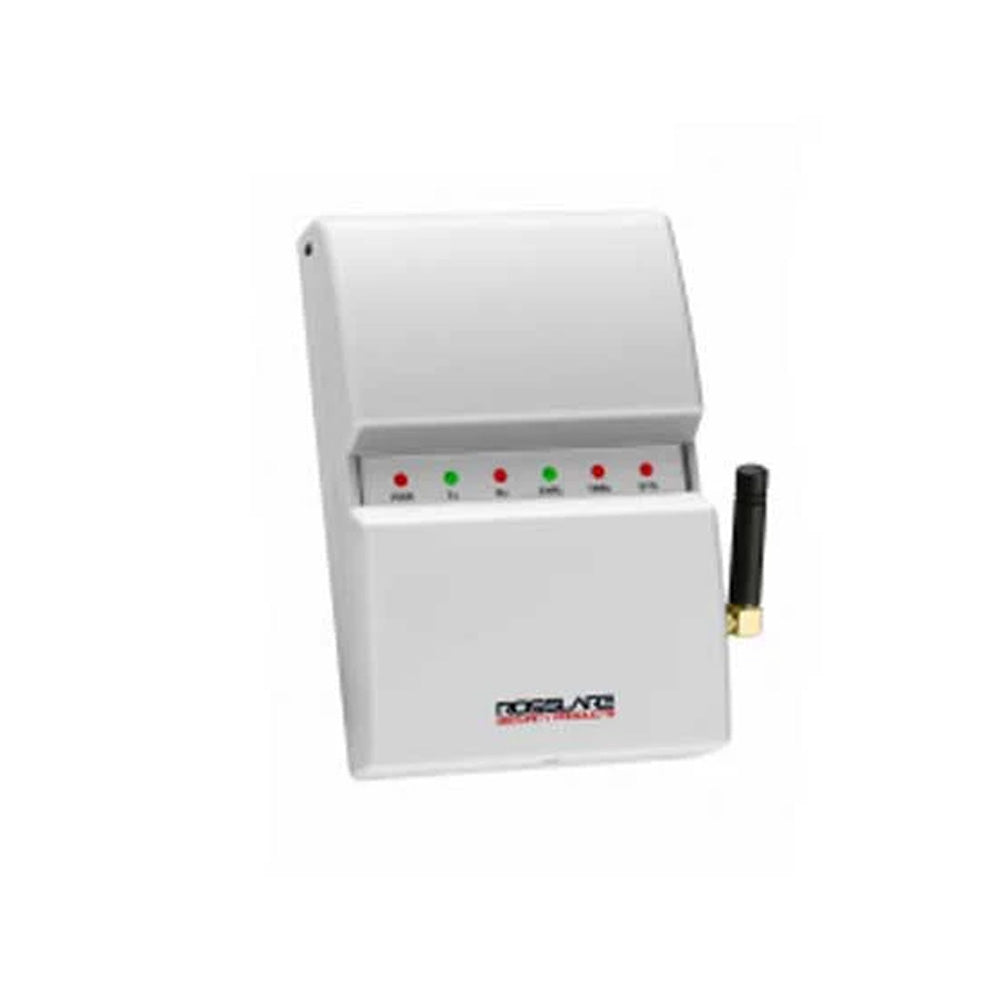

Rosslare - MD-W11GR - Wireless Access Control for 24V Power Supply
$61070
$1,00766
Unit price
/
Unavailable
Shipping calculated at checkout.
Secure transactionCouldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
All orders are shipped between 24 hours or less Monday through Friday from 9:00 am to 6:00pm. Orders placed after 4 p.m. EST will be shipped next business day.Â
Learn more
Rosslare - MD-W11GR - Wireless Access Control for 24V Power Supply
$61070
$1,00766
Unit price
/
Unavailable
Description
Description
Rosslare - MD-W11GR - Wireless Access Control for 24V Power Supply
Features:
- Bi-directional RF data communication.
- Lock and door relay commands.
- Rolling Code to increase security.
- Supports PIN codes and card formats, such as Wiegand 26 bit, 32 bit, and PIN code 6 bit.
- Tamper, door monitor, and REx messages between the controller and the interface unit.
- Transfers proximity card information and LED control, reader tamper, lock relay commands, REx, and door monitor events between the coupled units.
- Four different RF channels to prevent collisions.
- Built-in charger for up to 12VDC, 7Ah backup battery on the Far unit.
- Suitable for indoor use.
- Available in 869 MHz (H) and 433.92 MHz (G) bands.
- The NEAR unit is powered from the controller's power supply. The FAR unit is powered by a local wall transformer. A built-in charger provides battery backup.
Specifications:
| Input Voltage | 12-24 AC / 15-24 VDC |
| Output Relays | 5A Form C relay |
| Max Range | 300 meters (985 feet) |
| Input Current | Standby: 70mAh Max: 160mA |
| Battery Charger | 12V sealed Lead-Acid, up to 7Ah (Far Unit) |
| Operating Environment | Indoor Use |
| Response Time | Up to 500ms with Rosslare's AC-215 controller and reader |
| Communications | Bi-directional RF, narrow band. Fast anti-collision, rolling code protocol with data protection |
| Operating Temperature | -10°C to 50°C (14°F to 122°F) |
| Dimensions | 13 x 8.7 x 3.2 cm / 5.1 x 3.42 x 1.26 inch |
Downloads:
