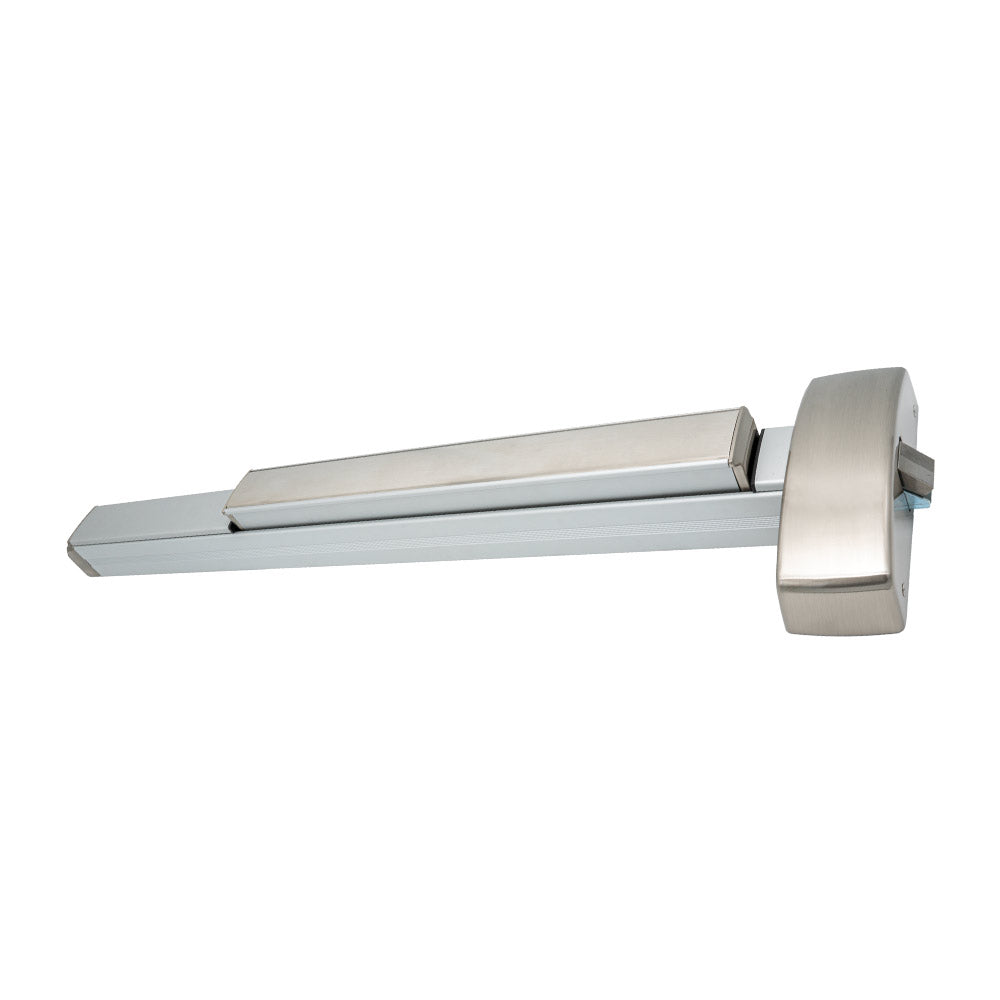

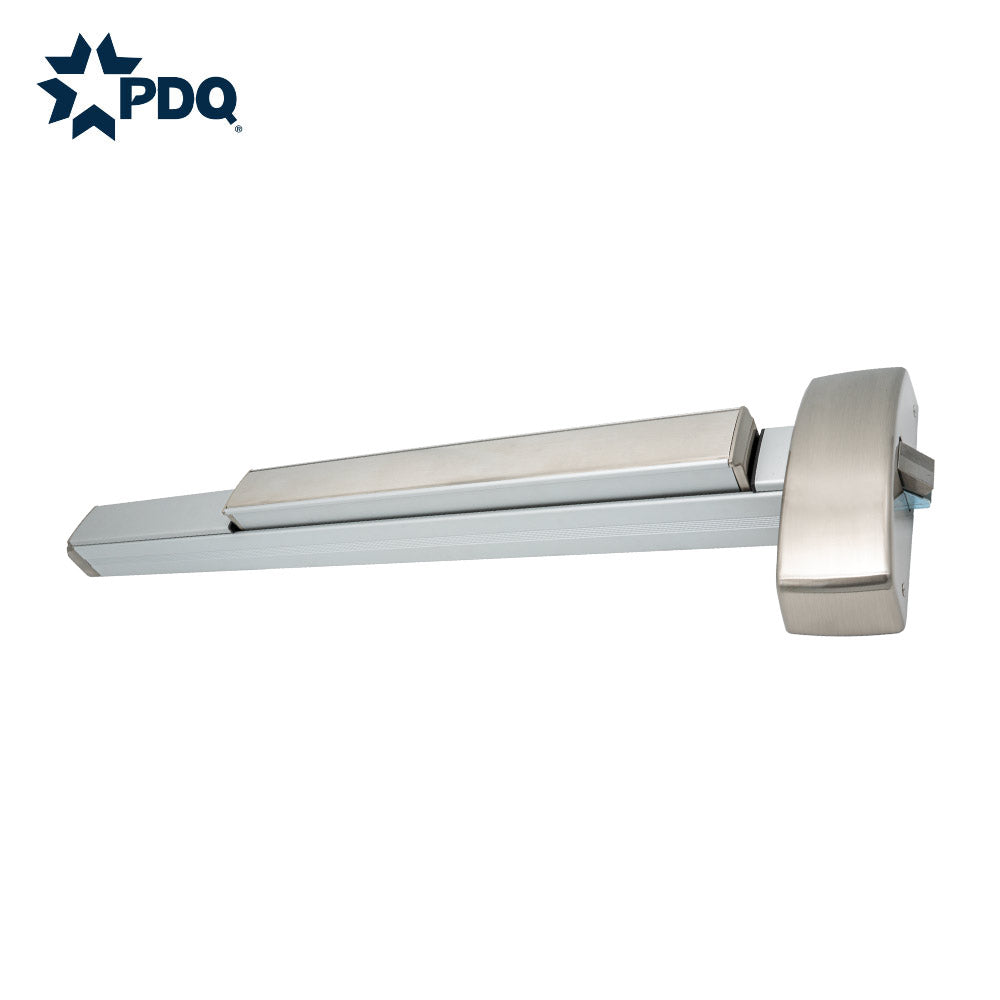

PDQ 6300R - Rim Exit Device with Wide Stile and SNB Included - 36" - Grade 1
The 6300R Wide Stile Rim Exit Device, a top-tier solution for secure egress. Engineered with a robust 3/4" Pullman latch, this 6300R rim panic device is ideal for high-traffic areas requiring reliable performance. Perfect for wide stile single door setups or for enhancing security in double door configurations with a mullion, this exit device ensures safety and ease of use.
Designed for seamless integration, the 6300R exit device combines durability with effortless operation, making it the go-to choice for commercial buildings. Its advanced construction provides superior strength and longevity, meeting rigorous safety standards while maintaining an unobtrusive aesthetic.
Features & Benefits:
- Features cast chassis support to enhances strength
- The cush spring ensures quiet operation in both directions
- The compression spring guarantees smooth touch bar return
- The heavy-duty flush end cap provides superior pry resistance
- Includes a standard roller strike for seamless functionality
- Available in 6 finishes: 605(US3), 606(US4), 613(US10B), 622(US19), 626(US26D), 630(US32D)
- The exit device is Patent Pending
Certifications:
- It's UL 305 certified
- It's UL 10C and CAN/ULC-S104 listed for 3-hour fire doors attest to its safety in both single doors up to 4' x 10' and double doors with mullions up to 8' x 8' (single egress pair).
- Certified to ANSI/BHMA A156.3 Grade 1 standards, this 6300R rim panic device surpasses industry expectations.
- Its FL #40297 ratings- +60/-65 psf for 16ga Single and +50/-50 psf for 18ga Single-underscore its structural integrity.
- Complies with ADA (Americans with Disabilities Act) and ICC/ANSI 117.1 regulations, ensuring accessibility and usability in diverse building environments.
Specification:
| Rail | Extruded aluminum Specify 630F for full stainless surfaces (roll formed) |
| Latch | Stainless steel dead locking with 3/4" throw |
| Hand | Device is non-handed Trim is non-handed or field reversible |
| Dogging | Hex key dogging standard Cylinder dogging optional Dogging not available for fire labeled devices |
| Minimum Stile Width | 6300 - 3-1/2" 6400 - 2-1/8" |
| Door Thickness | 1-3/4" - 2" (Consult factory for other) |
| Door Width | 24", 36", 48" standard |
| Door Height | Panic - Up to 10' Fire - See fire ratings charts in Product Digest |
| Strike | Default roller Blade stop Double door Windstorm/Fire Mullion - Panic Mullion uses standard roller strike |
| Finishes | 605 - Polished Brass 606 - Satin Brass 613E - Dark Oxidized Satin Bronze (Equivalent) 622 - Flat Black 626 - Satin Chrome 630 - Satin Stainless Steel 630F - Full Stainless Steel Optional Anti Microbial Coating available on 626 and 630 |
| Fasteners | Includes machine and wood screws SNB - Sex Nuts & Bolts Optional |
| Warranty | Ten (10) year limited warranty |
| Electrified Option | Motorized Latch Retraction Request to Exit/Signal Switch Alarmed Exit Latch Bolt Monitor ISMC Connectors Delayed Egress |
| Certifications, Listings, Compliances | Listed for UL 305 "Panic", listed for UL 10C "Fire Exit Hardware" up to 3 hours. Certified to ANSI/BHMA A156.3 Grade 1 FL #40297 +60/-65 psf 4080 16ga Single Compliances, Listings: FL #+50/-50 psf 4080 18ga Single Complies with ADA (Americans with Disabilities Act) and ICC/ANSI 117.1 for Accessible and Usable Buildings Meets requirements of the BAA as a COTS product manufactured in the United States |
