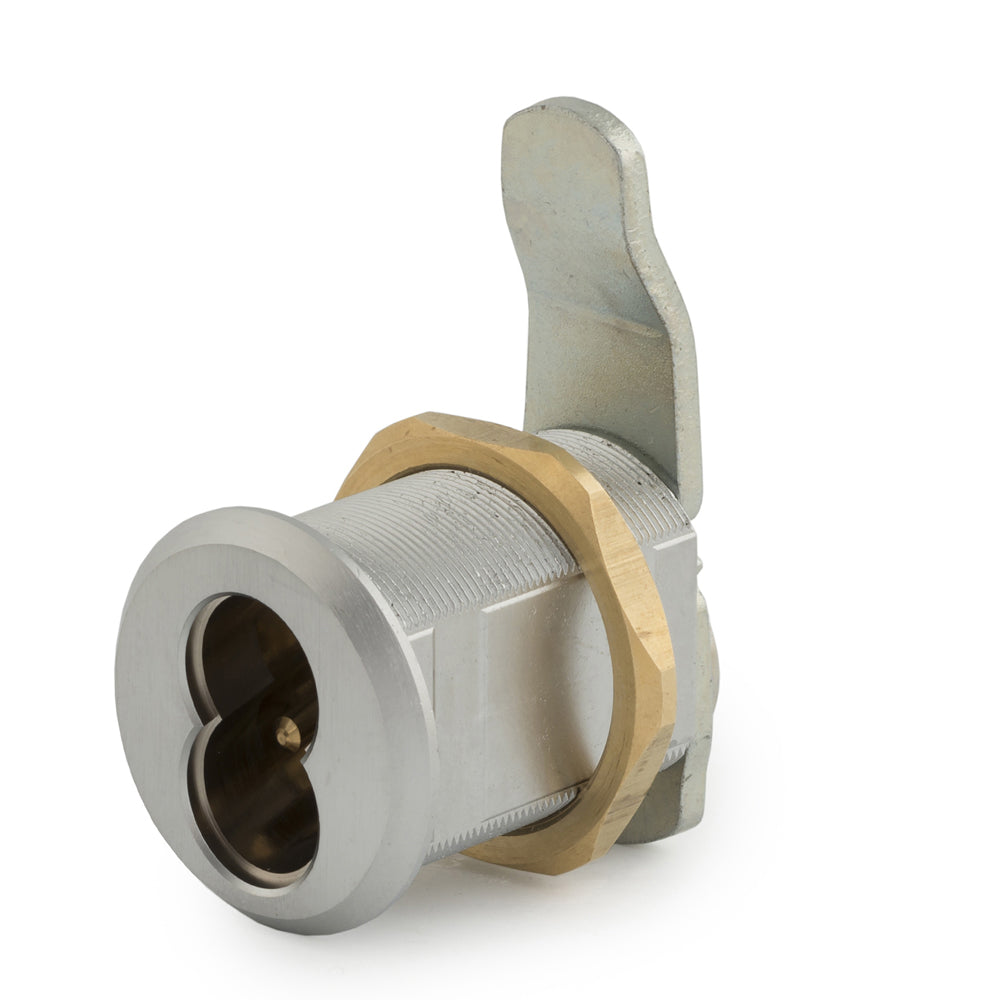

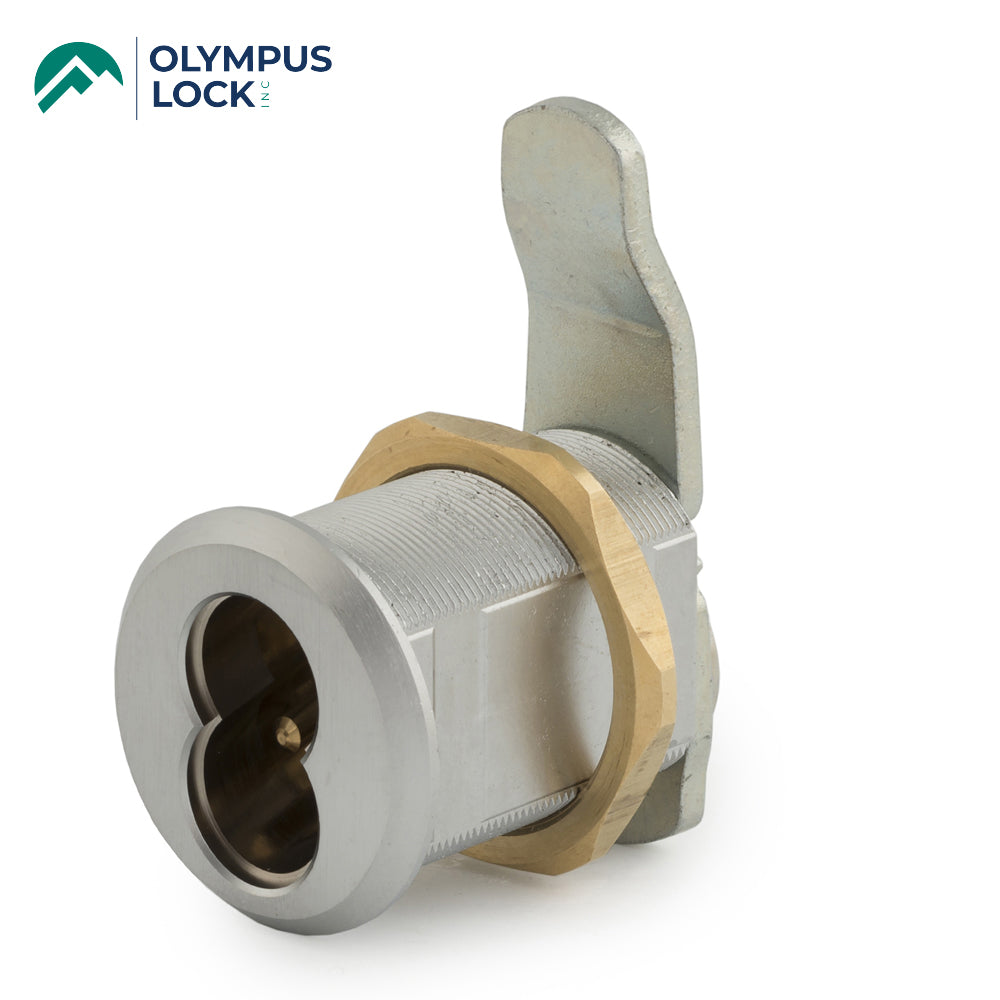

OLYMPUS LOCK - 720LM/DM - IC Core Cam Lock - BEST SFIC - 26D - Satin Chrome - Grade 1

OLYMPUS LOCK - 720LM/DM - IC Core Cam Lock - BEST SFIC - 26D - Satin Chrome - Grade 1

Interchangeable Core Best Compatible (Small Format) Cam Lock.

The Olympus Lock 720 cam lock will accept a Best Keyways interchangeable core allowing your cabinet locks to match the same key system as the rest of the facility. The 720LM/DM Cam Lock retrofits original Best part number 1E7E4. The lock will accept standard SFIC cores such as Best, Arrow, Falcon or equivalent.

SPECIFICATIONS

- Function Cam lock
- Retrofits Best 1E7E4
- Cylinder diameter 1-1/8"
- Across flats 7/8"
- Max. material thickness 1-1/8"
- Min. material thickness 0.08"
- Functions Includes parts for key-retaining or non-key-retaining function.
- Cam installation See PDF Link Below for full instructions
- Body Zinc die cast
- Mounting slot Vertical
- Bolt type Round spring bolt
- Finish 26D - Satin Chrome
- Cores Not Included
- Accepts Best, Arrow, Falcon, KSP, Schlage SFIC or equivalent small format interchangeable cores
Compatible electronic cylinders Medeco Nexgen XT or VIDEX CyberLock SFIC cylinders
- Includes:
- 725-PA plastic thumbturn
- 720-PL3 stabilizer plate
- 725-1 spacer to fit 6 or 7 pin cores
- 720-3-1 short inverted cam
- 720-3-2 long vertical cam
- 720-CDLM lost motion cam shifter
- 720-CDDM key retaining door cam shifter
- 720-KR key retaining drawer cam shifter

- Cerifications Passed ANSI/BHMA A156.11 Grade 1
performance requirements

Downloads
Spec Sheet / Dimensions

Installation Instructions
Cam Assembly Instructions
Cylinder Installation
