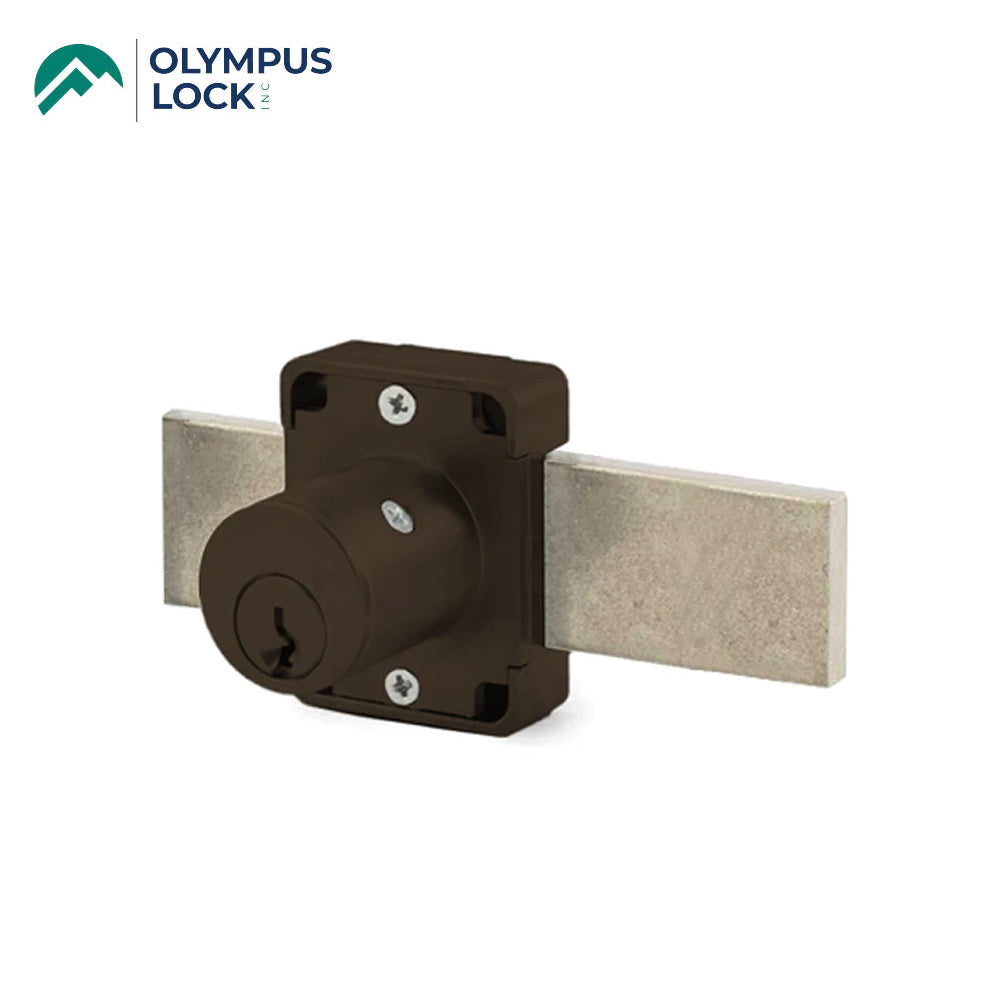

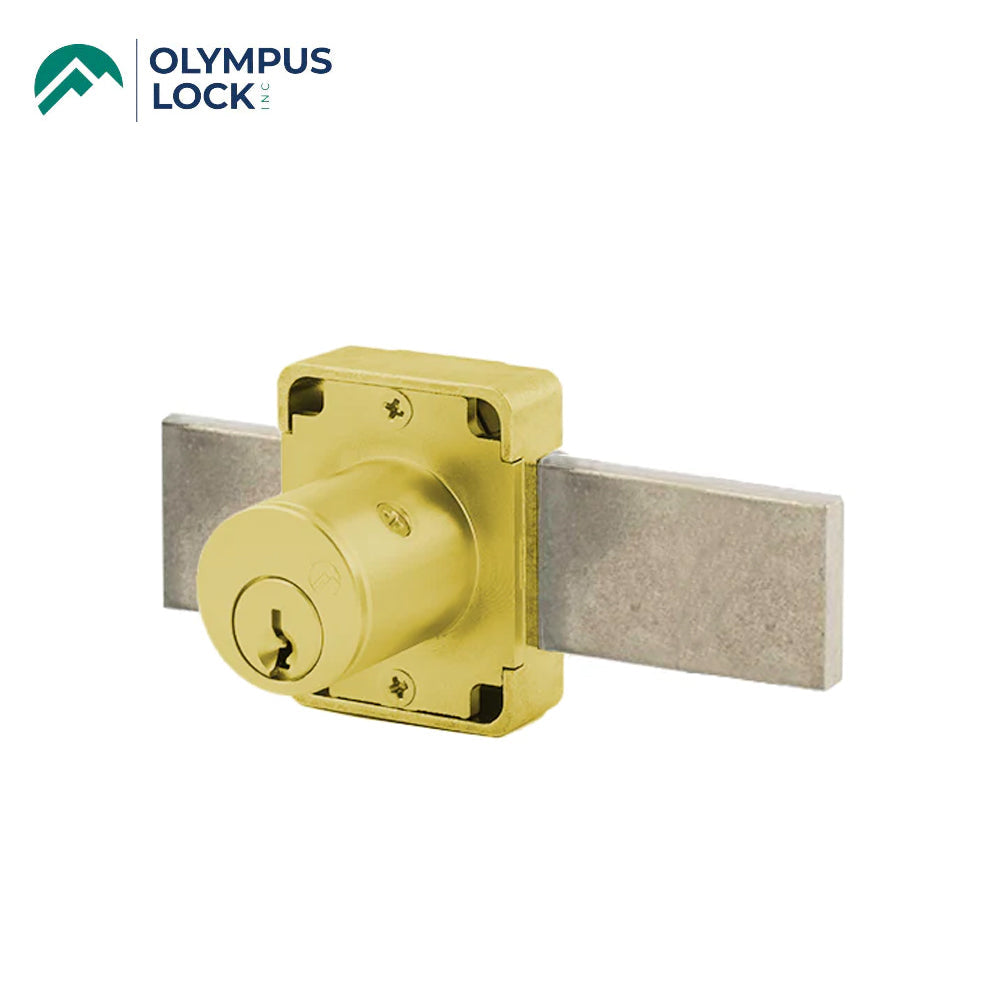

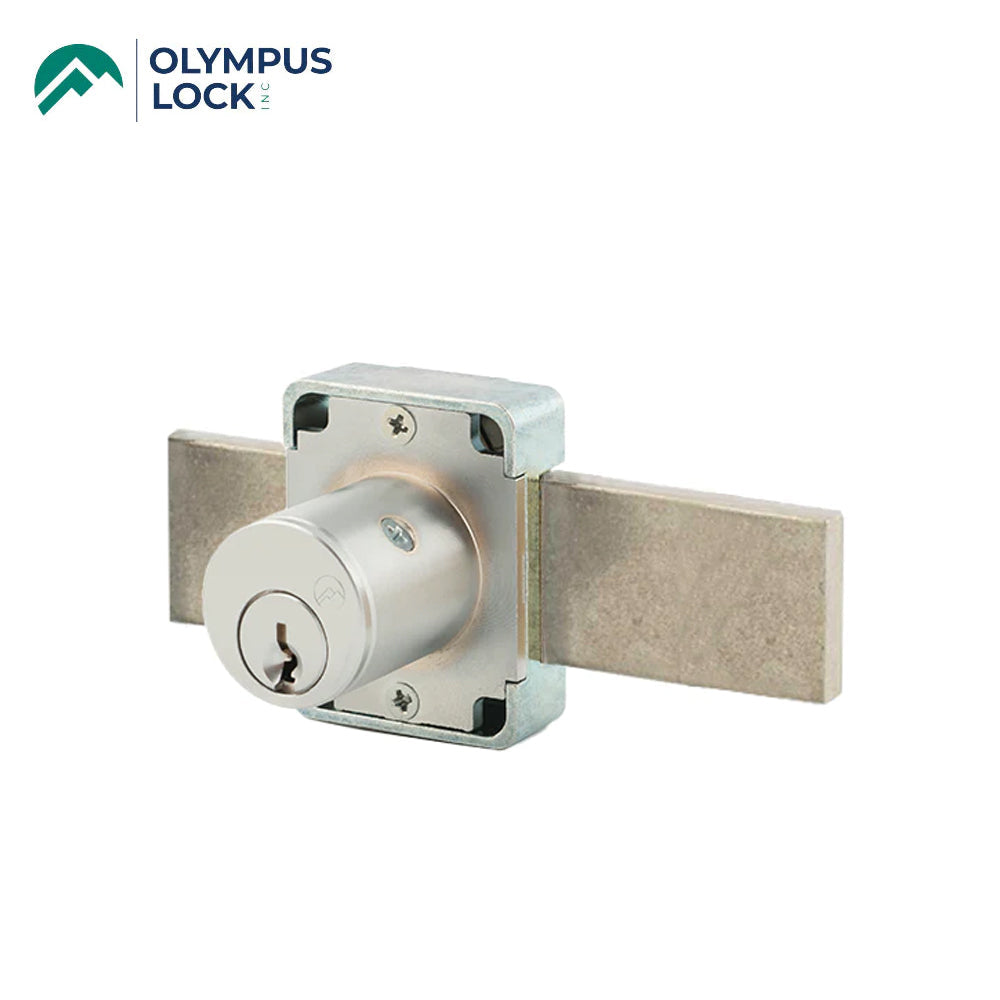

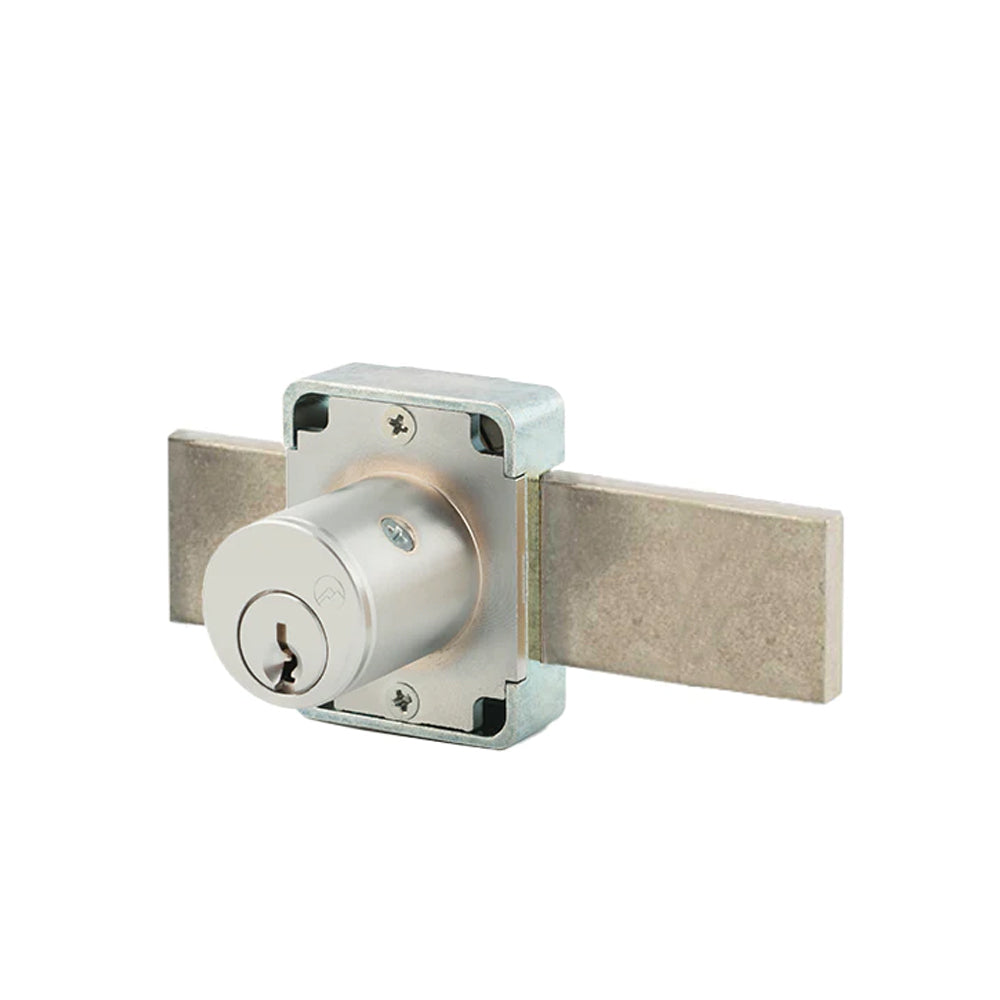

OLYMPUS LOCK - 500DR - Cabinet Deadbolt Door Lock - R Series - CCL R1 Keyway - Optional Cylinder Length - Long Bolt - Optional Keying - Optional Color

OLYMPUS LOCK - 500DR - Cabinet Deadbolt Door Lock - R Series - CCL R1 Keyway - Optional Cylinder Length - Long Bolt - Optional Keying - Optional Color

Function:

MRI locks are made of all non-magnetic materials and components specifically for use in MRI medical applications.

Feature:

• R Series: CCL R1 Keyway
• 500M MRI Series deadbolt door lock
• All non-ferrous (non-magnetic) materials and parts
• Suitable for use in Magnetic Resonance Imaging suites where all components must have non-magnetic properties
• For standard locks
• For weather resistant locks
• Easily rekeyable via set screw cylinder release mechanism
• Solid brass pin tumbler cylinder drilled for 5 pins
• (E07121) ANSI/BHMA Grade 1
• Barrel lengths: 15/16", 1-3/8". Specify barrel length when ordering.
• Barrel diameter: 7/8"
• Standard function: locks are non-handed with key removable in the locked and unlocked position.
• Optional key-retaining* function: Specify 500MKR for right-hand or 500MKL for left hand. NOTE: Specify right-hand or left-hand for key-retaining function only
• Optional extended bolt - specify -LB option
• 26D, US4 or 10B finish
• Includes bar strike 56-1
• US Patent Nos: 4,899,563; 4,920,774
• *Key-retaining = key removable in locked position only.

Specification:

• Keying: Can be keyed together with other R Series locks
• Non-magnetic: Contains all non-ferrous (non-magnetic) components and keys. Suitable for use in MRI (magnetic resonance imaging) applications. Includes copper plated non-magnetic keys.
• Rekeyable: Easily rekeyable via set screw cylinder release mechanism
• ANSI/BHMA: Passed ANSI/BHMA A156.11 Grade 1 performance requirements. Equivalent to E07121(500M) / E07041(600M).
• Standard function: Key removable in locked or unlocked position. Standard function locks are non-handed.
• Key-retaining: Key removable in locked position only. Specify handing (KL/KR for doors or KI/KV for drawers) when ordering.
• Long bolt: Extends bolt 3/4” on both ends. Specify -LB option when ordering.
• Standard locks: See our 500DR/600DW products
• US Patent Nos: 4,899,563; 4,920,774
• Body: Zinc die cast
• Cylinder: Solid brass, pin tumbler

Keying Information:

• Keyway: R Series (equivalent to CCL R1 system)
• Keys: Includes 2 keys per lock
• Stock keying: KD/KA - 5 pin standard
• Stock KA#: 4T21579, 4T37526
• Masterkeyed: 5 pin standard, 6 pin available
• Grand masterkeyed: Available
• Keyblank 5-pin: KBR-5-NP (equivalent to CO106, 1003A)
• Keyblank 5-pin copper plated: KBR-5B (use with M Series MRI locks)
• Keyblank 6-pin: KBR-6-NP (equivalent to L1003A)

Included Accessories:

• 500DR/500B: 2 keys, 56-1 bar strike, and lock mounting screws
• 500M: 2 keys, 56-1 bar strike, and lock mounting screws (keys, components and materials are nonferrous/non-magnetic)

Optional Accessories:

• Spacers: WP20 (3/16” thick), WP21 (3/32” thick), WP22 (1/4” thick), WP23 (1/2” thick)
• Trim collars: TR1256
• .Through-bolt hardware: ETS2 through-bolt plate, ETS2- PL trim pull and ETST2 template
• Extended (long) bolt: 15-1-35 (for use with 500M or 500M)

Download:

• Data Sheet
• Installation Instruction
• Key Retaining / Non Key Retaining Instruction
