HAGER | SKU: HAGR-780-053HD-79-CLR

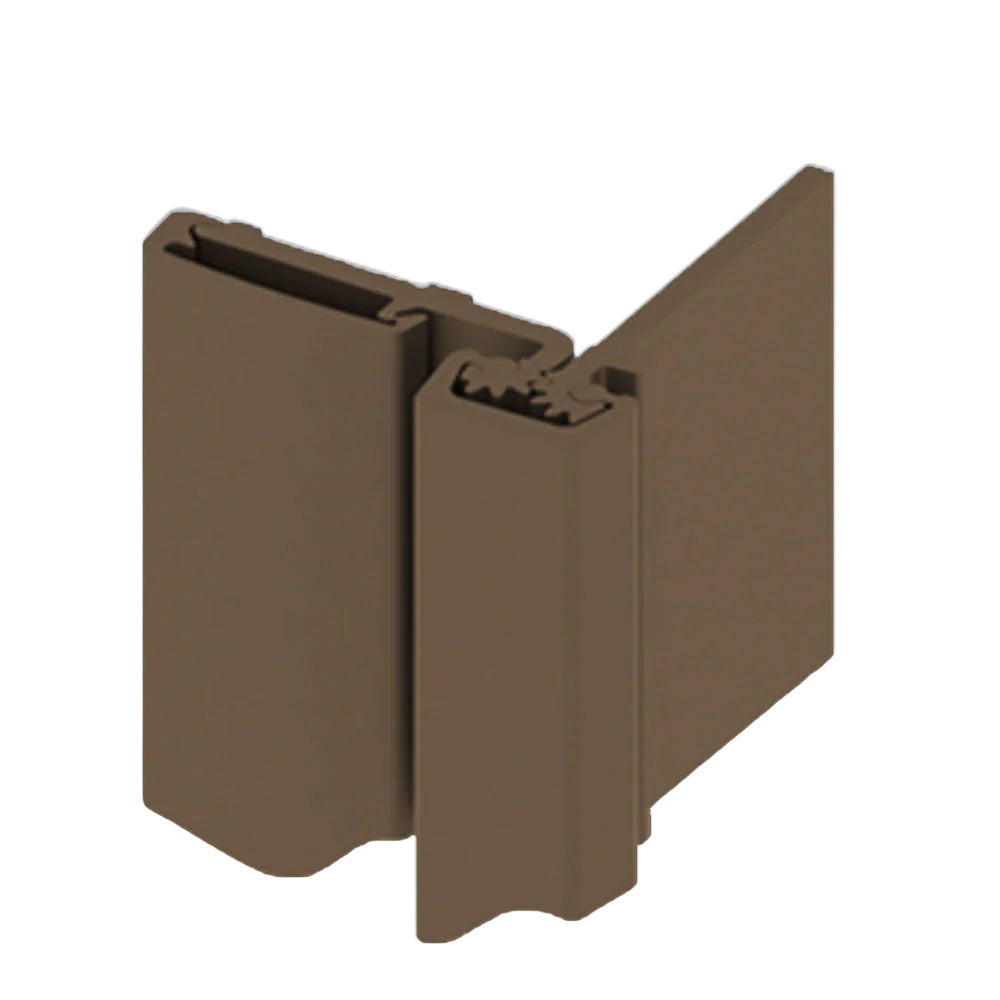

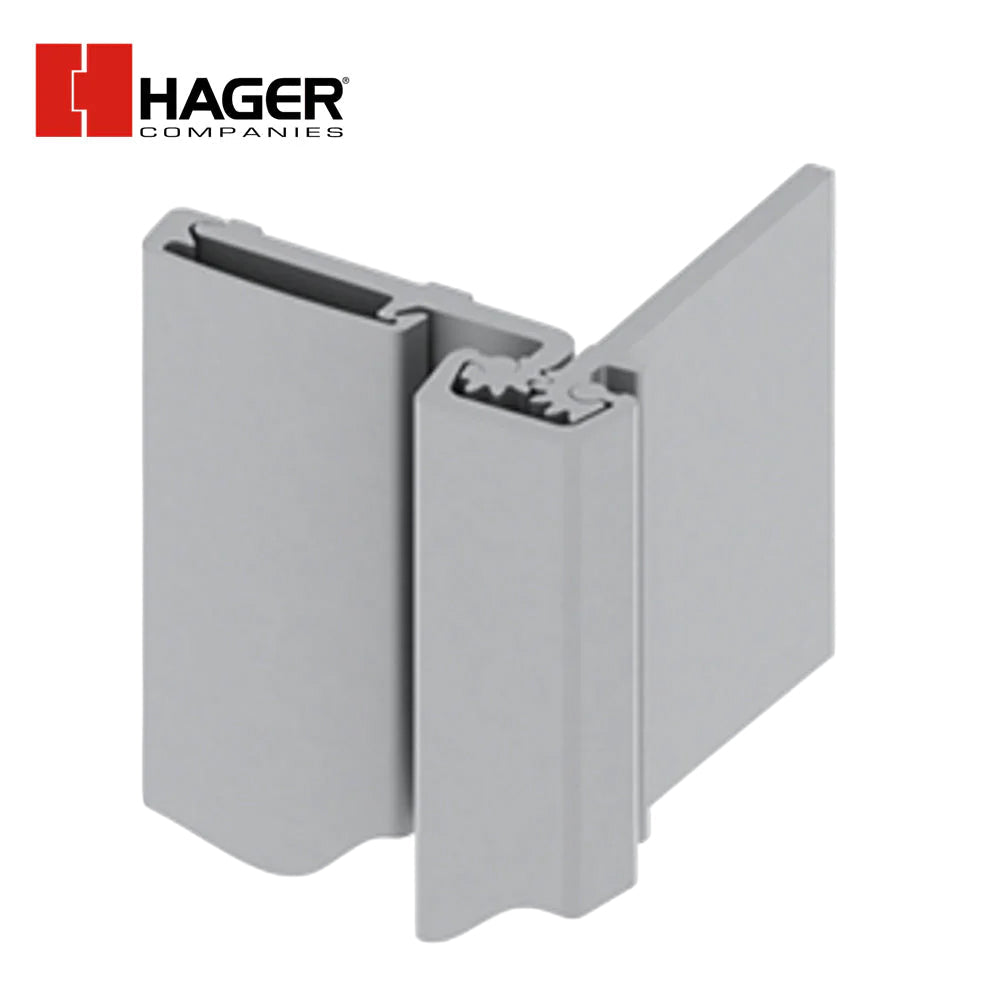

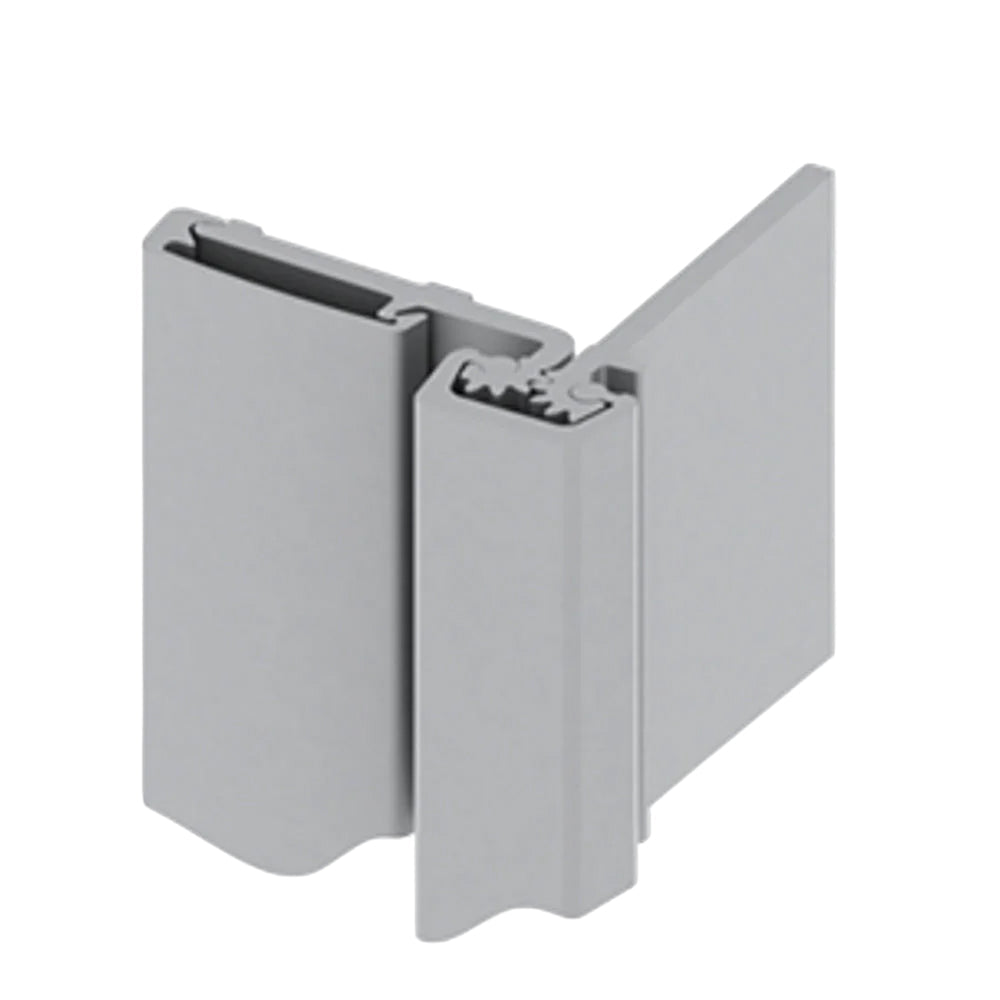

HAGER - 780-053HD - Heavy Duty Half Surface Continuous Geared Hinge

$223³⁰ ~~$267⁹⁶~~

Shipping calculated at checkout.

Color: Satin Aluminum Clear Anodized-628

HAGER - 780-053HD - Heavy Duty Half Surface Continuous Geared Hinge

Size

Product variants

Secure transaction

Pickup available at MIAMI MAIN WAREHOUSE

Usually ready in 1 hour

Found a better price? Call for Price Match!
Shop with confidence knowing you’re getting the best deal.

Delivery and Shipping

All orders are shipped between 24 hours or less Monday through Friday from 9:00 am to 6:00pm. Orders placed after 5 p.m. EST will be shipped next business day.
Learn more

Return Policy

At Locksmith Keyless, we prioritize your satisfaction and offer a simple return process. Returns are accepted within 30 days of purchase for unused items in original packaging. Certain items, including OEM keys, Lishi tools, and customized orders, are non-returnable. A restocking fee of up to 30% may apply. For a full list of non-returnable items and more details, please refer to our complete return policy.

For damaged, missing, or incorrect items, please contact us within 48 hours of delivery. All returns require an RMA number. Shipping costs for returns are the responsibility of the customer.

View Full Return Policy

Please note that this item does not qualify for free shipping. After you place your order, we will reach out to collect shipping costs.

Description

HAGER - 780-053HD - Heavy Duty Half Surface Continuous Geared Hinge

HAGER hinges are designed to meet a number of applications. Frequency of use (low, medium or high) and door/frame types combined with end use, environmental considerations and building code compliance determine the appropriate hinge application.

ANSI/BHMA A156.26 C
Finishes Brass, stainless steel and steel materials are polished in a range of finishes to meet strict ANSI and BHMA standards.
Warranty: Lifetime warranty statements, associated exceptions and limitations are available online at www.HAGERco.com. HAGER warrants US10B finish only over brass or bronze base material. If steel base material is necessary, HAGER recommends US10A lacquer finish.

Product Specifications:

Applications:

Frame leaf alignment rib for proper hinge location
Security molding
1/8" (3 mm) inset

Clearance:

5/32" (4 mm) minimum recommended hinge side.
Plus standard lockside clearance.

Fasteners:

Standard: 1/4-20 x 1-1/4" Sexbolt (fastener + Post).
Standard: Dril-KwikÂ® â€“ #12-24 X 11/16" Flat Head Screws.
Additional Options Available upon request.

Features:

Standard duty for medium frequency doors. Heavy duty for high frequency doors or heavy, medium frequency doors
Frequency doors
Frame leaf alignment rib for proper hinge location
Security molding
1/8" (3 mm) inset

Finishes:

DKB - Satin Aluminum Clear Anodized (628)
DBA - Dark Bronze Anodized Aluminum (313)
BLK - Black Etch Anodize

Fire Rating: Up to 3-hour metal and 90 minute wood composite (with studs)

Frame Reinforcement: None required to 200 lbs. Heavier weight use 16-gauge channel

Length: 79", 83", 85", 95", 119"

Material: Aluminum 6063-T6

Door Reinforcement: None required

Notes:

EPD: Roton Continuous Hinges Environmental Product Declaration

Download:
