HAGER | SKU: HAGR-2553-234-US26D-WTN-NC-ASA-IC

HAGER - 2553 - Entry Lever Lock with 2-3/4 Backsets and Withnell Lever Design - ASA strike - Satin Chrome

Name: HAGER - 2553 - Entry Lever Lock with 2-3/4 Backsets and Withnell Lever Design - ASA strike - Satin Chrome
Brand: HAGER
Price: 0.7186 USD
Availability: InStock
Rating: 5 (1 reviews)

$71⁸⁶ ~~$86²³~~

Shipping calculated at checkout.

Secure transaction

Pickup available at MIAMI MAIN WAREHOUSE

Usually ready in 1 hour

Found a better price? Call for Price Match!
Shop with confidence knowing you’re getting the best deal.

Delivery and Shipping

All orders are shipped between 24 hours or less Monday through Friday from 9:00 am to 6:00pm. Orders placed after 5 p.m. EST will be shipped next business day.
Learn more

Return Policy

At Locksmith Keyless, we prioritize your satisfaction and offer a simple return process. Returns are accepted within 30 days of purchase for unused items in original packaging. Certain items, including OEM keys, Lishi tools, and customized orders, are non-returnable. A restocking fee of up to 30% may apply. For a full list of non-returnable items and more details, please refer to our complete return policy.

For damaged, missing, or incorrect items, please contact us within 48 hours of delivery. All returns require an RMA number. Shipping costs for returns are the responsibility of the customer.

View Full Return Policy

Description

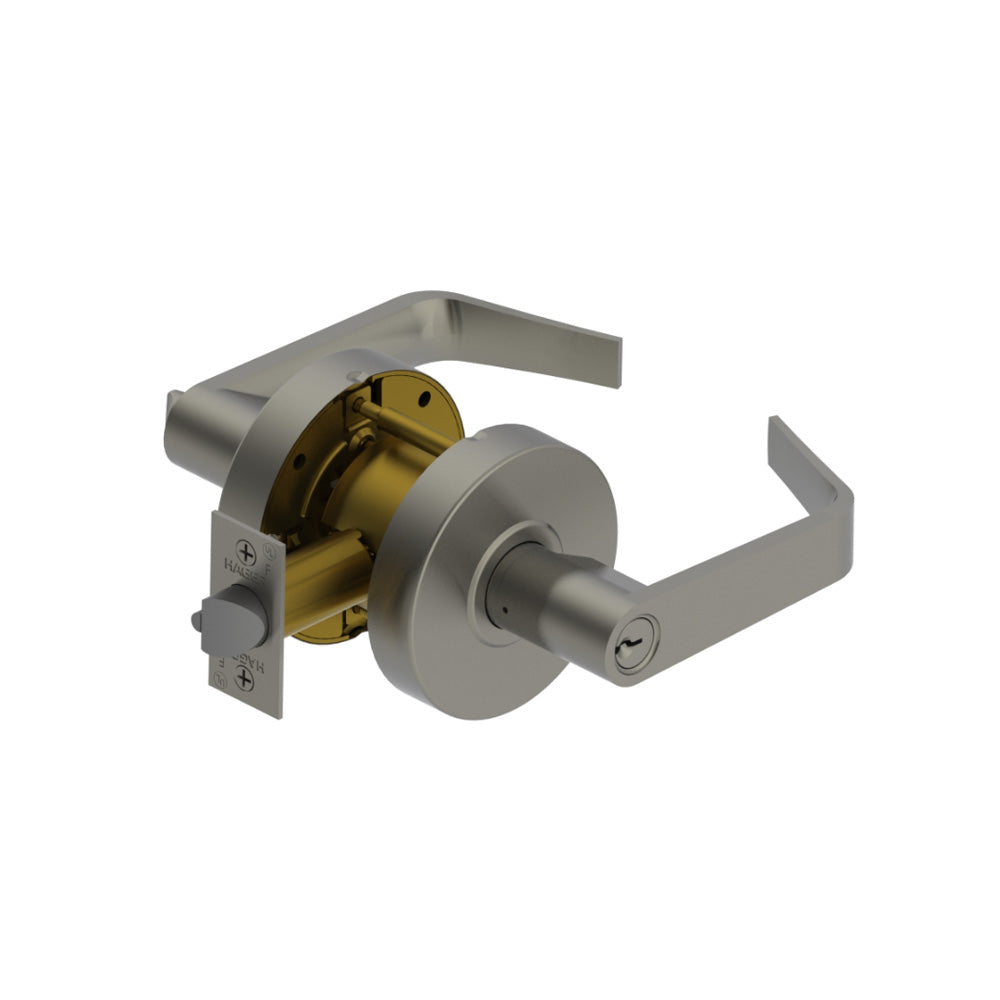

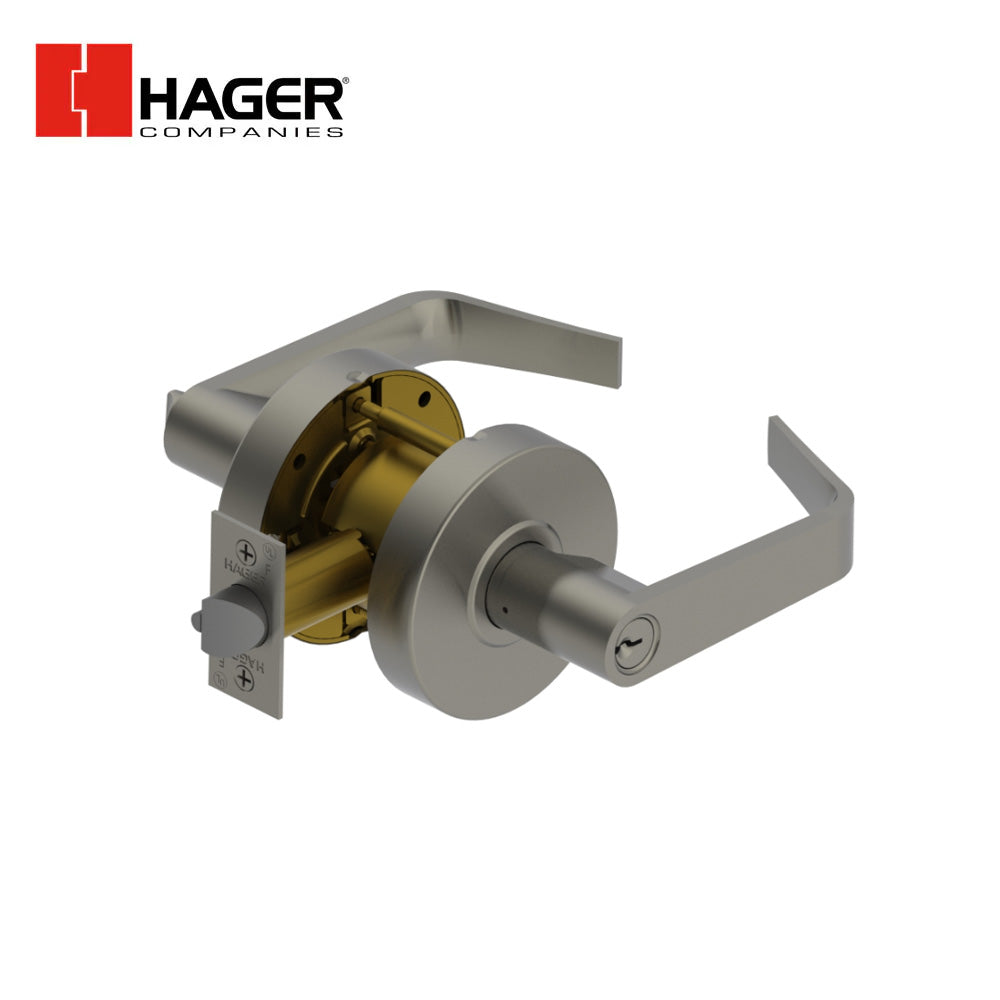

HAGER - 2553 - Entry Lever Lock - 2-3/4" Backset - ASA Strike - Grade 2

Product Specifications:

Vendor	Hager Companies
Manufacturer	Hager
Grade	Grade 2
Installation	Commercial
Unit of Measure	Each
Fire Rated	3 Hours {A}

Technical Specifications:

Function	Entry (F109)
Product Type	Cylindrical Lock
Application	Standard Duty Commercial
Door Thickness	1-3/8" - 2" (35 mm - 51 mm)
Strike	1-1/4" x 4-7/8" (32 mm x 124 mm) ASA strike
Keyway	Schlage C - Standard, other keyways optional
Latch Type	Deadlocking
Rose Diameter	3-11/32" (85 mm)
Strike Type	ASA Strike
Function Family	Entry/Entrance
Knob/Lever Size	2-1/4"
Latch Throw	1/2" Throw
Backsets	2-3/4" (70 mm) standard 2-3/8" (60 mm) optional
Exposed Trim	Wrought brass, bronze, and stainless steel Lever is zinc based, plated to match BHMA symbols
Lever Options	Archer and Withnell
Features	No exposed mounting screws Non-handed
Keys	Two operating keys supplied per lock
Notes	Standard cylinder or Small Format Interchangeable Core housing available
Standard Door Prep	Standard door prep - 2-1/8" (54 mm) diameter (cross bore) Latch hole - 1" (25 mm) diameter (edge bore)

Certifications:

BHMA Certified ANSI A156.2, Series 4000 Grade 2
ADA Compliant ANSI A117.1 Accessibility Code
UL/cUL Listed for all functions up to 3 hours "A" label single doors
ANSI A250.13 Severe Windstorm Component
UL10C Positive Pressure Rated

Cylinders/Cores:

Keyed Different - standard
Cylinder drilled 6 pin, Keyed 5 pin - standard
Other Keying options, including 6 pin keyed, available from factory
Zero bit cylinders will be 6 pin keyed
SFIC uncombinated or combinated, brass 6 pin or 7 pin cores sold separately

Lock Chassis:

Heavy gauge steel, zinc dichromated for corrosion resistance
Thru-posts are removable
Failure to install thru-posts and screws voids BHMA certification, UL rating, and warranty

Latchbolt Type:

1/2" (13 mm) throw, stainless steel
1-1/8" x 2-1/4" (29 mm x 57 mm) faceplate for 2-3/4" (70 mm) backset
1" x 2-1/4" (25 mm x 57 mm) faceplate for 2-3/8" (60mm) backset
Deadlocking latchbolt prevents manipulation when door is closed
