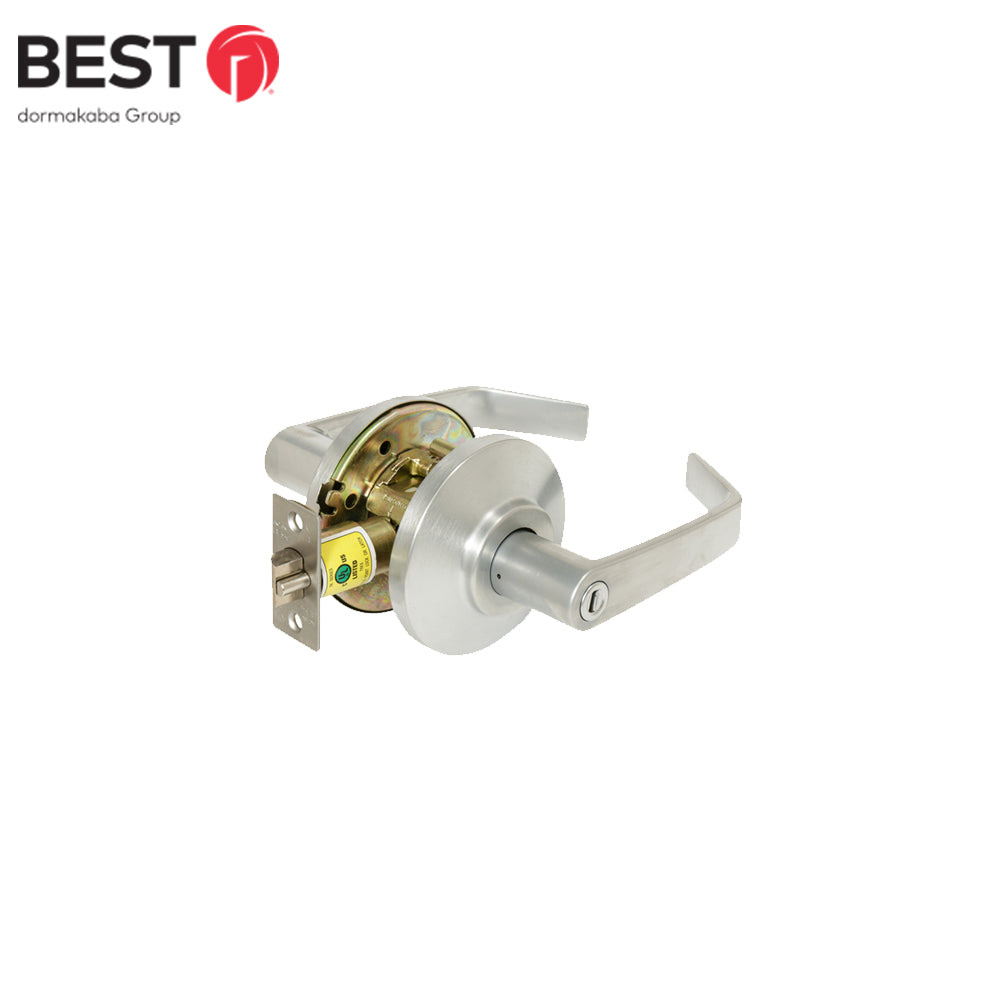

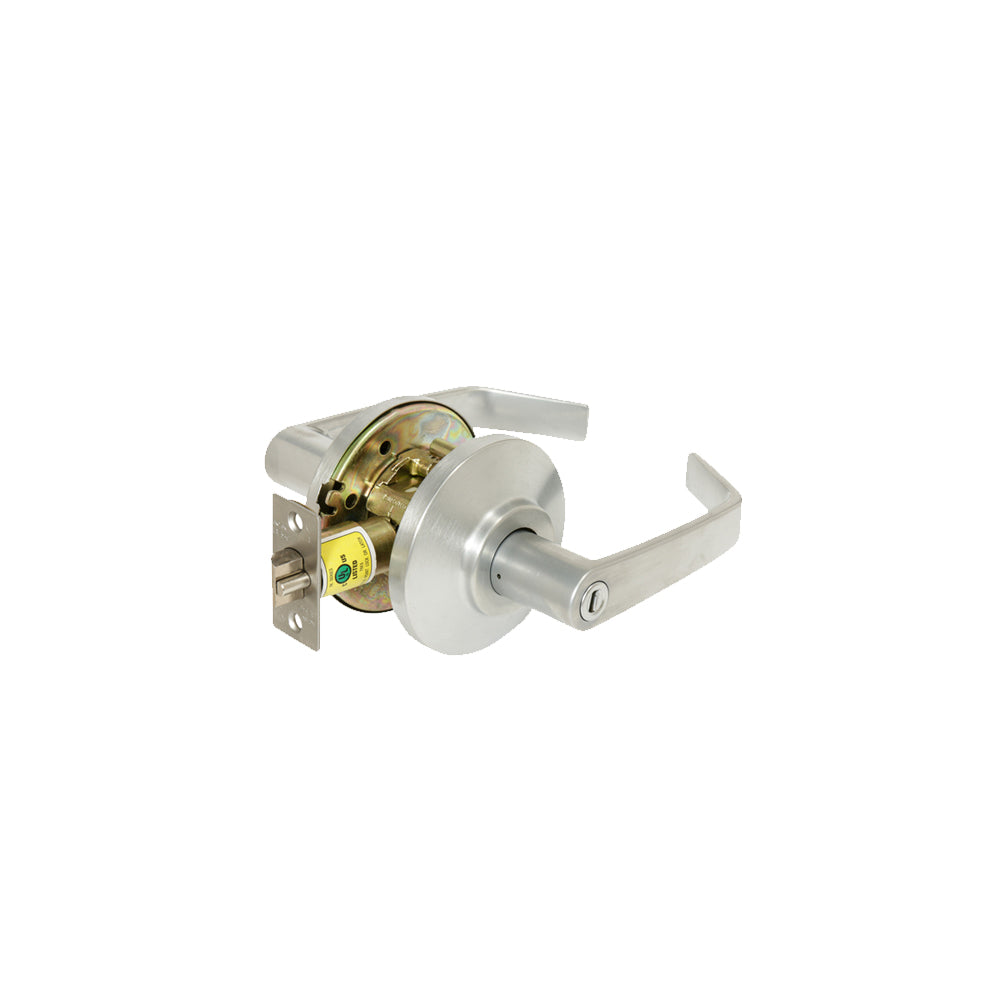

BEST - 7KC30L15DS3626 - Privacy Cylindrical Lock - 15 Lever Non-Keyed Cylinder - Fire Rated - Grade 2 - 626 (Satin Chrome)

BEST - 7KC30L15DS3626 - Privacy Cylindrical Lock - 15 Lever Non-Keyed Cylinder - Fire Rated - Grade 2 - 626 (Satin Chrome)

The BEST 7KC Series, a Grade 2 cylindrical lever set, is a popular choice for commercial office spaces, college dorms and military bases. This medium-duty cylindrical lock fits a standard door prep. And because it’s comparable to the BEST 9K lever set, it’s been specified at times for heavy-duty residential applications.

Features:

• Reliable Strength: The BEST 7KC series exceeds ANSI Grade 2 requirements. Design features like through-bolt mounting studs provide strength and increased torque resistance for reliable long-term performance.
• Secure Design: Security is built-in to the 7KC, with features like requiring core removal before keyed levers may be removed, a snap-on inside rose concealing mounting screws and no exposed keeper holes on keyed levers.
• Dependable Durability: We designed the 7KC lock series for long product life in standard traffic applications, including features like a robust hub and torsion springs for extra resistance to lever sag. All 7KC internal components are treated for corrosion resistance, which ensures a longer, more reliable performance life.
• Easy Installation and Retrofit: Each 7KC lock is pre-assembled, and its cylindrical chassis fits common door preparation, making, installation quick and easy. Retrofit and rekeying are also simple, thanks to compatibility with conventional key-in-knob cylinders. BEST interchangeable cores allow for easy rekeying without removing the levers.

Specifications:

• Backset– 2 3/8" for 72KC Series; 2 3/4" for 73KC Series; 3 3/4" for 74KC Series; 5" for 75KC Series.
• Finishes– 605– bright brass, 606– satin brass, 612– satin bronze, 613– oxidized satin bronze, oil rubbed, 625– bright chromium plated, 626– satin chromium plated
• Interchangeable core– Solid brass, pin-tumbler type in lever with 7-pin core. Best Patented Keying System optional.
• Latch– 1/2" throw deadlocking latch. Front: 2 1/4" x 1 1/8" x 5/32" standard for 2 3/4" backset; 2 1/4" x 1" x 5/32" for 2 3/8" backset.
• Lever– 5 1/4" long handle with return. Projection on door 2 1/2". Zinc base, plated to match finish.
• Material– Component parts include brass, bronze or zinc. Internal parts are zinc dichromated steel.
• Mounting– 2 1/8" diameter bore for lock housing, 1" diameter for latch tube.
• Rose– D– 3 1/2" diameter mounting screws concealed.
• Strike– STK (standard)– 2 3/4" x 11/8" with curved lip box. (ANSI A115.2 for 1 3/8" doors). S3– 4 7/8" x 1 1/4" with curved lip box. (ANSI A115.2 for 1 3/4" doors).
• Door thickness– 1 3/8" to 2".

Installation Instructions:

• Installation Instructions for 7K Cylindrical Locks
