Autel - MaxiIM IM608 PRO - Auto Key Programmer & Diagnostic Tool Plus IMKPA Accessories (IM608PROKPA) - South America Version

Autel - MaxiIM IM608 PRO - Auto Key Programmer & Diagnostic Tool Plus IMKPA Accessories for Renew & Unlock (IM608PROKPA) - South America Version

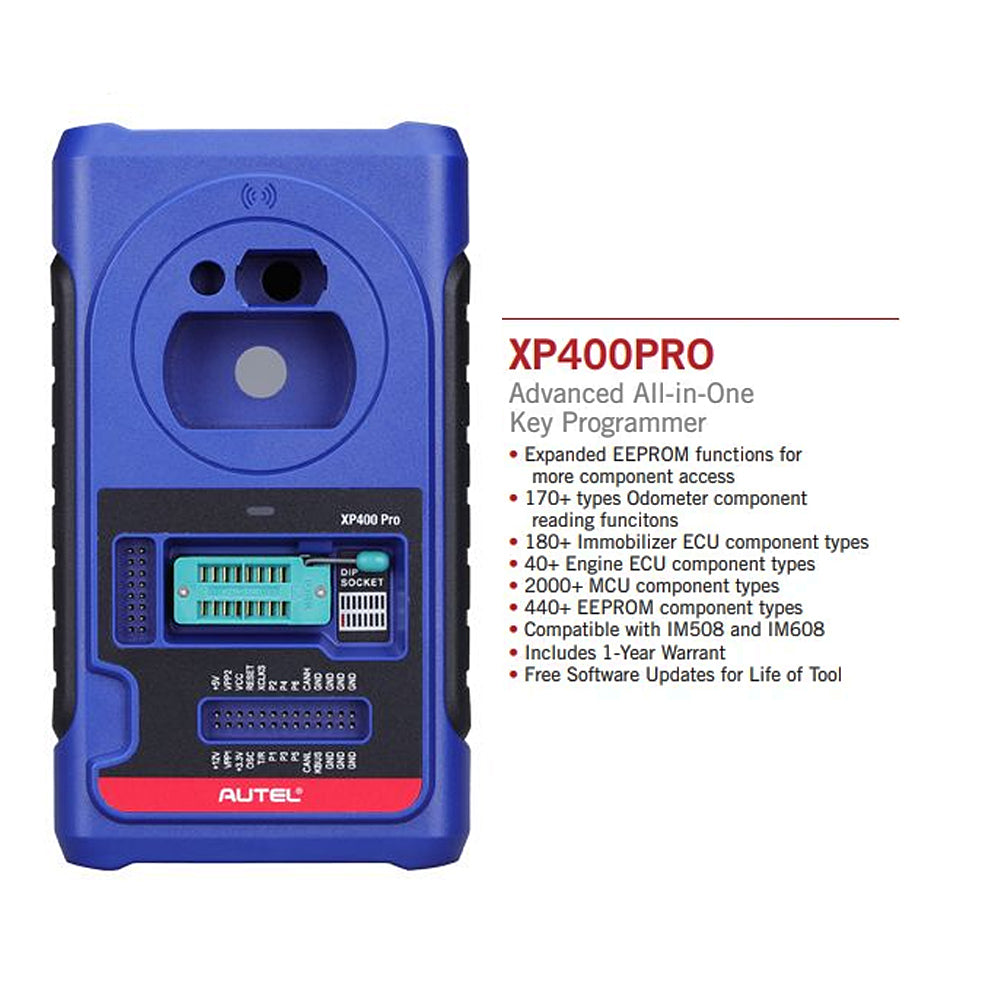

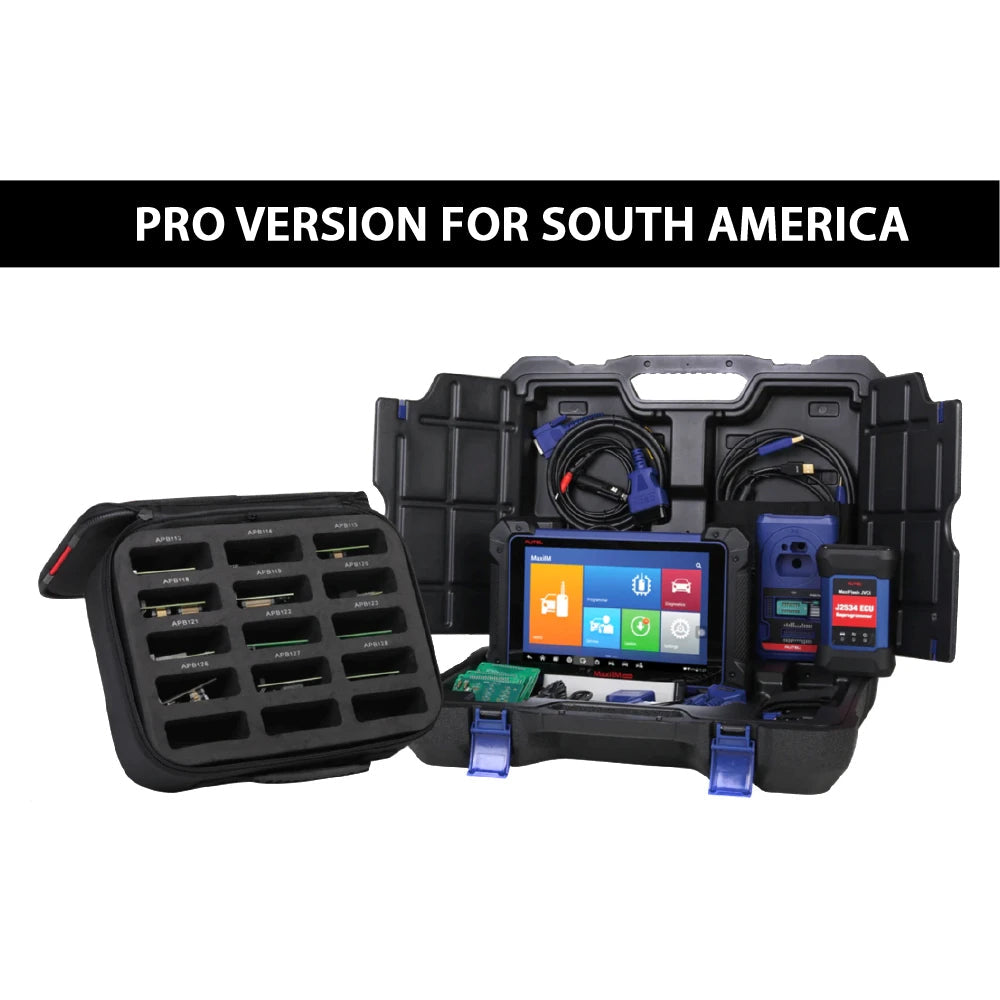

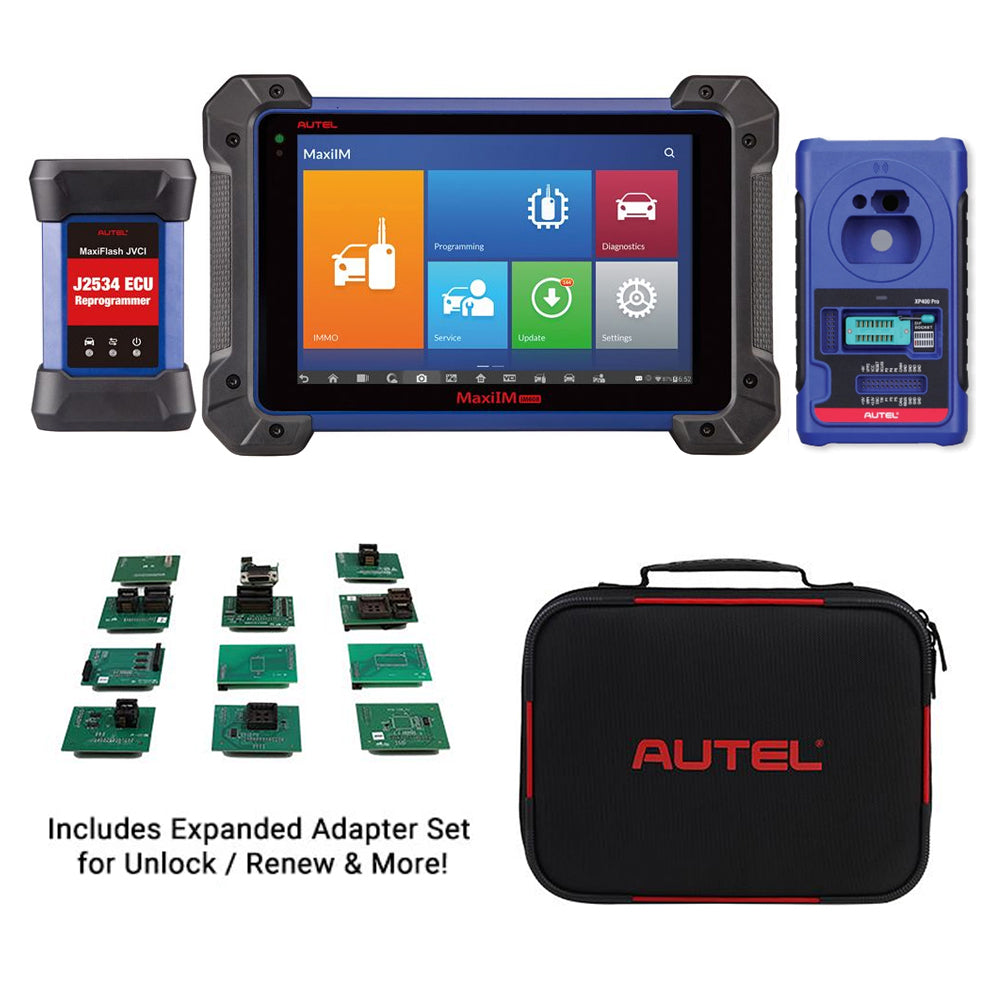

The IM608PROKPA Key Programming Bundle is a comprehensive immobilizer and key programming bundle composed of its Maxi IM608 10.1-in. Android touchscreen tablet, the XP400PRO key and chip programmer, the wireless JVCI J2534 pass-thru programming device and the Key Programming Adapter Kit (IMKPA).

The MaxiIM IM608 Pro features an automated and guided Smart Mode to help technicians perform key learning effortlessly, and an Expert Mode to provide experienced technicians with quick access to desired functions.

The MaxiIM IM608 Pro supports all the functions of the previous MaxiIM IM608 with more powerful and stable performance of key functions, including read/write keys, read/write chips, and read/write Mercedes infrared key.

The MaxiIM IM608 Pro presents several brand new features that make the device even more versatile:

- BMW EWS3 key learning (need to use with APB114)

- Mercedes-Benz W209 EIZ read/write/erase (need to use with APB118)

- OEM Mercedes-Benz NEC key learning (need to use with APB115)

- Read/write Data

- EEPROM - added 60 chip types, now supports 445 types (need to use with APB119, 121, 122, 123 and 126);

- MCU - added 32 chip types, now supports 2067 types (need to use with APB120, 127and 128);

- Odometer – will add 162 chip types, will be able to support 171 types in July;

- Engine ECU – added 1 chip type, now supports 41 chip types;

- Immobilizer ECU – added 3 chip types, now supports 181 chip types.

- Key unlock – supports 11 key types (need to use with APB113).

Powerful IMMO Functions

- Auto Detect Make/Model/Year/System

- Read PIN (All Key Lost)

- Key Learning

- IMMO ECU Reset/Adaption

- IMMO ECU Refresh/Coding

- Remote Learning

- AUDI Q5/A4/A5 2015-2017 Key Learning

- VW MQB Key Learning

- BMW FEM/BDC Key Learning and Adaption

- BMW CAS4 Key Learning and Adaption

- Mercedes Key Learning

- 2015-2018 Land Rover & Jaguar write key via dump

- Volvo Smart Key Learning/knob-style smart key

Advanced Programming Functions

- EEPROM Read/Write

- MCU Read/Write

- Key Programming

- Mercedes Key Read/Write

- Remote Frequency Detect

OE-Level Diagnostics

- Compatible with more than 80 vehicle makes

- All system diagnostics

- Work with the MaxiFlash JVCI (J2534 ECU Reprogrammer)

Advanced Service Functions

- Oil Service Reset

- Parking Brake Pad Relearn After Replacement

- Steering Angle Sensor Relearn

- Battery Registration and Reset

- Diesel Particulate Filter Regeneration

- Tire Pressure Monitoring System

- Active Test

- ECU Coding

- VW/Audi Component Protection

- Complete Service Functions

Tool Features

- 15000 mAh Built-in Rechargeable Li-ion Battery

- Wi-Fi

- Multilingual Support

- Limited One Year Warranty

- 10.1-inch Touchscreen

- 64GB Memory

- Hexa-core Processor

- 8.0 Megapixel Camera

- 1920x1200 Resolution

- USB Port – Provides data communication and 5V DC power supply.

- DC Port – Provides 12V DC power supply.

- DB 26-Pin Port – connects with the Mercedes Benz infrared collector, ECU cable, MCU cable and MC9S12 cable.

- Cross Signal Pins – holds the MCU spare cable or DIY signal interface.

- Vehicle Key Slot – holds the vehicle key.

- Transponder Slot – holds the transponder.

- Mercedes Infrared Key Slot – holds the Mercedes infrared key

- Status LED – indicates the current operating status.

- EEPROM Component Transponder Slot – holds the EEPROM plug-in transponder or EEPROM socket.

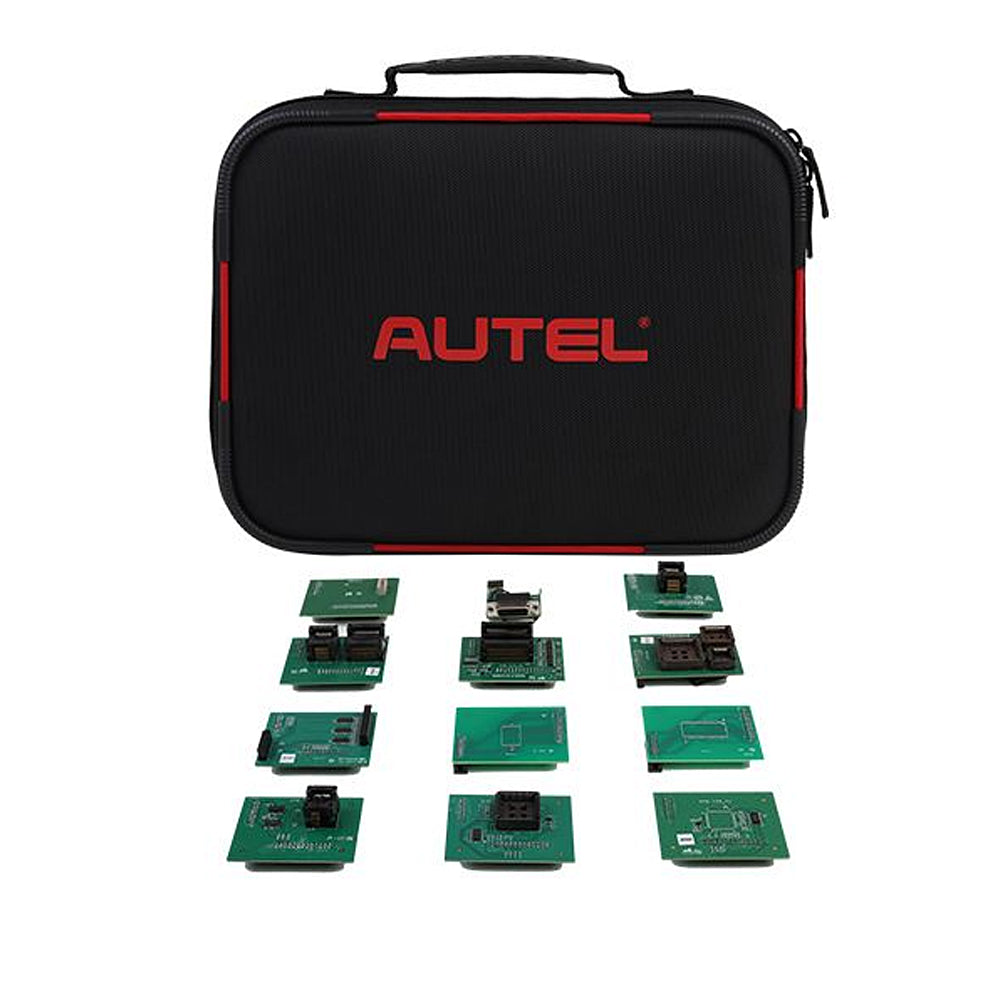

Expanded adapter set for the IM608/IM508 with the XP400PRO

- Supports over 10 key unlock types

- BMW EWS3 key learning

- Benz NEC key learning

- Benz ESL_W209 read/write/erase

- Compatible with IM508 and IM608

- XP400Pro required -

- Includes 1-Year Warranty

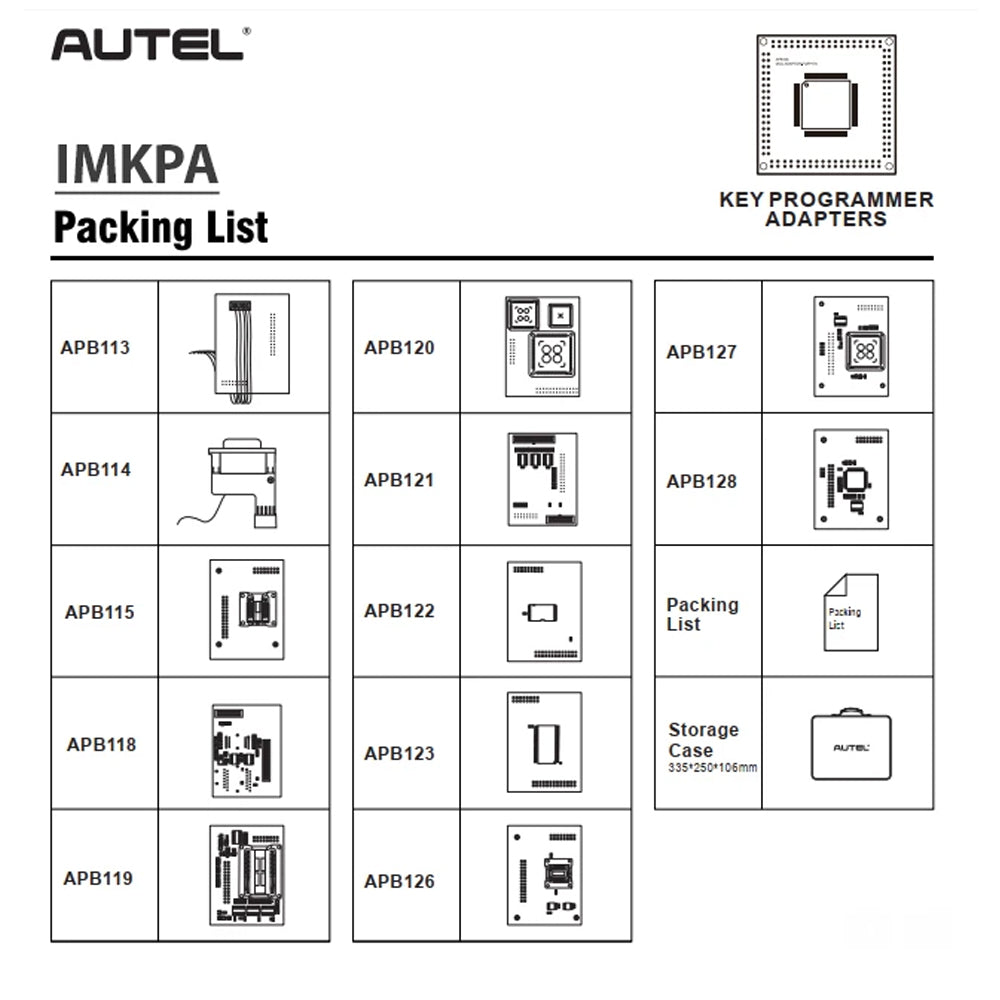

Includes:

- APB113, APB114, APB115, APB118, APB119, APB120, APB121, APB122, APB123, APB126, APB127, APB128

Advanced Key Programming Vehicle Coverage Combined the XP400PRO and the IM508/608

Benz

- One-tap Key Programming via OBD

- 3rd Generation IMMO CAN-Line/K-Line

- Add Key, All Key Lost

BMW

- Smart IMMO Programming (support EWS3/4, CAS 1/2/3/4, FEM/BDC)

- Add Key/All Key Lost

Volkswagen/Audi

- One-tap Online Programming

- Add Key/All Key Lost Via OBD for 2013 - 2020 Models

GM

- Read IMMO Password, Add Key/All Key Lost up to 2020

Ford

- Add Key/All Key Lost (No PIN Needed) up to 2020

Mazda

- Add Key/All Key Lost (No PIN Needed) up to 2020 FCA

- Read IMMO Password, Add Key/All Key Lost up to 2020

Renault

- Add Key/All Key Lost (No PIN Needed) up to 2020

LandRover/Jaguar

-Add Key/All Key Lost up to 2019

Volvo

- Semi-smart Key Learning via OBD up to 2018

- Smart/Blade/Fobik Key Learning via Dump

Click Here To View XP400PRO_IMKPA_Flyer
