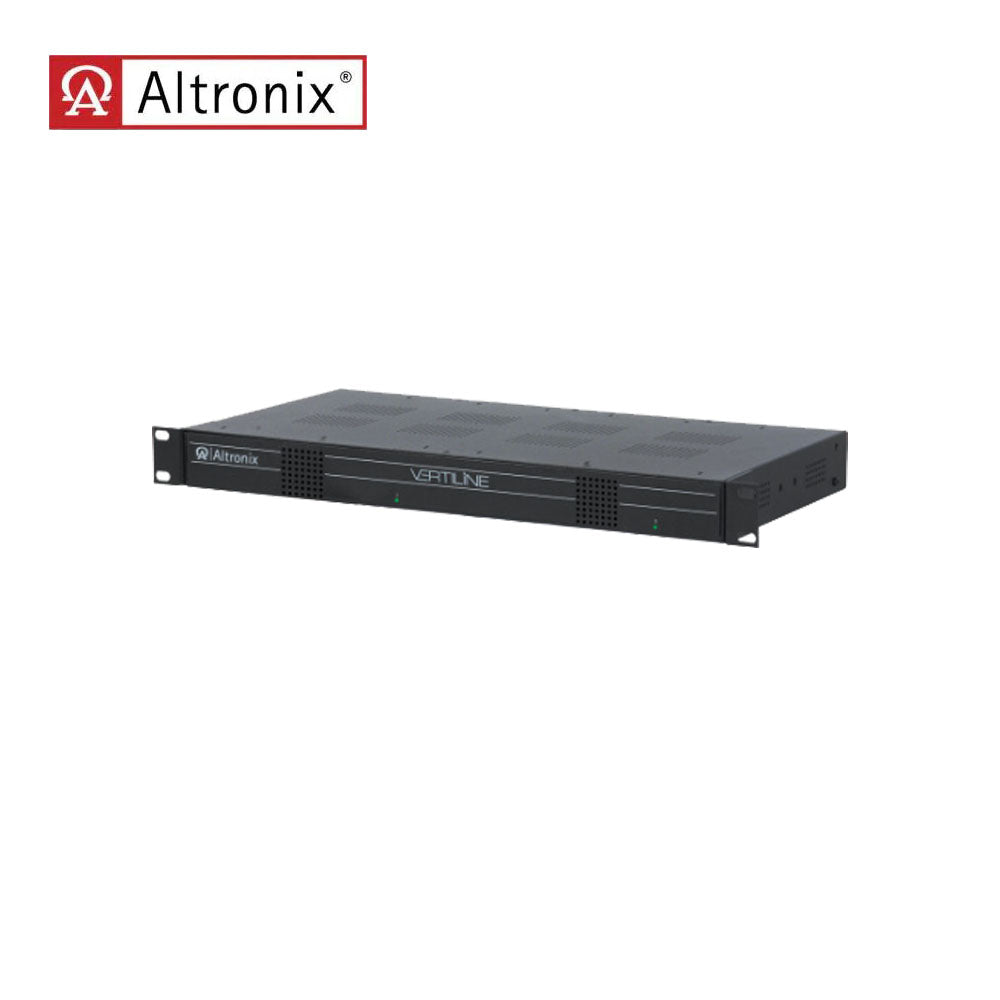

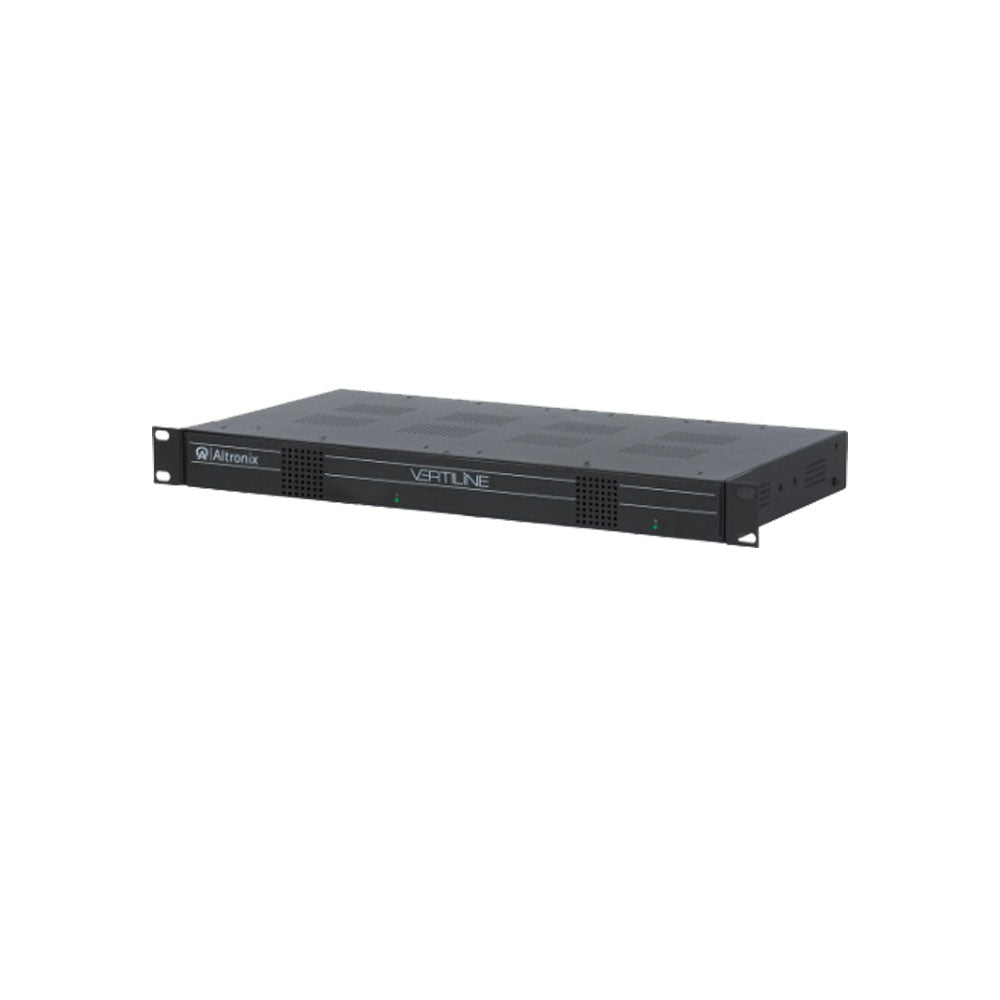

Altronix - VERTILINE563 - Dual Output Rack Mount Power Supply - 115VAC 60Hz at 4.9A Input - 56VDC at 3A Output

Altronix - VERTILINE563 - Dual Output Rack Mount Power Supply - 115VAC 60Hz at 4.9A Input - 56VDC at 3A Output

Ideal for a multitude of purposes, including CCTV, Fire Alarm and POIP. A leading global provider of power and transmission technologies for professional security system applications, Altronix develops innovative solutions that integrate disparate infrastructure and maximize overall performance and efficiency.
Altronix Power Supplies are ideal for a multitude of purposes, including:

• General Use
• CCTV
• Fire Alarm
• POIP

Input:

• Input 115VAC 60Hz, 4.9A.

Output:

• 56VDC @ 3A each output. (When using battery backup output rating is 56V/2.7A for respective outputs).

Battery Backup:

• Built-in charger for sealed lead acid or gel type batteries.*
• *External batteries are optional.
• Automatic switch over to stand-by battery when AC fails.

Features:

• Two (2) AC LED indicators.
• IEC 320 - 3-wire grounded line cord (detachable).
• Unit can be rack or shelf mounted.
• 1U rack mount chassis for use in standard EIA 19" rack.

Temperature:

• Operating 0° C to 49° C (32° F to 120° F).
• Storage - 20° C to 70ºC ( - 4° F to 158° F).
• Relative Humidity 85% +/- 5%.
• BTU/Hr. (approx.): 172 BTU/Hr.

Enclosure:

• Modular 1U standard EIA 19" rack mount chassis.
• Dimensions 19.12"W x 1.62"H x 8.5"D (486 mm W x 42 mm H x 216 mm D).

Download:

• Installation Instruction
