Altronix | SKU: ALX-ALTV1224C

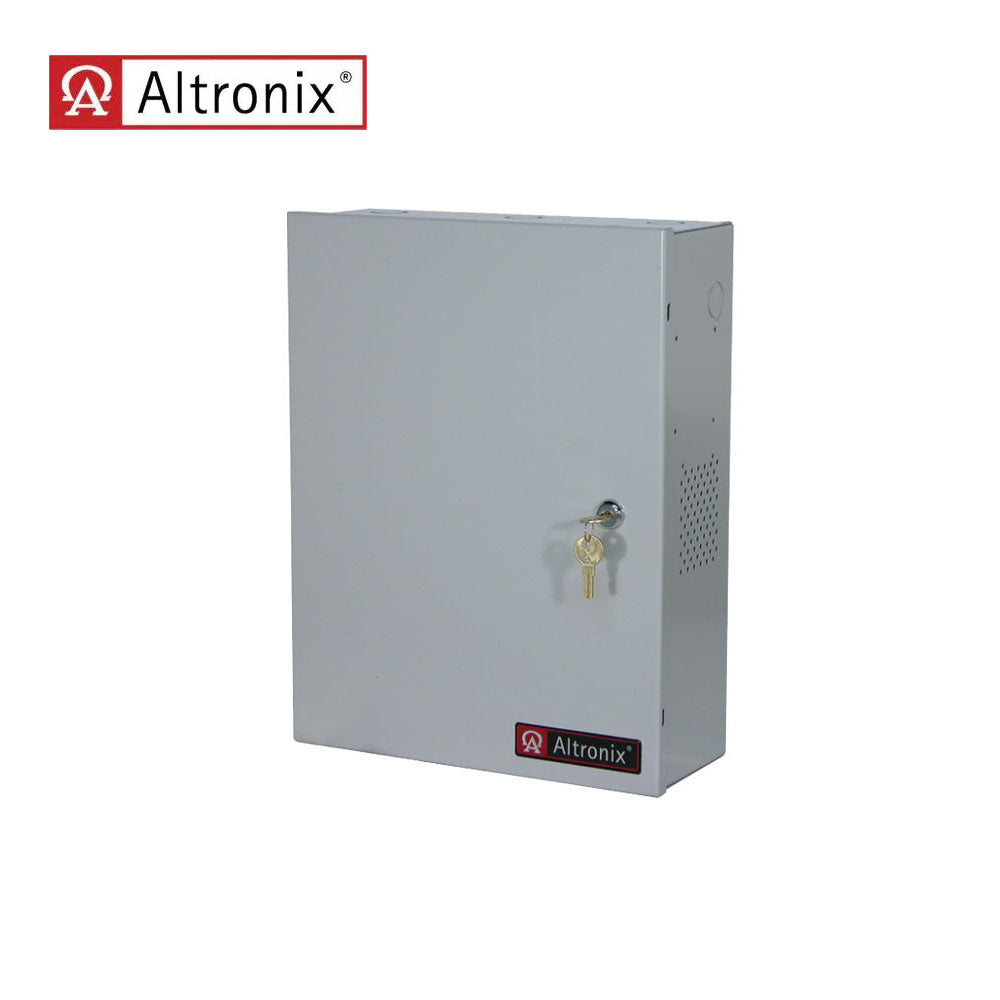

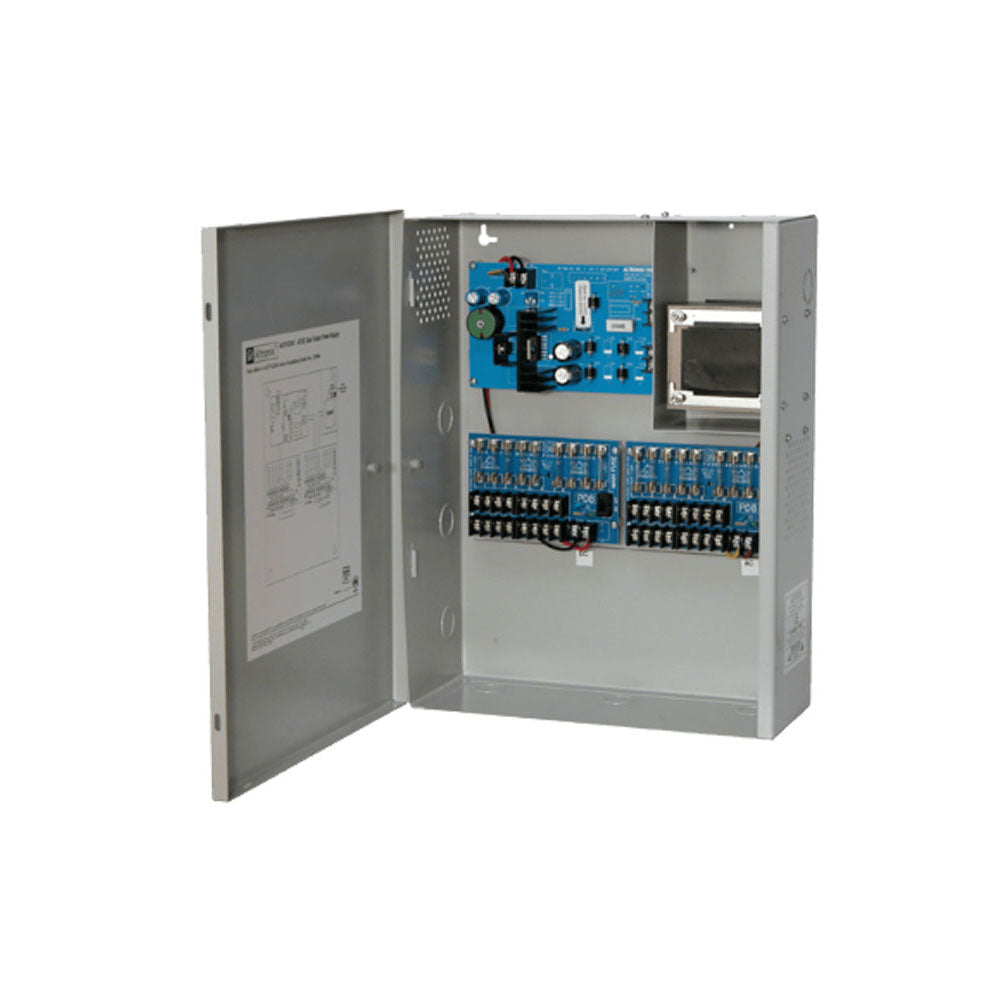

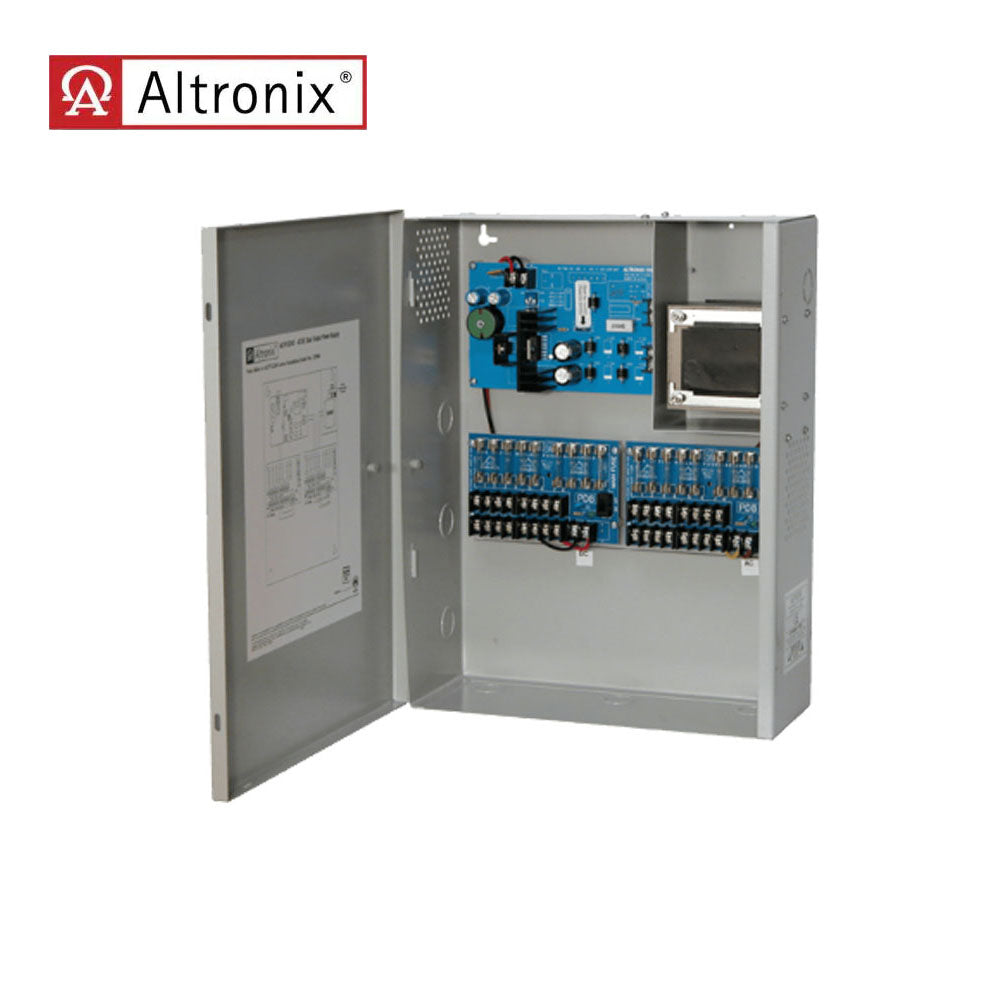

Altronix - ALTV1224C Series - CCTV Power Supply - Grey Enclosure

$368²⁰ ~~$441⁸⁴~~

Shipping calculated at checkout.

Output Type

Outputs

Product variants

Secure transaction

Pickup available at MIAMI MAIN WAREHOUSE

Usually ready in 1 hour

Found a better price? Call for Price Match!
Shop with confidence knowing you’re getting the best deal.

Delivery and Shipping

All orders are shipped between 24 hours or less Monday through Friday from 9:00 am to 6:00pm. Orders placed after 5 p.m. EST will be shipped next business day.
Learn more

Return Policy

At Locksmith Keyless, we prioritize your satisfaction and offer a simple return process. Returns are accepted within 30 days of purchase for unused items in original packaging. Certain items, including OEM keys, Lishi tools, and customized orders, are non-returnable. A restocking fee of up to 30% may apply. For a full list of non-returnable items and more details, please refer to our complete return policy.

For damaged, missing, or incorrect items, please contact us within 48 hours of delivery. All returns require an RMA number. Shipping costs for returns are the responsibility of the customer.

View Full Return Policy

Description

Altronix - ALTV1224C Series - CCTV Power Supply - Grey Enclosure

Ideal for a multitude of purposes, including CCTV, Fire Alarm and POIP. A leading global provider of power and transmission technologies for professional security system applications, Altronix develops innovative solutions that integrate disparate infrastructure and maximize overall performance and efficiency.
Altronix Power Supplies are ideal for a multitude of purposes, including:

General Use
CCTV
Fire Alarm
POIP

Features:

AC/DC power LED indicators.
Power ON/OFF switch.
Unit maintains camera synchronization
Ease of installation saves time and eliminates costly labor.

Input:

120VAC, 60Hz, 5A.

Output:

Four (4)individually fused outputs, Sixteen (16) individually fused and PTC outputs.
Eight (8) PTC protected outputs @ 12VDC.
Eight (8) PTC protected outputs @ 24VAC.
7A total output current.
3.5A supply current @ 12VDC.and @ 24VAC.(16 Fused Outputs)
2.5A supply current @ 24VAC.
2A supply current @ 12VDC(4 Fused Outputs)
4A supply current @ 24VAC(4 Fused Outputs)
Output fuses and PTC are rated @ 3.5A/250VAC.
DC output fuses are rated @ 1A.
AC output fuses are rated @ 3.5A.
Main fuses or PTC are rated at 5A/250VAC
Filtered and electronically regulated outputs (DC outputs).
Surge suppression (AC outputs).

Temperature:

Operating 0° C to 49° C (32° F to 120° F)
Storage: - 20° C to 70ºC ( - 4° F to 158° F)
Relative Humidity 85% +/- 5%
BTU/Hr (approx.):
72 BTU/Hr.(4 Fused Outputs)
64 BTU/Hr.(16 Fused and PTC Outputs)
System AC input VA requirement: 174.8VA

Enclosure:

Wall mount enclosure for indoor use
Dimensions 14.5"W x 18"H x 4.62"D (368 mm W x 457 mm H x 118 mm D).
1/2" and 3/4" combination knockouts.

Installation Instruction:
