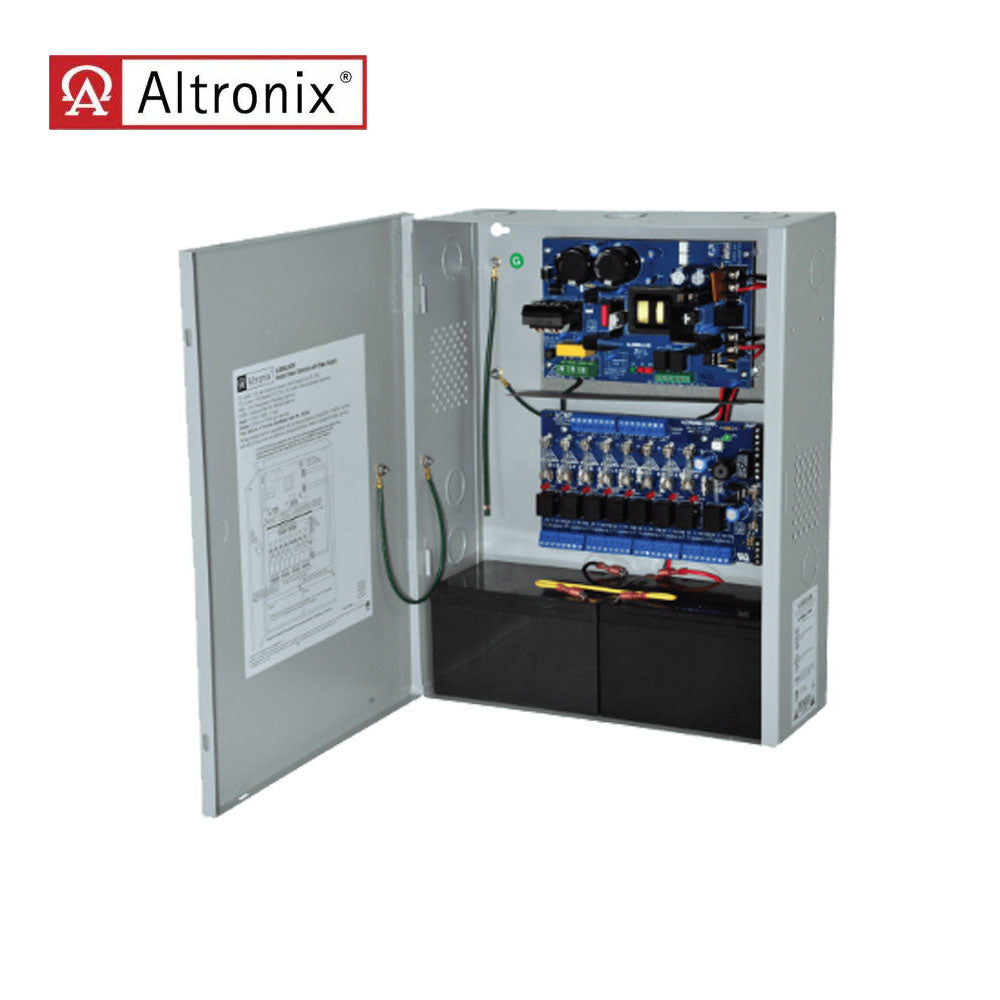

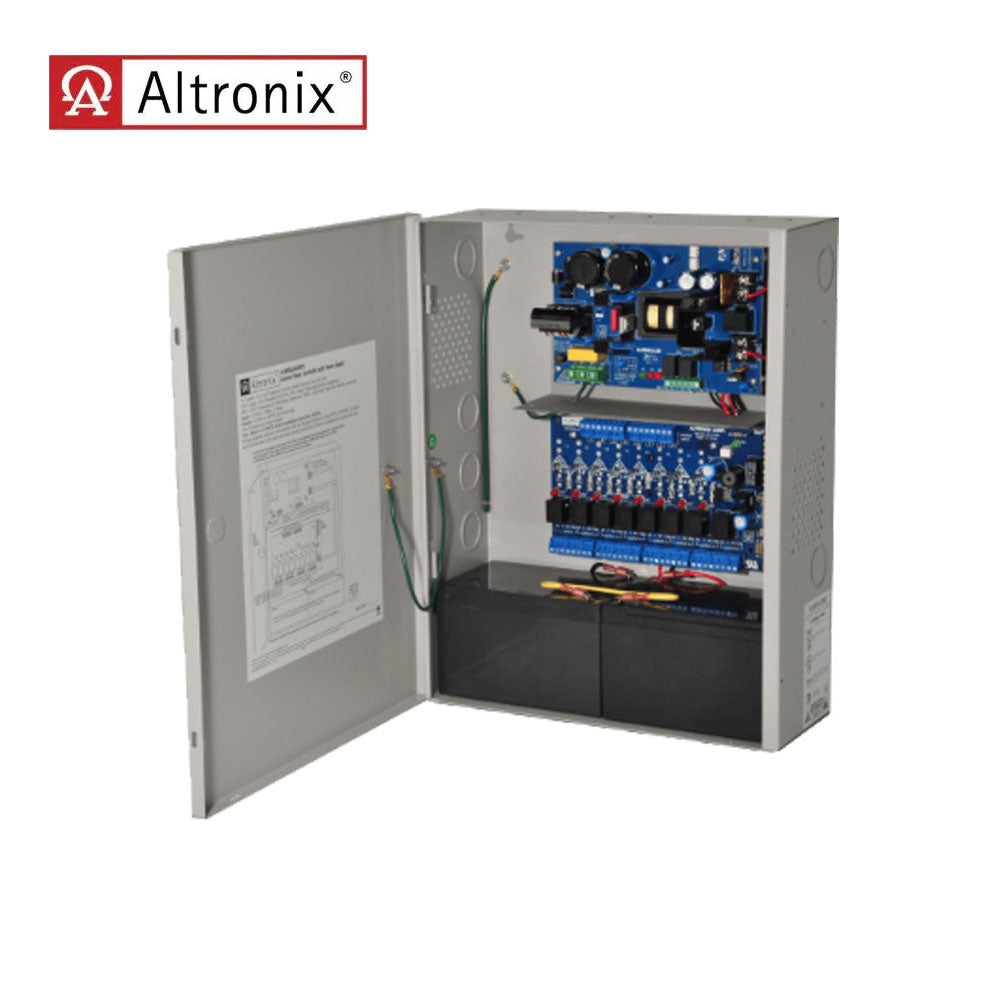

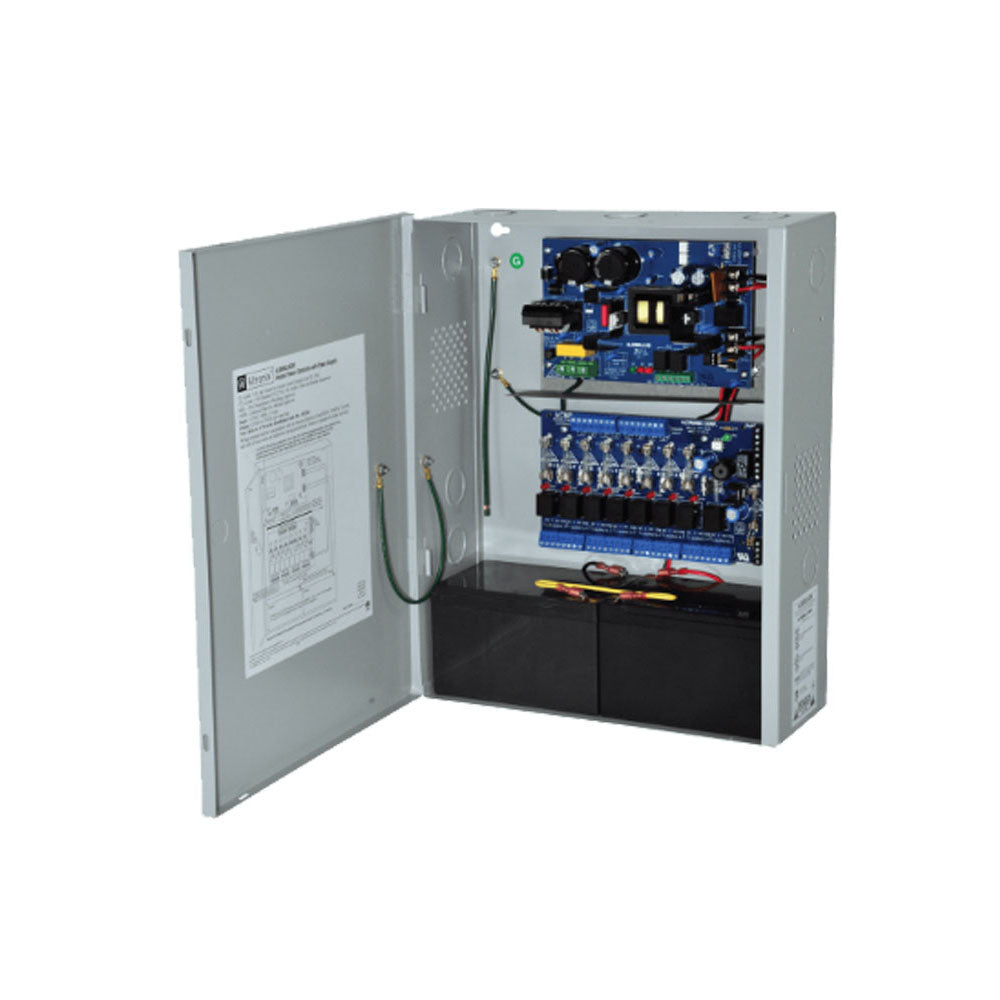

Altronix - ACM Series - Power Supply with Access Power Controller - 8 Outputs - Grey Enclosure
Ideal for a multitude of purposes, including CCTV, Fire Alarm and POIP. A leading global provider of power and transmission technologies for professional security system applications, Altronix develops innovative solutions that integrate disparate infrastructure and maximize overall performance and efficiency.
Altronix Power Supplies are ideal for a multitude of purposes, including:
- General Use
- CCTV
- Fire Alarm
- POIP
Features:
- Fire Alarm disconnect (latching or non-latching) is individually selectable for any or all of the eight (8) outputs
-
Fire Alarm disconnect input options:
a)Normally open (NO) or normally closed (NC) dry contact input
b)Polarity reversal input from FACP signaling circuit. - Alarm output relay indicates that FACP input is triggered (form "C" contact rated @ 1A 28VDC)
- Short circuit and thermal overload protection
- AC fail supervision (form "C" contact)
Input:
- Input 115VAC 60Hz rated @ 3.5A
-
Power supply input options:
a)One (1) common power input for ACM8/ACM8CB and lock power (factory installed)
b)Two (2) isolated power inputs - One (1) to power the ACM8/ACM8CB and one (1) for lock accessory power, (external power supply is required). (Current is determined by the power supply connected, not to exceed a maximum of 10A total) - Eight (8) Access Control System trigger inputs
-
Input options:
a)Eight (8) normally open (NO) inputs
b)Eight (8) open collector inputs.
c) Any combination of the above
Output:
- 12VDC or 24VDC @ 6A supply current
- Class 2 Rated PTC protected power limited auto-resettable outputs.
- ACM8/ACM8CB board main fuse is rated at 10A.
- Eight (8) independently controlled outputs
-
Output options:
a)Eight (8) Fail-Safe and/or Fail-Secure power outputs.
b) Eight (8) form "C" 5A rated relay outputs
c) Any combination of the above - Eight (8) auxiliary power outputs (unswitched)
-
Output ratings
a)PTCs are rated @ 2.5A
b)Fuses are rated @ 3.5A - Filtered and electronically regulated outputs (built-in power supply)
Supervision:
- AC fail supervision (form "C" contacts).
- Notification trigger is selectable for 30 seconds (factory set) or 6 hours
- Low battery and battery presence supervision (form "C" contact).
Visual Indicators:
- Red LEDs indicate outputs are triggered (relays energized).
- Green LED indicates FACP disconnect is triggered.
- AC input and DC output LED indicators.
Battery Backup:
- Built-in charger for sealed lead acid or gel type batteries
- Automatic switch over to stand-by battery when AC fails.
- Zero voltage drop when unit switches over to battery backup (AC failure condition)
- Battery fail and battery presence supervision (form "C" contact).
Temperature:
- Operating 0° C to 49° C (32° F to 120° F)
- Storage: - 20° C to 70ºC ( - 4° F to 158° F)
- Relative Humidity 85% +/- 5%
- BTU/Hr. (approx.): 12VDC: 37 BTU/Hr. and 24VDC: 74 BTU/Hr.

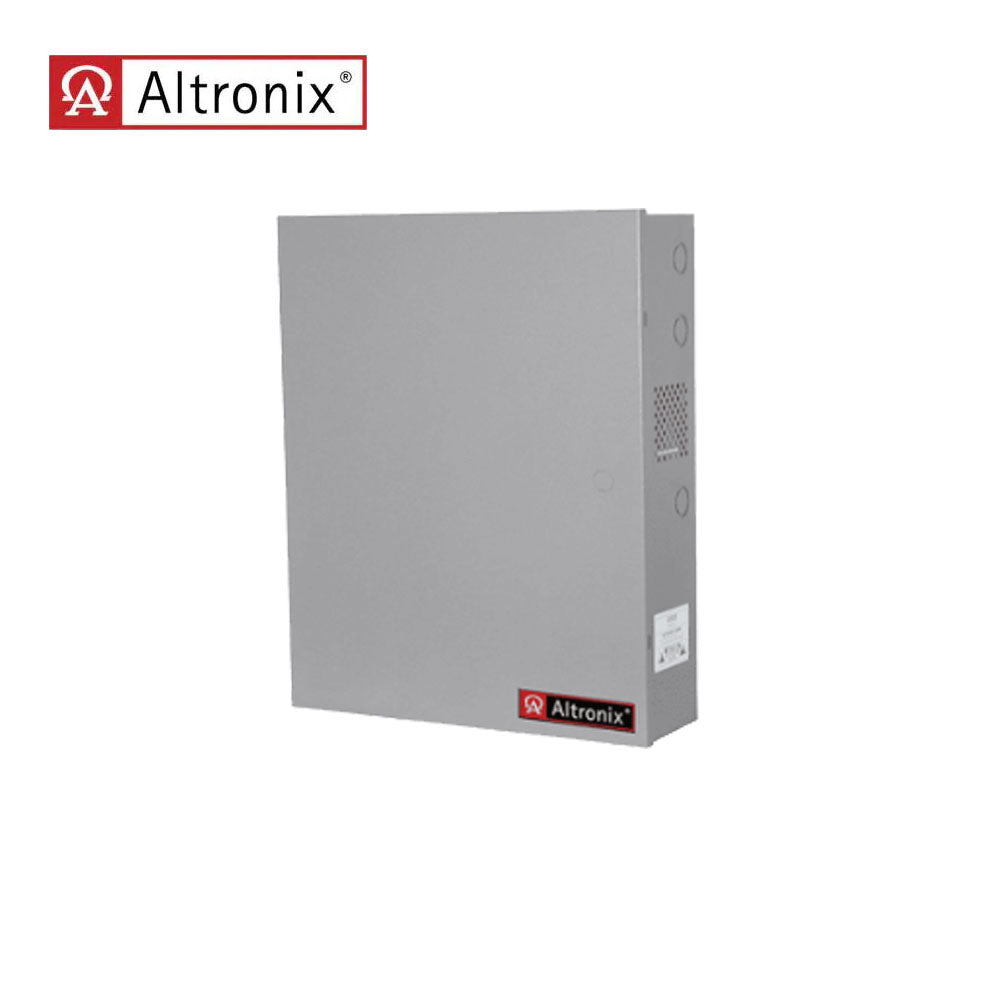

Enclosure:
- Wall mount enclosure for indoor use
-
Dimensions:
AL600ULACMJ and AL600ULACMCBJ: 14.5"W x 18"H x 4.62"D (368 mm W x 457 mm H x 118 mm D)
AL600ULACM and AL600ULACMCB: 12.25"W x 15.5"H x 4.5"D (311 mm W x 394 mm H x 114 mm D). - Accommodates up to two (2) 12VDC/18AH Batteries.
- 1/2" and 3/4" combination knockouts.
