ACSI | SKU: ACSI-M1520M-1-8205-LW1A-10B-LC-RH

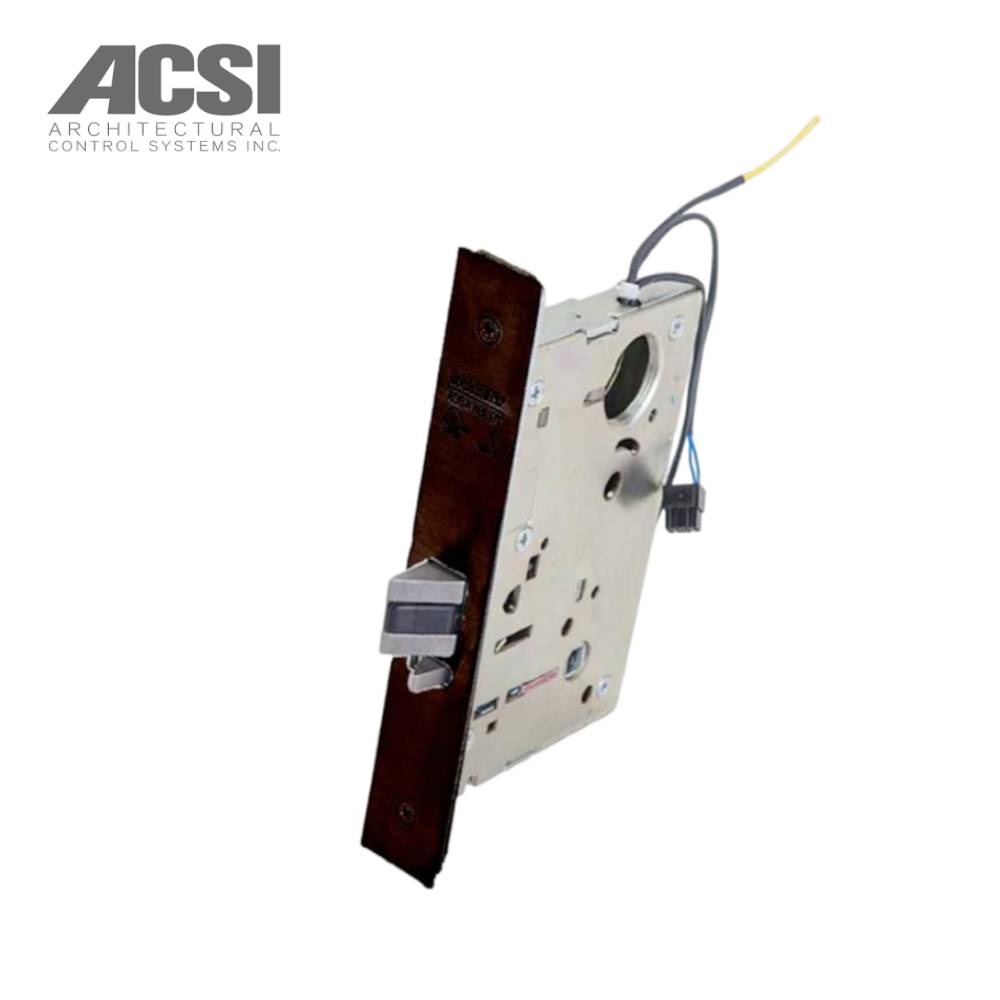

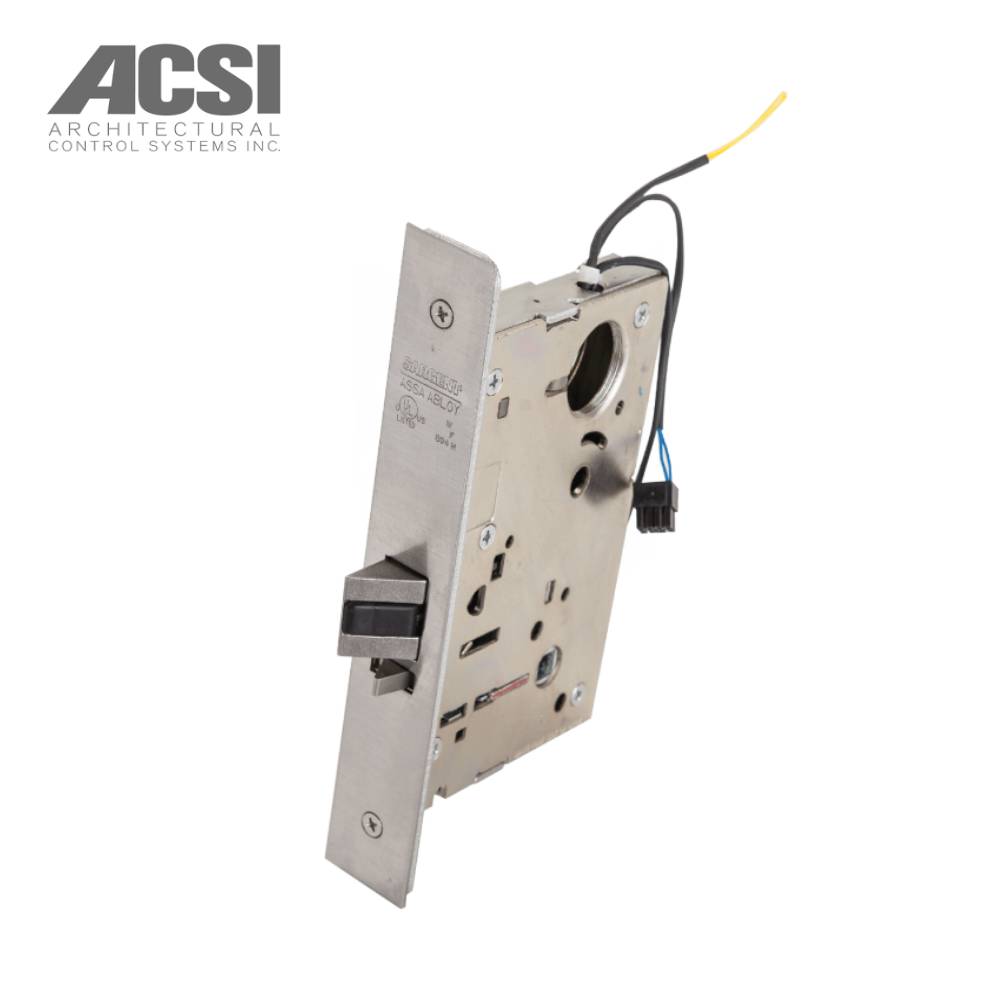

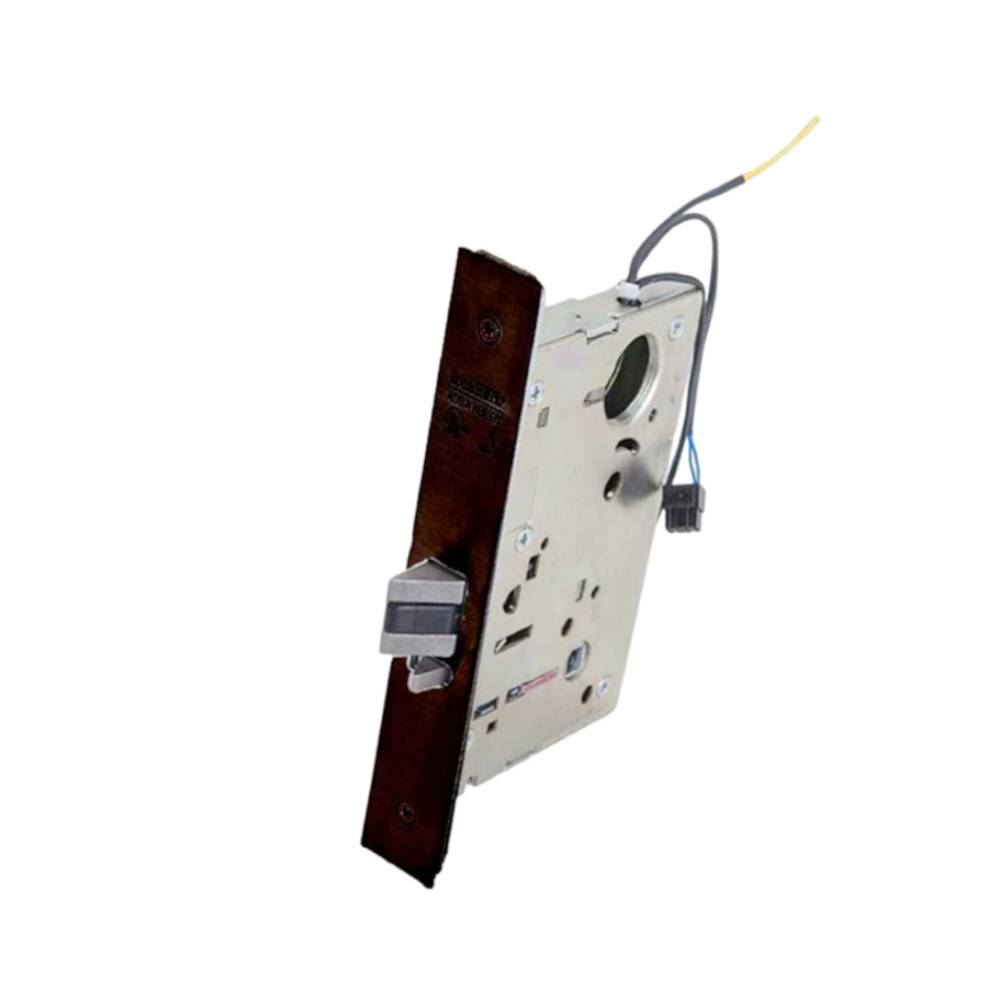

ACSI - M1520M-1-8205-LW1 - Entry Mortise Lever Lock - Fail Secure with LW1 Escutcheon Design - Less Cylinder and Sargent 8200 Series Office

Name: ACSI - M1520M-1-8205-LW1 - Entry Mortise Lever Lock - Fail Secure with LW1 Escutcheon Design - Less Cylinder and Sargent 8200 Series Office
Brand: ACSI
Price: 6.441 USD
Availability: OutOfStock
Rating: 5 (1 reviews)

$658⁴¹ ~~$790⁰⁹~~

Shipping calculated at checkout.

Color: Oil Rubbed Dark Bronze-10B

ACSI - M1520M-1-8205-LW1 - Entry Mortise Lever Lock - Fail Secure with LW1 Escutcheon Design - Less Cylinder and Sargent 8200 Series Office

Handed

Product variants

Secure transaction

Found a better price? Call for Price Match!
Shop with confidence knowing you’re getting the best deal.

Delivery and Shipping

All orders are shipped between 24 hours or less Monday through Friday from 9:00 am to 6:00pm. Orders placed after 5 p.m. EST will be shipped next business day.
Learn more

Return Policy

At Locksmith Keyless, we prioritize your satisfaction and offer a simple return process. Returns are accepted within 30 days of purchase for unused items in original packaging. Certain items, including OEM keys, Lishi tools, and customized orders, are non-returnable. A restocking fee of up to 30% may apply. For a full list of non-returnable items and more details, please refer to our complete return policy.

For damaged, missing, or incorrect items, please contact us within 48 hours of delivery. All returns require an RMA number. Shipping costs for returns are the responsibility of the customer.

View Full Return Policy

Description

ACSI - M1520M-1-8205-LW1 - Entry Mortise Lever Lock - Fail Secure with LW1 Escutcheon Design - Less Cylinder and Sargent 8200 Series Office

M1520M-1-8205-LW1 Sargent 8200 Series Office, Entry Mortise Lever Lock Fail Secure LW1 Escutcheon Design, Handed. Sargent 8200 Series Office or Entry Mortise Lever Lock Modified with Fail Secure Operation (Power Unlock), Standard Control Locks Outside (Secure Side) Trim, Motor Controlled, Less Cylinder. ACSI Series 1500 Electric Mortise Locks provide safety and security for stairtower doors or controlled areas where both locking and latching are required. The locks are available in motor-controlled or solenoid-controlled to allow remote electric locking or unlocking while conforming to life-safety codes.

Buy the ACSI M1520M-1-8205-LW1 Sargent 8200 Series Office, Entry Mortise Lever Lock Fail Secure LW1 Escutcheon Design, Handed for easy installation and dependable door hardware solution.

Specifications:

Function	1520M-Fail Secure Control
Cylinder Type	Less Cylinder
Product Type	Electronic Mortise Lock
Electric Options	Latchbolt Monitor
Strike Type	Curved Lip
ADA Compliant	YES
Strike Size	4-7/8" x 1-1/4"
Standards	UL Listed; California State Fire Marshall Approved; ANSI/BHMA A156.13 Series 1000 Operational Grade 1 and Security Grade 1 with All Standard Trims; UL and cUL Listed; ANSI/UL 10C, Positive Pressure Fire Test of Door Assemblies
Function Description	Outside Trim is Unlocked When Power is Applied and Locked When Power is Removed. Lockset will Lock in the Event of a Power Failure
Features	Simple User Selectable Fail Safe/Fail Secure Operation in Motor Controlled Locks; Continuous Duty Rated; Low Power Consumption; Interface With Life Safety Systems
Application	Fire Doors
Hub Material	Cold Forged Steel
Finish	10B - Oil Rubbed Dark Bronze 26D - Satin Chrome
Handed	Right Hand Left Hand
Front Size	8" x 1-1/4"
Strike Lip	1-1/4 Inch
Voltage	12 to 24VAC/VDC
Grade	ANSI/BHMA Grade 1
Backset	2-3/4 Inch
Door Thickness	1-3/4 inch
Latchbolt Size	5/8" x 1"
Latch Throw	3/4 Inch
Latchbolt Type	One Piece Anti-Friction Reversible Latch
Manufacturer Parent	ACSI
