ACSI | SKU: ACSI-5BB1-45X45-10A-1104

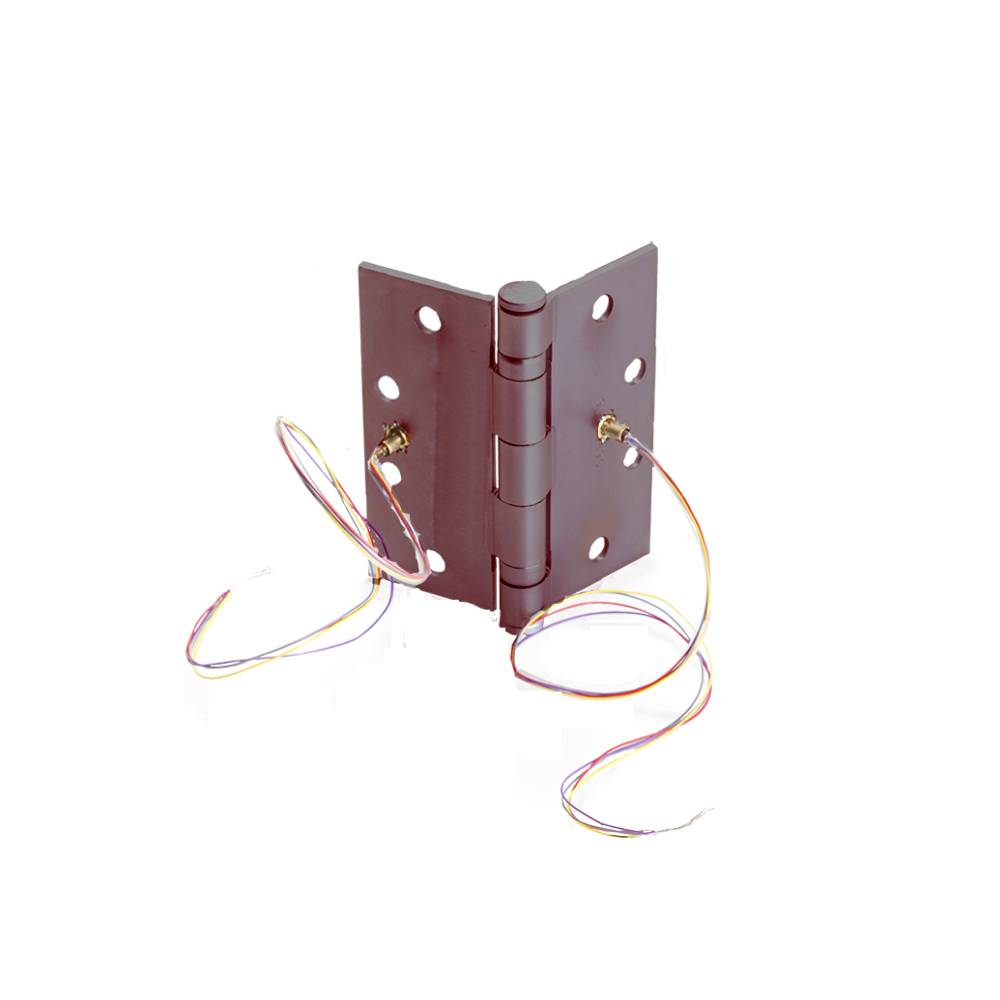

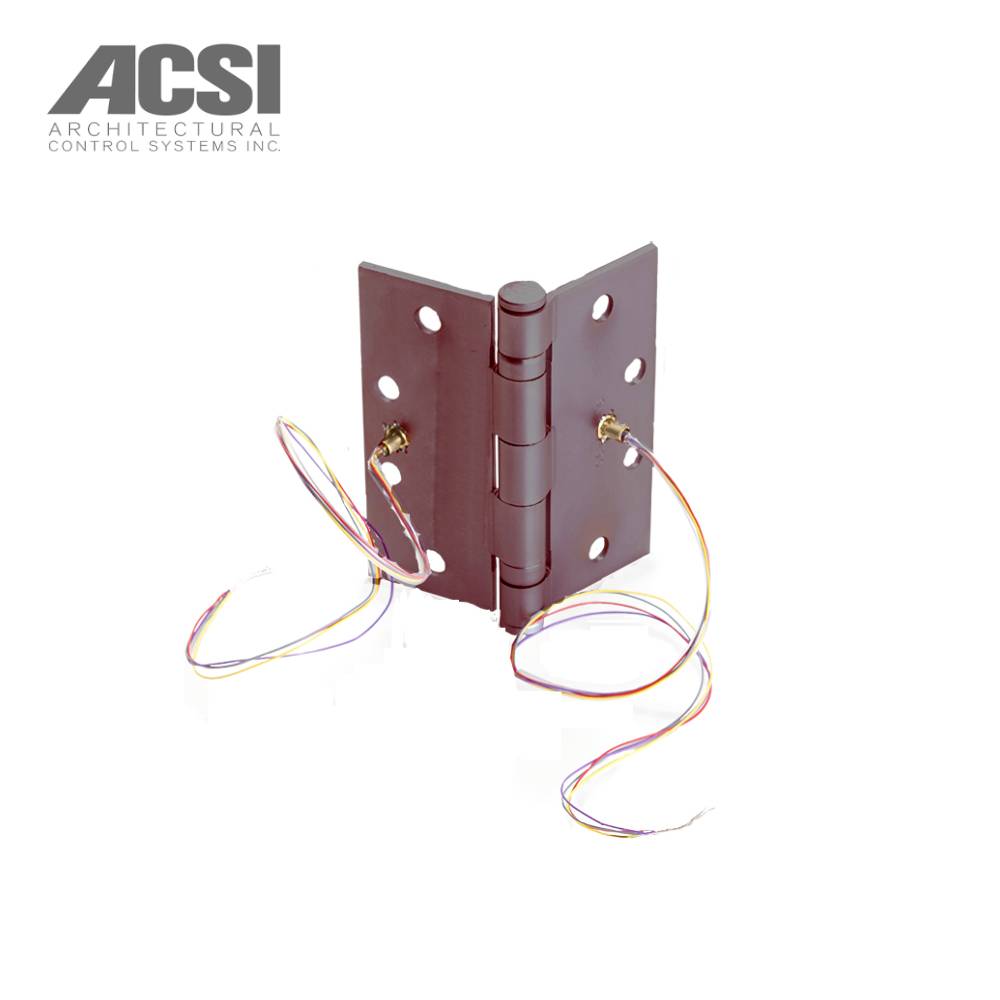

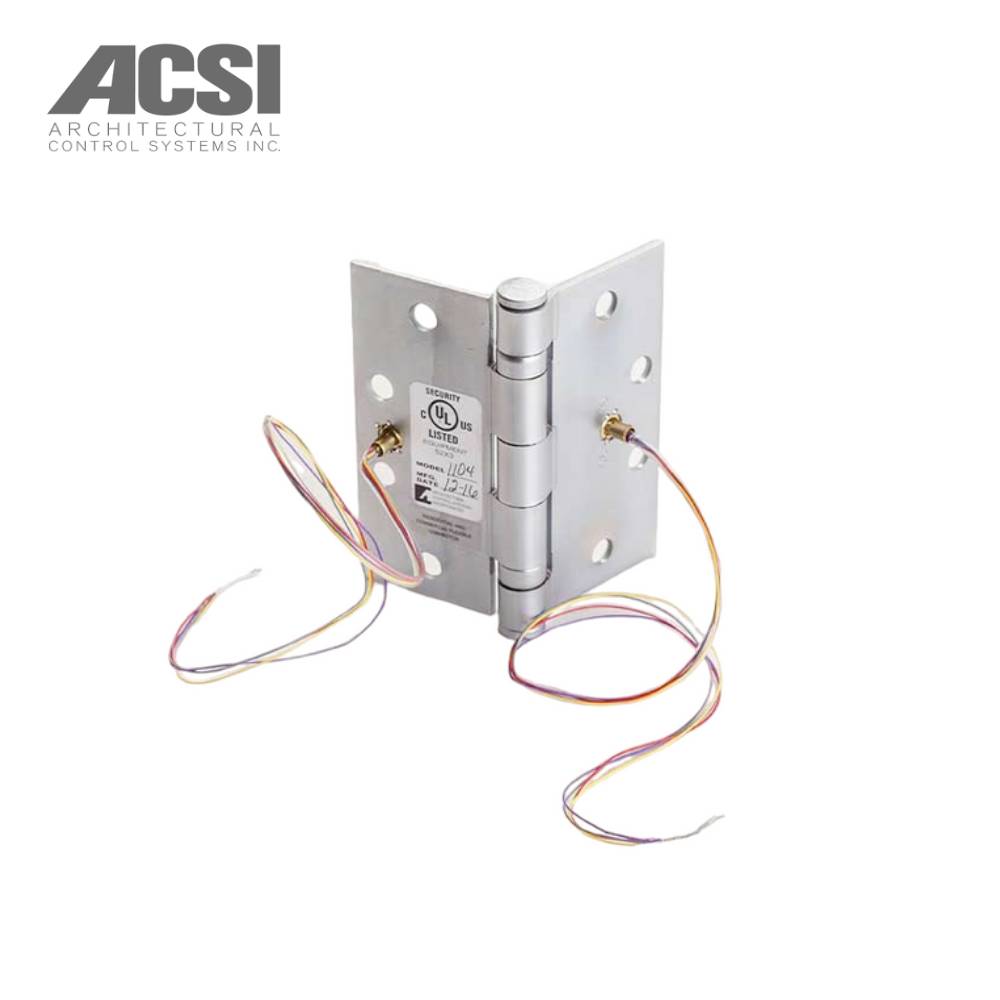

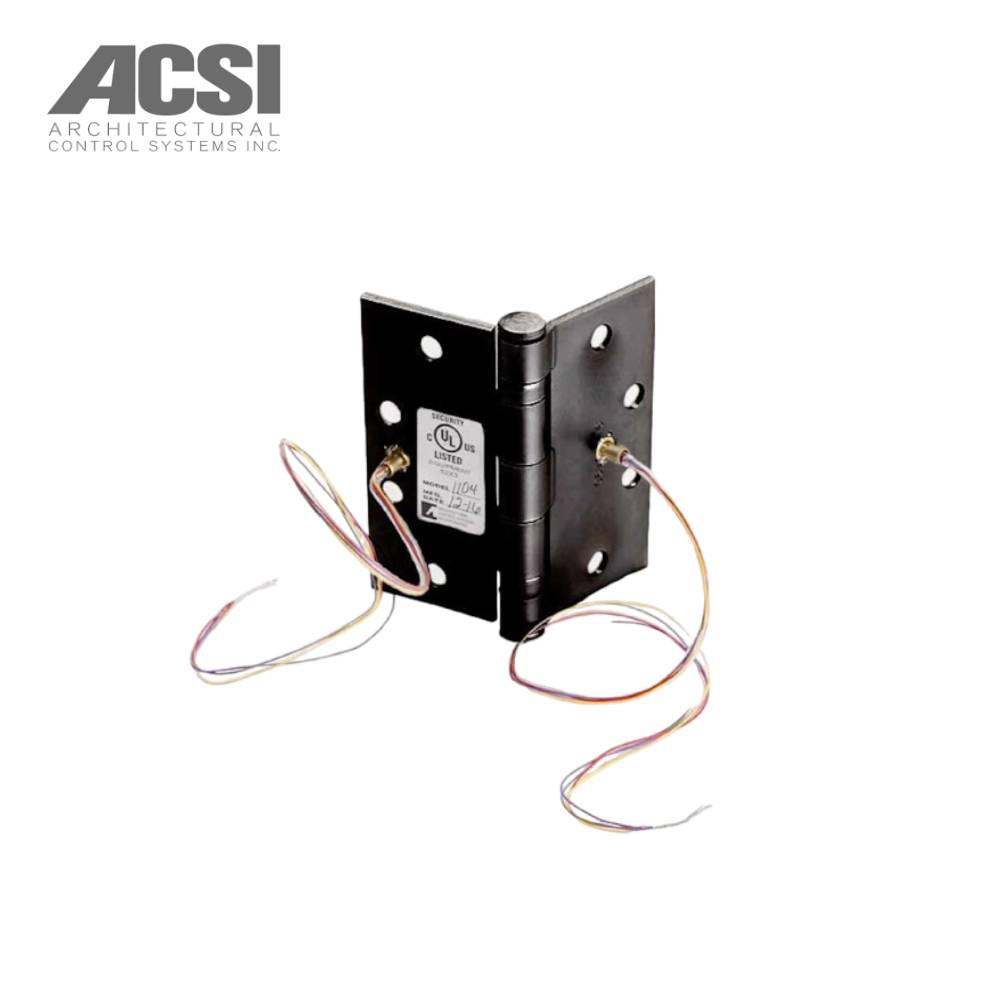

ACSI - 5BB1 - Ball Bearing Full Mortise Hinge 4-1/2 Inch x 4-1/2 Inch with Concealed Electric Through-Wire

Name: ACSI - 5BB1 - Ball Bearing Full Mortise Hinge 4-1/2 Inch x 4-1/2 Inch with Concealed Electric Through-Wire
Brand: ACSI
Price: 0.92 USD
Availability: OutOfStock
Rating: 5 (1 reviews)

$94²² ~~$113⁰⁶~~

Shipping calculated at checkout.

Color: Satin Bronze Blackened-10A

ACSI - 5BB1 - Ball Bearing Full Mortise Hinge 4-1/2 Inch x 4-1/2 Inch with Concealed Electric Through-Wire

Wire

Product variants

Secure transaction

Found a better price? Call for Price Match!
Shop with confidence knowing you’re getting the best deal.

Delivery and Shipping

All orders are shipped between 24 hours or less Monday through Friday from 9:00 am to 6:00pm. Orders placed after 5 p.m. EST will be shipped next business day.
Learn more

Return Policy

At Locksmith Keyless, we prioritize your satisfaction and offer a simple return process. Returns are accepted within 30 days of purchase for unused items in original packaging. Certain items, including OEM keys, Lishi tools, and customized orders, are non-returnable. A restocking fee of up to 30% may apply. For a full list of non-returnable items and more details, please refer to our complete return policy.

For damaged, missing, or incorrect items, please contact us within 48 hours of delivery. All returns require an RMA number. Shipping costs for returns are the responsibility of the customer.

View Full Return Policy

Description

ACSI - 5BB1 - Ball Bearing Full Mortise Hinge 4-1/2" x 4-1/2" with Concealed Electric Through-Wire

5BB1 Ives 5 Knuckle Ball Bearing Full Mortise Hinge 4-1/2" x 4-1/2" with Concealed Electric Through-Wire. Ives 5 Knuckle Ball Bearing Full Mortise Hinge with Concealed Electric Through-Wire.

Buy the ACSI 5BB1 Ives 5 Knuckle Ball Bearing Full Mortise Hinge 4-1/2" x 4-1/2" with Concealed Electric Through-Wire for easy installation and dependable door hardware solution.

Feature:

Function: Electric Hinge
Hinge Type: BB-Ball Bearing
ADA Compliant: No
Included Components: Fasteners/Screws
Product Material: Brass
Standards: ANSI/BHMA A156.1: ANSI/BHMA 156.7: UL Listed
Function Family: Hinge/Pivot

Specifications:

Hinge Type	Hinge, Full Mortise
Mounting Style	Square
Knuckles	5
Bearing Type	Ball Bearing
Pin Type	Removable
Finish	10A - Satin Bronze Blackened 613 - Oil Rubbed Bronze 26D - Satin Chrome
Tip Style	Standard
Height	4-1/2"
Width	4-1/2"
Number of Wires	1104 - Concealed electric through-wire (4 wire, 26/28ga) 1108 - Concealed electric through-wire (8 wire, 26/28ga)
Product Type	Electronic Hinge/Pivot
