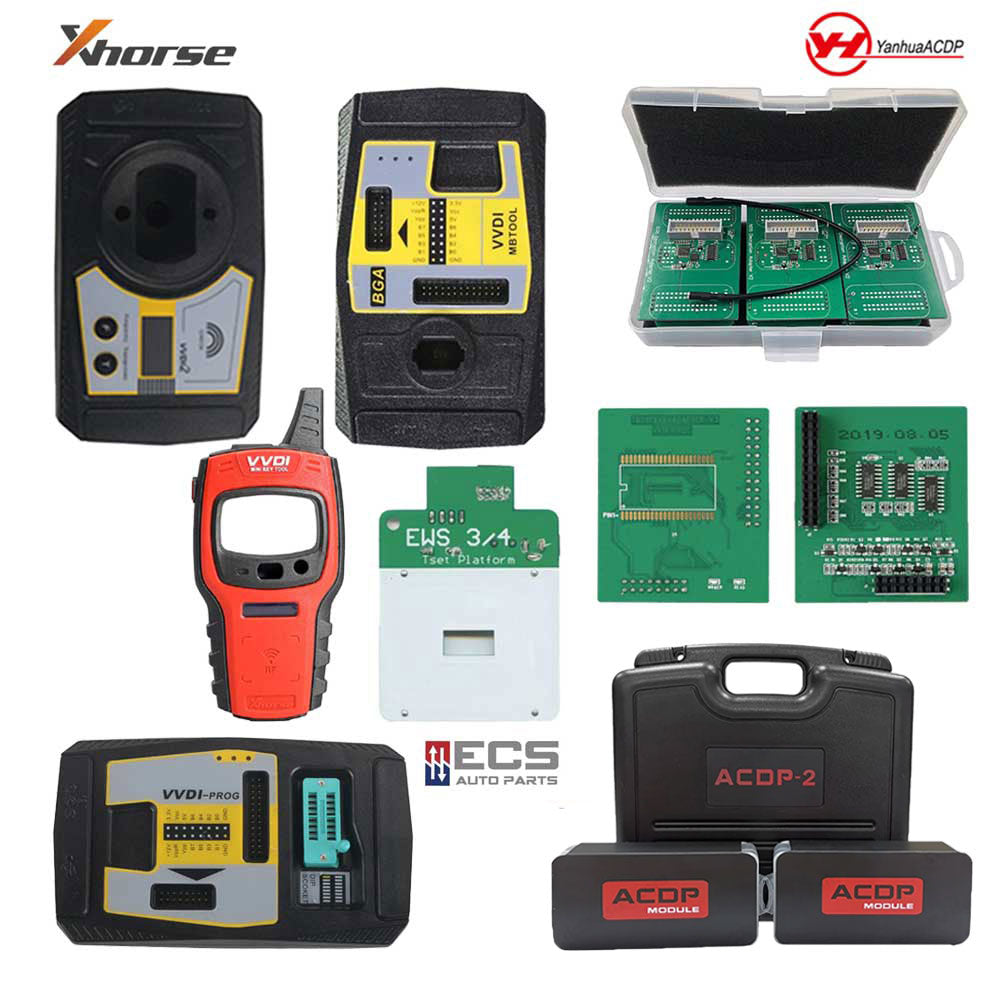

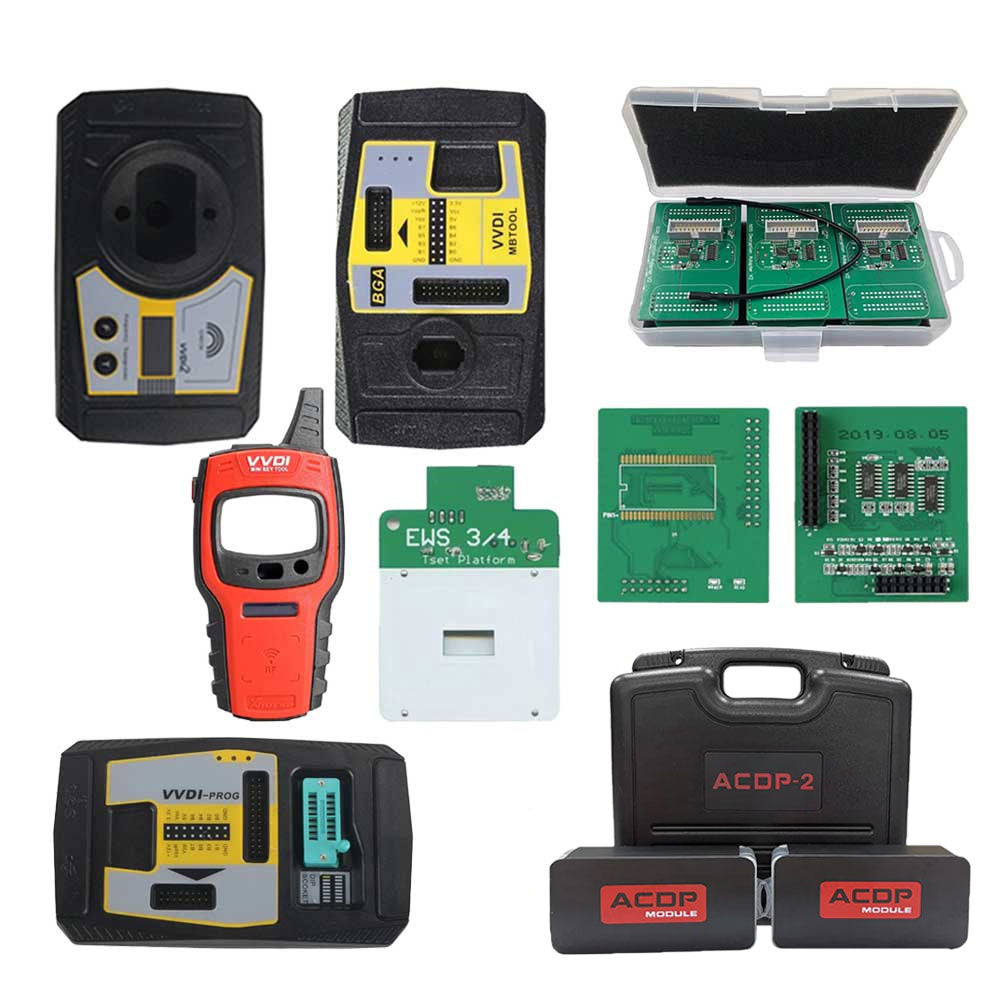

Xhorse VVDI2 and VVDI Complete Programming Bundle with Starter Kits

Xhorse VVDI2 and VVDI Complete Programming Bundle with Starter Kits

Includes:

• Xhorse VVDI2 Key Programmer
• Xhorse VVDI MB Key Programmer
• Xhorse VVDI MINI Key Tool
• Xhorse VVDI PROG EEPROM Programmer
• Yanhua ACDP 2 JLR IMMO
• Yanhua Mini ACDP1 N20/N13 N55 B38
• ECS EWS3 EWS4 Rechargeable Test Platform
• Xhorse TB28FXXX Adapter

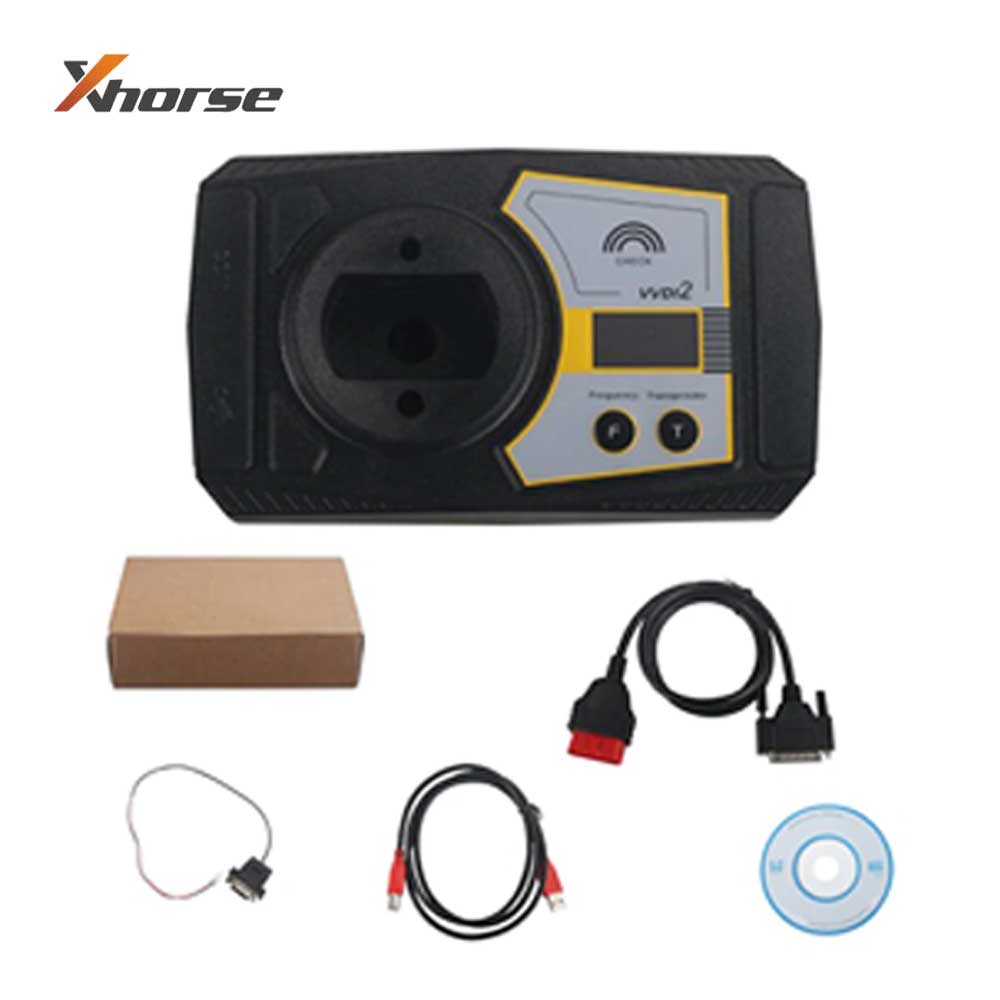

Xhorse VVDI2 Commander Key Programmer

VVDI 2 includes all the VVDI functions, the function of Tango, remote control generation and chip identification is improved, and also the coil stability has been enhanced.

Features:

• VVDI2 full - Include Basic device + VAG 4th + VAG 5th + BMW OBD + BMW CAS4 software activated
• VVDI2 (basic Function) - Include Basic device (with basic software activated )
• VVDI2 (VW Function) - Included Basic device + VAG 4th + VAG 5th software activated.
• VW 4th - Only Software
• VW 5th - Only Software
• BMW OBD - Only Software
• BMW CAS4 - Only Software
• FEM - Only Software

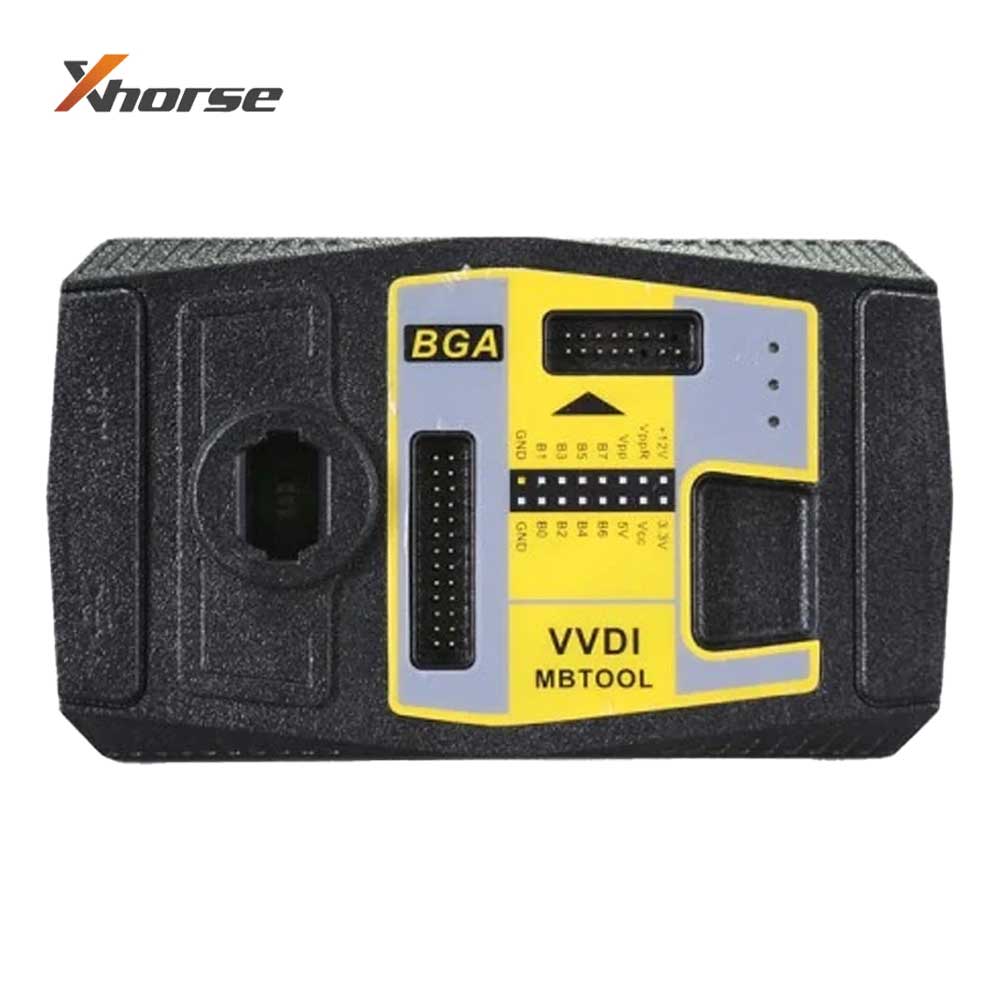

Xhorse VVDI MB Machine BGA Mercedes Key Programmer

The VVDI MB BGA Key Programmer from XHorse is the latest key programmer for Mercedes Benz. It will allow you to program new keys to your customer's Mercedes without the need for desoldering/resoldering. Features frequent online updates, supports Mercedes Benz keys, reading password and preparing a new key via IR. Mainly used for key reading and writing, EIS tools, password calculation, key file preparing, ESL tools, ECU/Gearbox renewal, and many more special functions. Includes the original Xhorse VVDI MB BGA Tool Mercedes Benz Key Programmer BGA Calculator. Features frequent online updates, reading Mercedes passwords, preparing a new key/remote via IR, and more necessary functions for Benz key programming.

Features:

• Supports BE key, read password and prepare new key via IR
• NEC V051,V057 supports password retrieval on-board (no EEPROM needed)
• On-board writing and erasing to all NEC keys (no EEPROM needed)
• Fast password calculations for BGA and NEC keys (include 51,57 version)
• Writes & renews EIS (EZS) and ELV (ESL)
• Generates key file (must have Internet access)
• Unlocks ELV (ESL)
• COMING SOON: Renews other control module
• Xhorse Mercedes Benz key programmer nec and bga keys

Read key basic information

• Key with BE version, we can read password from key via IR directly.
• renew key, write new key file via IR is also supported
• Support IR repair key, repair key not work via IR
• NEC adaptor can read key password from NEC v51, v57 version

Support write and renew (NEC adaptor) NEC key versions following:

• v51, v57
• v28, v35, v40
• v03, v06, v08 (Keyless Go) v05, v07, v09 (Keyless Go) v59, v61 (Keyless Go)
• Support read EIS data via OBD and IR adaptor
• Under OBD mode, we provide auto detect EIS type for CAN protocol
• Support read W164, W209, W211 EIS via OBD without gateway support
• Support read old Motorola EIS (HC05, HC08, K-Line) password via IR directly
• Support renew EIS, make 2nd hand EIS to new one (online)
• Support replace EIS, you can write original EIS data to new EIS via IR
• Support write new VIN
• Support clear TP
• Support disable key position
• Support personalize W204ESL
• Support testEIS, ELV, working key status

Support chasis type:

• W164
• W164 2009
• W166, 197, 212, 218, 246
• W169, 209, 211
• W172, 204, 207, 212 (old, with ELV) W203, 463, 639 (K)
• W202, 208, 210 (K)
• W215, 220 (K)
• W230 (K)
• W216
• W221
• W639 2009

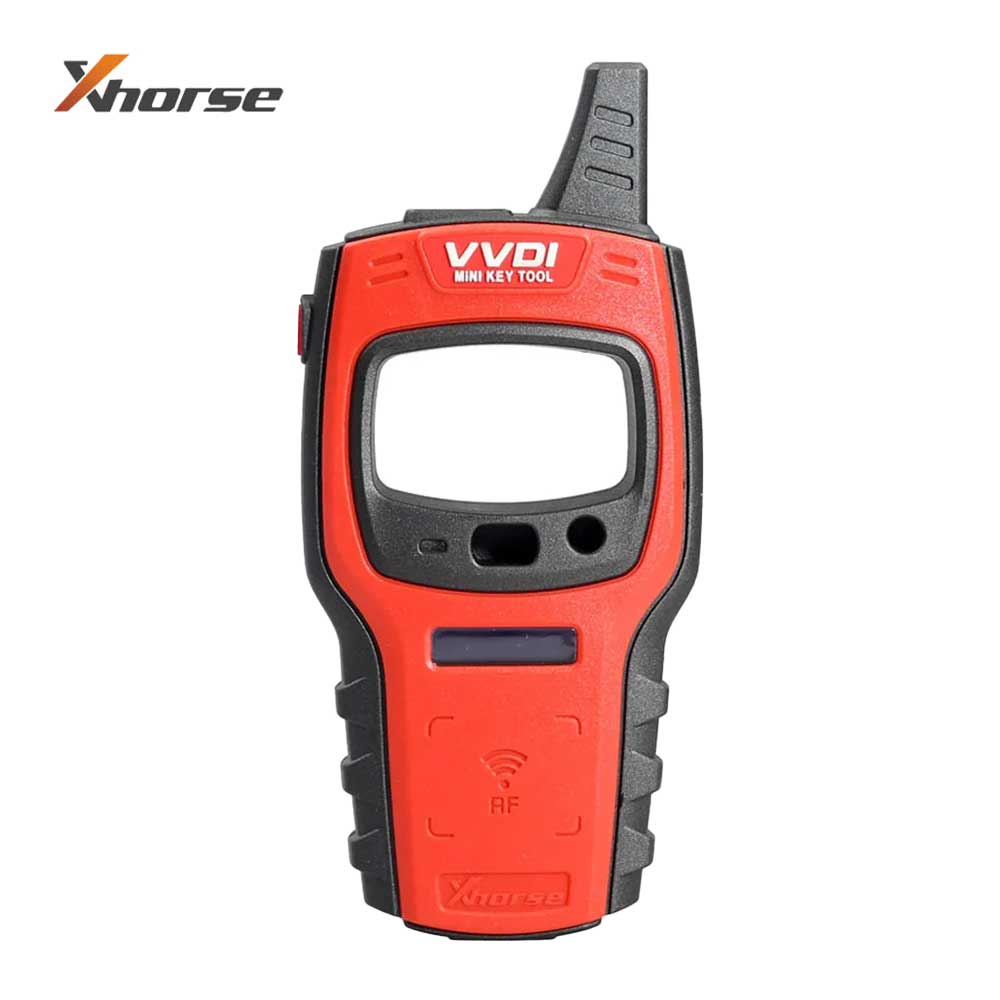

VVDI MINI Key Tool - Remote Generator, Cloner, Tester

Mini Key Tool Features:

• Transponder Editing & Cloning: Detects most immobilizer transponders. It will edit and clone common transponders
• Transponder Generating: Supports TP transponder & parts of special transponders of more than 700 vehicle models. You may reduce the stock of transponders immediately when you start using it.
• Remote Generating: Supports 128 makes and over 2000 vehicle models. Generate more abundant and thorough key pictures, transponder types, key blanks and remote matching data.
• Remote Cloning: Supports the HCS/fixed code cloning. Supports nonHCS rolling code cloning. Supports PT22XX, LX918, HT6P20, VD5026, AX5326, HT12X fixed code editing.
• Frequency Tester: Supports the power test within the range of 300450Mhz
• Toyota H Transponder: Activate Toyota H transponder generation function.

Special Functions:

• Unlock Toyota smart keys
• ID63 to ID83
• Special 4D to 4C
• Detect Remote

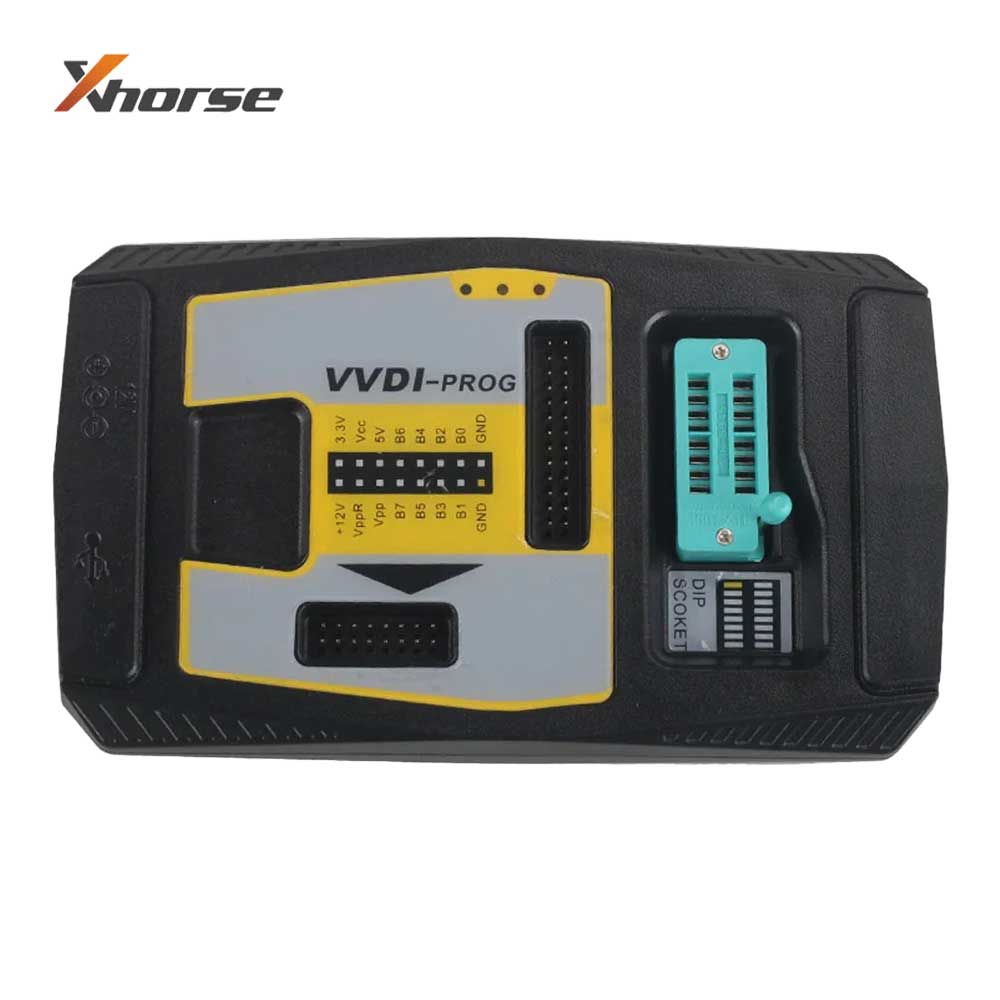

 Xhorse VVDI PROG EEPROM Programmer

Once you buy VVDIProg programmer, you can get free BMW ISN read function and NEC, MPC, Infineon etc chip continuously update service.

Features:

• The builtin update software allows user to update VVDI Prog firmware timely.
• High-speed USB communication interface enable the software automatically connect.
• Smart operation mode: the possible causes of error will be listed
• Reserve ports: for future update.
• The selftest function enable you check if the machine works well.
• Can supply power via USB cable, the software will automatically prompt if the external USB power supply is needed.

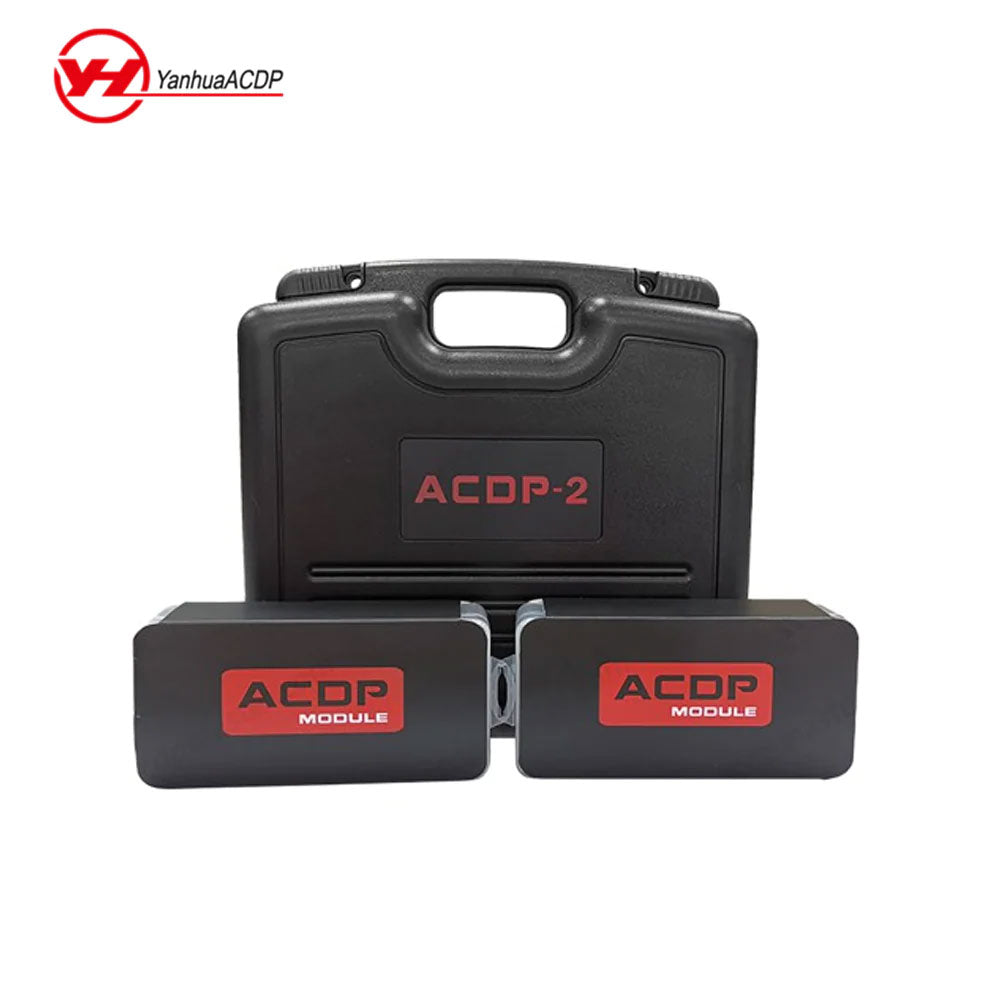

Yanhua ACDP 2 JLR IMMO Package With Module 9/24

Yanhua ACDP 2 JLR IMMO Package for Land Rover/Jaguar IMMO 2010 - 2020 KVM RFA With Module 9/24

Includes:

• ACDP-2 Basic module
• Module 9 Jaguar/Land Rover KVM Module for Adding key and all-key-lost for Jaguar and land rover 2015-2018.
• Module 24 New JLR ( 2018+) IMMO Module

Features:

• Overturn the traditional work mode: Single operation is changed to team cooperation.
• Change of operation mode: PC operation is changed to mobile phone operation.
• Change of test connection mode: Electric soldering iron is changed to No-solder dedicated connector.
• Change from artificial observation to intelligent monitoring: Artificial observation/trying is changed to automatic detection algorithm, graphical indication the reliability of connection. Ensure the data is not damaged and lost.
• Change of service mode: Offline service is changed to online synchronous service.

Functions:

• Supports the new JLR 2018+ OBD duplicate key (JPLA)
• Supports new JLR 2018+ program new key by replacing RFA blank chip or RFA module
• Support Jaguar and Land rover ICP add key and all keys lost (2015-2019)
• Support Jaguar and Land rover OBD duplicate key and all keys lost (2011-2019)
• Support Jaguar and Land rover OBD Add key and all keys lost (2011-2015)

Download:

• Yanhua ACDP 2 JLR IMMO Package

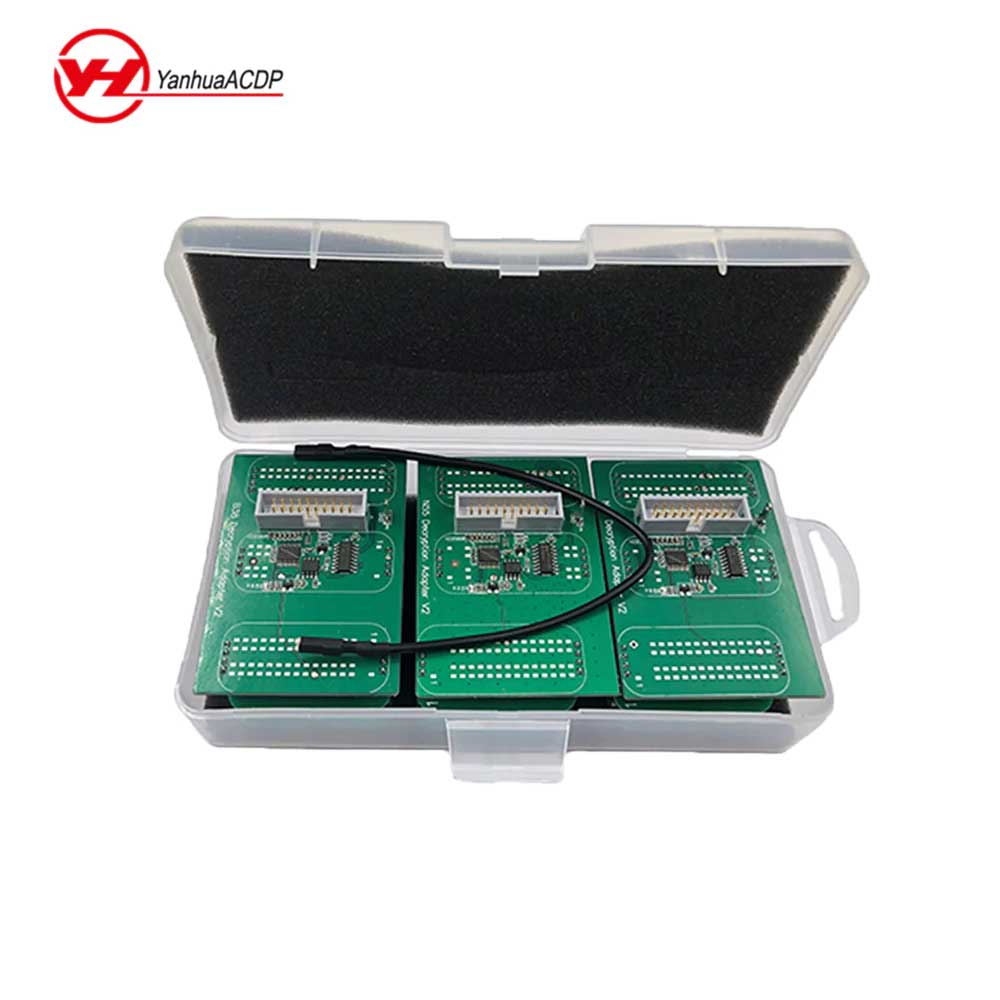

Yanhua Mini ACDP1 N20/N13 N55 B38 Integrated Interface Board Set for BMW

Yanhua Mini ACDP N20/N13 N55 B38 Bench Integrated Interface Board in a combination kit. This is a must-have adapter set for BMW ALL KEY LOST situations.

YANHUA ACDP N20/N13 Bench Integrated Interface Board

Functions:

N20/N13 Bench Integrated Interface Board, working with Yanhua ACDP Master and ISN Module 3 to read the ISN of N20/N13 without wiring.

Features:

• No need to open the DME shell, No need to drill the hole, No need to insert the cable. Read/Write N20/N13/N63/S63 DME ISN.
• Will extend the function of cloning N20/N13/N63/S63 DME
• Plug and play, simple and efficient. Prevent wrong plus, safe and reliable

YANHUA ACDP N55 Bench Integrated Interface Board

Functions:

DME N55 Integrated Interface Board, working with Yanhua ACDP Master and ISN Module 3 together, Read ISN of N55 without wiring.

Features:

• No need to open the DME shell, No need to drill the hole, No need to insert the cable. Read/Write N55 DME ISN.
• Will extend the function of cloning N55 DME
• Plug and play, simple and efficient. Prevent wrong plus, safe and reliable

Yanhua Mini ACDP B38 Bench Interface Board

Features:

• No need to open the DME shell, No need to drill the hole, No need to insert the cable. Read/Write B38 DME ISN.
• Will extend the function of cloning B38 DME.
• Plug and play, simple and efficient. Prevent wrong plus, safe and reliable.

Note: When Using N55 Adapter it may be necessary to ground a pin.

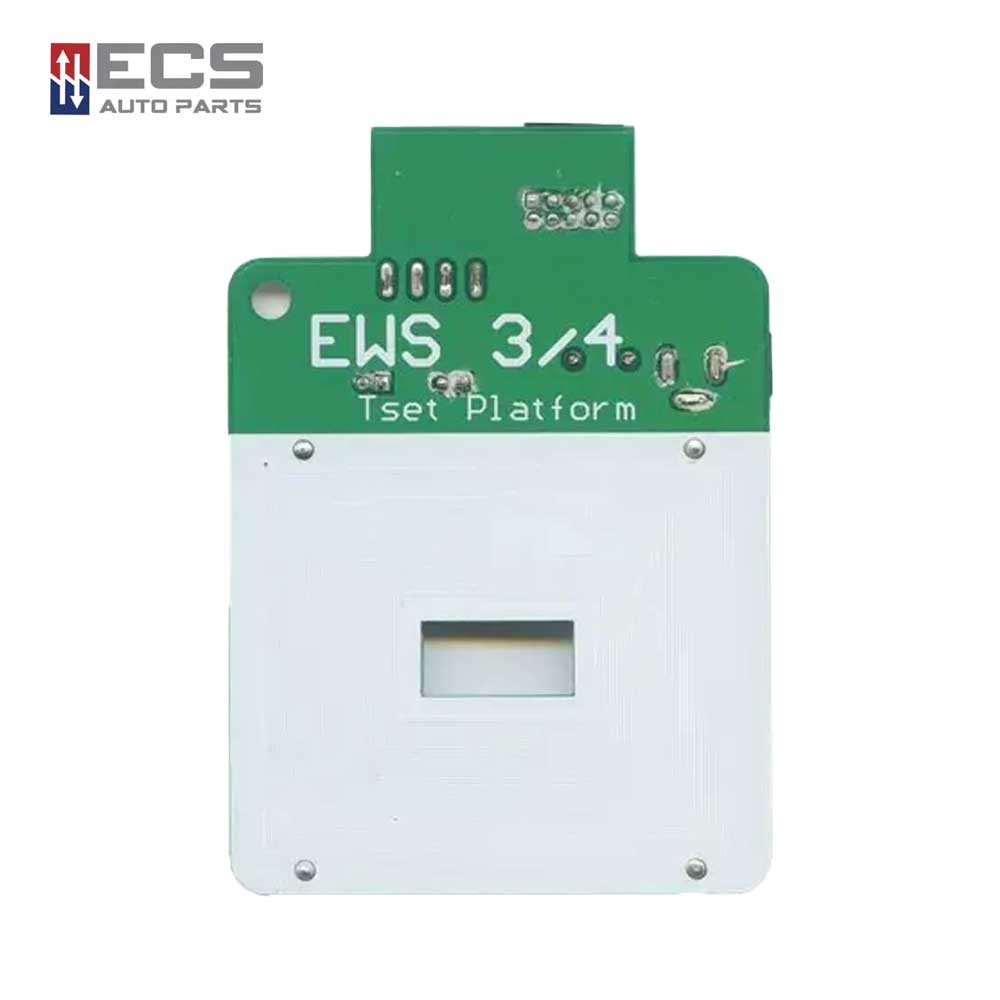

ECS Land Rover EWS3 EWS4 Rechargeable Test Platform

It is rechargeable, besides Tango Key Programmer, for BMW / for Land Rover EWS Test Platform is the only device in the current market which able to charge for the rechargeable key. If you own the EWS and for BMW / for Land Rover EWS Test Platform, it means you own a set of advanced car key charger, and it can work with all rechargeable keys.

It can perform 3 functions as follows without connecting to the for BMW:

• Able to test EWS3, EWS4 working or not
• Able to test whether the PCF7935 chip or EML electronic chip key complete programming or not.
• Able to test EML key electronic chip working or not, and test after fixing EWS data.

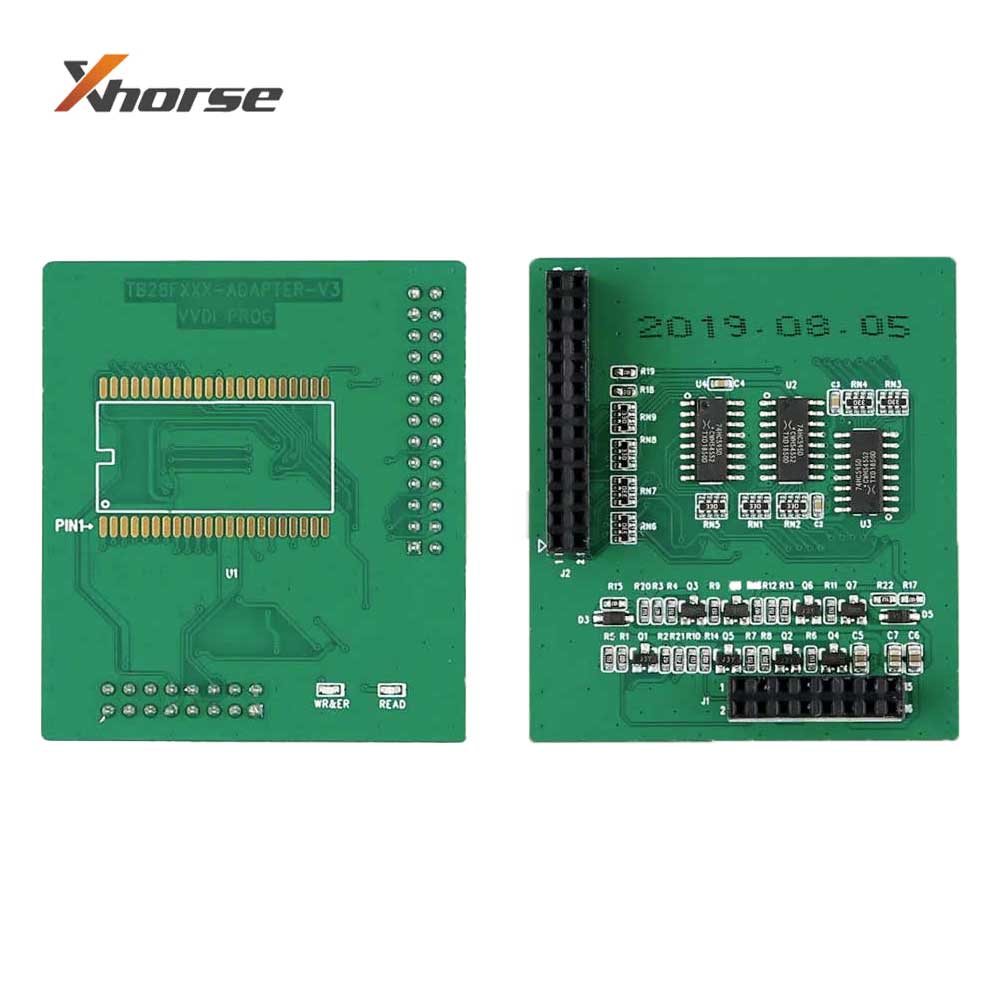

Xhorse TB28FXXX Adapter for VVDI PROG Programmer

TF28 can Read the Chip Model:

• PA28F200B5T(PSOP44)
• PA28F200B5B(PSOP44)
• PA28F200BVT(PSOP44)
• PA28F200BVB(PSOP44)
• PA28F200BXT(PSOP44)
• PA28F200BXB(PSOP44)
• PA28F400B5T(PSOP44)
• PA28F400B5B(PSOP44)
• PA28F400BVT(PSOP44)
• PA28F400BVB(PSOP44)
• PA28F400BXT(PSOP44)
• PA28F400BXB(PSOP44)
• PA28F800B5T(PSOP44)
• PA28F800B5B(PSOP44)
• PA28F800BVT(PSOP44)
• PA28F800BVB(PSOP44)
• PA28F800BXT(PSOP44)
• PA28F800BXB(PSOP44)
• TB28F200B5T(PSOP44)
• TB28F200B5B(PSOP44)
• TB28F200BVT(PSOP44)
• TB28F200BVB(PSOP44)
• TB28F200BXT(PSOP44)
• TB28F200BXB(PSOP44)
• TB28F400B5T(PSOP44)
• TB28F400B5B(PSOP44)
• TB28F400BVT(PSOP44)
• TB28F400BVB(PSOP44)
• TB28F400BXT(PSOP44)
• TB28F400BXB(PSOP44)
• TB28F800B5T(PSOP44)
• TB28F800B5B(PSOP44)
• TB28F800BVT(PSOP44)
• TB28F800BVB(PSOP44)
• TB28F800BXT(PSOP44)
• TB28F800BXB(PSOP44)

Package Includes:

• 1pc x TB28F Adapter Version 2 or 3, depends on your selection
