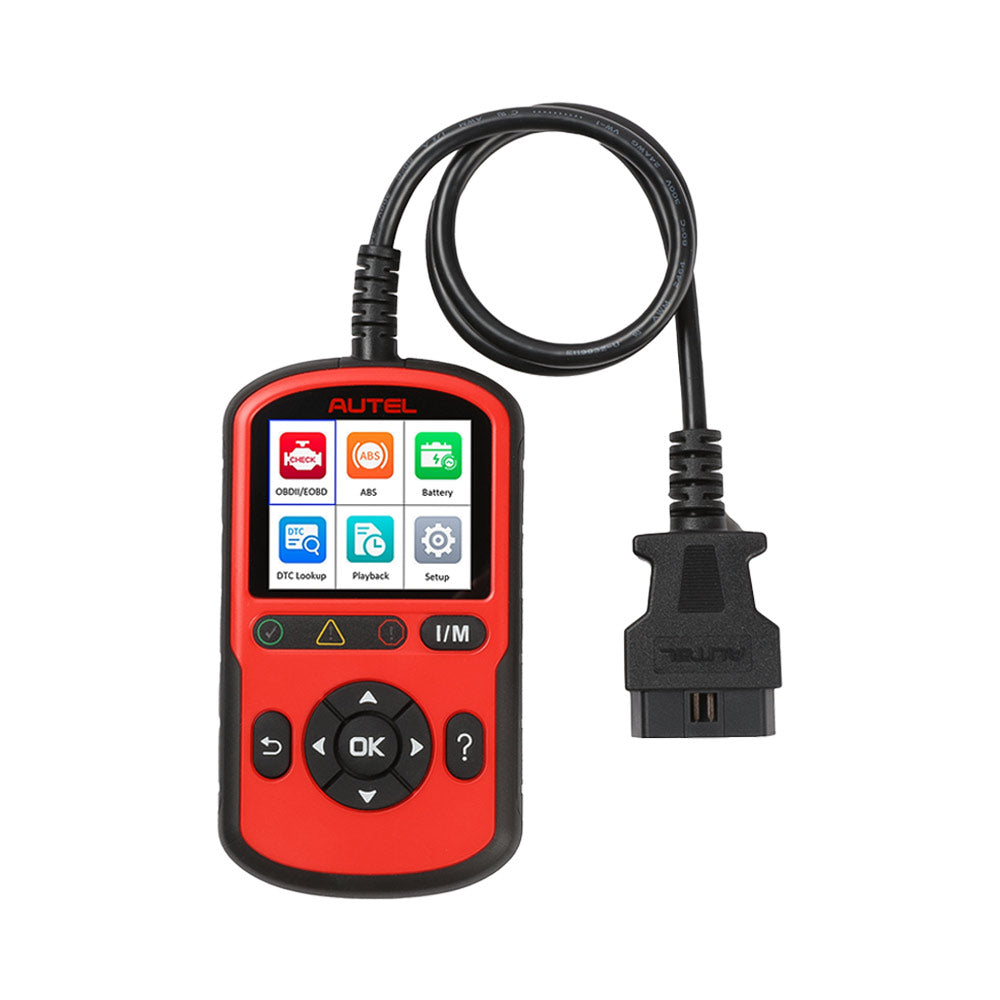

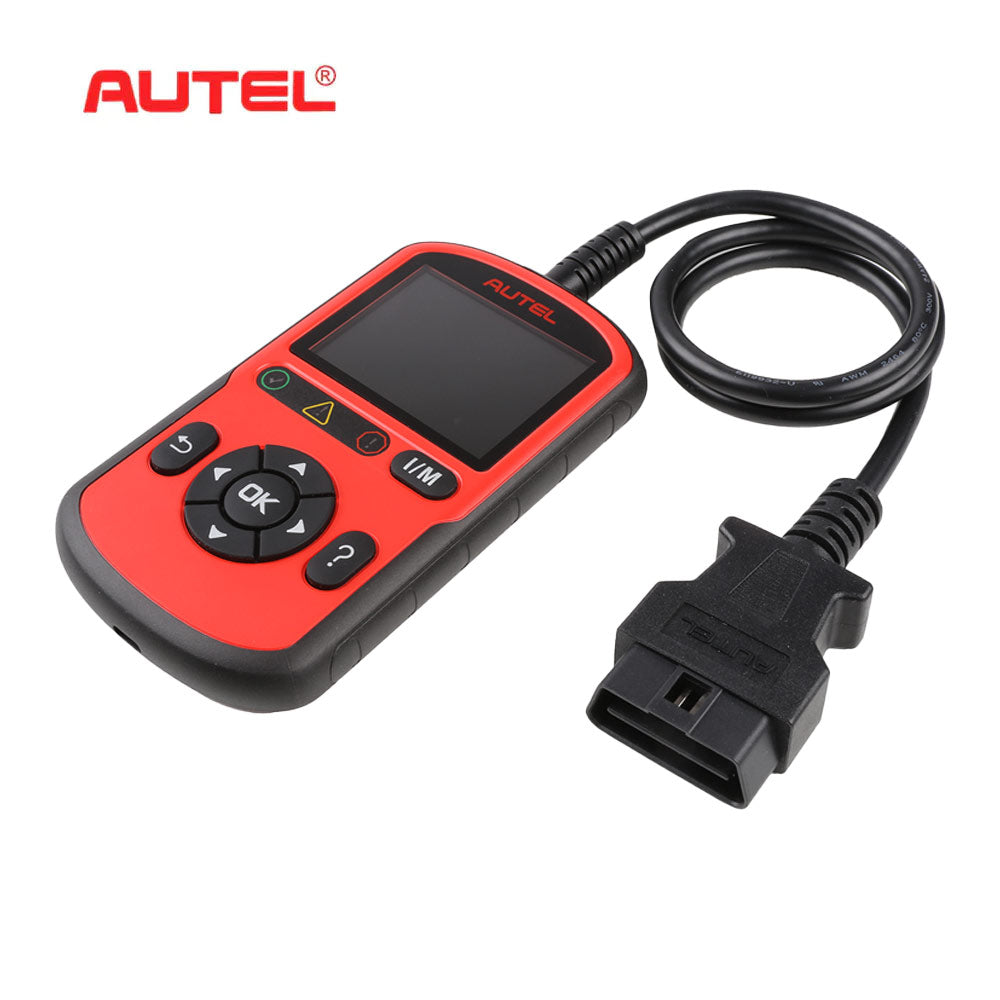

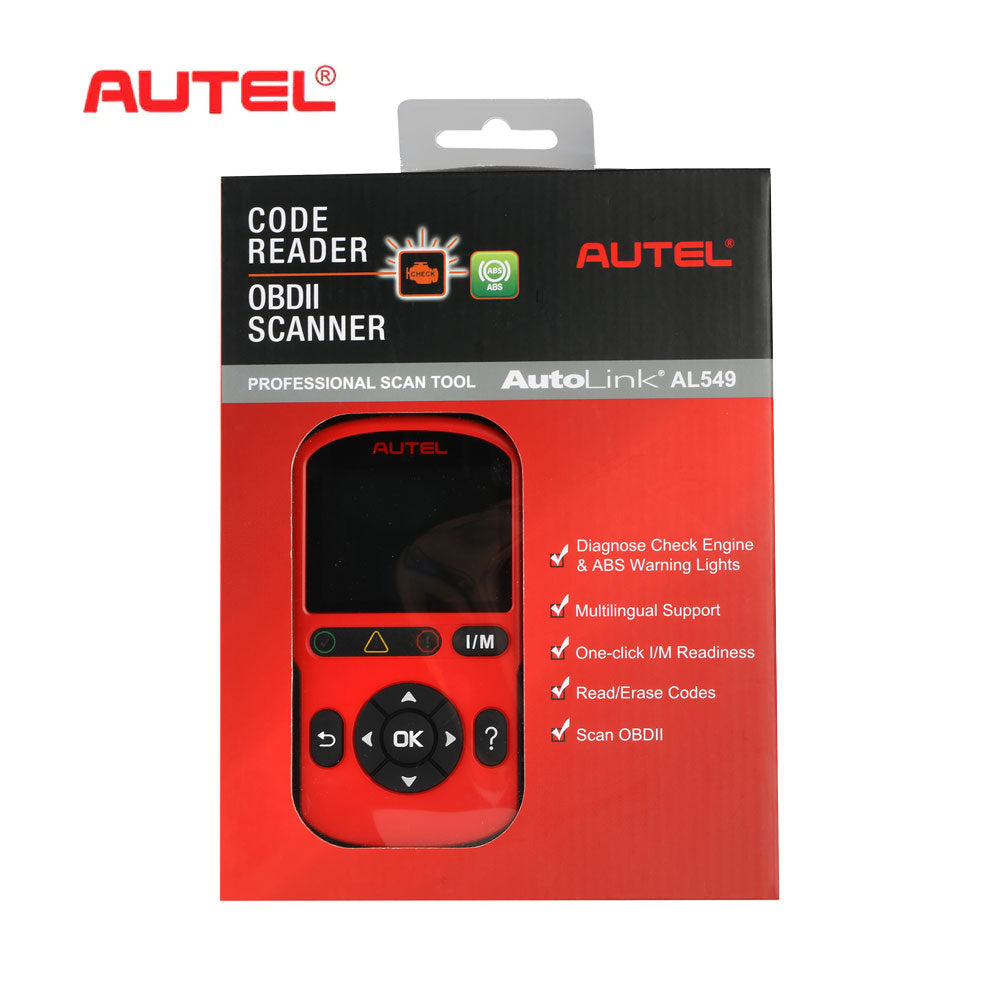

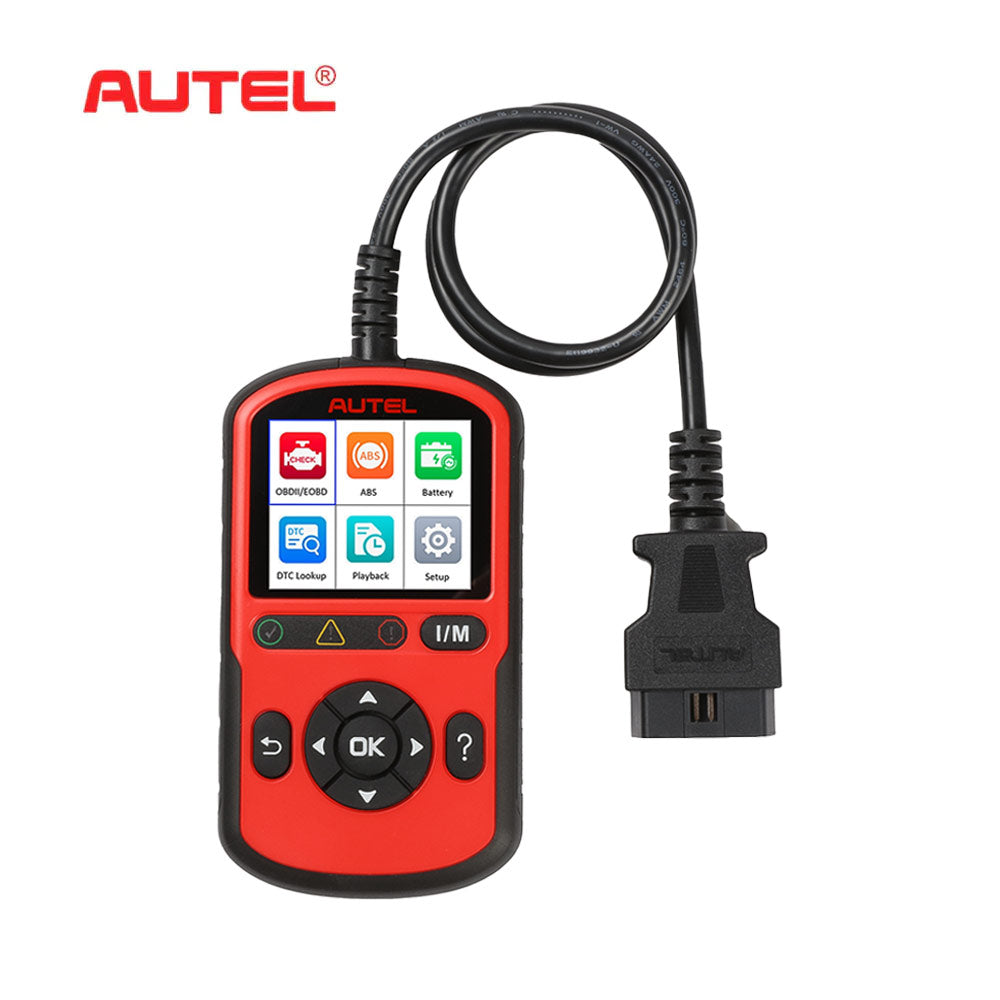

Autel AutoLINK AL549 Professional OBDII Code Reader
The AutoLink AL549 OBDII Code Reader supports all 10 modes of OBDII test for complete vehicle diagnostics and ABS warning lights. The easy-to-use tool features a TFT color display and built-in speaker for visual and audible message cues and the patented One-Click I/M Readiness Key for quick State Emissions.
Features:
- Compatible with U.S., Asian, and European Vehicles, 1996 and newer
- Read/Erase Codes, View Freeze Frame and Live Data
- Easily determines the causes of the Check Engine Light and ABS warning light, turns off lights, and erases codes
- AutoVIN function for quickly identifying manufacturer-specific codes
- Supports all 10 modes of OBDII test for complete diagnosis
- Patented one-click I/M readiness key with color coded LEDs, and built-in speaker provides both visual and audible tone for quick readiness verification
- Easy-to-use with one plug-in
- Supports reading vehicle battery information from OBD port, including starting system test and charging system test
Specifications:
| Display | 2.8-inch LCD (320x240 dpi) |
| Connectivity | Type-C USB OBD II DB16 |
| Operating Temp | 0℃ to 60 ℃ (32℉ to 140℉) |
| Storage Temp | -20℃ to 70 ℃ (-1℉ to 158℉) |
| External Power | 8.0 to 18.0V power provided via vehicle battery |
| Dimensions (H x L x W) | 267.97mm (10.55”) x 85mm (185.93”) x 19.9mm (37.85”) |
| Weight | 376.48g (with wire) 266.9g (without wire) |
Comparison:
| Functions | AL549 | AL529HD | AL529 | AL329 |
| Read MIL Status | √ | √ | √ | √ |
| One Touch I/M | √ | √ | √ | √ |
| View Freeze | √ | √ | √ | √ |
| Frame Data | √ | √ | √ | √ |
| Read/Erase DTCs | √ | √ | √ | √ |
| View Vehicle Information | √ | √ | √ | √ |
| AutoVIN for Quick DTC definition | √ | √ | √ | √ |
| O2 Monitor test | √ | √ | √ | -- |
| On-board Monitor test | √ | √ | √ | -- |
| Component Test | √ | √ | √ | -- |
| Modules Present | √ | √ | √ | -- |
| Support J1939 and J1708 Protocols | -- | √ | -- | -- |
| Read/Erase DTCs for ABS | √ | -- | -- | -- |
| Read/Erase DTCs for SRS | -- | -- | -- | -- |
| Read/Erase DTCs for Engine | -- | -- | -- | -- |
| Read/Erase DTCs for Transmission | -- | -- | -- | -- |
| Read Enhanced Codes in Powertrain system for Ford, GM and Chrysler | √ | √ | √ | -- |
| Battery Test | √ | -- | -- | -- |
| Save and Playback Data | √ | √ | √ | -- |
| DTCs Help | √ | √ | √ | -- |
| Print Data Via Windows-baded PC | √ | √ | √ | -- |
| Vehicle Coverage | Vehicles compatible with OBD protocols |
Vehicles compatible with OBD protocols and J1939, J1708 protocols |
Vehicles compatible with OBD protocols |
Vehicles compatible with OBD protocols |
Warranty:
- One-Year Limited Warranty
