Yanhua Mini ACDP Module 33 for MQB48 Key Programming Mileage Correction with License A608 and 13 PCS Compact Size Solder-Free Interface Boards (Pre-order)

Yanhua Mini ACDP Module 33 for MQB48 Key Programming Mileage Correction with License A608 and 13 PCS Compact Size Solder-Free Interface Boards

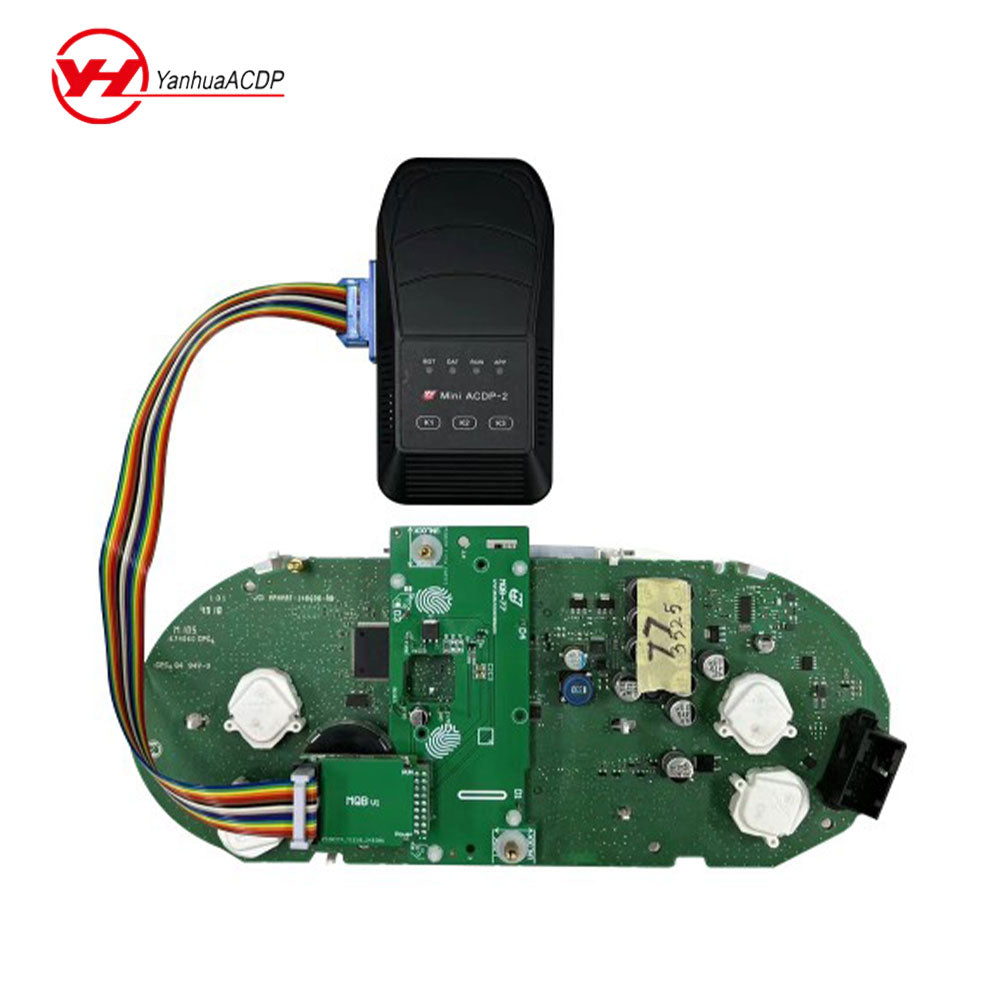

Mini ACDP Module 33 MQB-33 with License A608. It supports VW the 4th/4.5th generation and MQB 5A etc. IMMO and mileage correction. It can work with both ACDP-1 and ACDP-2 Master basic version

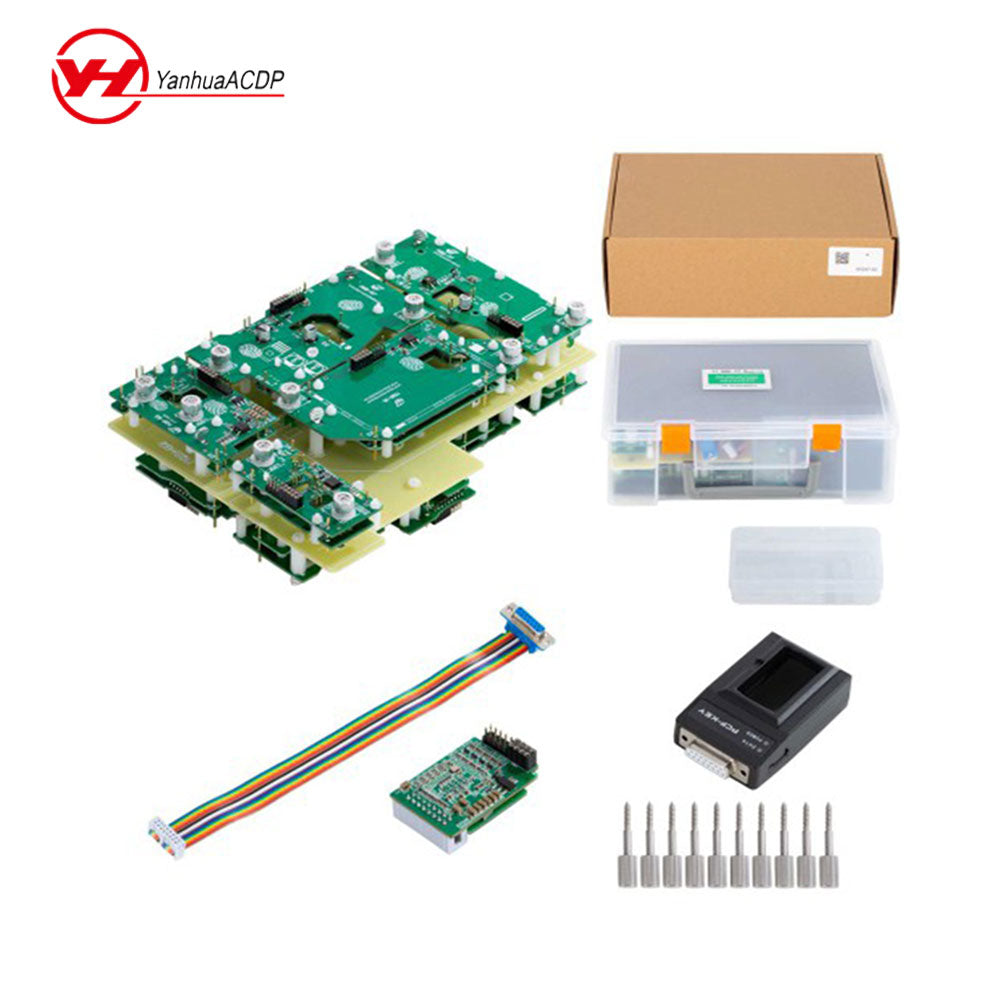

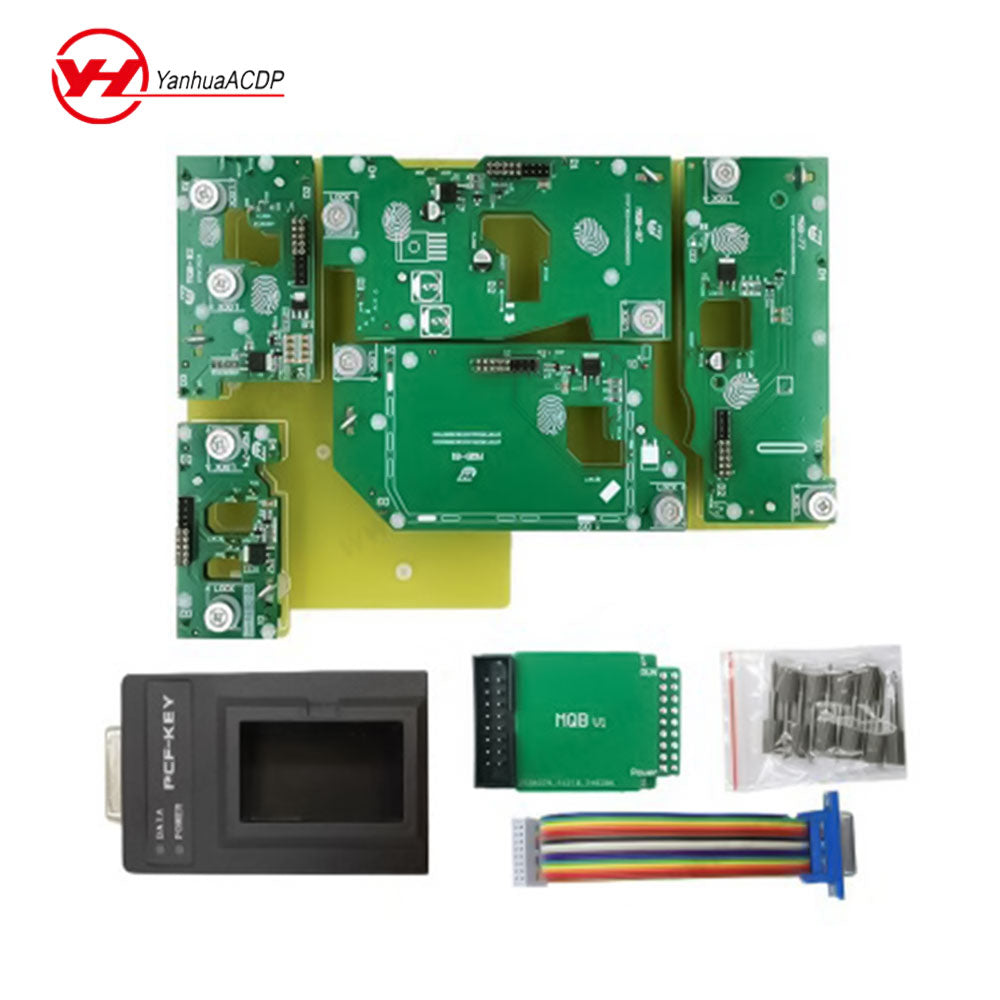

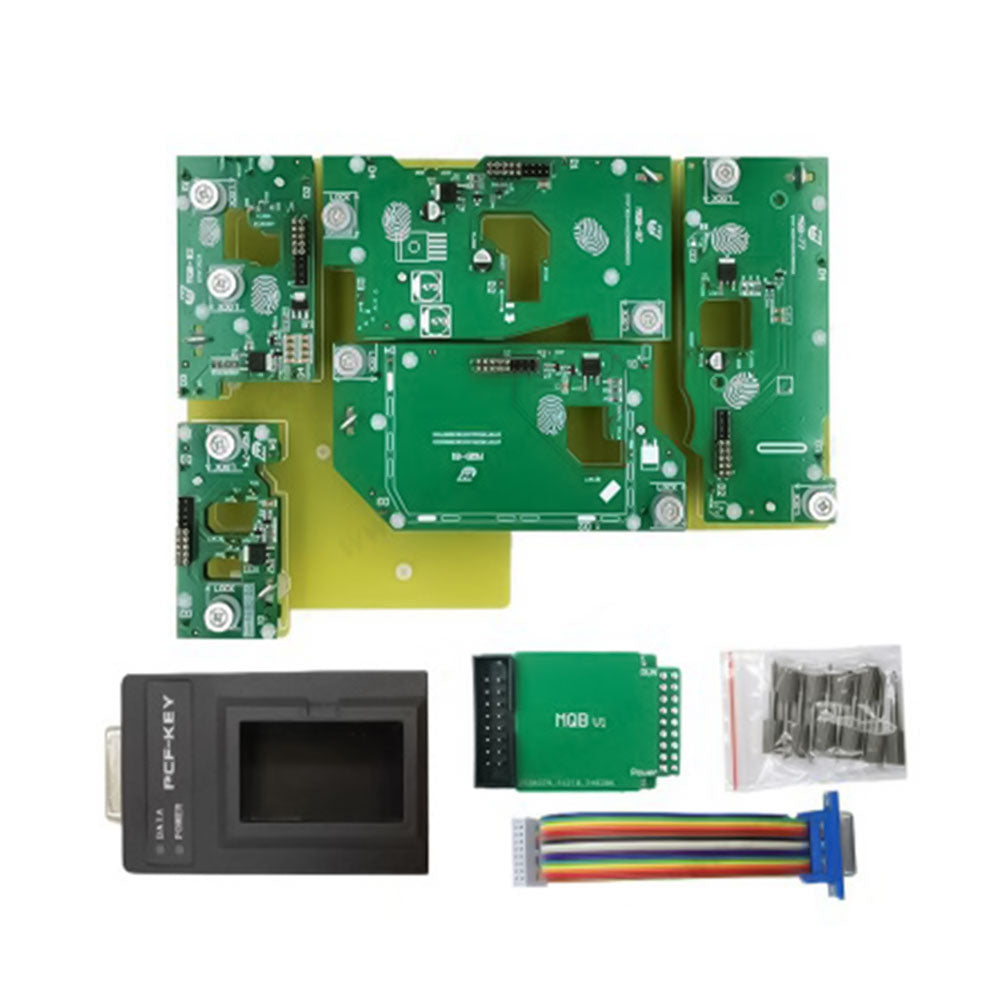

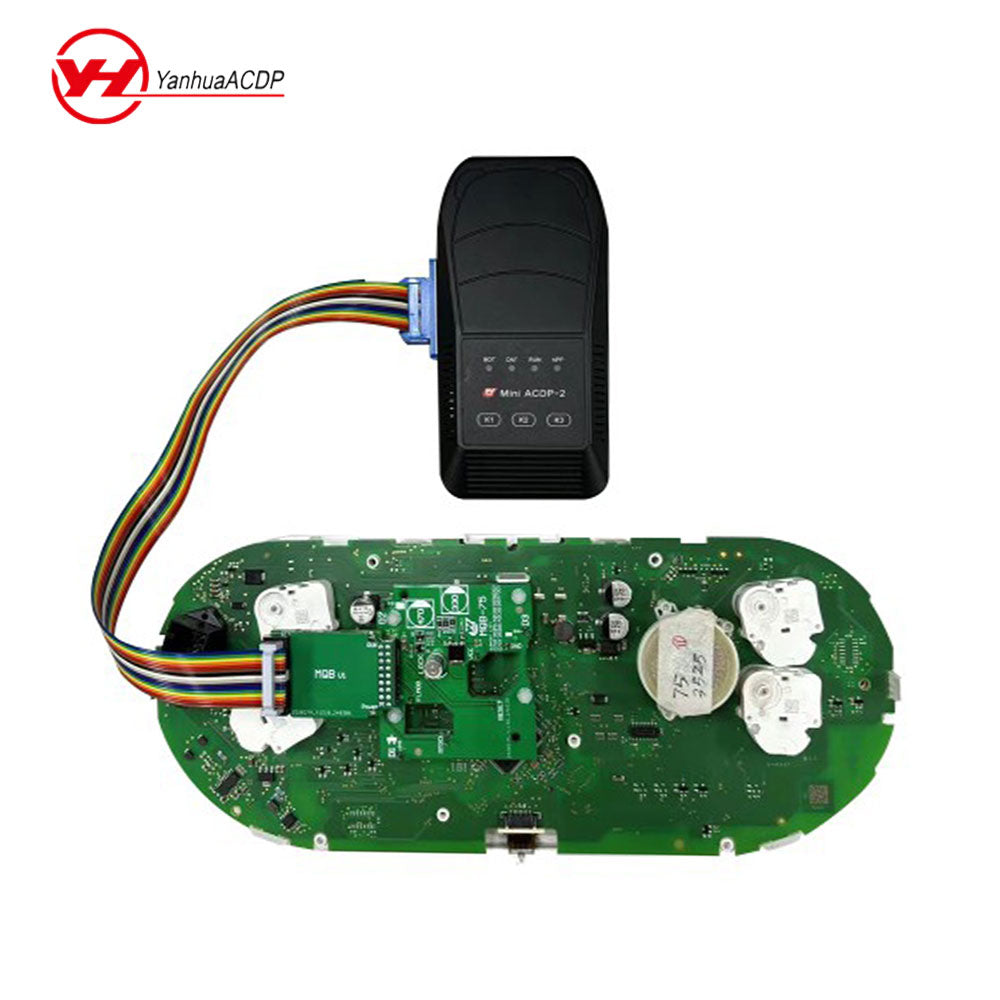

Whole set compact size 13 solder-free interface board with License for MQB48. Module 33 work with both Mini ACDP and ACDP-2. ACDP hardware is not included.

Function:

• Supports VW the 4th/4.5th generation and MQB 5A etc. IMMO and mileage correction.
• Add keys and All key lost for Volkswagen MQB48 (AKL need to get Synchronous data from third party)
• Module 33 Support the following chip module instrument cluster 3524, 3525, 3526, 3529, 3532, 3533, 3536, 3537, and 8pin chip 95320

Feature:

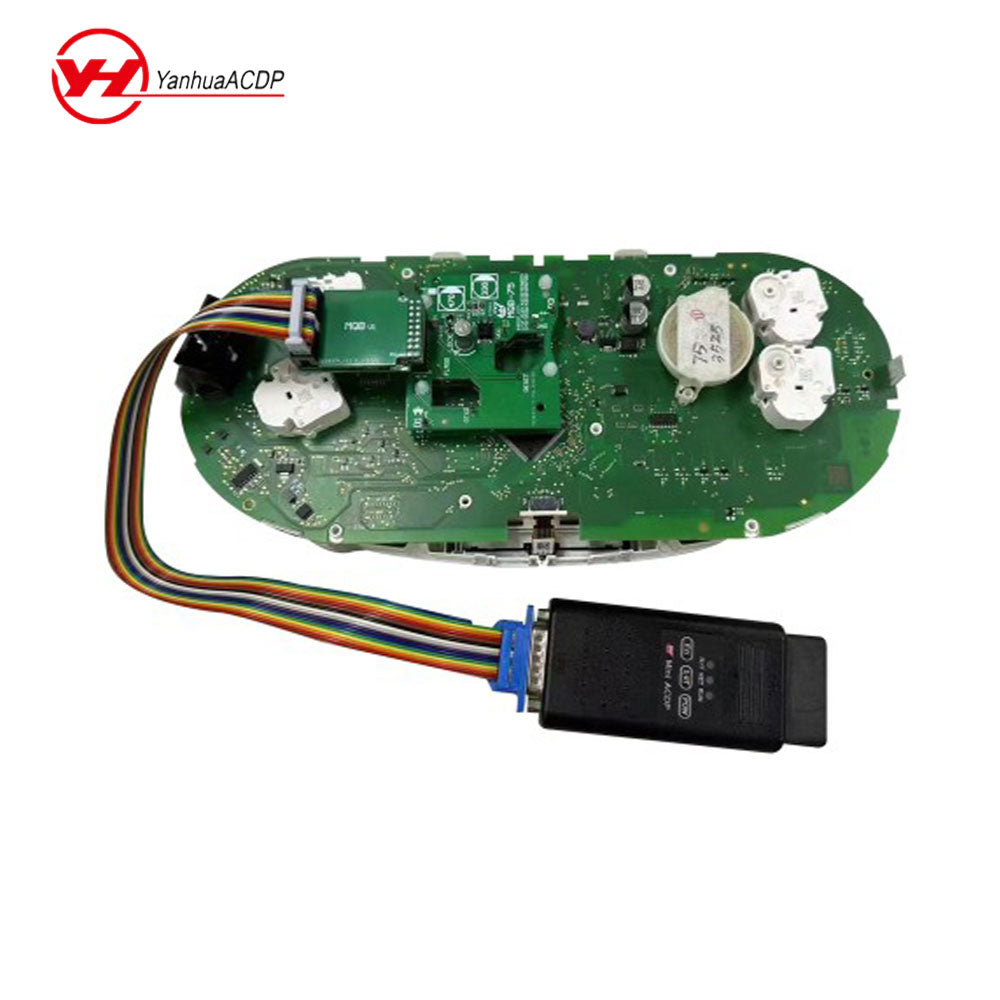

• Using a quasi-blind plug-in interface board, no need to cut line, no need tolift pins, and data can be read and written without welding nor damage.
• The third generation PCB interface board locking technology independently developed by YanHua Tech makes the interface board locking more accurateand firm.
• The software comes with pin detection function, making data reading andwriting safer and more reliable.
• There are two kinds of interface boards: Lock Fastening Interface board and Thumb Screw-Fastened Interface board

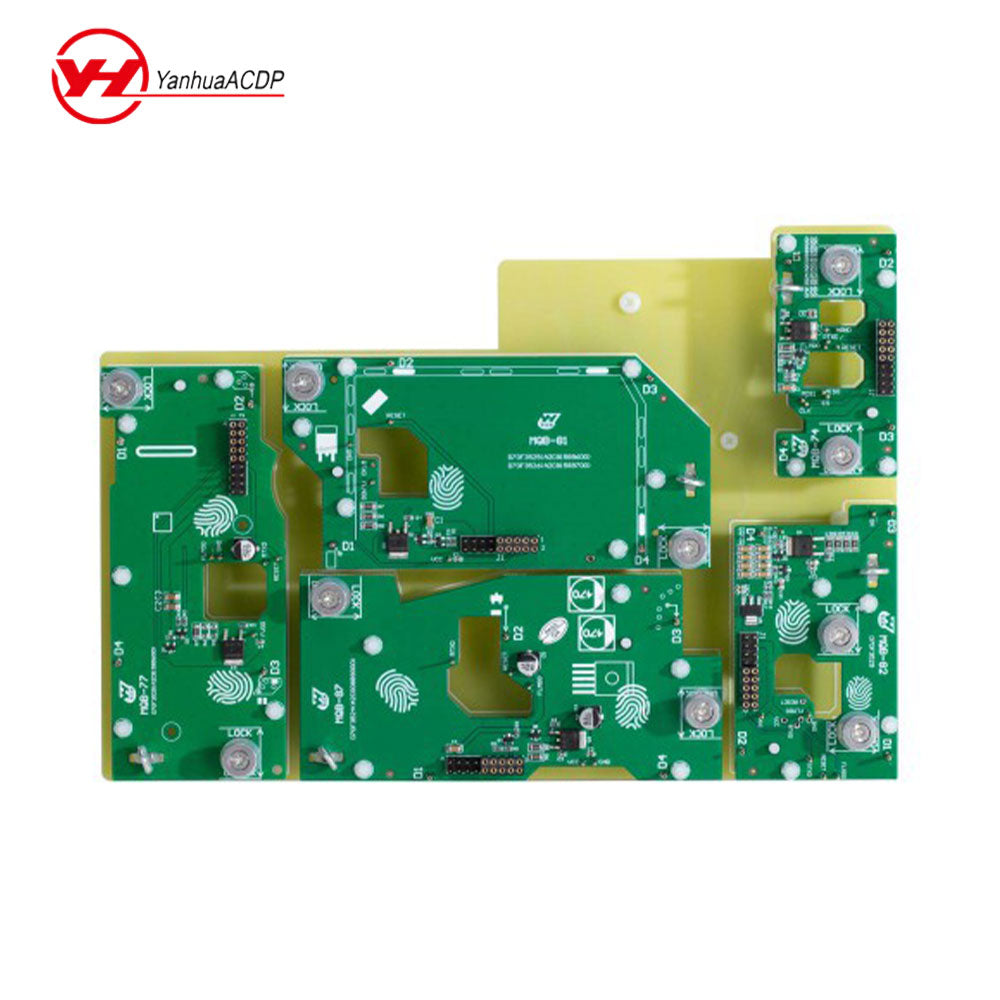

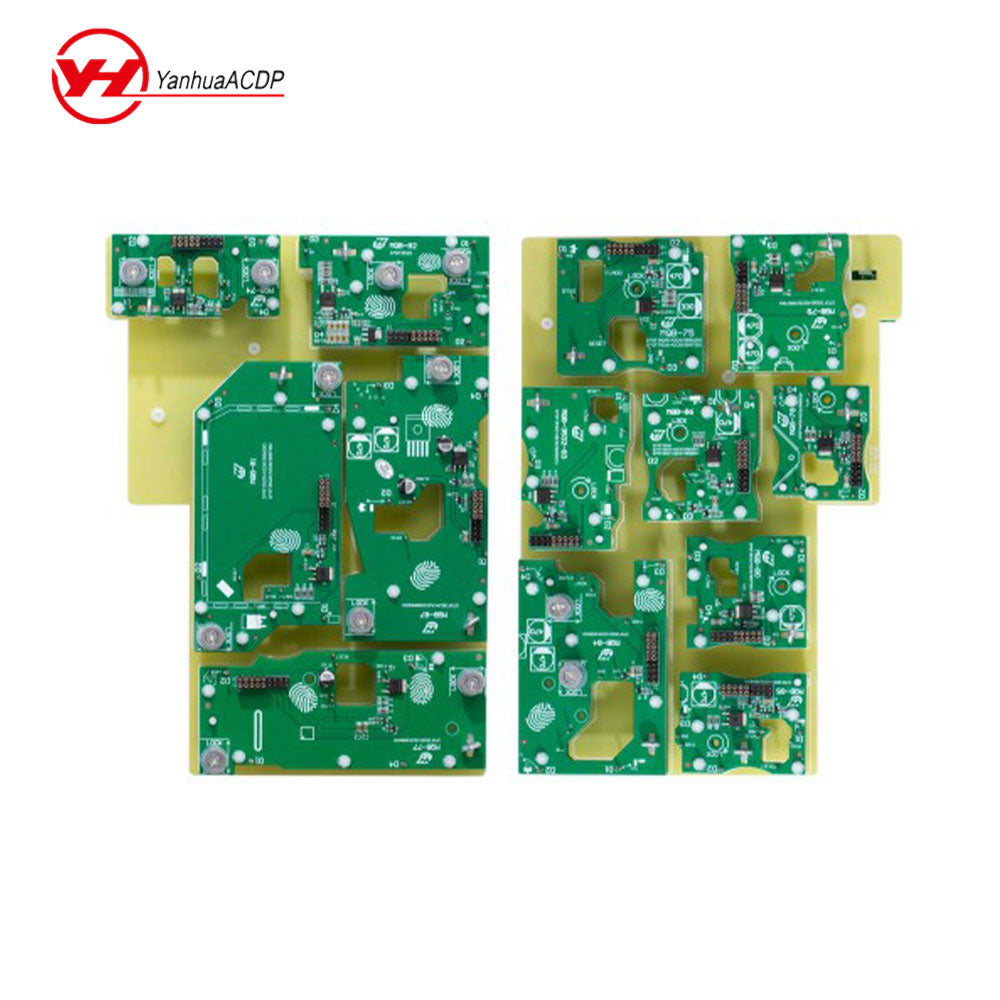

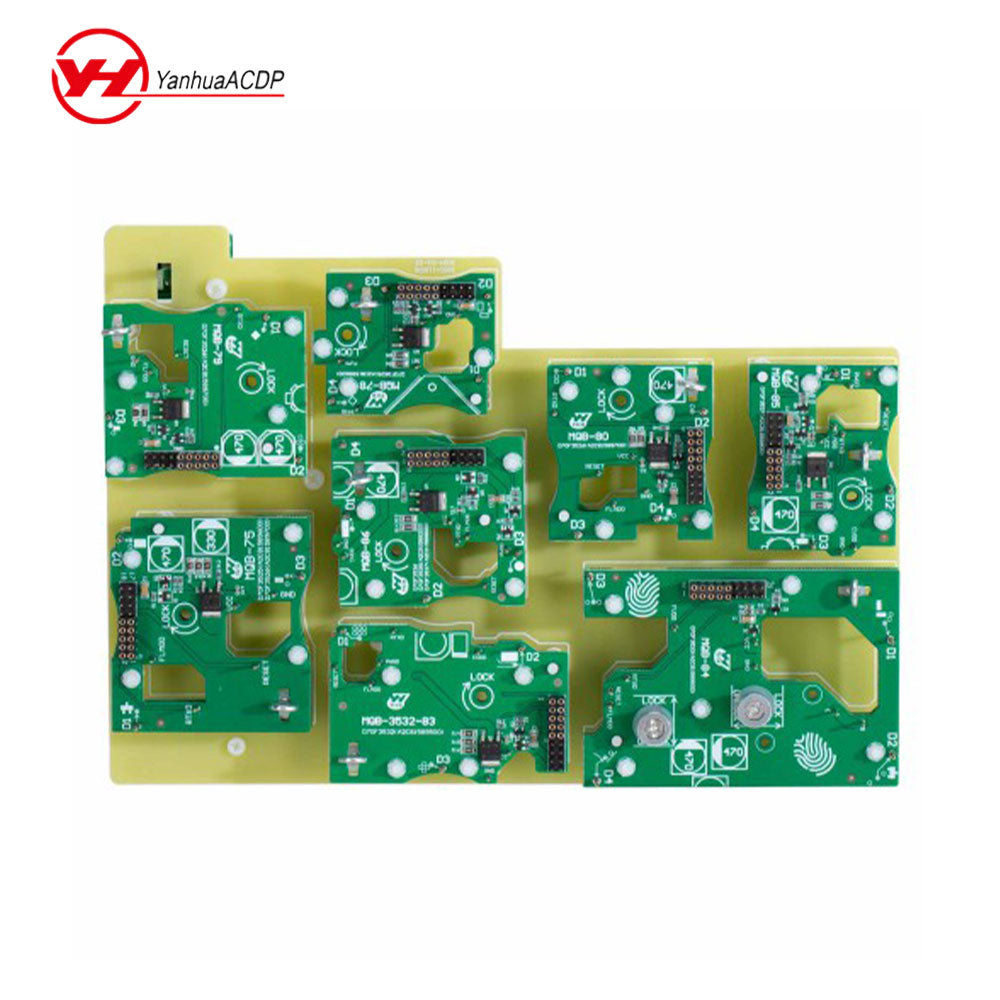

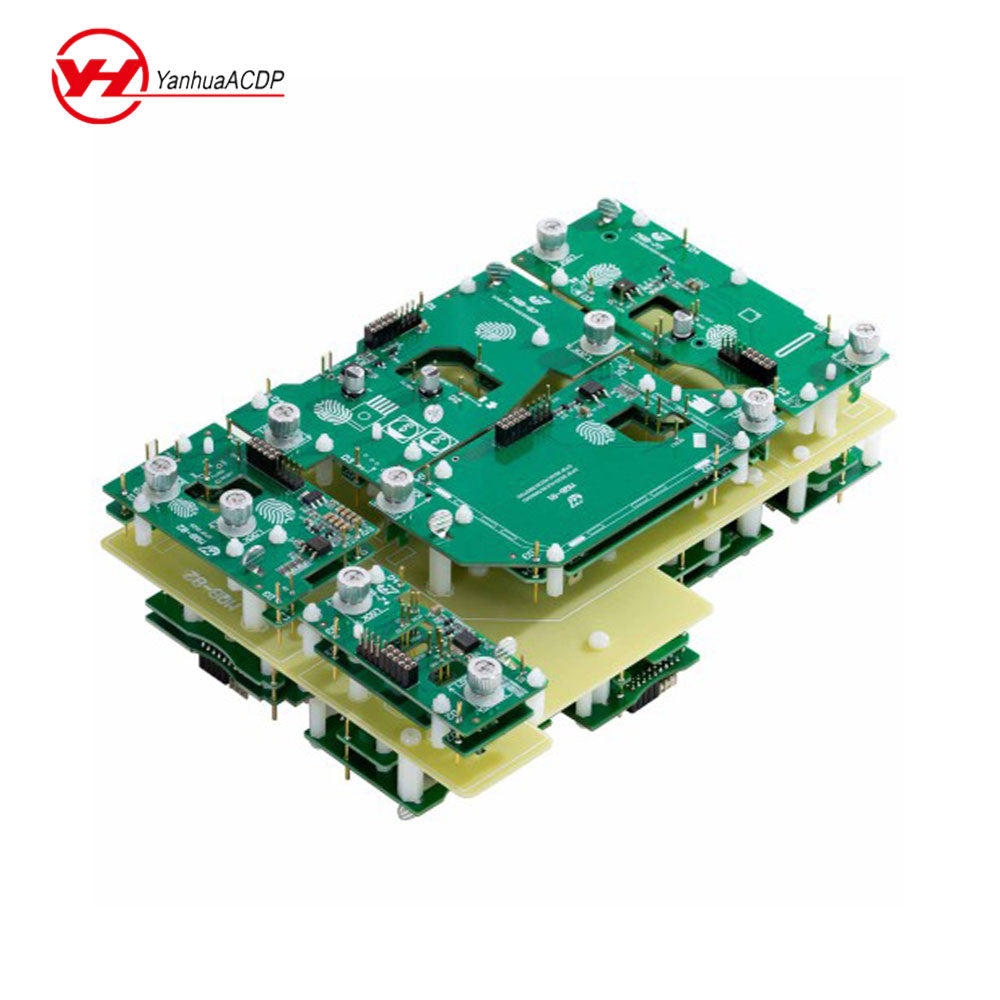

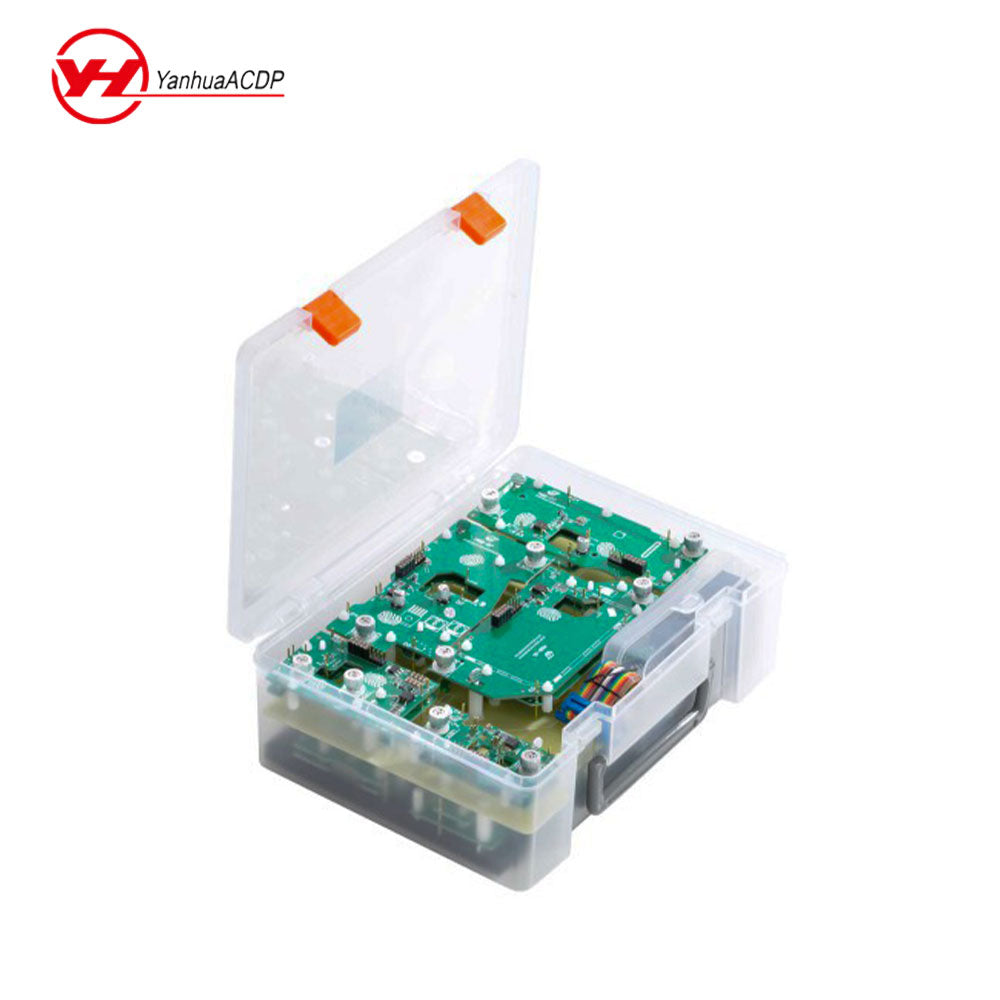

13 PCS compact size solder-free interface boards with License Support:

MQB-74 interface board Supports type:

• D70F3524 (A2C00889000)
• D70F3525 (A2C81589600)
• D70F3526 (A2C81589700)

MQB-75 interface board:

• D70F3525 (A2C81589600)
• F70F3526 (A2C81589700)

MQB-77 interface board:

• D70F3525 (A2C81589600)

MQB-78 interface board:

• D70F3525 (A2C81589600)

MQB-79 interface board:

• D70F3526 (A2C81589700)

MQB-80 interface board:

• D70F3526 (A2C81589700)

MQB-82 interface board:

• D70F3529

MQB-81 interface board:

• D70F3525 (A2C81589600)
• D70F3526 (A2C81589700)

MQB-83 interface board:

• D70F3532 (A2C81589500)

MQB-84 interface board:

• D70F3532 (A2C81589500)

MQB-85 interface board:

• D70F3537 (A2C81589800)

MQB-86 interface board:

• D70F3535 (A2C81589200)
• D70F3537 (A2C81589800)
• D70F3536

MQB-87 interface board:

• D70F3524 (A2C00889000)

Download:

• Module Diagram
