Autel MaxiIM IM608 PRO - Auto Key Programmer & Diagnostic Tool Plus APB112, G-BOX2 & IMKPA Accessories for Renew & Unlock (USA Version)

Available: Out of Stock
  • Product SKU: AUTEL-IM608PROKPA-KIT
$2,799.99
Save $1,199.01 Was $3,999.00
Found a better price? Call for Price Match!

Pre-order
Successful pre-order.Thanks for contacting us!

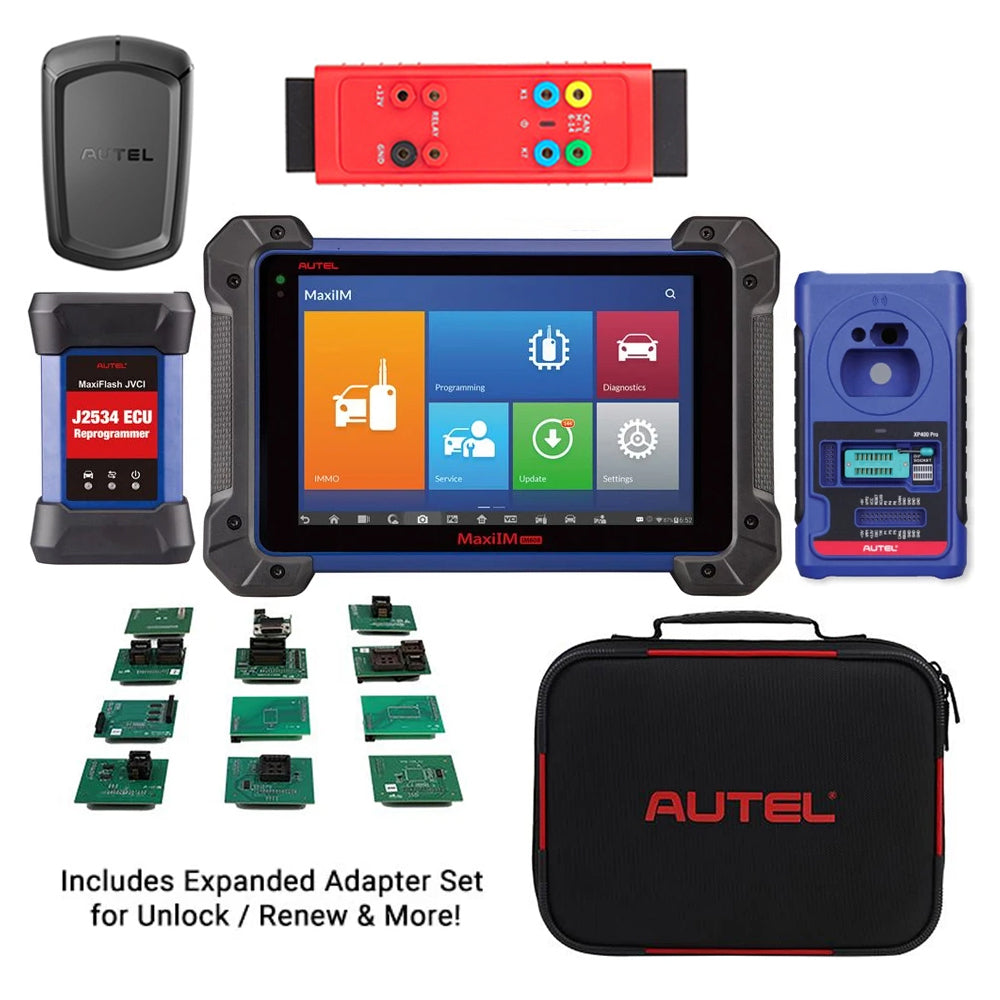

Autel MaxiIM IM608 PRO - Auto Key Programmer & Diagnostic Tool Plus APB112, G-BOX2 & IMKPA Accessories for Renew & Unlock (USA Version)

Autel MaxiIM IM608Pro: 2 Years Free Updates,1 Year Warranty

Includes:

Autel MaxiIM IM608 Pro Key Programming and Diagnostic Tool (USA Version)

MaxiIM IM608 PRO is the most advanced and unique all in one key programming and diagnostic tool that combines advanced key programming, all systems diagnostics, and advanced services in one Android based 10.1-inch touchscreen tablet. It is equipped with XP400 PRO key programmer and MaxiFlash ECU programmer to provide complete coverage of IMMO and programming functions. IM608 PRO provides you with all special functions to quickly diagnose all modules for the majority of the makes and models on the market. It is the unprecedented key programming and diagnostic tool that you ever wanted.

  • Samsung Exynos 5260(2GB ROM)
  • 10.1”1024x768 LCD capacitive touchscreen
  • Internal reliable 64GB Memory
  • Android Operating System for fast boot-up and multitasking
  • Powerful combination of key programming/all system diagnostics/advanced maintenance services
  • Smart Mode for guided and automated key learning
  • Expert Mode for advanced key learning
  • Read PIN/CS (all key lost) , key generation, key learning, remote learning
  • IMMO ECU reset/adaptation, refresh/coding
  • Transpronder read/write, EEPROM/MCU read/write
  • Powerful OE level diagnostics for more than 80 US, Asian and European makes and models
  • Advanced maintenance services including EPB, DPF, SAS, Oil reset, and BMS
Specifications:
Operating System Android™ 4.4.2, KitKat
Processor Samsung Exynos hexa-core Processor (1.3GHz Quad-core ARM Cortex-A7 + 1.7GHz Dual-core ARM Cortex-A15)
Memory 2GB RAM & 64GB On-board Memory
Display 10.1-inch LED capacitive touch screen with 1920x1200 resolution
Connectivity

Wi-Fi (802.11 a/b/g/n/ac)

USB: 2.0

BT v.2.1 + EDR

SD Card (Support up to 32GB)

HDMI
Sensors Gravity Accelerometer, Ambient Light Sensor (ALS)
Power and Battery

15000 mAh 3.8 V lithium-polymer battery

Charging via 12 V AC/DC power supply with the temperature between 0°C and 45°C
Input Voltage 12 V (9-24 V)
Power Consumption 6.5 W
Operating Temp 0 to 50°C (32 to 122°F)
Storage Temp -20 to 60°C (-4 to 140°F)
Dimensions (WxHxD) 300 mm (11.81”) x 220 mm (8.66”) x 50 mm (1.97”)
Weight

NW: 1.42 kg (3.13 lb.)

GW: 8.655 kg (19.08 lb.)

Protocols


 ISO 9142-2, ISO 14230-2, ISO 15765-4, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850 PWM, CAN ISO 11898, Highspeed, Middlespeed, Lowspeed and Singlewire CAN, GM UART, UART Echo Byte Protocol, Honda Diag-H Protocol, TP 2.0, TP 1.6, SAE J1939, SAE J1708, Fault-Tolerant CAN

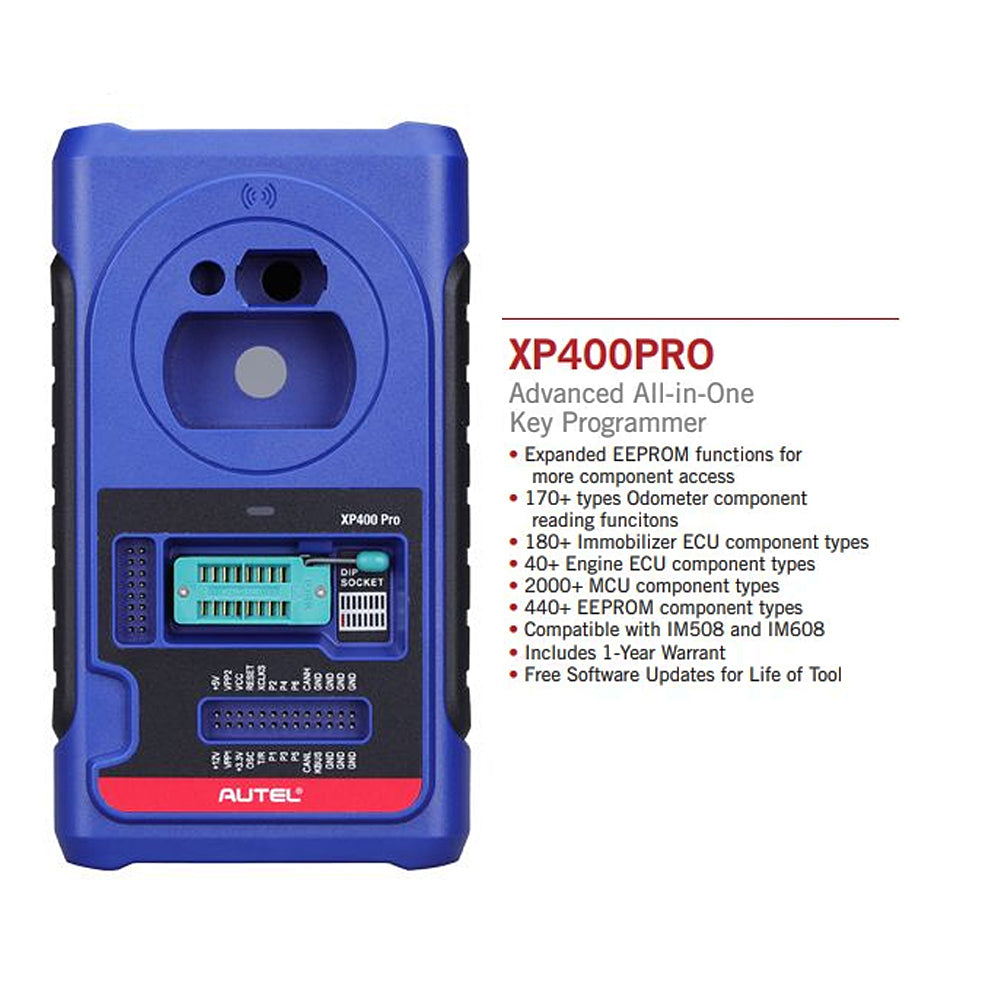

Autel XP400 PRO Key Programming and Diagnostic Tool

The XP400Pro is a replacement for XP400. It adds more functionality for BMW, Mercedes-Benz, as well as EEPROM reading. With the new protocols, the end-user will be able to read over 2000 (chips, components, devices) types including EEPROM and MCU Read, additional Odometer Read/Write, and more. Also, added functions for EWS3, W209, NEC, and more.

The new XP400Pro supports key renewal on 11 key types with additional adapters - IMKPA, Key Programming Accessories Kit.

  • Expanded EEPROM functions for more component access.
  • 170+ types Odometer component reading functions
  • 180+ Immobilizer ECU component types
  • 40+ Engine ECU component types
  • 2000+ MCU component types
  • 440+ EEPROM component types
  • Compatible with IM508 and IM608
  • Includes 1-Year Warranty
  • Free Software Updates for Life of Tool
XP400Pro adds support for following chips：
  • EEPROM-AMD-AM29FXXX series chip
  • EEPROM- FUJITSU- MB29FXXX series chip
  • EEPROM- ST- M29FXXX series chip
  • Engine control module- ST- M29FXXX series chip
  • IMMO- BENZ- ESL_W209_W906(Motorola) read/write/erase function
  • IMMO- BMW-EWS3 module read/write function
  • REMOTE_RENEW(renew key)- NEC- V51 and V5 chip read/write/erase
XP401 Pro adds support for following adaptor board:
  • APB113 PCF79XX adaptor board
  • APB114 EWS3 adaptor board
  • APB115 NEC adapter board
  • APB118 NEC ELV adaptor board
  • APB119 TB28FXXX adaptor board
  • APB120 TMS370 adaptor board
  • APB122 AM29FXXX adaptor board1
  • APB123 AM29FXXX adaptor board2
  • APB126 M35080/D80 adaptor board
  • APB127 MC68HC0(7)05BXX adaptor board
  • APB128 MC68HC05X32 adaptor board

Autel G-BOX2 Key Programming Adapter for Mercedes and BMW Vehicle for Autel IM508 / IM608

The Autel G-BOX2 is an adapter compatible with Autel's IM508 (with Purchase of XP400 programmer) and IM608 Key Programming tablets used to aide in the programming keys for Mercedes DAS3 CAN EIS/EXS in an ALL Keys Lost situation.

Supports fast mode on vehicle and bench when all keys of Mercedes-Benz vehicles using the DAS3 EIS/EZS are lost.

Reads and writes Bosch engine ECU on F chassis of BMW and MQB of Volkswagen.

The G-Box2 also supports DME/DDE ISN Reading and Writing in Boot Mode on applicable BMW vehicles. Bench Method is also supported. All Keys Lost password calculations are 4x to 8x faster. Moreover, the number of insertions and removals of W216 and W164 EISs after the year 2009 is reduced to zero, greatly simplifying the operation steps. It can be used in Boot Mode or Bench Method. G-BOX2 needs to be used with the Autel IM508 or IM608 for reliable performance.

Functions:
  • All Keys Lost - Faster Password Calculation.
  • Mercedes Benz All Keys Lost, Faster Password Calculation.
  • Mercedes DAS3 add keys and all keys lost on bench.
  • Mercedes DAS3 all keys lost on vehicle.
  • Read engine control module password by boot.
  • Read Bosch ME/MED/MEVD/EDC 17 Engine control module password on the bench. (New Feature for GBOX 2).
  • Used for Faster Mercedes ECU data and EIS password calculation.
  • Mercedes DAS3 can EIS/EZS all keys lost.
  • Reduce time reading W204 ECU data & W207 EIS by over 85%.
  • No need to remove and reinsert the key for W221 & W164 after 2009 models.
  • BMW DME/DDE ISN reading and writing in boot mode.
  • Used with IM608 or IM508 with XP400

Autel APB112 Smart Key Simulator Works for Autel MaxiIM IM608/ IM508

Characteristics
  • Smart key simulator.
  • Compatible with IM608, IM508, and MX808IM.
  • Compact but would need to be used with the XP400 .
  • Cannot be used with the XP200.
  • 46, 4D data collection.
  • 46 smart key password calculation.
  • 46 chip simulation.
  • Toyota 4D (94/D4, 98) smart key simulation.
  • Toyota H (88/A8, A9, 39) smart key simulation.
  • Collects data from the ignition coil.
  • Identify ignition coil troubles.
  • Decode vehicle key chip data.
  • Simulate vehicle key chip (ex - 4D chip).
  • Must be used with an Autel diagnostic tool.
  • Toyota/Lexus smart key all key lost.
  • Chip decoding (Hyundai 46).
  • Includes: APB112 Smart Key Simulator, USB Cable, Quick Reference Guide.

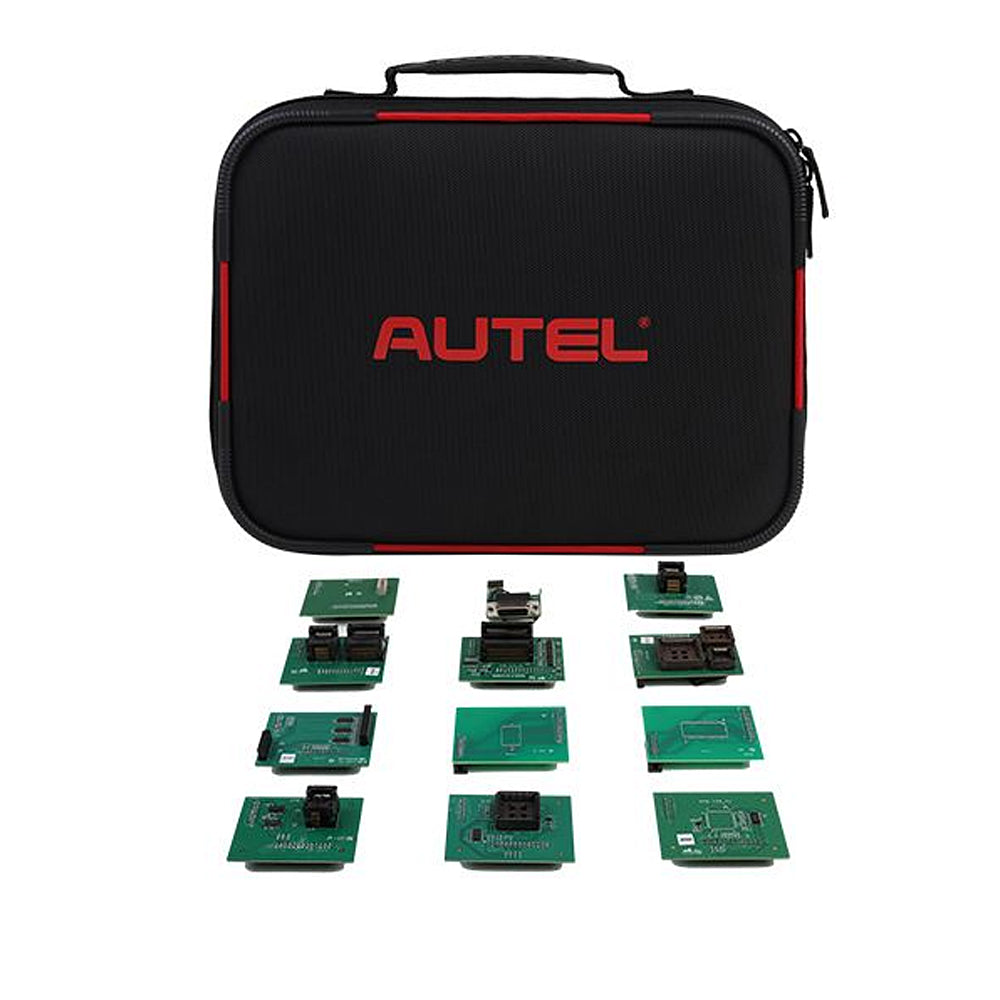

Autel IMKPA Expanded Key Programming Accessories

The IMKPA Accessories Kit works with the XP400Pro and supports the following functions:

  • Currently supports over 10 key unlock types
  • BMW EWS3 key learning
  • Benz NEC key learning
  • Benz ESL_W209 read/write/erase
  • Compatible with IM508 and IM608 (XP400Pro required)
  • Includes 1-Year Warranty

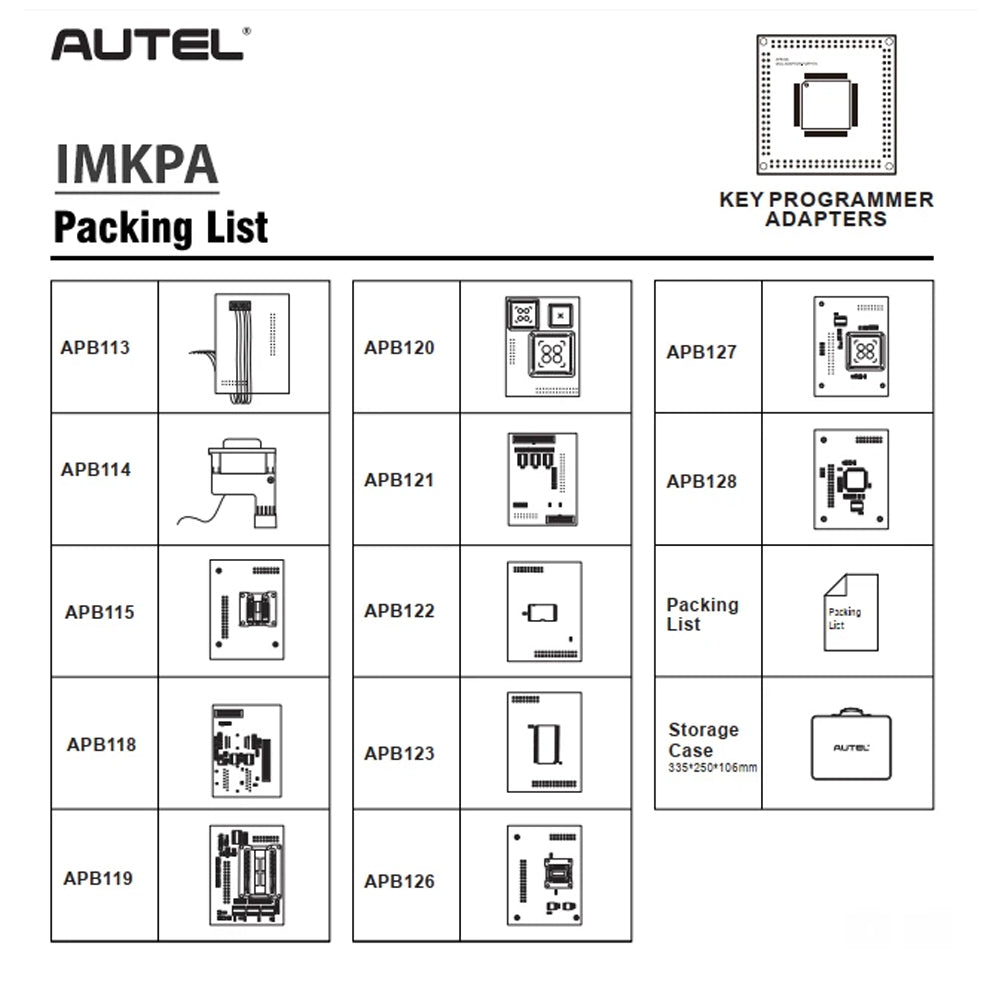

Includes:
  • APB113
  • APB114
  • APB115
  • APB118
  • APB119
  • APB120
  • APB121
  • APB122
  • APB123
  • APB126
  • APB127
  • APB128
  • Storage Case.
