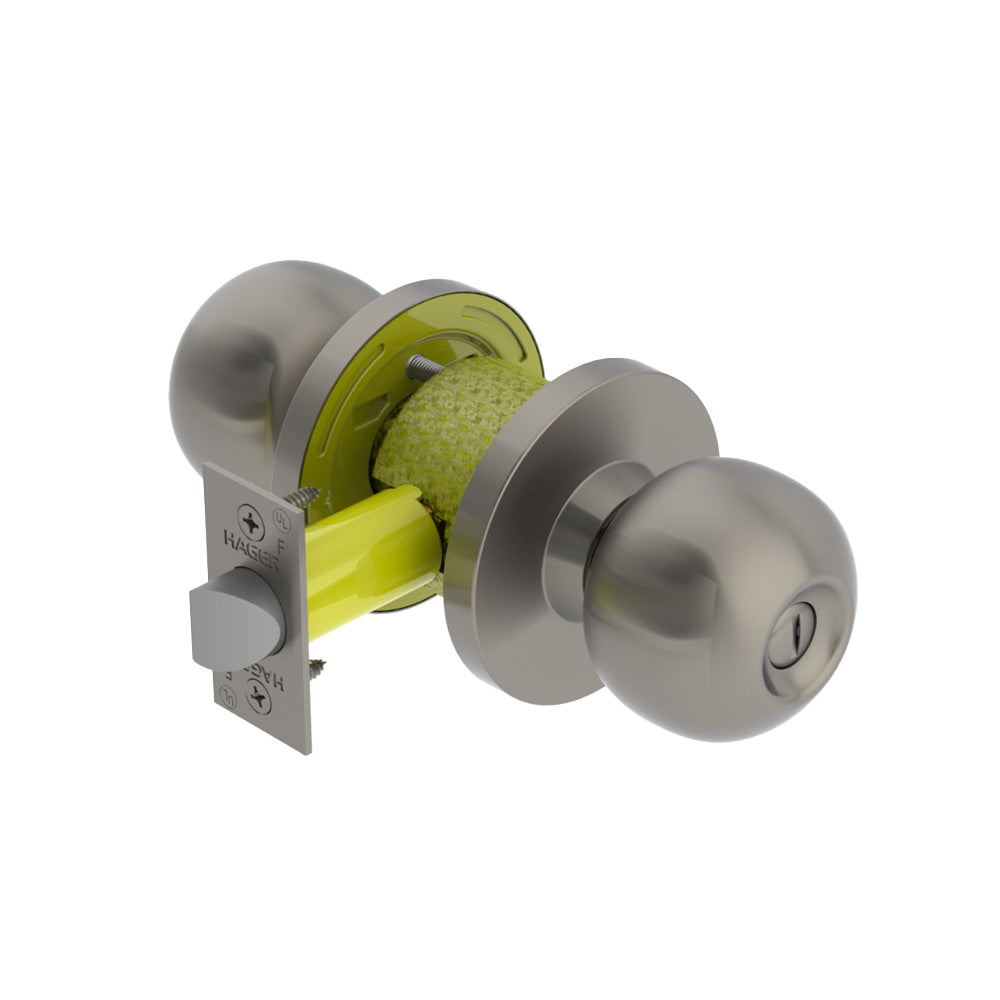

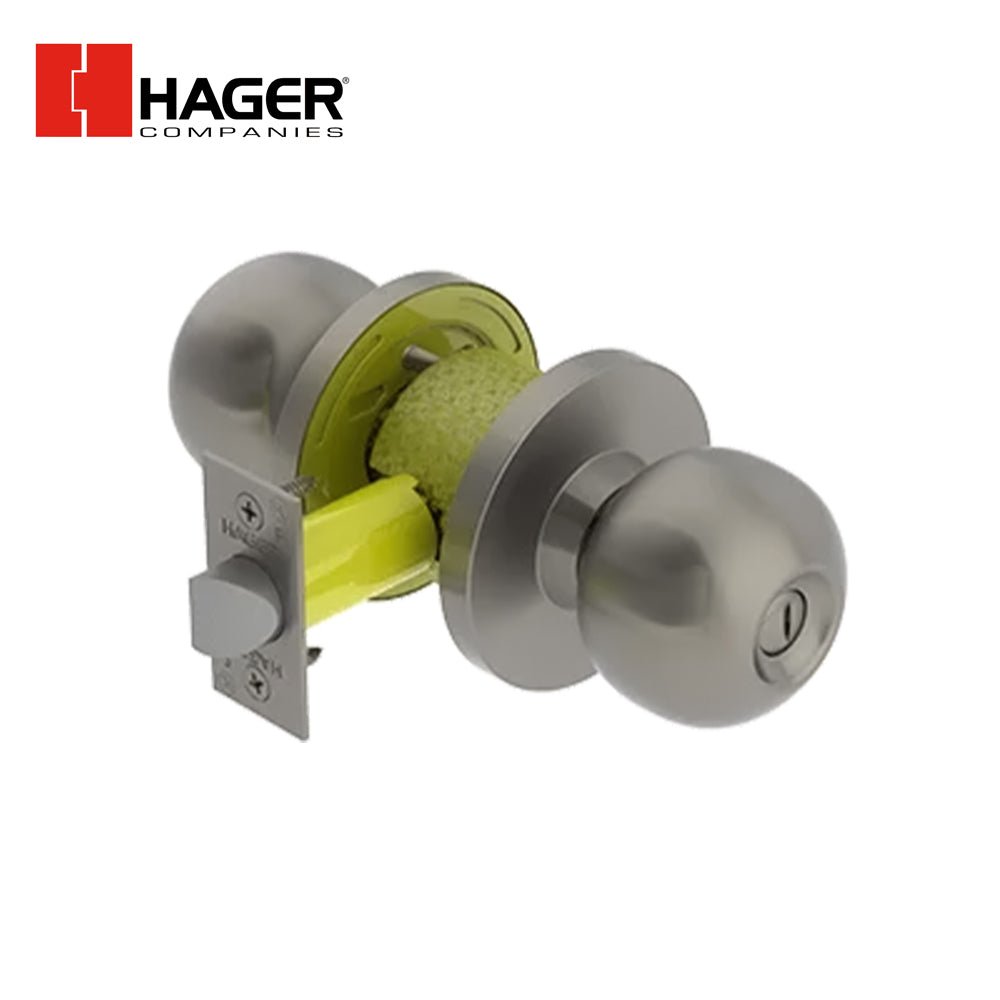

HAGER - 3540 - Privacy Cylindrical Lock and 2-3/4" Backset - ASA strike - Grade 2 - Satin Stainless Steel
Secure transactionCouldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
All orders are shipped between 24 hours or less Monday through Friday from 9:00 am to 6:00pm. Orders placed after 5 p.m. EST will be shipped next business day.
Learn more
Return Policy
Return Policy
At Locksmith Keyless, we prioritize your satisfaction and offer a simple return process. Returns are accepted within 30 days of purchase for unused items in original packaging. Certain items, including OEM keys, Lishi tools, and customized orders, are non-returnable. A restocking fee of up to 30% may apply. For a full list of non-returnable items and more details, please refer to our complete return policy.
For damaged, missing, or incorrect items, please contact us within 48 hours of delivery. All returns require an RMA number. Shipping costs for returns are the responsibility of the customer.
View Full Return Policy
Description
Description
HAGER - 3540 - Privacy Cylindrical Lock and 2-3/4" Backset - ASA strike - Grade 2 - Satin Stainless Steel
Product Specifications:
| Vendor | Hager Companies |
| Manufacturer | Hager |
| Grade | Grade 2 |
| Installation | Commercial |
| Unit of Measure | Each |
| Fire Rated | 3 Hours {A} |
Technical Specifications:
| Function | 40-Privacy |
| Knob style | APL-Apollo |
| Product Type | Cylindrical Lock |
| ANSI Function | F76 |
| Application | Standard Duty Commercial |
| Door Thickness | 1-3/8" - 1-3/4" (35 mm - 45mm) |
| Strike | 3935 - 1-1/4" x 4-7/8" (32 mm x 124 mm) ASA strike |
| Product Material | Zinc |
| Rose Diameter | 3-11/32" (85 mm) |
| Latch Number | 3965 |
| Strike Number | 3935 |
| Strike Type | ASA Strike |
| Function Family | Privacy/Bedroom/Bathroom |
| Latch Corner | Square and Round |
| Knob/Lever Size | 2-1/4" |
| Latch Throw | 1/2" Throw |
| Exposed Trim | Wrought Brass, Bronze, and Stainless Steel |
| Lever Options | Archer, August and Withnell |
| Features | No Exposed Mounting Screws; Removable Through Bolts; Zinc Dichromated Lock Chassis for Corrosion Resistance |
| Notes | No exposed mounting screws Non-handed |
| Lock Chassis | Heavy gauge steel, zinc dichromated for corrosion resistance. Thru-posts are removable. Failure to install thru-posts and screws voids BHMA certification, UL rating, and warranty |
| Included Components | (2) Operating Keys |
Certifications:
- BHMA Certified ANSI A156.2, Series 4000 Grade 2
- ADA Compliant ANSI A117.1 Accessibility Code
- UL/cUL Listed for all functions up to 3 hours "A" label single doors
- ANSI A250.13 Severe Windstorm Component
- UL10C Positive Pressure Rated
Latchbolt Type:
- 1/2" (13 mm) throw, stainless steel
- 1-1/8" x 2-1/4" (29 mm x 57 mm) faceplate for 2-3/4" (70 mm) backset
- 1" x 2-1/4" (25 mm x 57 mm) faceplate for 2-3/8" (60 mm) backset
Backsets:
- 2-3/4" (70mm)
- 2-3/8" (60mm)
- 3-3/4" (94mm)
- 5" (128mm)
