ECS AUTO PARTS Auto Folding Spoon Pin Disassembling Device

ECS AUTO PARTS Auto Folding Spoon Pin Disassembling Device
Description

Pin Removal step :

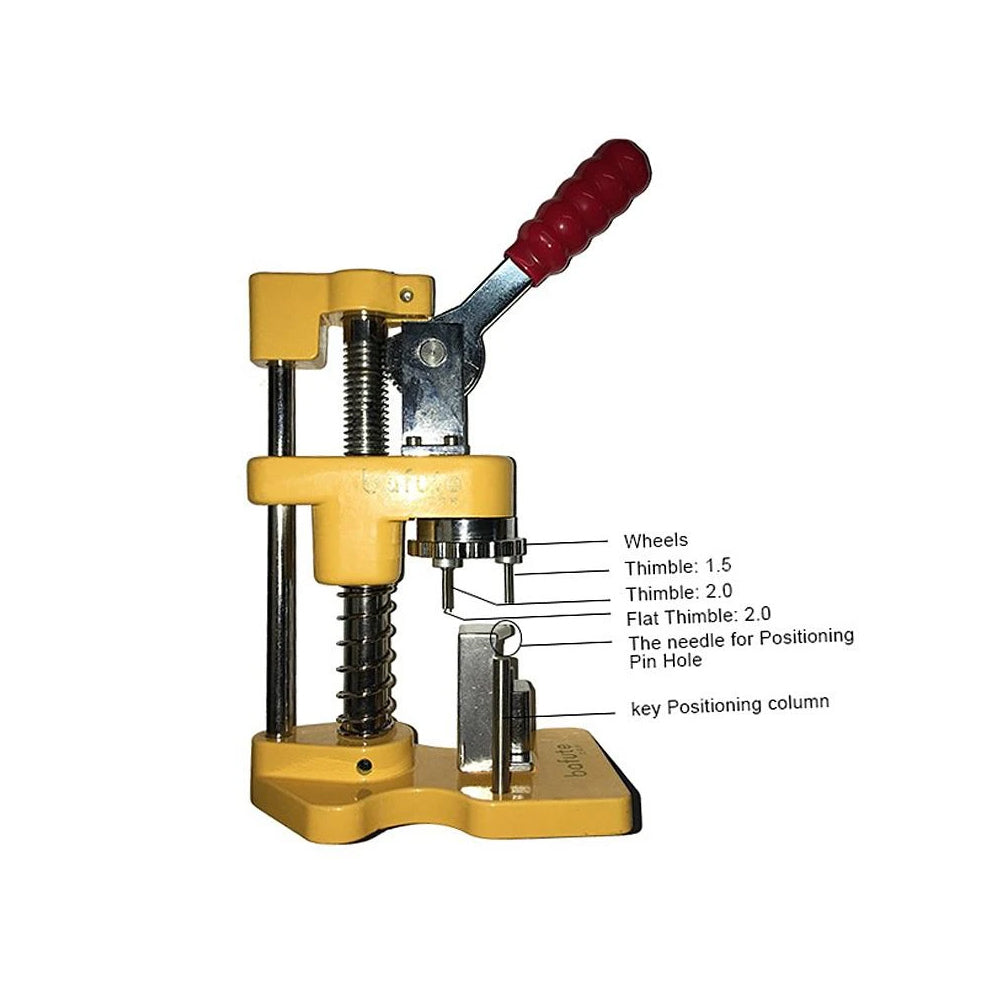

1. Rotating the wheel to choose the corresponding needle of Positioning Pin Hole
2. Aim the key's pin hole at the needle of device's Positioning Pin Hole
3. Push the key blade top to positioning columns shown in figure,and expose the pin hole of the key
4. After getting stuck of the keys,then press down the device's hand shank.

Note: Some of the key blade's Pin is smaller than the wheel's pin hole, when you can not press it, choose the small thimble 1.5.
5. The taken out pin will be sucked by magnet at the botton,to avoid missing pin and finding pin

Put pin step :
1. Plug in the key blade
2. Prepare the sleeve ( There is the magnet in the top of the device , it is convenient for storage the pin and sleeve )
3. Prepare the Plug Pin
4. As shown in figure, put the plug pin into the sleeve
5. Put the sleeve with plug pin to the selected thimble
6. Get stuck of the key's pin hold in the needle for Positioning Pin Hole
7. Under pressure to wear off pin
8. All done.
