Rosslare | SKU: RSL-MD-W11GR

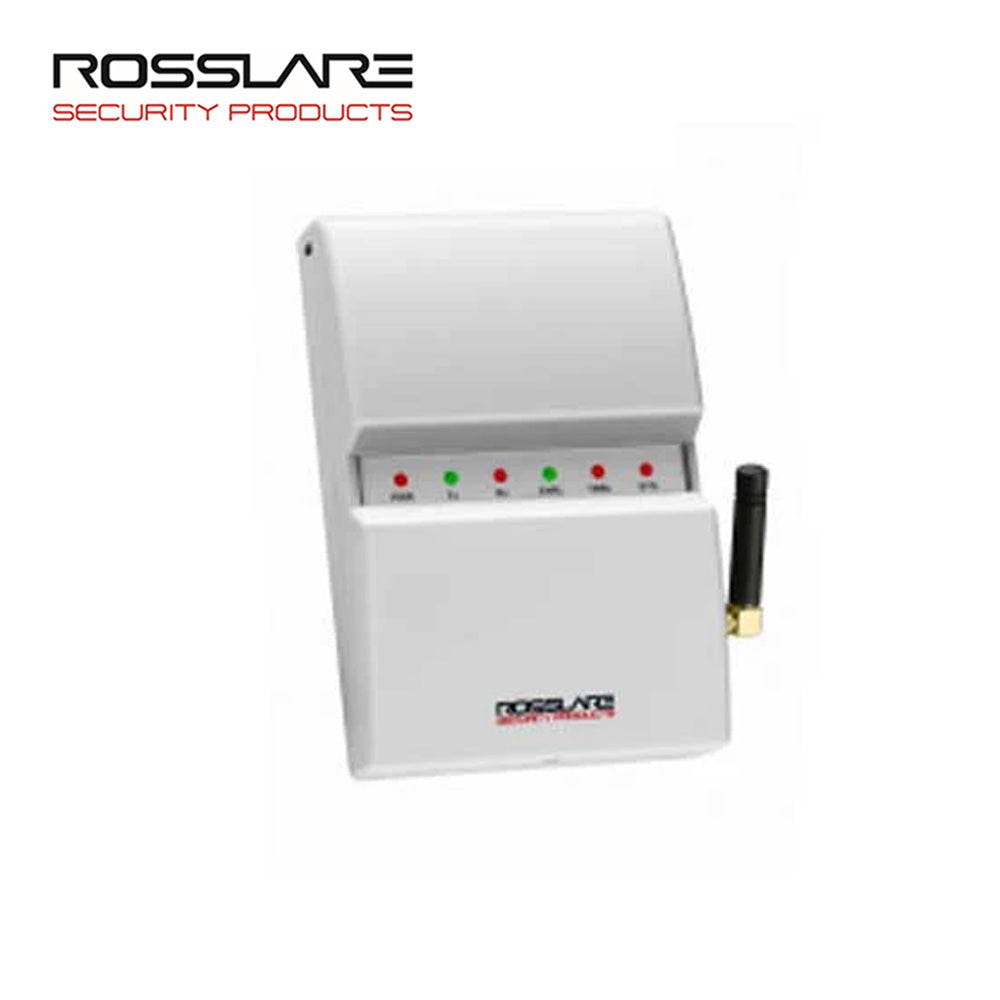

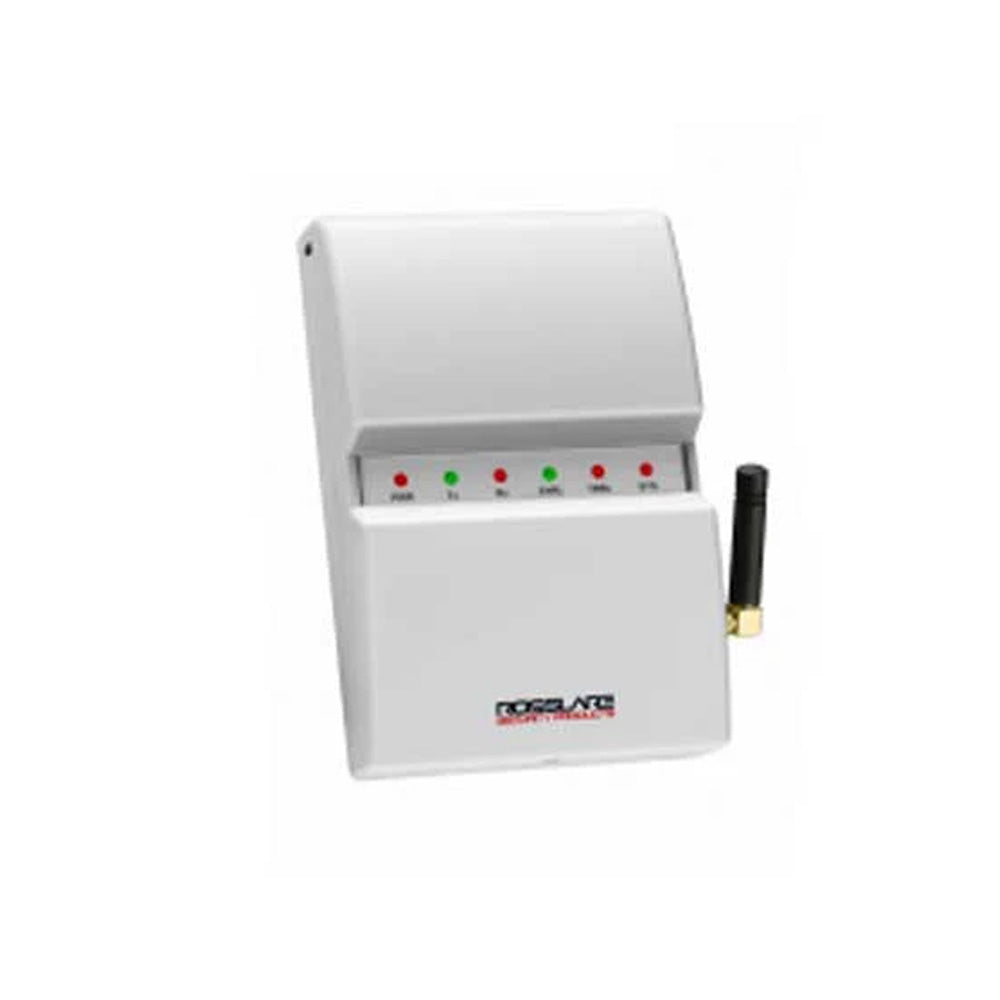

Rosslare - MD-W11GR - Wireless Access Control for 24V Power Supply

Name: Rosslare - MD-W11GR - Wireless Access Control for 24V Power Supply
Brand: Rosslare
Price: 6.107 USD
Availability: InStock
Rating: 5 (1 reviews)

$610⁷⁰ ~~$1,007⁶⁶~~

Shipping calculated at checkout.

Secure transaction

Pickup available at MIAMI MAIN WAREHOUSE

Usually ready in 1 hour

Found a better price? Call for Price Match!
Shop with confidence knowing you’re getting the best deal.

Delivery and Shipping

All orders are shipped between 24 hours or less Monday through Friday from 9:00 am to 6:00pm. Orders placed after 5 p.m. EST will be shipped next business day.
Learn more

Return Policy

At Locksmith Keyless, we prioritize your satisfaction and offer a simple return process. Returns are accepted within 30 days of purchase for unused items in original packaging. Certain items, including OEM keys, Lishi tools, and customized orders, are non-returnable. A restocking fee of up to 30% may apply. For a full list of non-returnable items and more details, please refer to our complete return policy.

For damaged, missing, or incorrect items, please contact us within 48 hours of delivery. All returns require an RMA number. Shipping costs for returns are the responsibility of the customer.

View Full Return Policy

Description

Rosslare - MD-W11GR - Wireless Access Control for 24V Power Supply

Features:

Bi-directional RF data communication.
Lock and door relay commands.
Rolling Code to increase security.
Supports PIN codes and card formats, such as Wiegand 26 bit, 32 bit, and PIN code 6 bit.
Tamper, door monitor, and REx messages between the controller and the interface unit.
Transfers proximity card information and LED control, reader tamper, lock relay commands, REx, and door monitor events between the coupled units.
Four different RF channels to prevent collisions.
Built-in charger for up to 12VDC, 7Ah backup battery on the Far unit.
Suitable for indoor use.
Available in 869 MHz (H) and 433.92 MHz (G) bands.
The NEAR unit is powered from the controller's power supply. The FAR unit is powered by a local wall transformer. A built-in charger provides battery backup.

Specifications:

Input Voltage	12-24 AC / 15-24 VDC
Output Relays	5A Form C relay
Max Range	300 meters (985 feet)
Input Current	Standby: 70mAh Max: 160mA
Battery Charger	12V sealed Lead-Acid, up to 7Ah (Far Unit)
Operating Environment	Indoor Use
Response Time	Up to 500ms with Rosslare's AC-215 controller and reader
Communications	Bi-directional RF, narrow band. Fast anti-collision, rolling code protocol with data protection
Operating Temperature	-10Ã‚Â°C to 50Ã‚Â°C (14Ã‚Â°F to 122Ã‚Â°F)
Dimensions	13 x 8.7 x 3.2 cm / 5.1 x 3.42 x 1.26 inch

Downloads:

Installation Instructions
