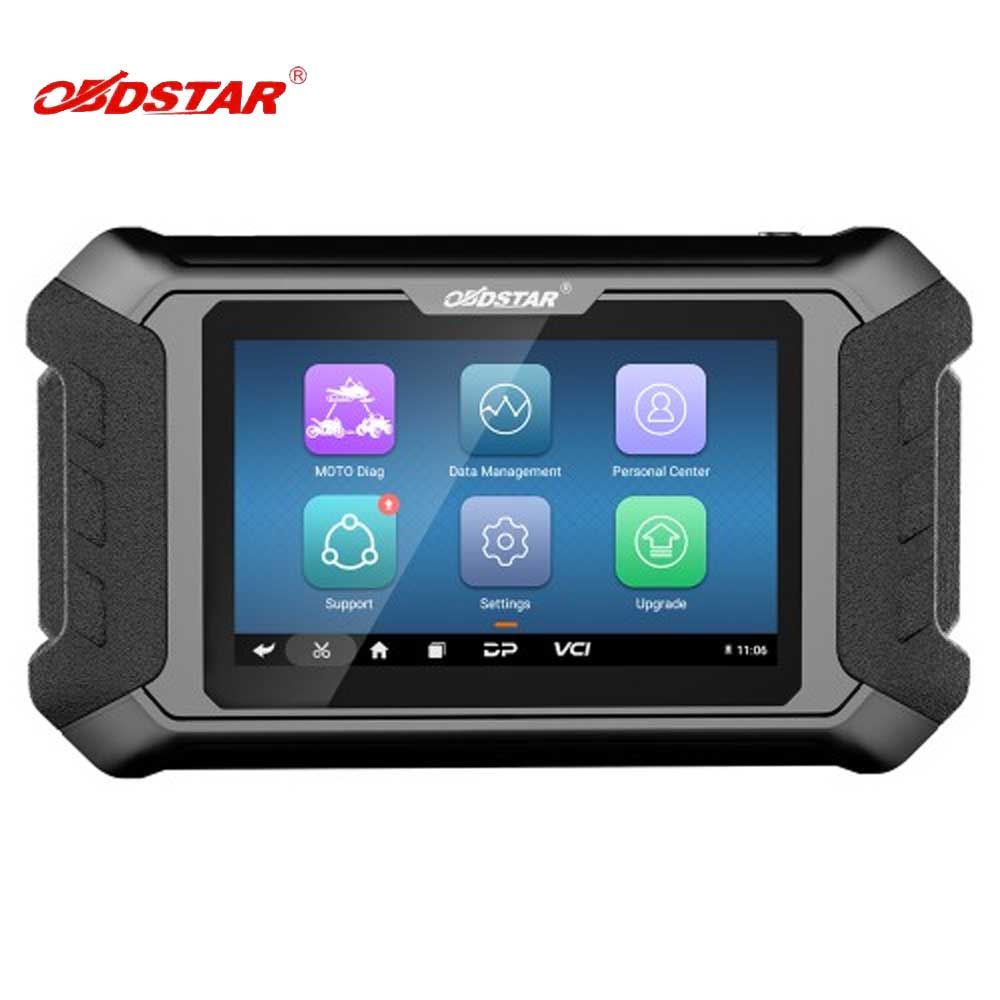

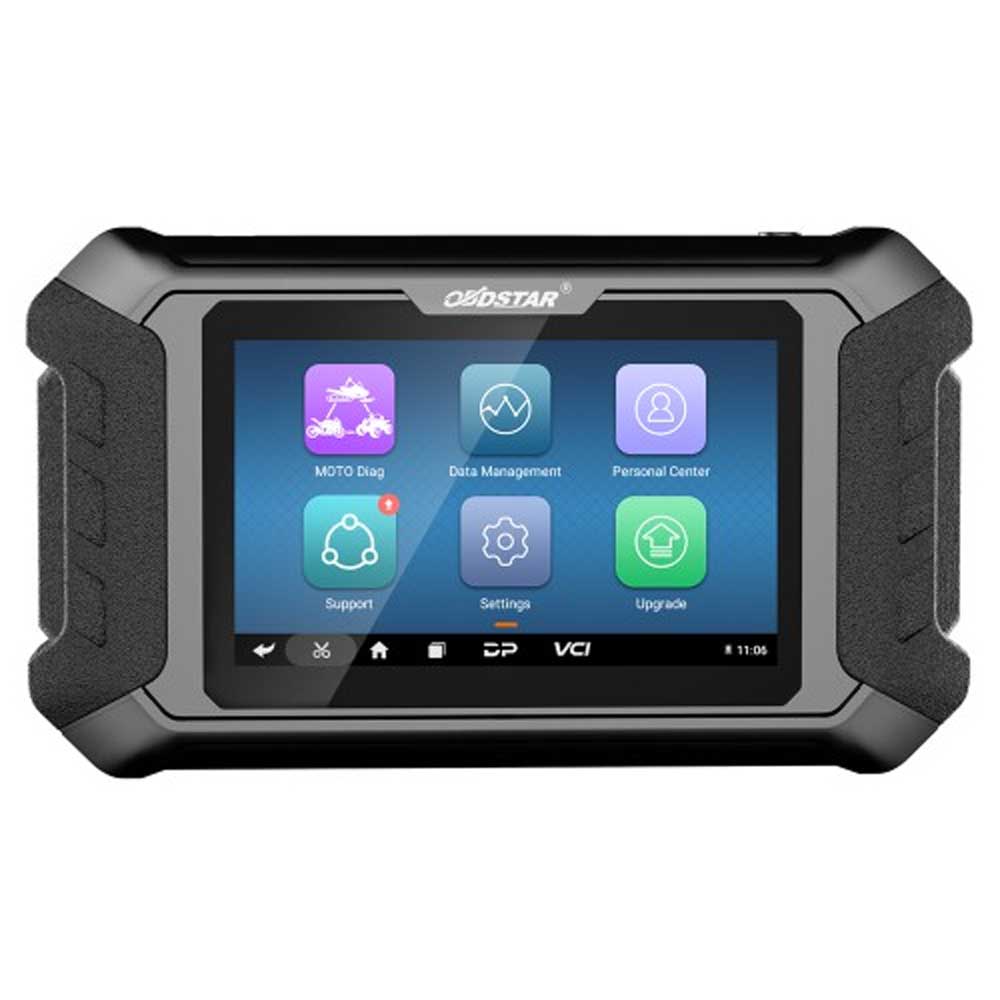

OBDSTAR iScan Ducati Motorcycle Diagnostic Scanner and Key Programmer Support Multi-languages Service Light Reset
Description:
OBDSTAR iScan Ducati is a professional motorcycle diagnostic scanner, which is a perfect tool for Ducati motorcycle maintenance and repair. OBDSTAR iScan Ducati supports automatic scanning, VIN recognition, control module programming and coding, ECU setting, instrument coding, tire pressure monitoring system, maintenance light reset, CO adjustment, idle speed adjustment, A/F value reset, ABS control unit setting , EOL mode, transmission memory reset, clear computer memory and key programming, etc. Support multi-language: English (EN), Spanish (ES), Portuguese (PT), French (FR), German (DE), Italian (IT).
OBDSTAR iScan Ducati is a professional motorcycle diagnostic scanner, which is a perfect tool for Ducati motorcycle maintenance and repair. OBDSTAR iScan Ducati supports automatic scanning, VIN recognition, control module programming and coding, ECU setting, instrument coding, tire pressure monitoring system, maintenance light reset, CO adjustment, idle speed adjustment, A/F value reset, ABS control unit setting , EOL mode, transmission memory reset, clear computer memory and key programming, etc.
Highlights of OBDSTAR iScan Ducati:
- New android 5.1.1 operation system
- Simple and intuitive menu guidance allows you to quickly understand how to use the tablet
- Provide complete diagnostic functions including code reading, code clearing, data flow, action test, setting, coding etc;
- Menu selection is more convenient and quick
- Record and play back real-time data streams, quickly and accurately locate sensor and component faults
- Wi-Fi connection to the internet, one-click software upgrade
- One-click remote help function, OBDSTAR technical staff offer remote assistance.
- Lightweight and portable, your motorcycle repair helper
- One year update for free, after one year, it costs 80 USD for update per year
- Support multi-language: English (EN), Spanish (ES), Portuguese (PT), French (FR), German (DE), Italian (IT)
Advanced Function of OBDSTAR iScan Ducati:
- The first fault guidance, help data, technical bulletin, diag socket and so on help you diagnose accurately and efficiently
- Diversified data stream display modes such as text, waveform diagram and instrument diagram, allow you to easily analyze faults
- Automatic scanning, automatic VIN recognition, control module programming and coding, ECU setting, instrument coding, tire pressure monitoring system, maintenance light reset, CO adjustment, idle speed adjustment, A/F value reset, ABS control unit setting, EOL mode, transmission memory reset, clear computer memory etc
Motorcycle/snowmobile/ATV/UTV support series:
- Ducati Motorcycles
- Motorcycle key programming support series
- Ducati
OBDSTAR iScan Ducati Key Programming Supported List:
| Brand | Area | Model | Key Type | Year | No Need PIN Code | Add Keys |
| DUCATI | EUROPE | Diavel EU3 | IMMOBILIZER | 2011- | ✔ | ✔ |
| DUCATI | EUROPE | Diavel EU4 (NO USA / CHINA) | IMMOBILIZER | 2016- | ✔ | ✔ |
| DUCATI | EUROPE | Multistrada 1200 | IMMOBILIZER | 2010- | ✔ | ✔ |
| DUCATI | EUROPE | Multistrada 1200 ABS | IMMOBILIZER | 2010-2014 | ✔ | ✔ |
| DUCATI | EUROPE | Multistrada 1200 D-Air | IMMOBILIZER | 2014- | ✔ | ✔ |
| DUCATI | EUROPE | Multistrada 1200 Enduro | IMMOBILIZER | 2016- | ✔ | ✔ |
| DUCATI | EUROPE | Multistrada 1200 Pikes Peak | IMMOBILIZER | 2015- | ✔ | ✔ |
| DUCATI | EUROPE | Multistrada 1200 S/T | IMMOBILIZER | 2010- | ✔ | ✔ |
| DUCATI | EUROPE | XDiavel | IMMOBILIZER | 2016- | ✔ | ✔ |
Specifications:
| Operation system | Android 5.1.1 |
| CPU | RK3128 quad-core ARM cortex A7 |
| Battery | 2600mA, rechargeable polymer lithium battery |
| Extension memory card | 32G micro SD (TF) card supported |
| Storage capacity | 16GB |
| LCD | 5.0 inch |
| LCD resolution | 800*480 |
| Touch screen | Capacitive touch screen |
| Wifi | Supported |
| Working temperature | -20℃~55℃ (14℉~131℉) |
| Storage temperature | -20℃~70℃ (-4℉~158℉) |
| Weight | About 700g |
| Dimension | 198mm*115*mm*31mm |

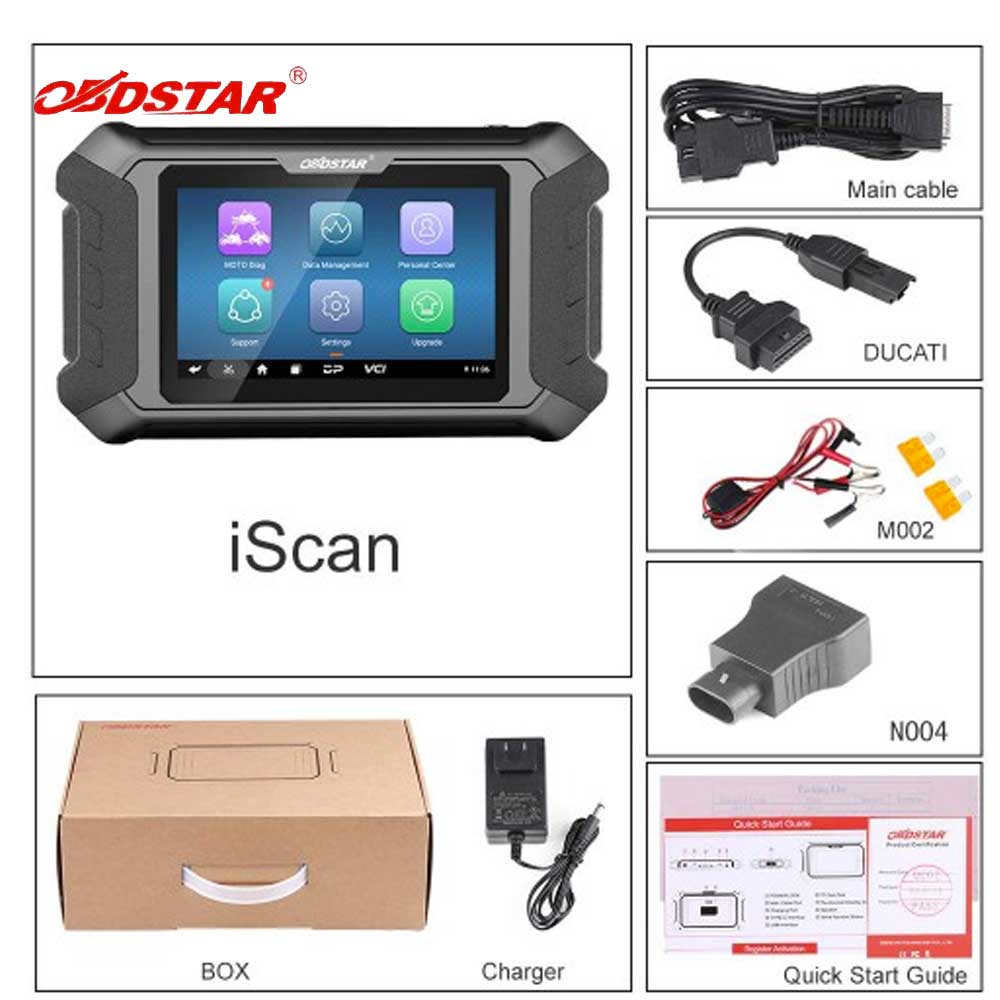

Package Includes:
- 1pc x iScan DUCATI Main Unit
- 1pc x M001A iScan DUCATI Main Cable
- 1pc x N004 Adapter
- 1pc x M037 DUCATI Cable
- 1pc x 12V2A charger
- 1pc x English Manual
Download:
