BEA - Falcon EX Family Motion Sensor with Explosion and Flame Proof...
Description
Description

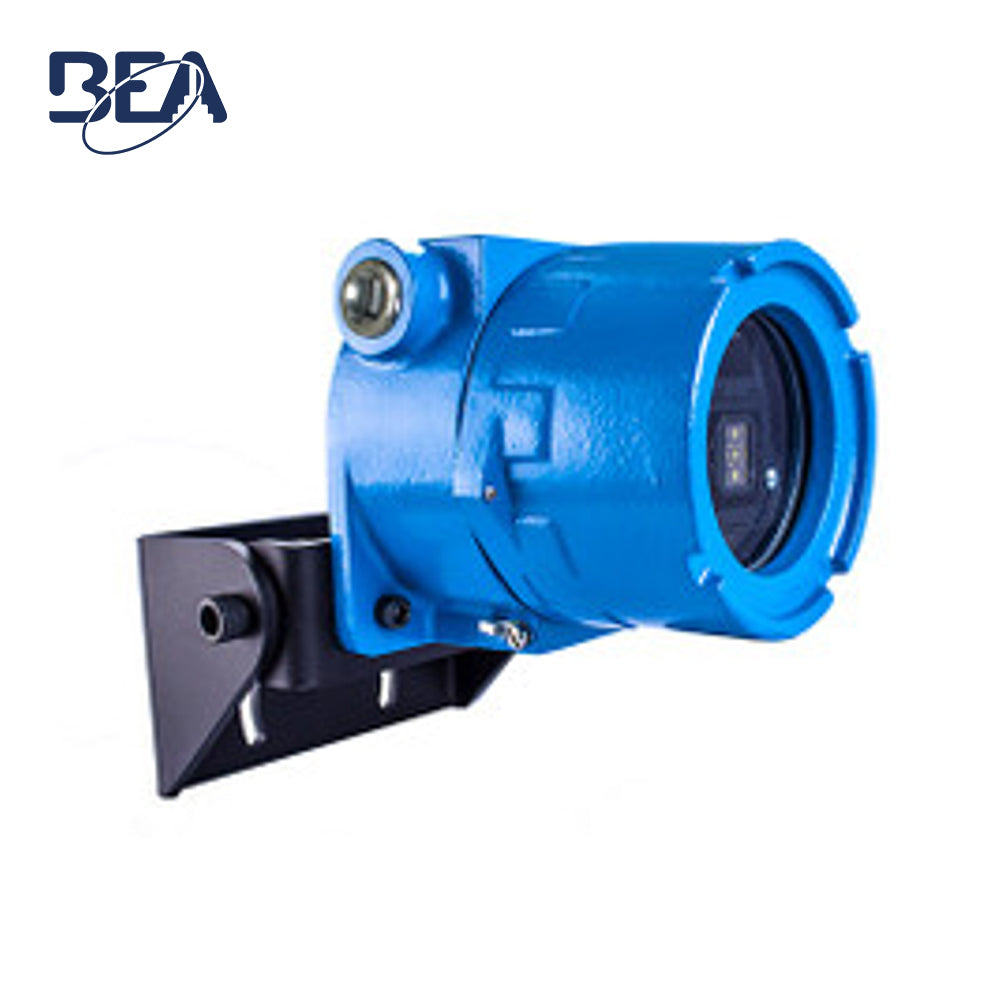

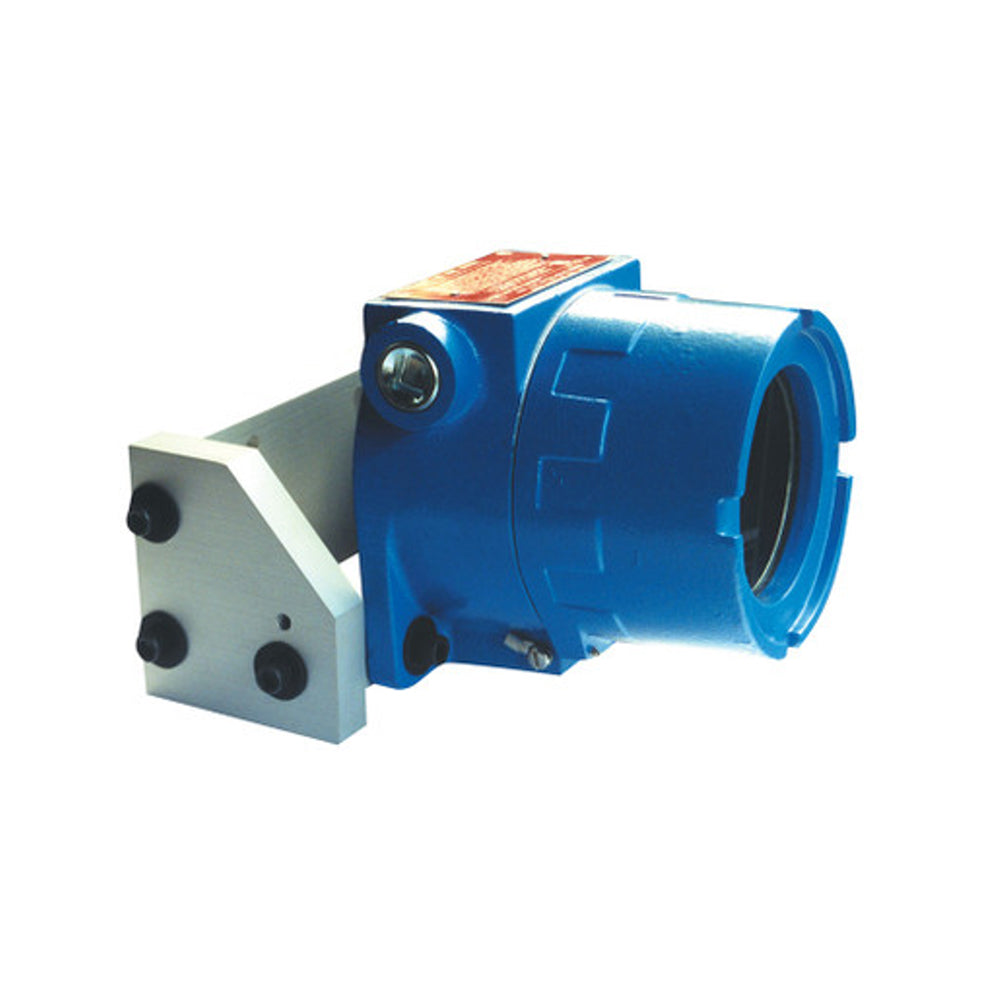

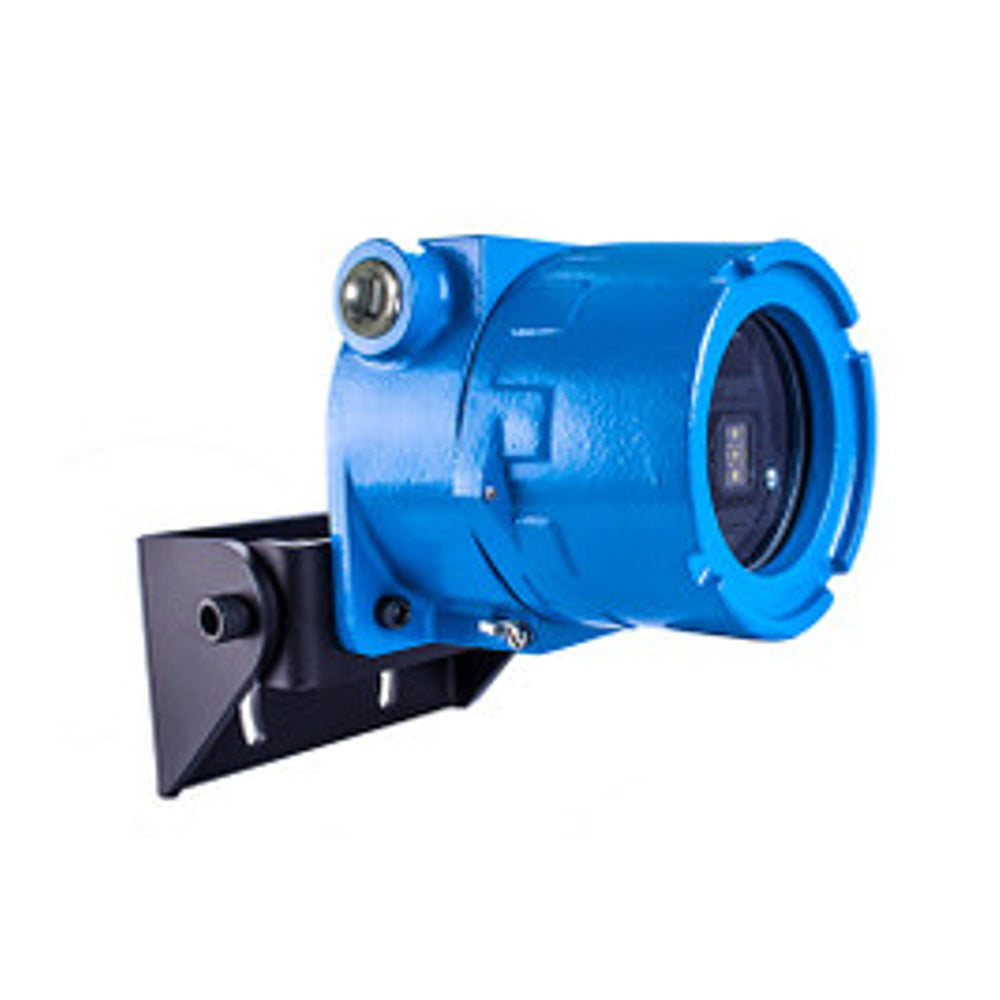

BEA - Falcon EX Family Motion Sensor with Explosion and Flame Proof Housing - 12 to 24V AC/DC

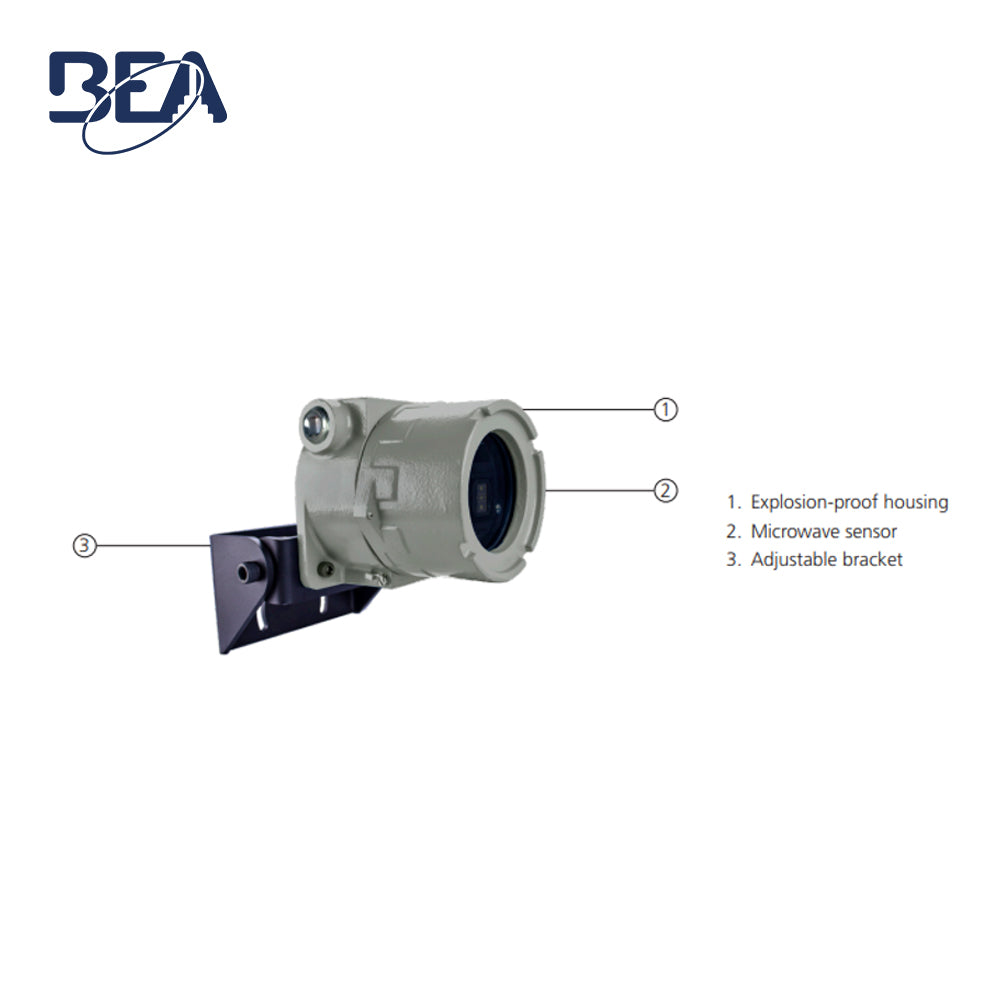

BEA's Falcon EX combines a microwave activation sensor with an explosion-proof / flame-proof housing, which is ideal for use in unique environments such as chemical manufacturing, petroleum refining and agriculture.
Features:
- Energy Savings Bidirectional + unidirectional approach and unidirectional depart microwave detection options
- Adjustable Detection Settings Six modes of detection filtering for pedestrian and parallel traffic rejection.
-
Easy to Program Remote control programming enables user to quickly and safely
make changes from the ground. - Explosion-proof and Highly Durable Explosion-proof and flame-proof housing weighs 11 pounds.
Specifications:
| Technology | Microwave Doppler radar Radiated Frequency (24.150 GHz) Transmitter Radiated Frequency (< 20 dBm EIRP) Radiated Power Density (< 5 mW / cm²) |
| Detection Mode | Motion |
| Detection Zone | FALCON EX 100(13’ × 16’ at 16’) FALCON EX XL (13’ × 6 1/2’ at 8 1⁄5’) Typical at 30° and field size 9 |
| Tilt Angles | -90 – 30° in elevation |
| Output | Relay (free of potential change-over contact) Max. Contact Voltage (42 VAC/VDC) Max. Contact Current (1 A resistive) Max. Switching Power (30 W DC; 60 VA AC) |
| Minimum Detection Speed | 2 in/s |
| Mains Frequency | 50 – 60 Hz |
| Supply Voltage | 12 – 24 VAC; ±10% 12 – 24 VDC; 30% / -10% |
| Power Consumption | < 2 W |
| Mounting Height | FALCON EX 100(11 1/2 – 23’) FALCON EX XL 100(6 1/2 – 11 1/2’) |
| Dimensions | Housing and Bracket - 5 1/2” (L) × 7 1/2” (W) × 9” (H) |
| Materials | Copper-free Aluminum, Aluminum |
| Temperature Range | -22 – 140 ºF |
| Electrical Access | NPT Pipe Thread (3/4”) |
| Norm Conformity | EMC: 2004 / 108 / EC, R and TTE: 1999 / 5 / EC |
