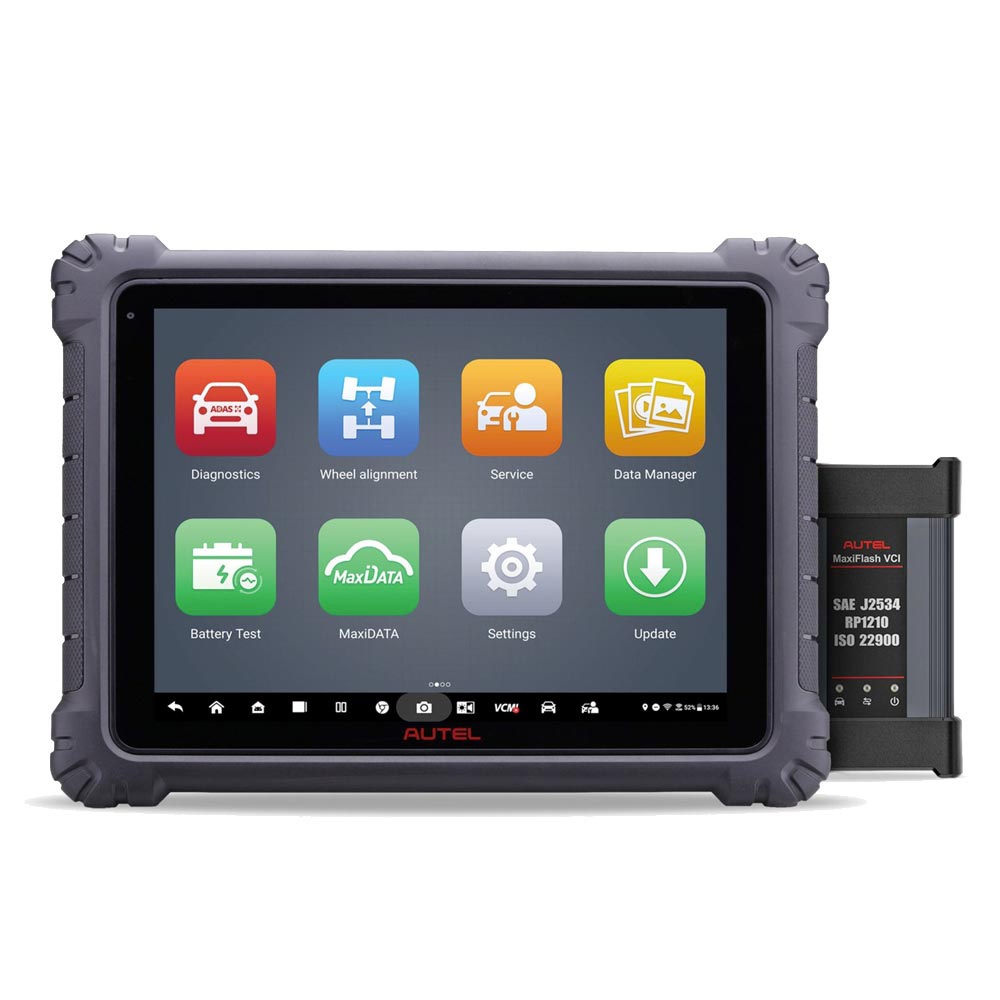

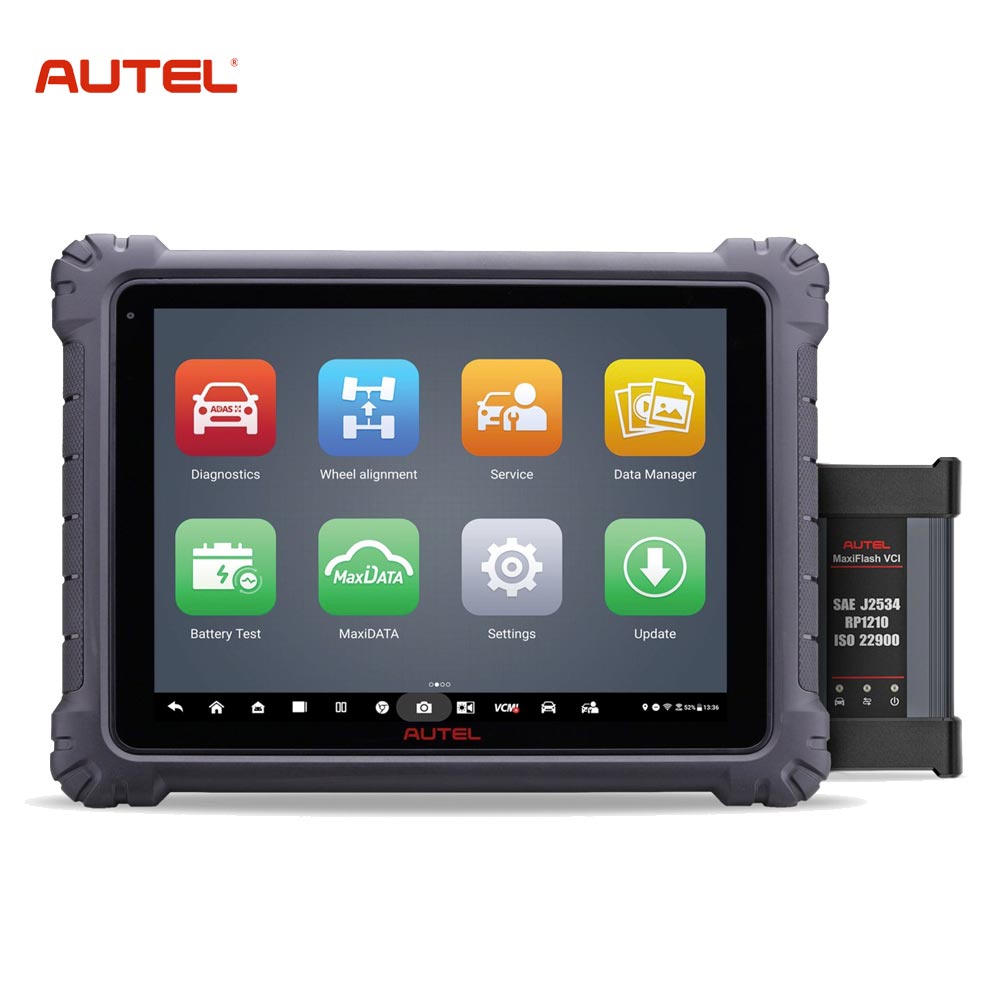

Autel MaxiSYS Ultra ADAS Tablet with MaxiFlash VCI and J2534 Passthru Programming Device
This 12.9-inch wireless touchscreen tablet comes replete with all the functionality expected in an advanced diagnostic and service tablet including the ability read and erase codes, view Freeze Frame and view and graph Live Data, perform Active Tests and perform coding and adaptions, plus it includes ADAS calibration and Wheel Alignment software. Compatible with the IA900WA frame system. The tablet is equipped with a Bluetooth-enabled VCI and J2534 passthru programming device, includes one-year free software and is covered by a one year limited warranty.
Description:
The MSULTRA + ADAS Includes:
- Large 12.9’’ Touchscreen (2732 x 2048) / Android 7.0
- 2.3GHz + 1.7GHz Octa-core Processor / 256GB Memory
- Advanced VCMI 5-In-1 Device: VCI, Oscilloscope, Multimeter, Waveform Generator, CAN BUS Check
- Oscilloscope Preset Guided & Component Tests / Waveform Library
- New VCI Protocols: D-PDU, DoIP/CAN FD, Mega CAN
- Split Screen Multi-Application Function / Dual Wi-Fi Connection
- Topology Module Mapping: Color Coded All System Status Screen (on supported vehicles)
- Relevant Cases: DTC Troubleshooting / Repair Tips Video Library – Repair Assist: Guided Procedures with DTC Analysis & Fault Code Solutions
- Code-Related Technical Service Bulletins (on select vehicles) / License Plate Reader – ScanVIN: Barcode or Text Recognition with Camera
- Secure Gateway Access: Authorized FCA SGM Access with AutoAuth Account
- Â Includes Docking Station, Cables, Scope Connectors, Carrying Case, 1YR Warranty & Software Subscription
- Enhanced Diagnostic Reports: PreSCAN & PostSCAN – 18000mAh – 8hrs Continuous Use / 16MP Rear Camera & 5MP Front Camera
Specification:
| Operating System | Android 7.0 |
| Processor | Samsung Exynos8895V octa-core Processor (2.3GHz Quad-core Mongoose + 1.7GHz Quad-core A53) |
| Memory | 4GB RAM & 256GB On-board Memory |
| Display | 12.9 inch TFT-LCD with 2732 x 2048 resolution & capacitive touch screen |
| Connectivity |
|
| Camera |
|
| Sensors | Gravity Accelerometer, Ambient Light Sensor (ALS) |
| Audio Input/Output |
|
| Power and Battery |
|
| Input Voltage | 12V/3A Adapter |
| Operating Temp. | 0 to 50°C (32 to 122°F) |
| Storage Temperature | -20 to 60°C (-4 to 140°F) |
| Dimensions (WxHxD) | 366.5 mm (14.43″) x 280.9 mm (11.06″) x 34 mm (1.34″) |
| Weight | 2.18kg (4.81 lb.) |
| Protocols | DoIP, PLC J2497, ISO-15765, SAE-J1939, ISO-14229 UDS, SAE-J2411 Single Wire Can (GMLAN), ISO-11898-2, ISO-11898-3, SAE-J2819 (TP20), TP16, ISO-9141, ISO-14230, SAE-J2610 (Chrysler SCI), UART Echo Byte, SAE-J2809 (Honda Diag-H), SAE-J2740 (GM ALDL), SAE-J1567 (CCD BUS), Ford UBP, Nissan DDL UART with Clock, BMW DS2, BMW DS1, SAE J2819 (VAG KW81), KW82, SAE J1708, SAE-J1850 PWM (Ford SCP), SAE-J1850 VPW (GM Class2) |
