Autel MaxiSys MS909CV 3-1 Heavy Duty Repair Programmer Device (Open Box)
PLEASE NOTE: This Item is Not Eligible for Return or Exchange
--Call For Product Pricing and Product Condition--

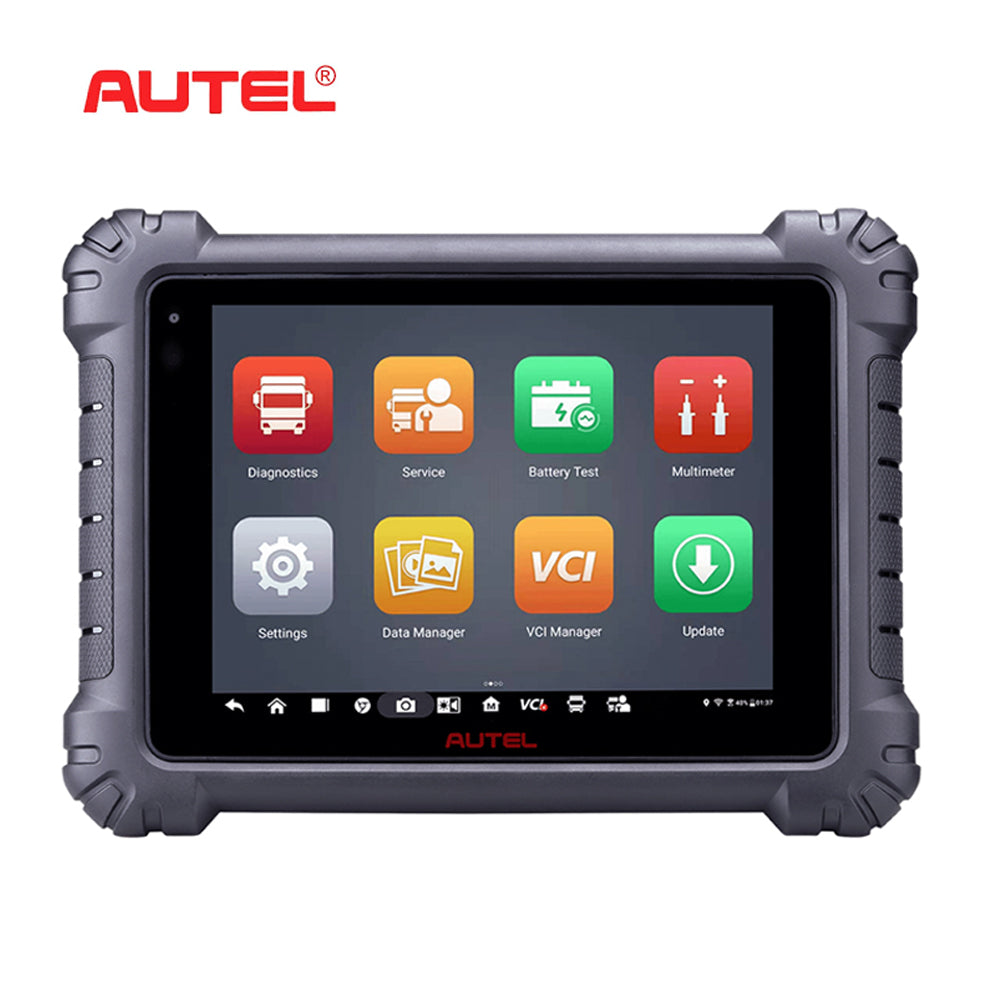

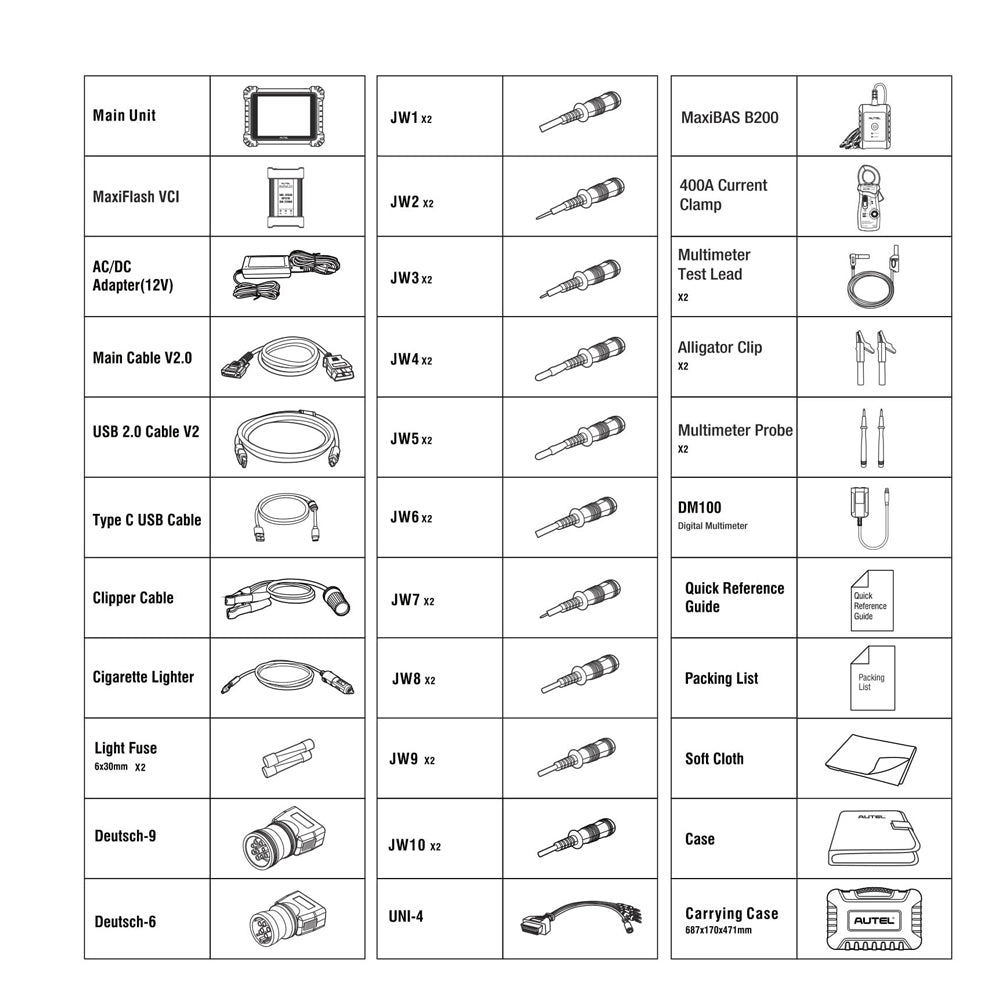

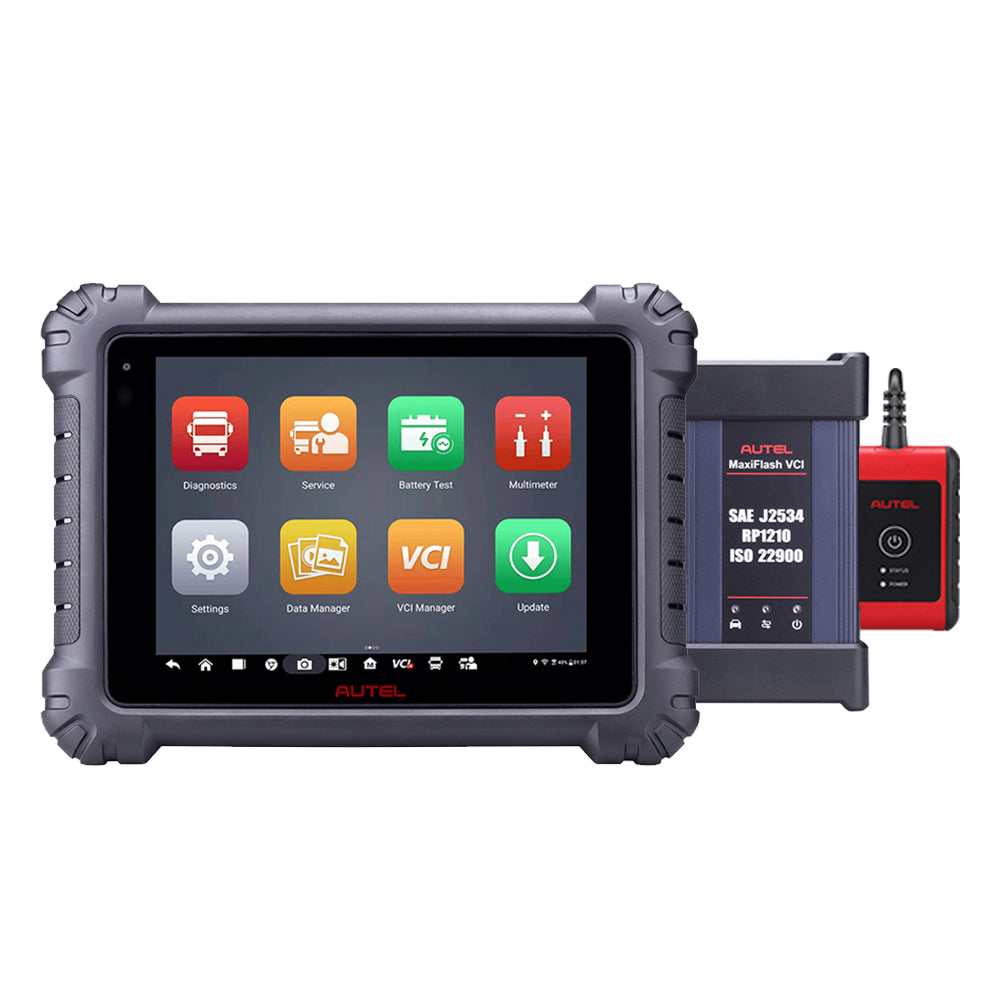

Autel MaxiSYS MS909CV is an advanced commercial vehicle diagnostic tablet compatible with 80+ models of light, medium and heavy-duty vehicles. The 9.7-inch wireless Android-based touchscreen tablet performs extensive diagnostics including the ability to read/erase codes, view/graph live data, and perform active tests. The tablet includes a Bluetooth-enabled vehicle communication interface (VCI)/J2534 pass-thru device, the MaxiBAS B200 battery/starting/charging system test device, alligator clamps, multimeter and amp clamps. The tablet features ADAS Calibration Software for Class 3-5 vehicles and Class 6-8 vehicles with dynamically calibrated systems.
Description:
- Upgraded Octa-Core processor and 128GB storage and Android 10.0 Operating System with 9.7” Touchscreen and the whole-new MaxiFlash VCI to deliver smooth operation

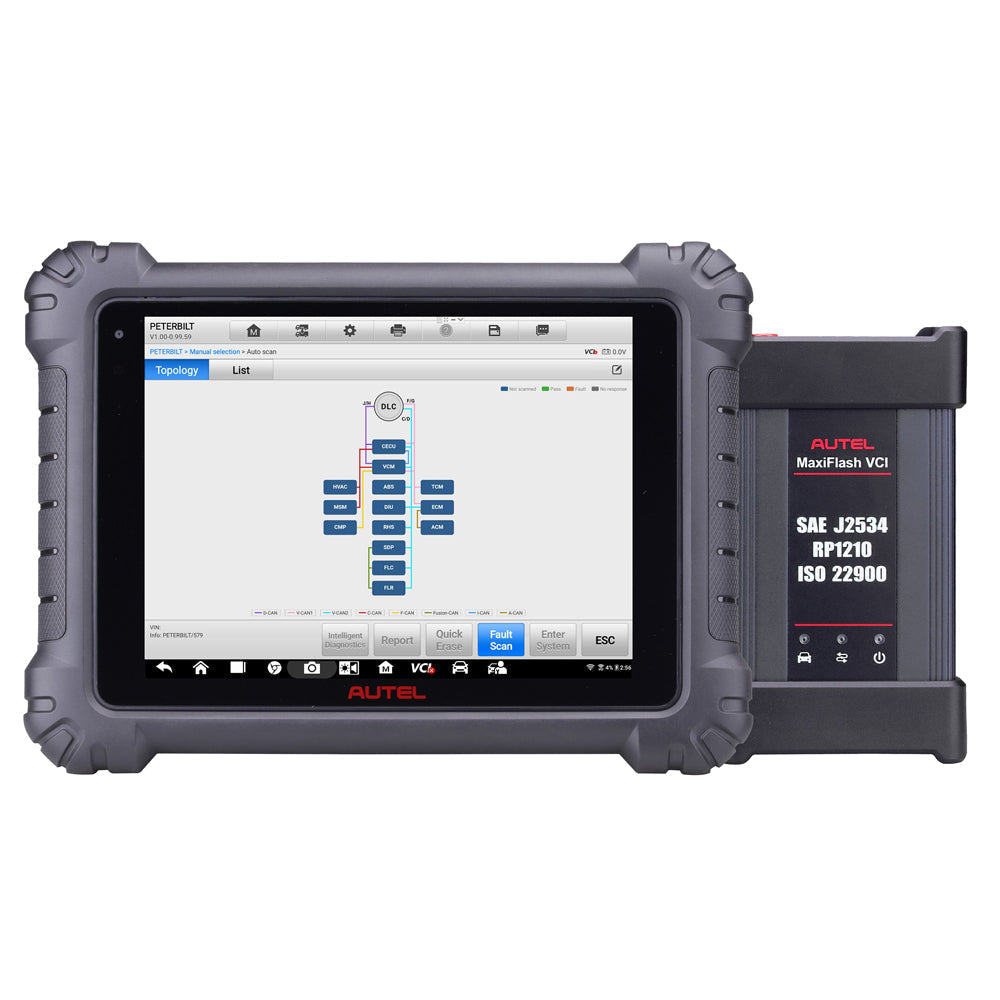

- Intelligent Diagnostics with Module Topology on Select Vehicles and Enhanced AutoSCAN / VINScan and DTC Analysis / Repair Guided Assist
- ADAS Calibration with new Class 6-8 Dynamic Calibration, Supporting Class 3-5 Complete ADAS Coverage. The Class 6-8 Static Calibration (coming soon)
- Support heavy Duty Battery Test & Health Report
Specifications
| Operating System | Android 10.0 |
| Processor |
Qualcomm 660 Octa-core Processor (2.2GHz Quad-core A73 +1.8GHz Quad-core A53) |
| Memory | 4GB RAM & 128GB On-board Memory |
| Display | 9.7-inch TFT-LCD with 1536 x 2048 resolution & capacitive touch screen |
| Connectivity | Dual Wi-Fi (802.11 a/b/g/n/ac 2x2 MIMO) |
| BT V5.0 + BR/EDR | |
| GPS | |
| USB 2.0 (2 USB TYPE-A ports and a Mini USB port) | |
| HDMI 2.0 | |
| SD Card (Support up to 256GB) | |
| Camera | Rear:16 Megapixel, Autofocus with Flashlight |
| Front:16 Megapixel | |
| Sensors | Gravity Accelerometer, Ambient Light Sensor (ALS) |
| Audio Input/Output | Microphone |
| Dual Speakers | |
| 3-Band 3.5 mm stereo/standard headset jac | |
| Power and Battery | 15000mAH 3.8V lithium-polymer battery |
| Charging via 12V AC/DC power supply with the temperature between 0°C and 45°C | |
| Input Voltage | 12V/1.3A Adapter |
| Operating Temperature | 0 to 50°C (32 to 122°F) |
| Storage Temperature | -20 to 60°C (-4 to 140°F) |
| Dimensions(W x H x D) | 304.4 mm (11.98") x 227.8 mm (8.97") x 42.5 mm (1.67") |
| Weight | 1.66kg (3.66 lb.) |
| Protocols | DoIP, PLC J2497, ISO-15765, SAE-J1939, ISO-14229 UDS, SAE-J2411 Single Wire Can(GMLAN), ISO-11898-2, ISO-11898-3, SAE-J2819 (TP20), TP16, ISO-9141, ISO-14230, SAE-J2610 (Chrysler SCI), UART Echo Byte, SAE-J2809 (Honda Diag-H), SAE-J2740 (GM ALDL), SAE-J1567 (CCD BUS), Ford UBP, Nissan DDL UART with Clock, BMW DS2, BMW DS1, SAE J2819 (VAG KW81), KW82, SAE J1708, SAE-J1850 PWM (Ford SCP), SAE-J1850 VPW (GM Class2) |
