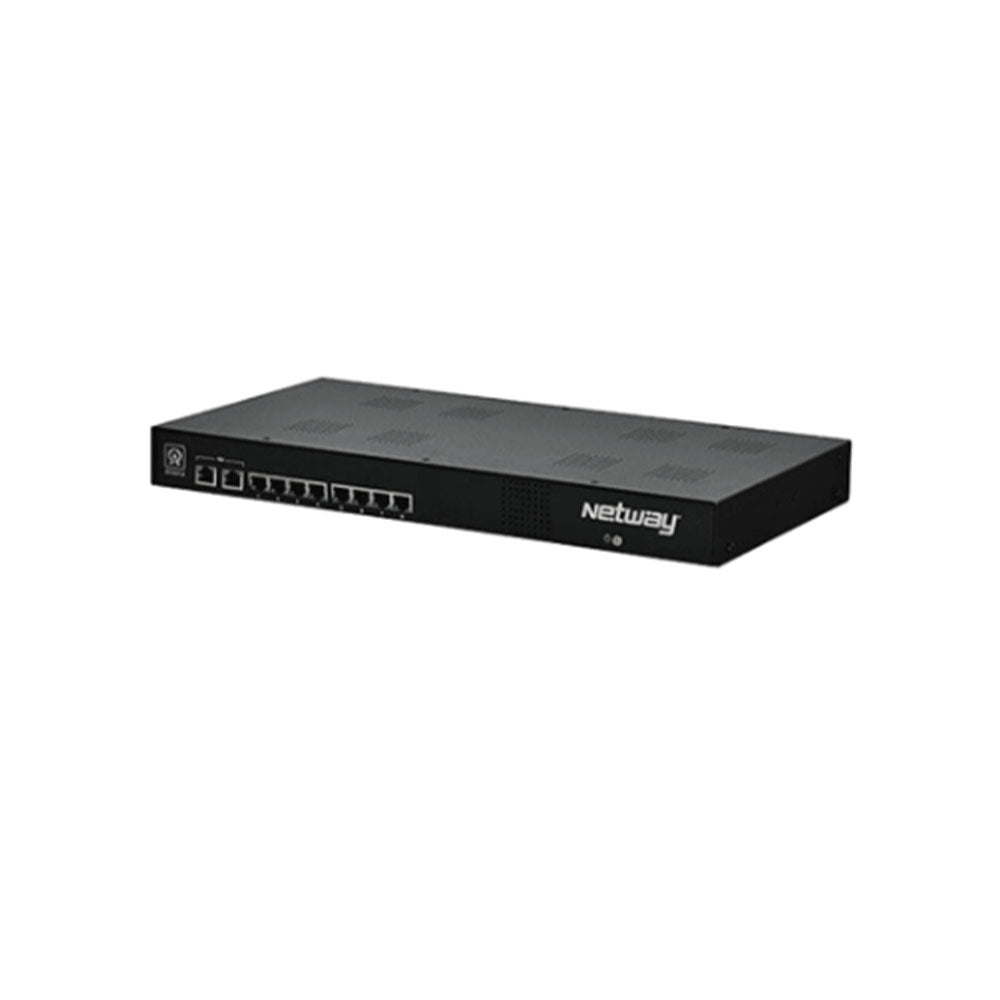

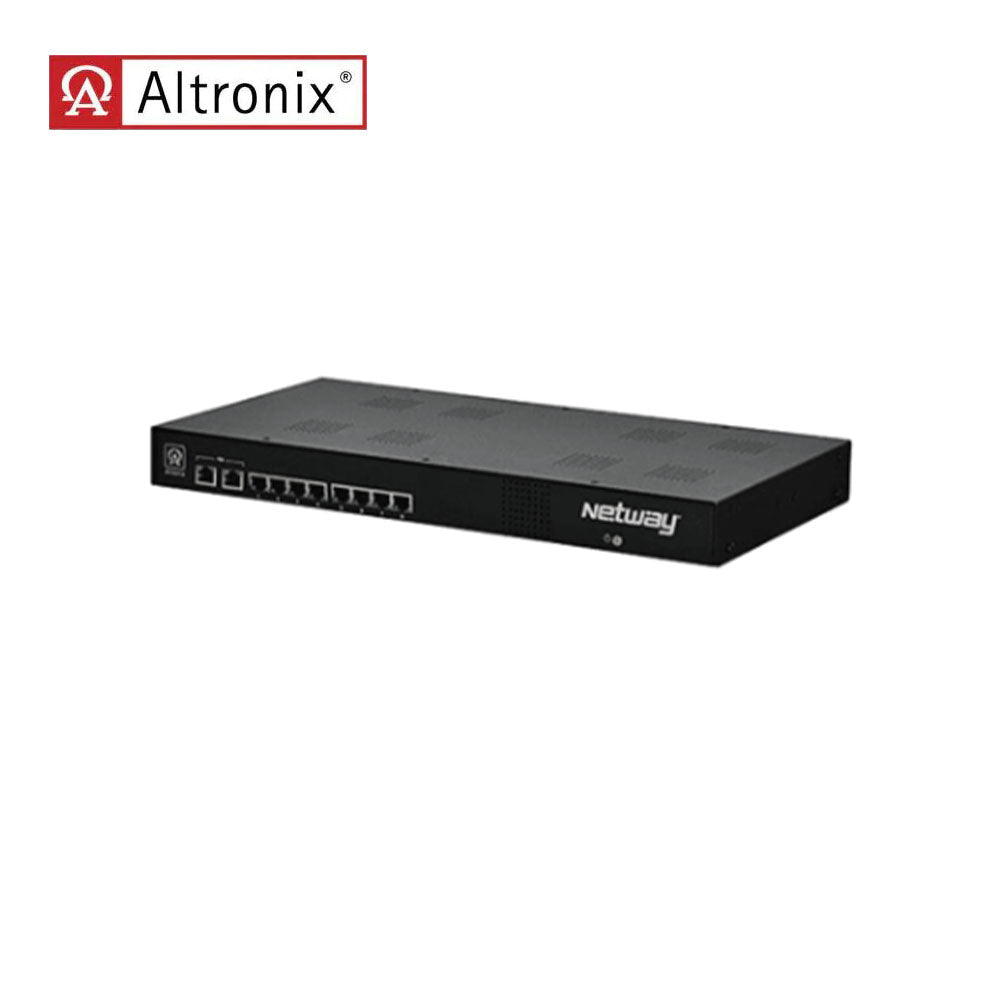

Altronix - NETWAY8E - PoE Switch with 8-Port - Battery Charging

Altronix - NETWAY8E - PoE Switch with 8-Port - Battery Charging

Ideal for a multitude of purposes, including CCTV, Fire Alarm and POIP. A leading global provider of power and transmission technologies for professional security system applications, Altronix develops innovative solutions that integrate disparate infrastructure and maximize overall performance and efficiency.
Altronix Power Supplies are ideal for a multitude of purposes, including:

• General Use
• CCTV
• Fire Alarm
• POIP

Input:

• 115VAC, 60Hz, 3.25A or 230VAC, 50/60Hz, 2.0A.

Power:

• Unit supplies PoE output voltage (55V) and up to 30W max. full power per port.
• Total power: 240W
• IEEE 802.3af and IEEE 802.3at compliant (PoE/PoE+).
• Short circuit protection.

Ethernet Uplink:

• Two (2) 1Gb uplink (100/1000 Mbps.)
• Connectivity: RJ45, auto-crossover.
• Wire type: 4-pair CAT5 or better structured cable.
• Distance: up to 100m.

Ethernet:

• Eight (8) ports for cameras/edge devices over ethernet.
• Wire type: 4-pair CAT5e and higher.
• Speed: 10/100/1000 Mbps.

Functions:

• Programmble PoE shutdown for each port. Utilized to reset cameras/edge devices.
• Auto detection and protection of legacy non-PoE cameras/edge devices.

Battery Backup:

• Built-in battery charger (optional rack mount battery enclosure - RE2).
• Automatic switchover to stand-by battery when AC fails.

Temperature:

• Operating:
  60W: - 40° C to 75° C ( - 40° F to 167° F).
  75W: - 40° C to 70° C ( - 40° F to 158° F).
  100W: - 40° C to 55° C ( - 40° F to 131° F).
  120W: - 40° C to 45° C ( - 40° F to 113° F).
• Storage:- 40° C to 85° C ( - 40° F to 185° F).
• Relative Humidity 85% +/- 5%.
• BTU/Hr. (approx.):61 BTU/Hr.
• System AC input VA requirement: 172.5VA.

Operating Altitude:

• - 304.8 to 3,048m ( - 1,000 to 10,000 ft.).

LINQ Technology:

• SSL (Secure Socket Layer) security encryption.
• User level security.
• Built-in IP management allows for remote camera reset and monitoring.
• Provides local and/or remote access to critical information via LAN/WAN
• Email and Windows Dashboard Alert notifications report real-time diagnostics.
• Event log tracks history.

Enclosure:

• Modular 1U standard EIA 19" rack mount chassis.
• Dimensions 4.1"W x 1.7"H x 7.2"D (105 mm W x 44 mm H x 183 mm D).

Download:

• Installation Instruction
