Uniview Tec UHDB228X 2MP HD Analog, DWDR, Fixed Lens IR Bullet Camera
Description
Description

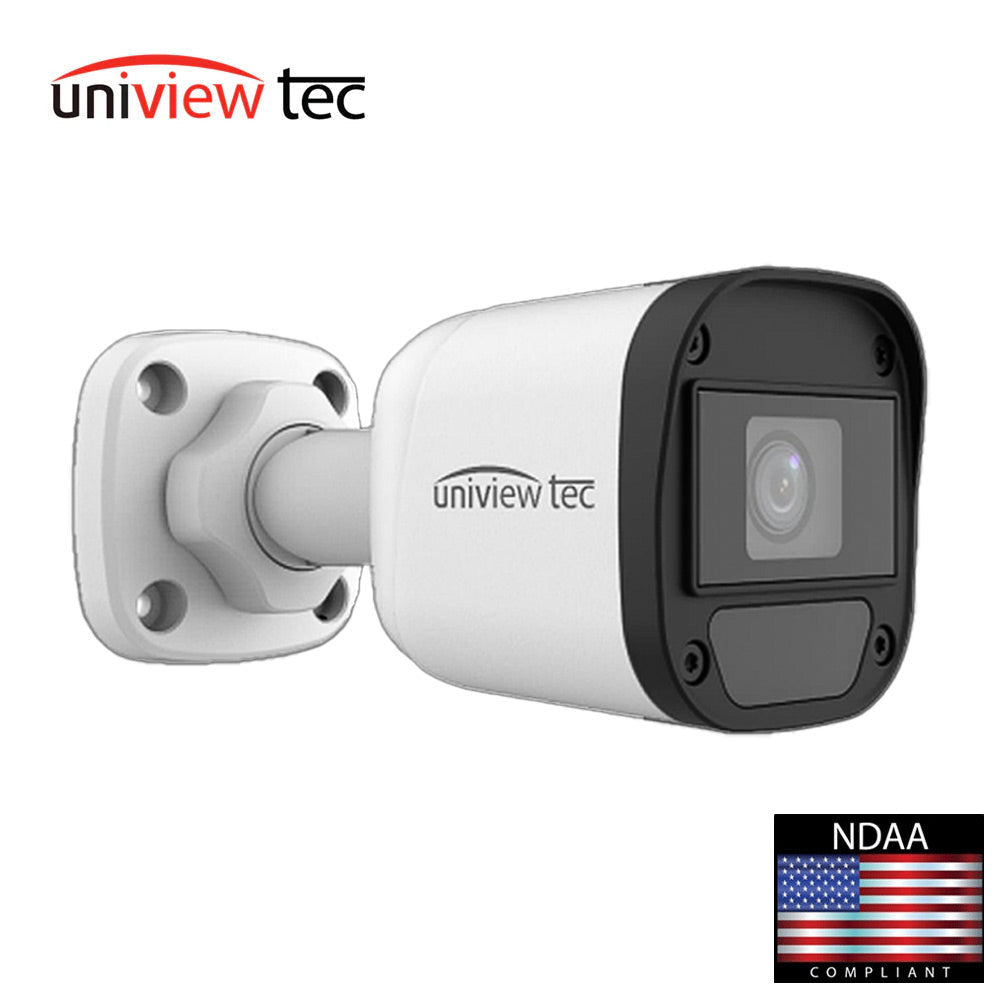

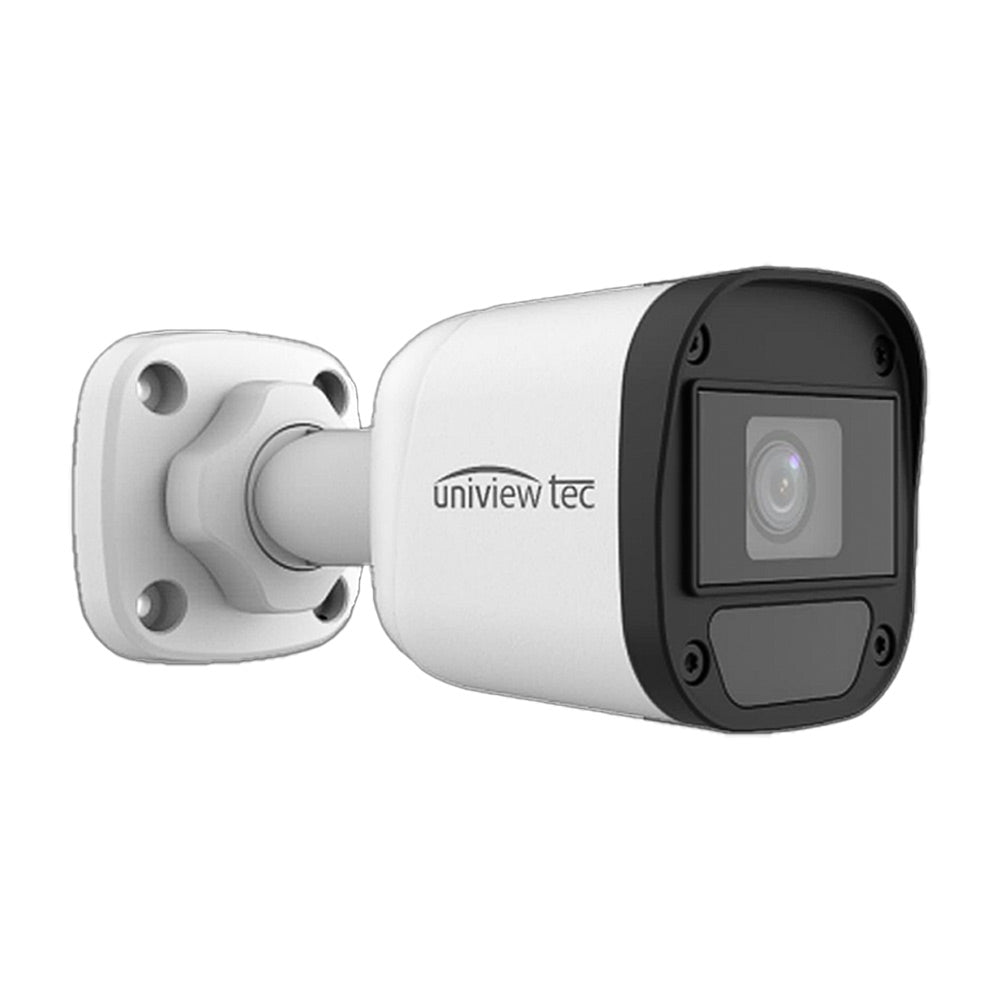

Uniview Tec UHDB228X 2MP HD Analog, DWDR, Fixed Lens IR Bullet Camera
With a resolution of 1980X1080, this IR bullet camera from Uniview Tec offers 2MP video quality. This 2MP bullet camera saves time and money by delivering high-definition photos over the current coax line using HD Analog over coax technology.
Features:
- Fully Adheres to National Defense Authorization Act (NDAA) Guidelines
- High Video Quality with 2MP, 1980 x 1080 Resolution
- High-Definition Analog (HD Analog) over Coax Technology, utilizes existing Coax Cables & BNC Connectors, allowing Mega-pixel Video Images without any rewiring necessary
- TVI, AHD, CVI and CVBS Protocol selectable — Engineered to work with UVT Hybrid NVR’s for Maximum Stability and Performance
- Smart IR LED Lights for 0Lux Night Time Operation up to 65 Feet
- 2.8mm fixed lens
- TRUE Day/Night and DWDR functionality for all Lighting Conditions
- Backlight Compensation and 2D DNR (Digital Noise Reduction)
- Supports 180° horizontal flip, 180° vertical flip
- Easy to Operation On Screen Display (OSD) Configuration Menu
- 12VDC Power Options
- IP67 Weather Resistant Housing with Optional Mounts
- Supported by UniView tec Guard Station Client Software and Guard Viewer Mobile App’s for iPhone and Android Devices
Specifications:
Sensor:
| Pixel | 2MP |
| Size | 1/3" CMOS |
| Minimum illumination | 0.02 lux (F2.0, AGC ON) 0 lux (IR on) |
Lens:
| Focal Length | 2.8mm |
| Angle of View (H x V) | 90.5° x 49.6° |
IR Illumination:
| IR LED Range | 20M (65ft) |
Video:
| Resolution | 1080P: 1920 × 1080 720P: 1280 ×720 |
| Frame rate | TVI / AHD / CVI: 1080P @ 30fps, 1080P @ 25fps; 720P @ 30fps, 720P @ 25fps CVBS: PAL, NTSC |
| Shutter time | PAL: 1/25s-1/50000s NTSC: 1/30s–1/50000s |
Image:
| Exposure mode | 4 modes: Global (default), BLC, HLC, DWDR |
| Day/Night | 3 modes: Auto (default), Day, Night |
| Digital noise reduction | 2D |
| White balance | Two modes: Auto (default), Manual |
| WDR | DWDR |
| Smart IR | Support |
| Flip | Supports 180° horizontal flip, 180° vertical flip. |
| Defog | Digital |
Interface:
| Power | 5.5mm power interface |
| Video output | BNC, supports TVI / AHD / CVI / CVBS |
Operating Environment:
| Temperature | -30℃ to 60℃ (-22℉ to 140℉) |
| Humidity | ≤95% (RH, non-condensing) |
| Surge protection | 4KV |
| Ingress protection | IP67 |
General:
| Power | DC 12V(±25%), with reverse polarity protection and surge protection, Max 2.88W |
| Mount | 3D bracket supplied, surface mount (default); optional junction box and pole mount available |
| Dimensions (L x W x H) | 142 x 60 x 65mm (5.6 x 2.4 x 2.6”) |
| Material | Plastic |
| Weight | 135g (0.30lb) |
| Certification | CE, FCC |
