Uniview Tec | SKU:
UVT-DC8K
17% off
Uniview Tec DC8K 1ch 8K Video Decoder
$1,09900
$1,31880
Unit price
/
Unavailable
Shipping calculated at checkout.
Secure transactionCouldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
All orders are shipped between 24 hours or less Monday through Friday from 9:00 am to 6:00pm. Orders placed after 4 p.m. EST will be shipped next business day.
Learn more
Uniview Tec DC8K 1ch 8K Video Decoder
$1,09900
$1,31880
Unit price
/
Unavailable
Description
Description

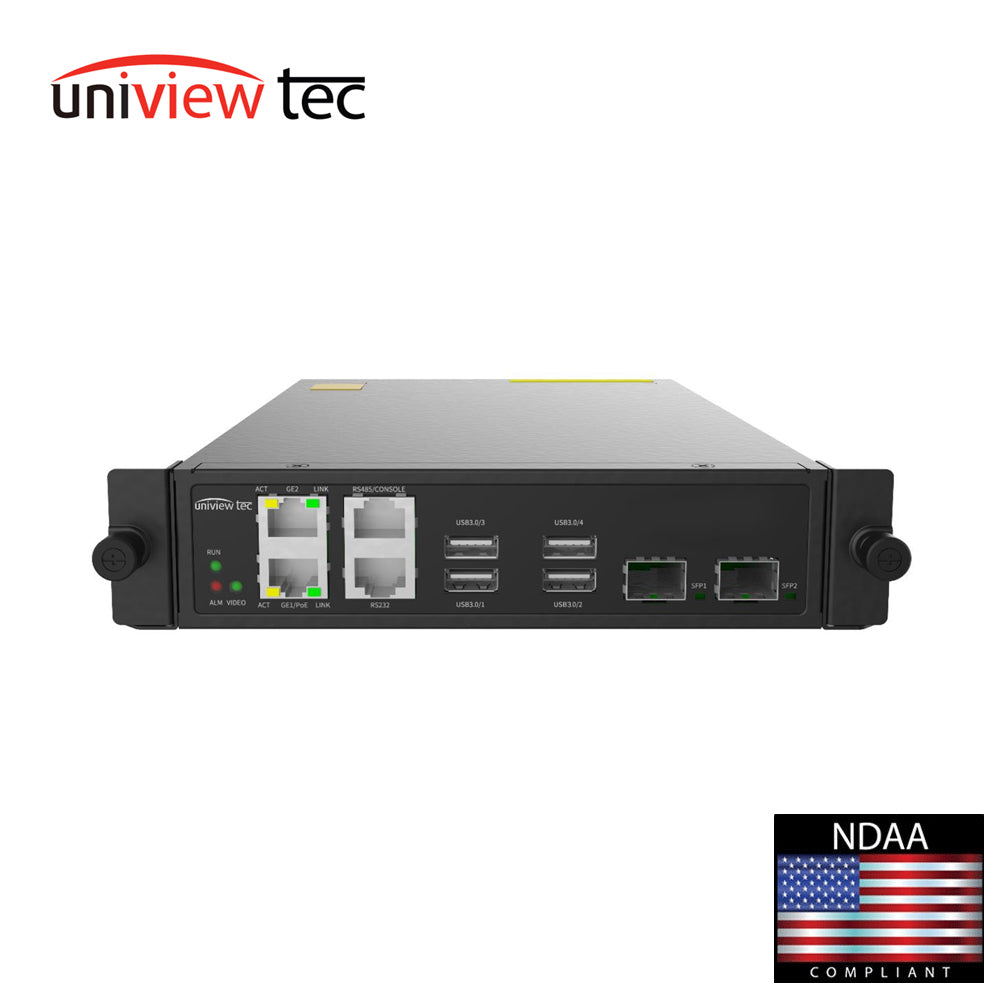

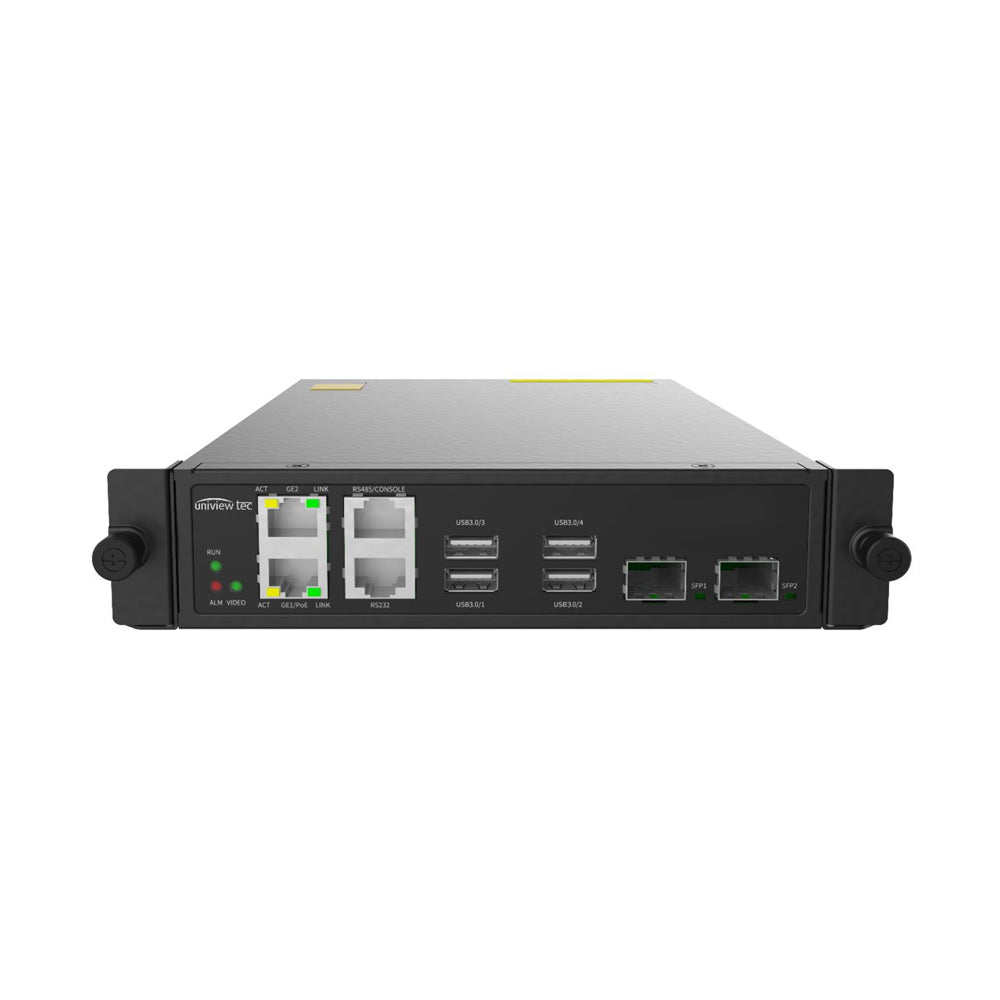

Uniview Tec DC8K 1ch 8K Video Decoder
Key Features:
- Fully Adheres to National Defense Authorization Act (NDAA) Guidelines
- Embedded Linux OS ensures 24/7 stable operation and prevents hackers and viruses
- 1 HDMI / VGA / SDI video output
- Supports decoding 1-ch 8K @ 60fps, 2-ch 8K @ 30fps, 8-ch 12MP @ 20fps, 8-ch 4K @ 30fps, 32-ch 1080P @ 30fps, and 72-ch 720P @ 30fps videos in parallel
- Supports decoding video in H.265, H.264, MPEG4, MPEG2, and MJPEG formats
- Supports decoding video in 8K, 12MP, 4K, 1080P, 720P, and D1 resolutions, compatible with IPC streams from mainstream manufacturers in the industry
- Up to 8K (7680*4320) @ 60Hz output resolution, compatible with mainstream display devices in the industry.
- Supports decoding audio in G711.A and G711.U formats
- Supports up to 64 split screens for a single video output
- Allows users to configure and manage the device on a central server, supports GB/T28181 and standard ONVIF
- Supports synchronizing time with server by schedule
- Supports high/low-temperature alarm
Specifications:
Decoding:
| Decoding resolution | Up to 8K |
| Decoding capability (fps) | 1-ch 8K @ 60fps, 2-ch 8K @ 30fps, 8-ch 12MP @ 20fps, 8-ch 3840 x 2160 @ 30fps, 32-ch 1080P @ 30fps, 72-ch 720P @ 30fps, 128-ch D1 @ 30fps |
| Split screen | Up to 64 |
Output:
| Video format | H.265, H.264, MPEG4, MPEG2, MJPEG |
| HDMI output | 7680 x 4320 @ 60Hz, 7680 x 4320 @ 30Hz, 3840 x 2160 @ 60Hz, 3840 x 2160 @ 30Hz, 1920 x 1200 @ 60Hz, 1920 x 1080 @ 60Hz, 1920 x 1080 @ 50Hz, 1660 x 1200 @ 60Hz, 1440 x 900 @ 60Hz, 1366 x 768 @ 60Hz, 1280 x 1024 @ 60Hz, 1280 x 720 @ 60Hz, 1280 x 720 @ 50Hz, 1024 x 768 @ 60Hz |
| VGA output | 1920 x 1200 @ 60Hz, 1920 x 1080 @ 60Hz, 1920 x 1080 @ 50Hz, 1660 x 1200 @ 60Hz, 1440 x 900 @ 60Hz, 1366 x 768 @ 60Hz, 1280 x 1024 @ 60Hz, 1280 x 720 @ 60Hz, 1280 x 720 @ 50Hz, 1024 x 768 @ 60Hz |
| SDI output | 1920 x 1080 @ 60Hz, 1920 x 1080 @ 50Hz, 1280 x 720 @ 60Hz, 1280 x 720 @ 50Hz |
Interface:
| Video output | 1 x HDMI / VGA / SDI video output interface |
| Audio input | 1 x audio input interface (reserved) |
| Audio output | 1 x audio output interface (reserved) |
| Alarm input | 4 x Phoenix terminal (reserved) |
| Alarm output | 3 x Phoenix terminal (reserved) |
| Serial port | 2 x RS485 (1 RJ45 RS232 Console and RS485, 1 reserved Phoenix terminal), 1 x RS232 (RJ45) |
| Ethernet | 2 x GE Ethernet electrical port (RJ45 connector, half-duplex/full-duplex Ethernet, supports 10M/100M/1000M Base-T adaptive) |
| Fan | CPU fan |
| SFP | 2 x Gigabit optical port |
| USB | 4 x USB3.0 |
General:
| Dimensions (W x H x D) | 277 x 40 x 191mm (10.9 x 1.6 x 7.5”) |
| Operating Temperature | -10°C ~ 60°C (14°F ~ 140°F) |
| Operating Humidity | 5% to 95% (non-condensing) |
| Weight | 2kg (4.4lbs) |
| Power Supply | 12VDC |
| Power consumption | <15W |
