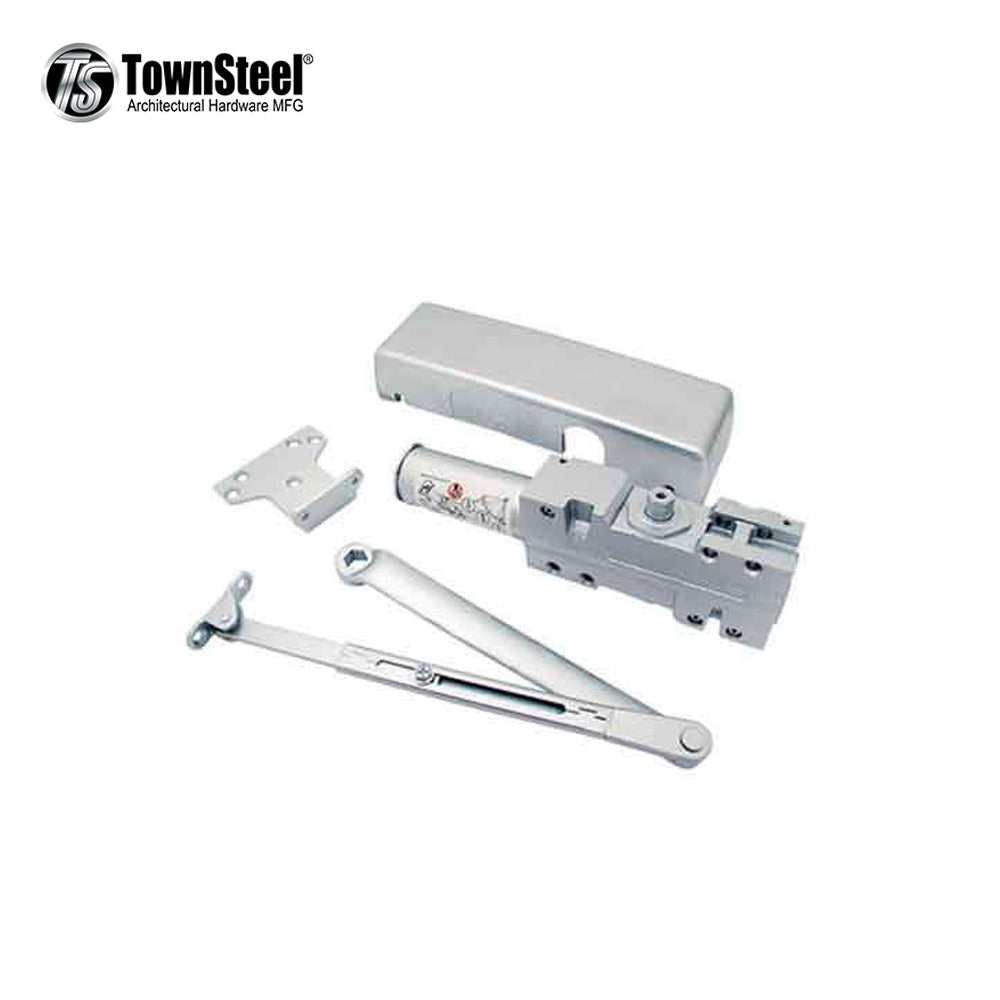

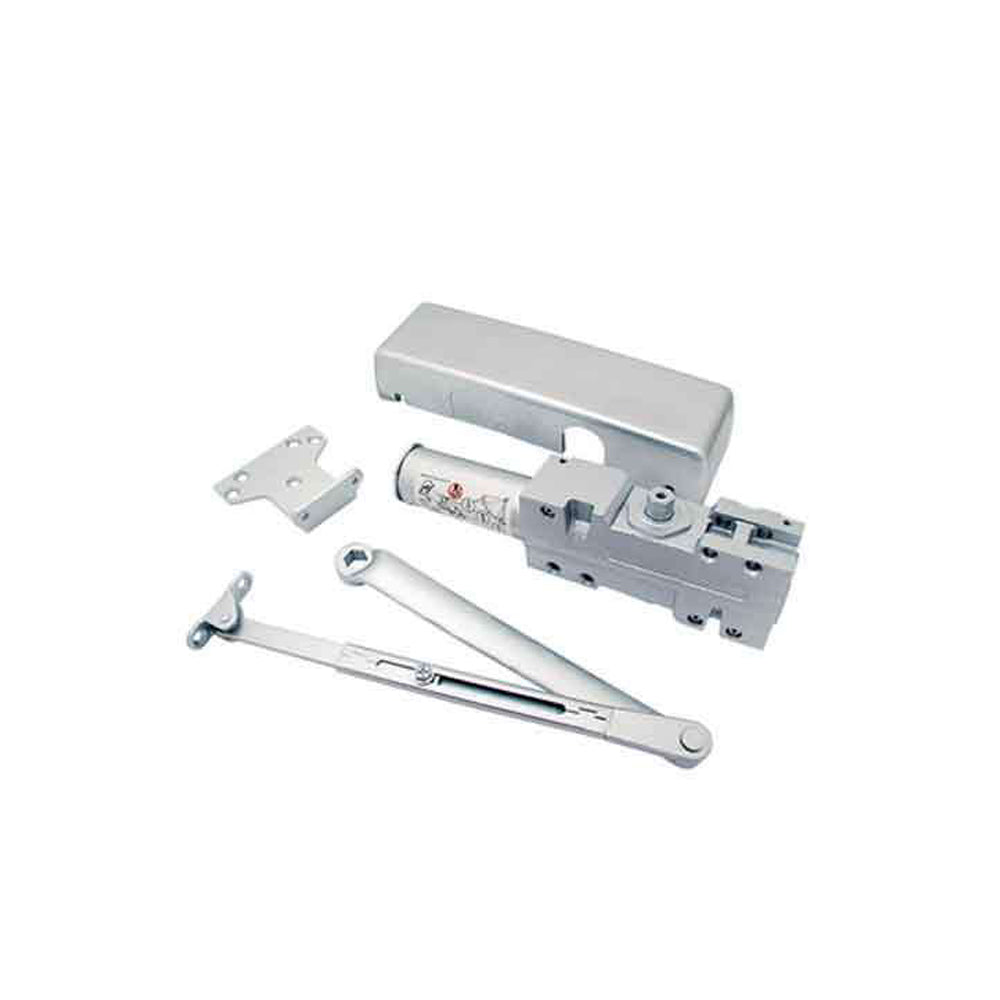

TownSteel - TDC40 - Commercial Door Closer - Hold to Open Arm - Cast Iron w Aluminum Finish - Grade 1

TownSteel - TDC40 - Commercial Door Closer - Hold to Open Arm - Cast Iron w Aluminum Finish - Grade 1

The TDC 40 is a heavy-duty, cat iron body, grade 1 door closer that is ANSI/BHMA certified and UL rated.

Specifications

Body	Heavy-duty cast iron body
Handing	Non-handed
Function	Friction Hold-Open
Rack and Pinion	Precision rack and pinion construction
Arm	Regular Arm , Standard
Installation	Tri-Style installation, includes hardware and brackets to allow for regular, top jam and parallel arm installation
Spring Power	Adjustable spring power from size 1 to size 6, factory present size 3
Latch Valve	Adjustable standard
Sweep Valve	Adjustable standard
Back Check Valve	Adjustable standard
Delayed Action Valve	No Delayed Action
Fluid	All weather fluid, allowing door closer to perform in temperatures ranging from -31°F to 140°F
Needle Bearing	Standard for higher efficiency
Piston	1-1/2″ (38mm) diameter piston 5/8″ (16mm) diameter pinion 2-5/16″ (58mm) projection
Maximum Door Opening	Regular arm 180°, Parallel arm 180°, Top jamb 180°
Certifications	ANSI/BHMA - A156.4 Grade 1 Certified UL - UL & ULC Listed BAA - BAA model meets guidelines of the Buy American Act
Manufacturer Warranty	1-year limited for electronic 5-year limited for finish 10-year limited for mechanical

Installation Guide
