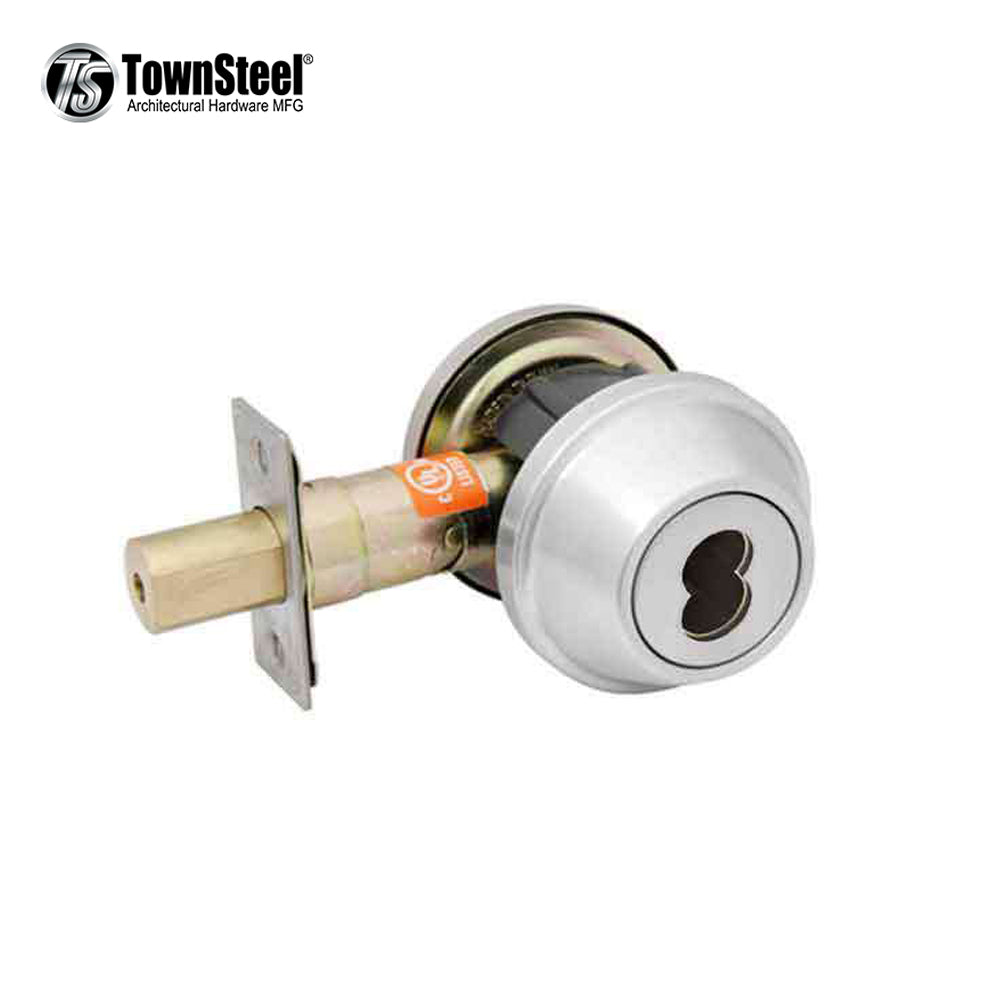

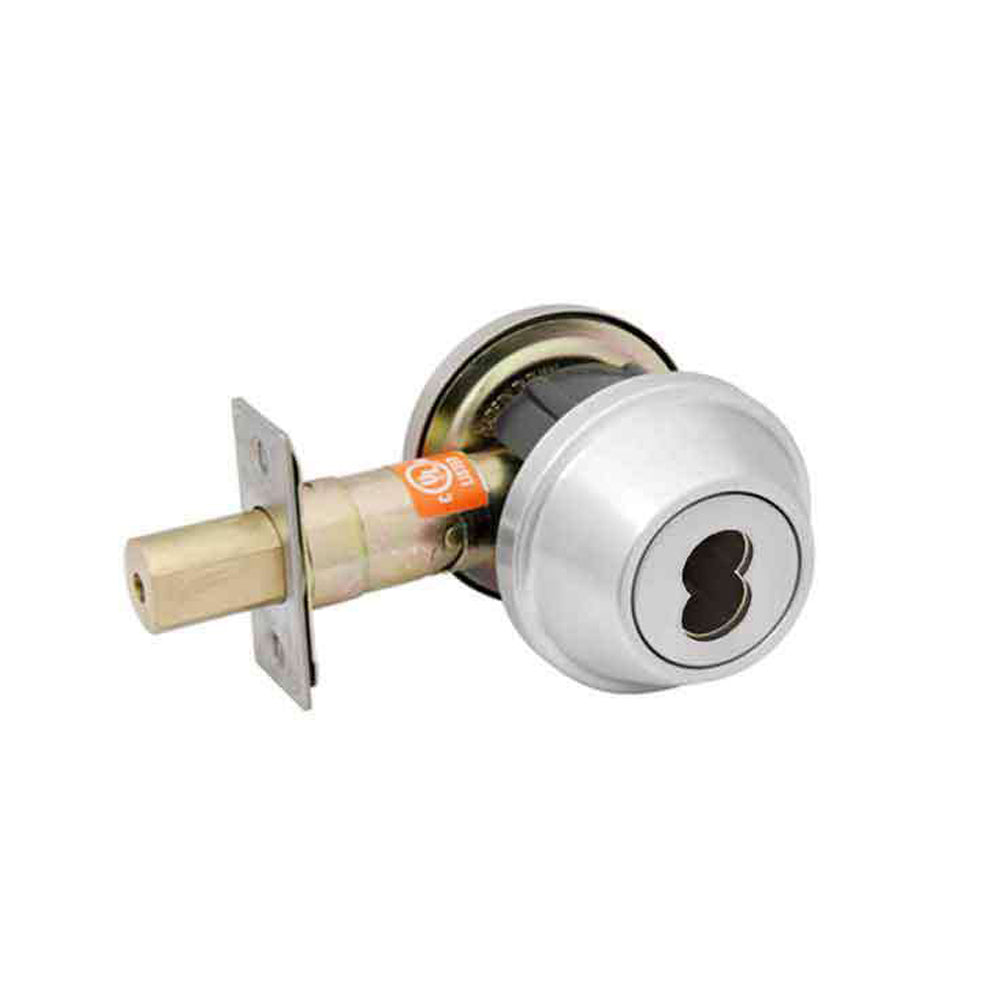

TownSteel - DBTI-61 - Commercial Deadbolt - Single IC Core (SFIC) - Satin Chrome - Grade 2

TownSteel - DBTI-61 - Commercial Deadbolt - Single IC Core (SFIC) - Satin Chrome - Grade 2

The DBTI-61 is a Grade 2 Deadbolt that provides a positive deterrent to forced entry. Fits Small format IC , 6 or 7-pin, Best “A” keyway (Core sold separately)

Specifications

Door Thickness	1-3/8”-1-3/4”
Backset	2-3/8"~2-3/4" Adjustable Backset
Deadbolt	Solid brass with hardened steel rod insert, 1″ throw
Strike	Rectangular with door reinforce 1-1/8” x 2-3/4” x 5/64”, square corner
Faceplate	1-1/8” x 2-1/4” , square corner
Finish	US26D
Function	Single Cylinder
Cylinder	Fits Small format IC , 6 or 7-pin, Best “A” keyway (Core sold separately)
Finish	626 - 26D - Satin Chrome
Certifications	ANSI/BHMA Meets or exceeds A156.5-2001 Grade 2 requirements UL Listed 3-hour fire rating BAA Meets guidelines of the Buy American Act
Manufacturer Warranty	1-year limited for electronic 5-year limited for finish 10-year limited for mechanical

Installation Guide
