TOPDON PHOENIX SCOPE Quickly Diagnose Issues with Automotive Electronics and Wiring

Name: TOPDON PHOENIX SCOPE Quickly Diagnose Issues with Automotive Electronics and Wiring
Brand: TOPDON
SKU: TOP-PHOENIX-SCOPE
Price: 649.50 USD
Availability: InStock

$649⁵⁰ ~~$792⁰⁰~~

Shipping calculated at checkout.

Secure transaction

Pickup available at MIAMI MAIN WAREHOUSE

Usually ready in 1 hour

Found a better price? Call for Price Match!
Shop with confidence knowing you’re getting the best deal.

Delivery and Shipping

All orders are shipped between 24 hours or less Monday through Friday from 9:00 am to 6:00pm. Orders placed after 5 p.m. EST will be shipped next business day.
Learn more

Return Policy

At Locksmith Keyless, we prioritize your satisfaction and offer a simple return process. Returns are accepted within 30 days of purchase for unused items in original packaging. Certain items, including OEM keys, Lishi tools, and customized orders, are non-returnable. A restocking fee of up to 30% may apply. For a full list of non-returnable items and more details, please refer to our complete return policy.

For damaged, missing, or incorrect items, please contact us within 48 hours of delivery. All returns require an RMA number. Shipping costs for returns are the responsibility of the customer.

View Full Return Policy

Description

TOPDON PHOENIX SCOPE Quickly Diagnose Issues with Automotive Electronics and Wiring

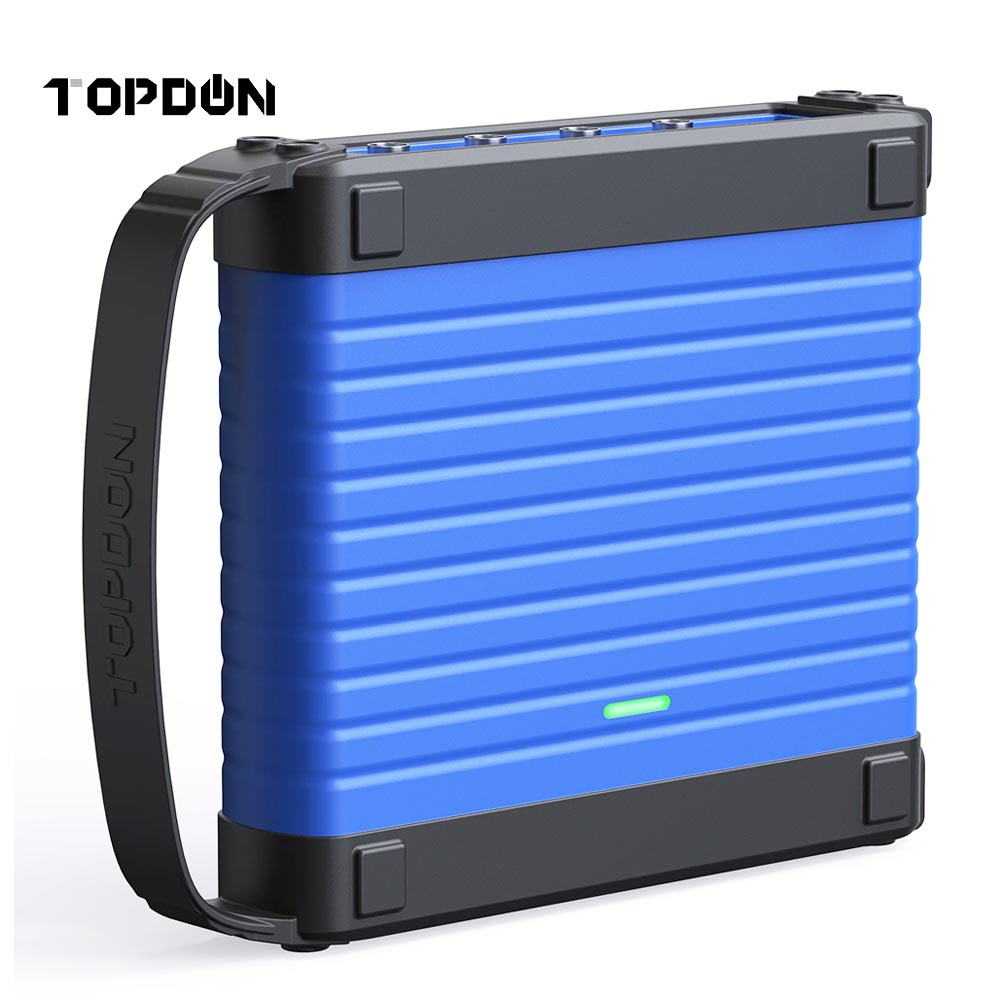

Phoenix Scope allows technicians to quickly diagnose issues with automotive electronics and wiring. It captures circuit signals swiftly and displays signal waveforms at a slower speed for simultaneous observation and analysis. Furthermore, it can record tested signal waveforms and replay them for further observation and fault analysis.

Description:

23 types of automatic measurements

Displayed in one screen and clear at a glance, this feature supports one-tap selection and clearing, eliminating the tediousness of flipping pages and searching, making automatic measurements useful and convenient.
Powerful Trigger Function: This feature supports edge, pulse width, and other triggers. Simple and intuitive setup with quick trigger source switching makes the most difficult parts of using the scope extremely easy.

High memory depth

With a memory depth of up to 50M combined with zoom technology, the Phoenix Scope allows both global and detail to be fully displayed. The upper area can be browsed globally, and the lower area can be searched for details making debugging more than twice as fast.

Special fast storage function

Compared with ordinary scopes which require 3 to 5 steps, the Phoenix Scope can save waveforms with just one tap, reducing save time by more than 70%.

Convenient cursor operation

You can open horizontal and vertical cursors separately with one tap. Each cursor can be dragged independently. Cursor tracking is achieved directly through a simple highlight tap, increasing overall efficiency by more than 80%.

Soft Keyboard Input

When inputting names and characters, ordinary scopes can only use the knob to select characters one by one. The Phoenix Scope supports soft keyboard input, which improves efficiency by more than 90%.

Customizable And Loadable System Settings

Various preferred system settings are available and can be saved as configuration files. This allows you to load configuration files directly to view them according to your preferences without having to set them repeatedly.

Waveform Recording And Playback

The waveform can be recorded and saved in a specified format, which can be directly recalled later and displayed as the reference waveform of the corresponding channel.

Supports Mathematical Operations On Waveforms

This feature supports addition, subtraction, multiplication, and division calculations of two-channel waveforms in addition to Fast Fourier Transform.

Supports A Variety Of Automotive Tests

This feature supports circuit tests, sensor tests, actuator tests, ignition tests, communication tests, combination tests, etc. Various parameters and specific connection methods are preset for each kind of test.

Specification:

Type	Range	Type	Range

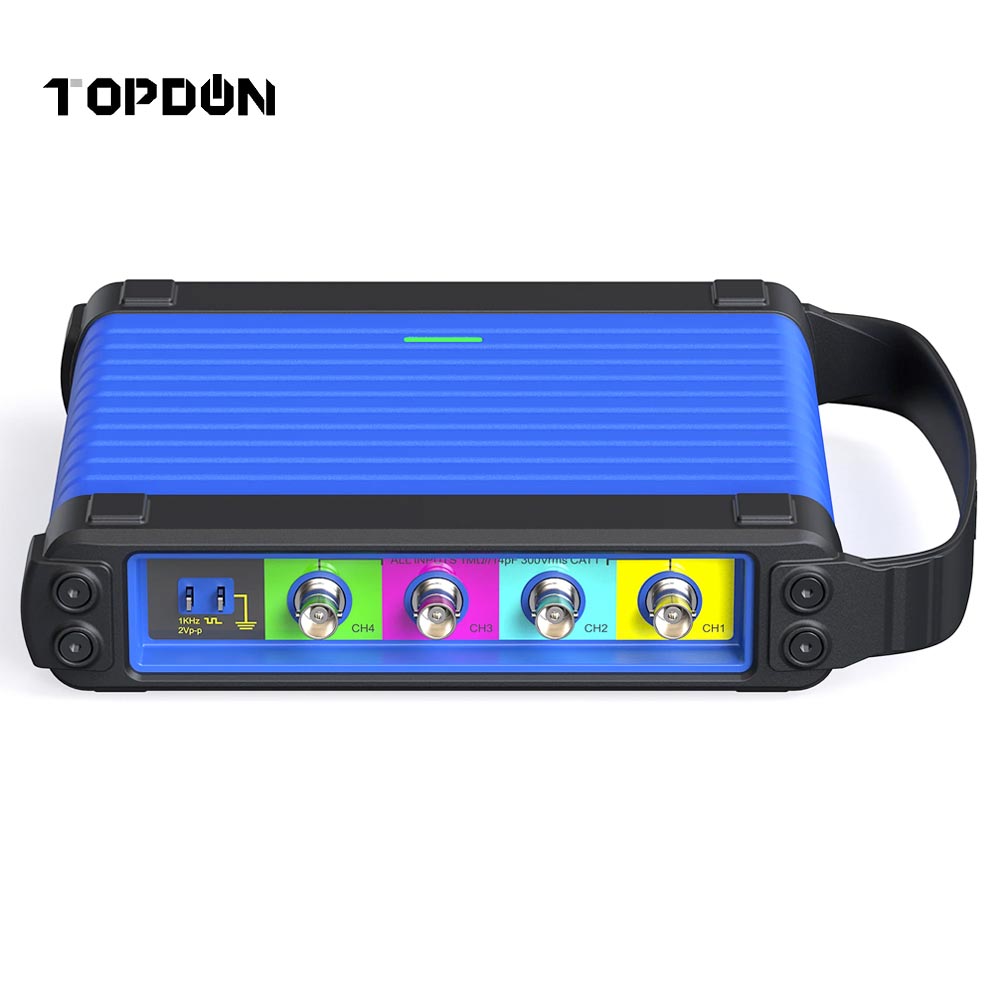

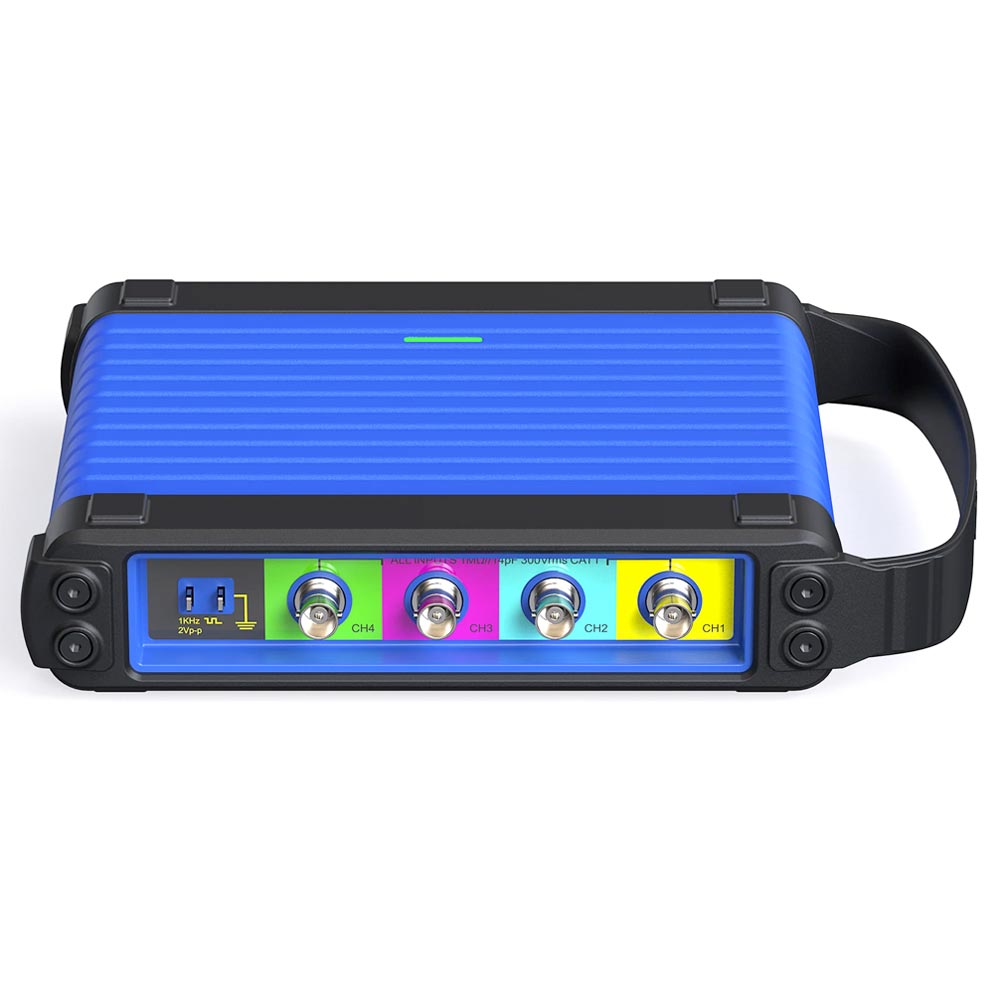

Number of Channels	4	Sample Mode	Normal
Bandwidth	100MHz	Protocol Decoding	CAN, LIN
Rise Time	≤3.5ns (typical)	Trigger Type	Edge, Pulse Width
Real-time sampling rate (Max)	1Gsa/s(single channel); 500MS/s(dual channel); 250MS/s(four channels)	Trigger Mode	Normal, Auto, Single Sequence
Input Impedance	1MΩ±1.5%	Trigger Coupling	DC, Noise Suppression
Memory Depth	50M (shared by 4 channels) Auto，10K，100K，1M，10M	Trigger Level Range	±10 divisions
Sample Bit	8	Display	YT, Zoom, Roll
Vertical Accuracy	±3%	Roll Mode
