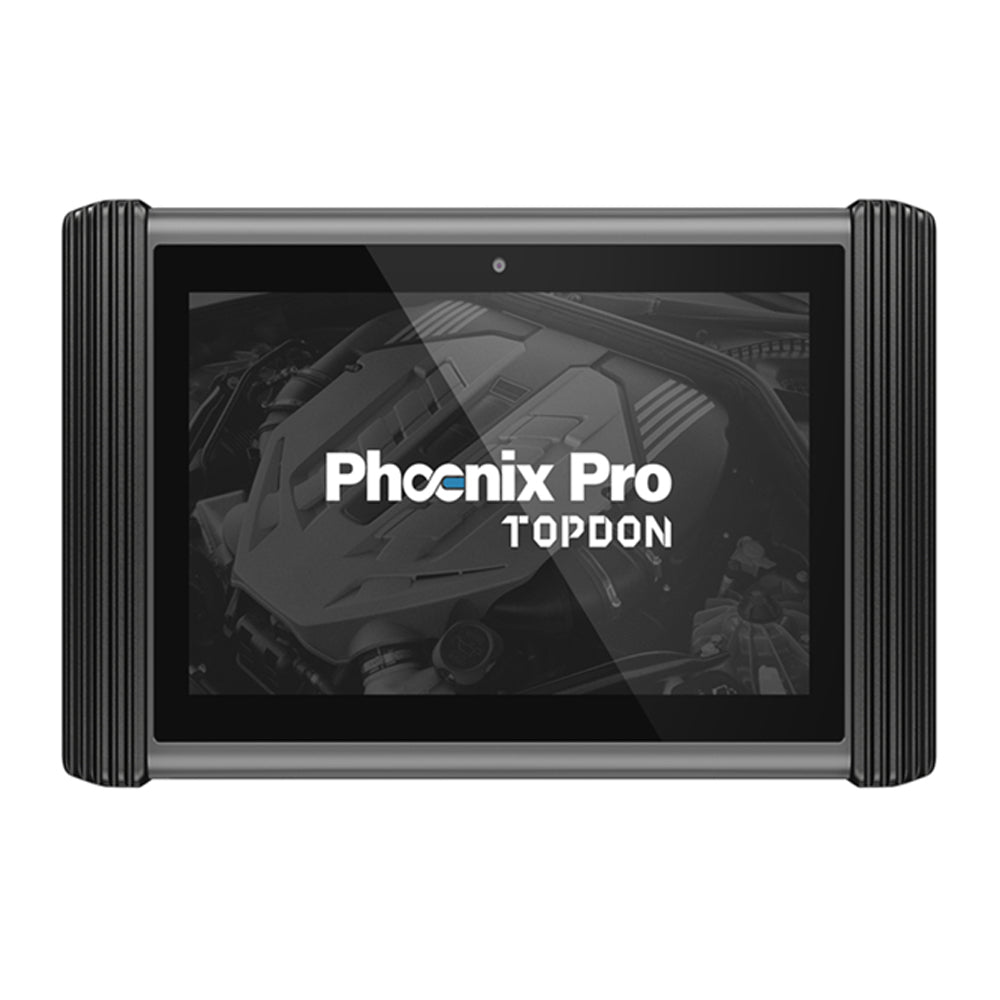

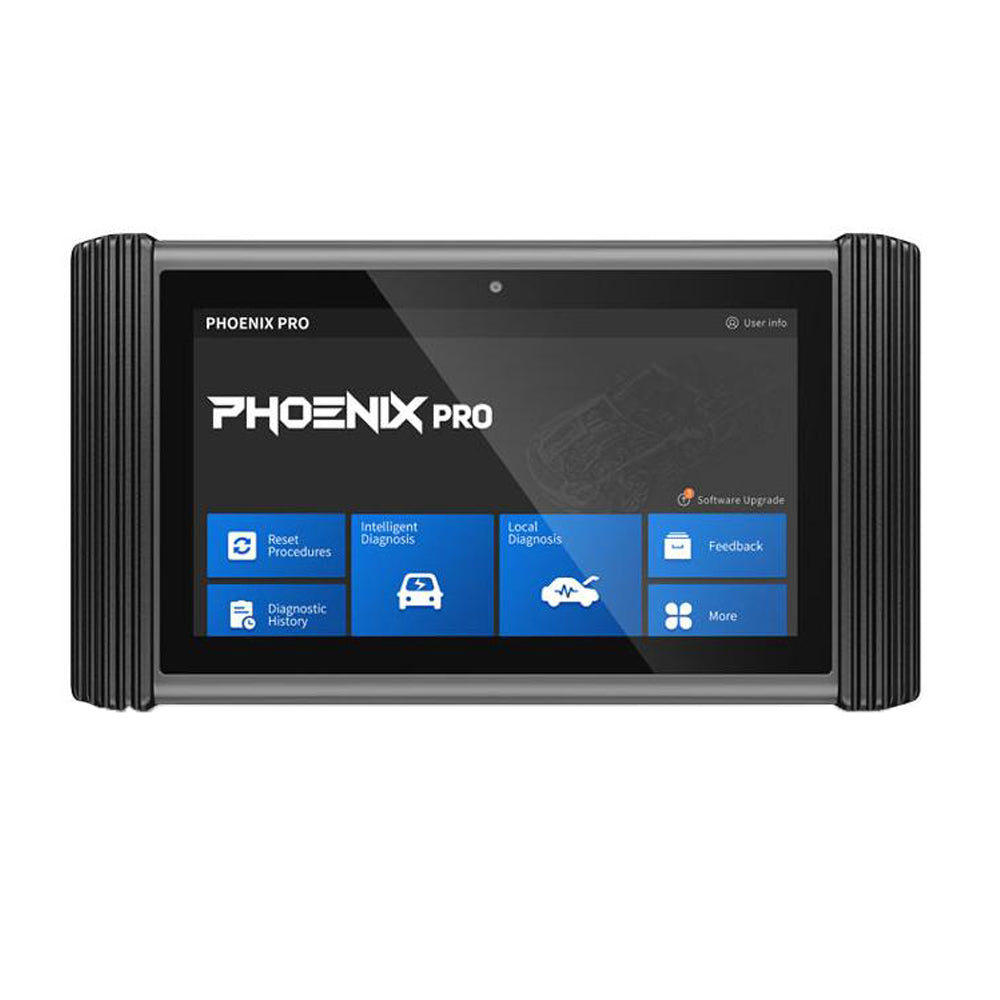

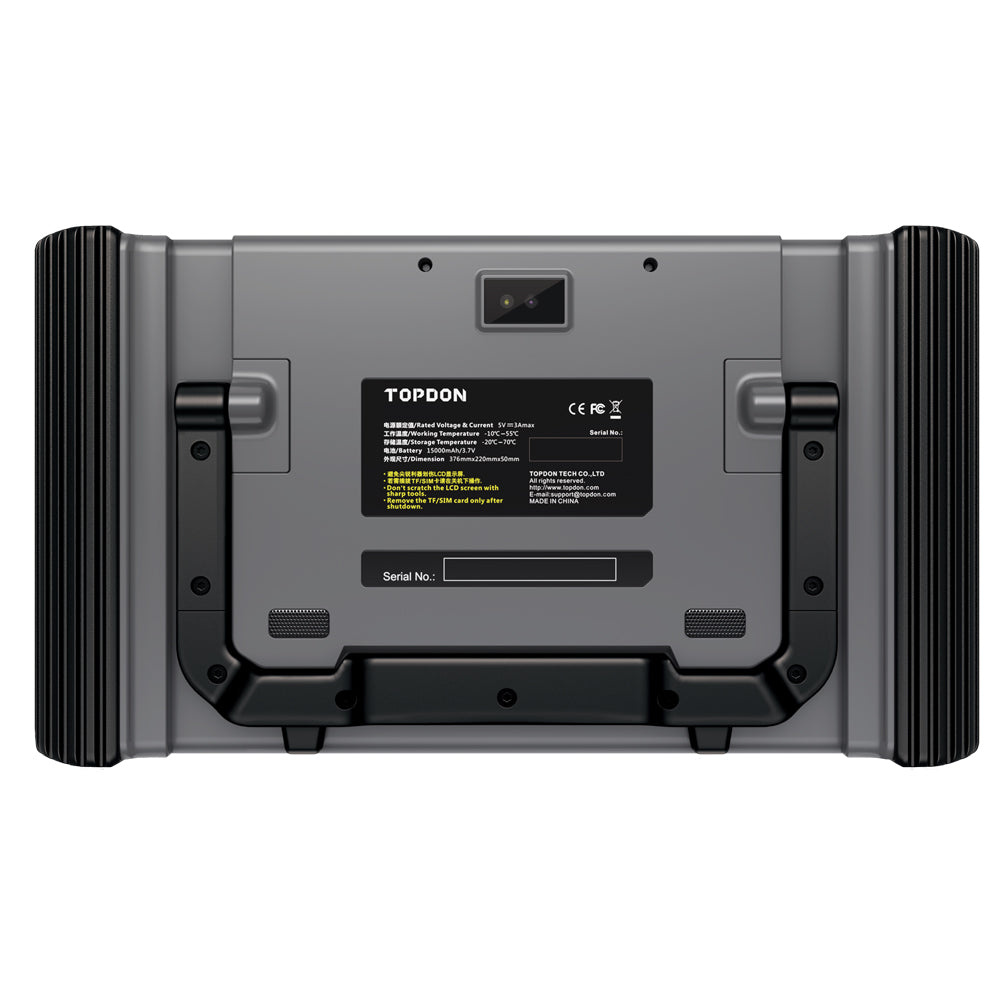

TOPDON - PHOENIX PRO - Full Size Advanced-Level Professional Diagnostic Tool
The Phoenix Pro is an advanced OE-level diagnostic scanner that provides in-depth looks into a car's automotive systems. This innovative and powerful device features online programming & coding, ECU programming, and active tests. It includes 22 of the most essential service functions, such as Oil, SAS, TPMS and EPB Resets, Throttle Matching, Gear Learn, Immobilizer coding, Injector Coding, and much more. With comprehensive worldwide coverage, including over 120 brands, the Phoenix Pro expands any shop's ability to work on even more vehicles. Its robust diagnostic power and vast capabilities will diminish the downtime, propelling your business forward.
Features:
- Exceptional OE-Level functionality from comprehensive OBD2 diagnostics & services to advanced ECU coding and programming
- Interactive Data Logging sessions enable direct contact with professional tech support for first-hand troubleshooting of diagnostic bugs and errors
- 12 inch HD capacitive touch screen
- Built for daily use in a shop environment with rubberized outer protection and rugged internal housing.
- USA-based tech support with industry-leading 1-hour callback promise.
- Special functions including • OIL RESET • SAS RESET • EPB RESET • IMMOBILIZER • INJECTOR CODING • SUNROOF RESET • GEARBOX • EGR ADAPTION • DPF RESET • ABS BLEEDING • TPMS RESET • BMS RESET • AFS RESET • SUSPENSION RESET • GEAR LEARN • THROTTLE MATCHING
- Module replacement
- Module Programming
- Personalization functions
- Automatic power-off to preserve battery life
- Modular design allows for future capability expansions
- Excellent up-close visual inspections in confined areas, such as engine cylinders and minor part inspections.
EXTENSIVE COVERAGE: This exceptional OE-Level functionality diagnostic scanner is available for over 80 1996 US-based and newer OBDII protocol vehicles with full OBDII functions, 11 unique services, and complete systems diagnostics
TECHNICAL SUPPORT: This diagnostic tool supports first-hand troubleshooting of diagnostic bugs and errors. One-stop multitasking design for ideal management of workshop operations to keep all data files, customer information, and vehicle records well organized.
Specifications:
Operating System | Android 5.1.1 |
Processor | 8-Core 2.0GHz Processor |
Memory | 2GB RAM & 64GB Embedded Memory |
Display | 12” Display with 1920x1200 Resolution and Capacitive Touch Screen |
Connectivity | 802.11a/b/g/n/ac WIFI, 2.0 3Mbs Bluetooth, RJ45 Ethernet Connection, 2.0 USB, HDMI 1.4a, SD Card (supports up to 128GB) |
Camera | Rear: 8.0 Megapixels, Autofocus with Flashlight, Front: 2.0 Megapixels |
Sensors | Gravity Accelerometer |
Audio Input/Output | Microphone, Dual Speakers, 3.5mm Stereo/Standard Headset Jack |
Power and Battery | 3.7V/15000mAH Lithium-polymer Battery |
Input Voltage | DC/5V/3A |
Power Consumption | Max 20W |
Operating Temperature | 14℉ - 131℉ ( 10°C - 55°C) |
Dimensions | 14.80” x 8.6” x 1.96” |
Weight | 4.62 LBS |

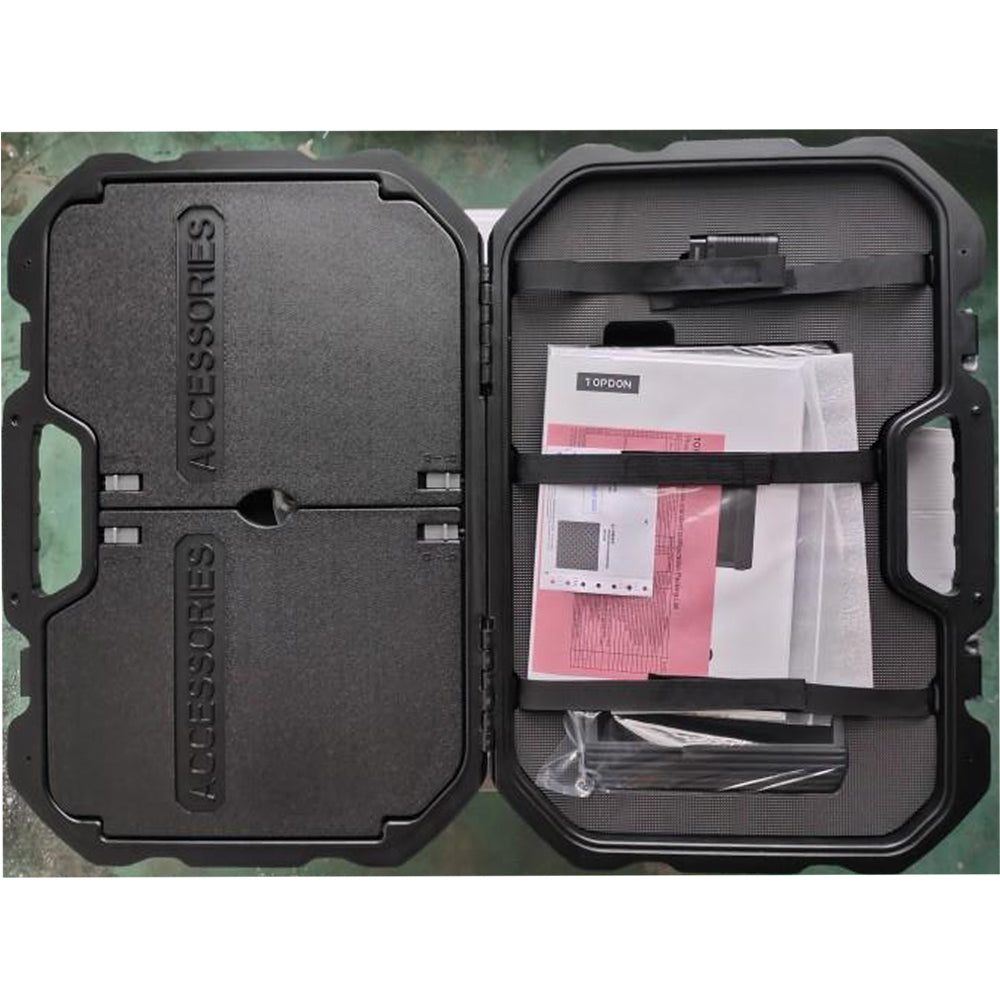

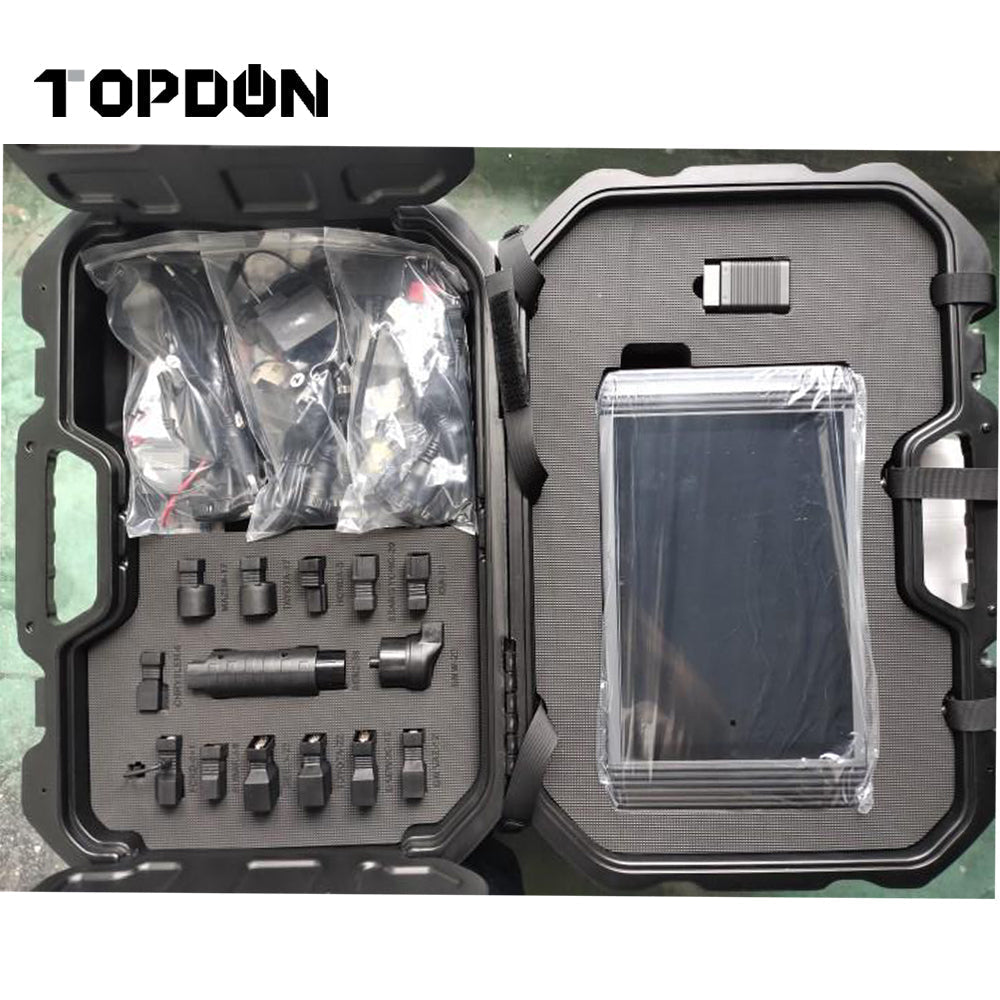

Packing List:
- 1 - Phoenix Pro™ Tablet
- 1 - VCI Connector
- 1 - OBDII Extension Cable
- 1 - Power Adapter
- 1 - USB Cable
- 1 - OBDI Adapter
- 1 - Cigarette Lighter Charger
- 1 - Battery Clamps Cable
- 1 - Password Envelope
- 1 - Adapter Cable Kit*
*Adapters of: AUDI-4 BENZ-14 BENZ-38 BMW-20 CHRYSLER-6 DAEWOO-12 DAIHATSU-4 FIAT-3 FORD-6+1 GEELY-22 GM/VAZ-12 HONDA-3 KIA-20 MAZDA-17 MITSUBISHI/HYUNDAI-12+16 NISSAN-14+16 SSANGYONG-14 SSANGYONG-20 SUBARU-9 SUZUKI-3 TOYOTA-17 TOYOTA-22 UNIVERSAL-3
Warranty & Updates:
- Two Years Warranty
- Two Years of Updates
Warranty Continues with Customer's Subscription
