Description
Description

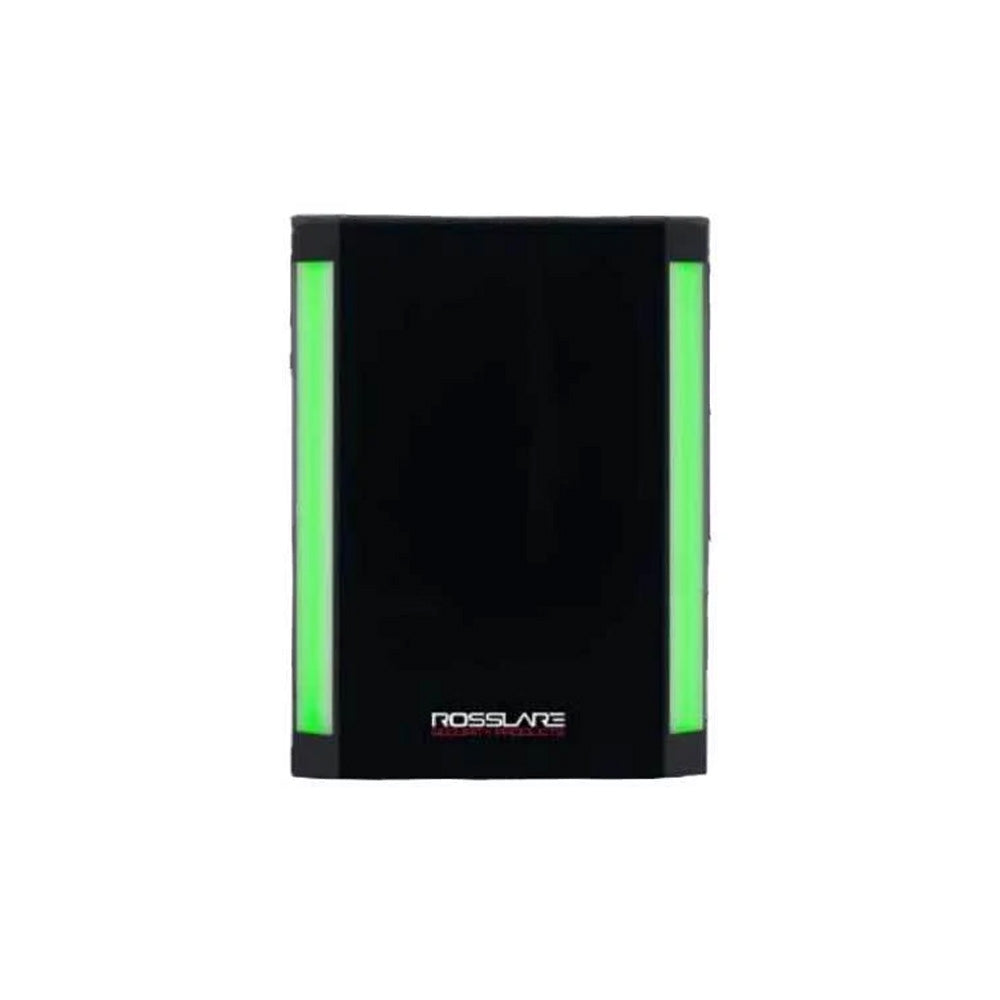

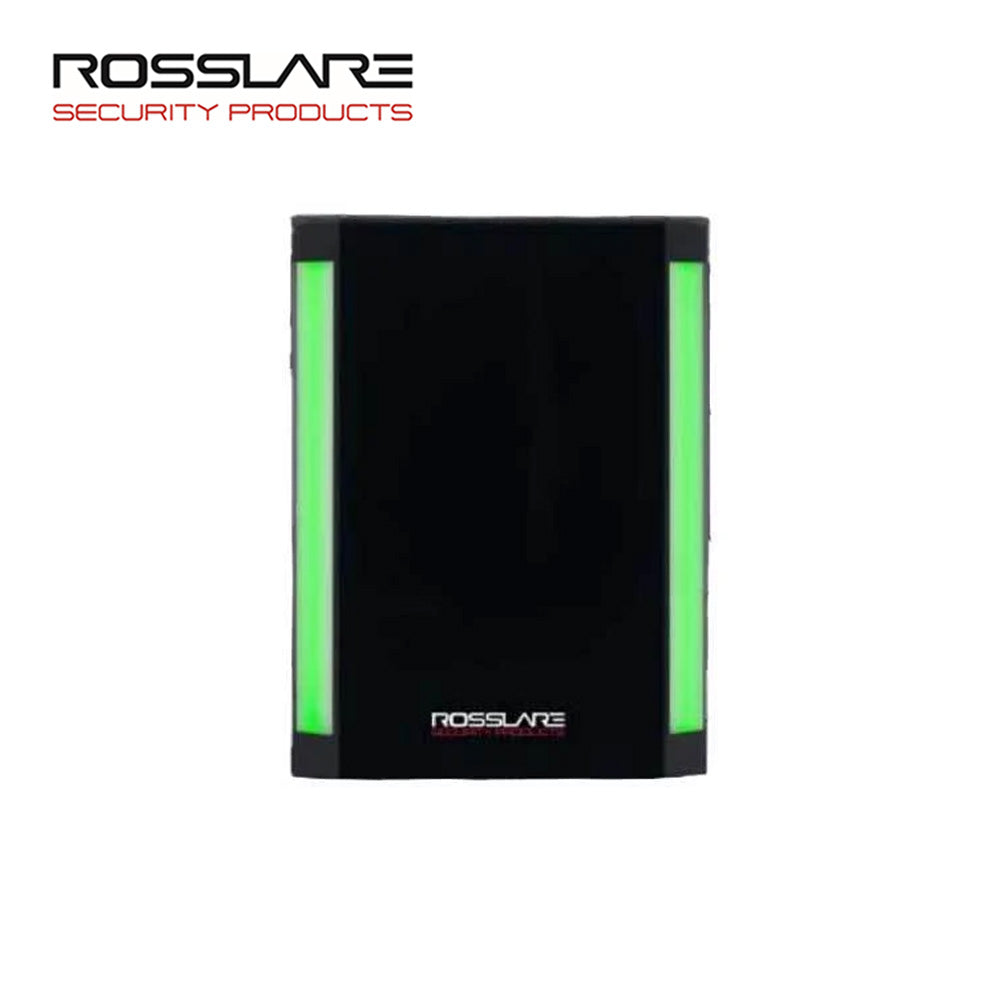

Rosslare - AY-R6255 - Illuminated CSN SELECT Smart Card Reader - 13.56 MHz - IP65
The CSN SELECT AY-R6255 is a unique illumination reader of multi-credential technology contactless smart card (13.56 MHz) readers for use in access control system solutions. The readers have the flexibility to read the Card Serial Number (CSN) from many smart card RFID standards, perfect for transitioning from one technology to another. The reader also supports access by an NFC compatible Android smartphone app*. UV-resistant and with an IP65 rated sleek and modern design, the reader can be used comfortably in any installation environment whether indoors or outdoors. The AY-R6255 reader is compatible with a variety of Rosslare controllers, as well as with many third-party access control systems supporting Wiegand.
Features:
- NFC Android Smartphone is supported with the Android App for HCE (Host Card Emulation).
- Multiple mounting options including micro-mullion, mullion, US gang box.
- Supports unique illumination for notifications.
- Selectable Wiegand output formats using the CS-CCT Card Configuration Tool.
- Sleek and modern design.
- Customizable control and status lines available with CS-CCT Card Configuration Tool.
- Optical wall tamper detection.
- IP65 rated and made of tough polycarbonate UV-resistant plastic.
- Comes with mounting template and installation kit for easy installation.
Specifications:
| Operating Voltage Range | 8 ~ 16 VDC, from a regulated power supply |
| Standby Current @12V | 160 mA |
| Maximum Current @12V | 180 mA |
| Read Range | 2 in. |
| Tamper Output | Open collector, active low, max. sink current 16 mA |
| Control Inputs | Dry Contact, N.O. |
| Reader Data Output Formats | Selectable Wiegand output formats using the CS-CCT Card Configuration Too |
| ISO14443A Smart Card | MIFARE Ultralight Nano / Ultralight EV1/ Ultralight C MIFARE Classic / Classic EV1 MIFARE Plus S / SE / x / EV1 MIFARE DESFire EV1 / EV2 NFC N-TAG / Card Emulation |
| ISO14443B Smart Card | China National ID |
| ISO15693 Smart Card | HID iClass, PicoPassâ„¢, iCode, LEGIC |
| ISO18092 Smart Card | SONY FeliCa (Hong Kong Octopus) |
| Device Certifications | IP65 |
| Dimensions | 4.7 x 3.5 x 0.8 in. |
| Weight | 208 g (7.3 oz) |
