Description

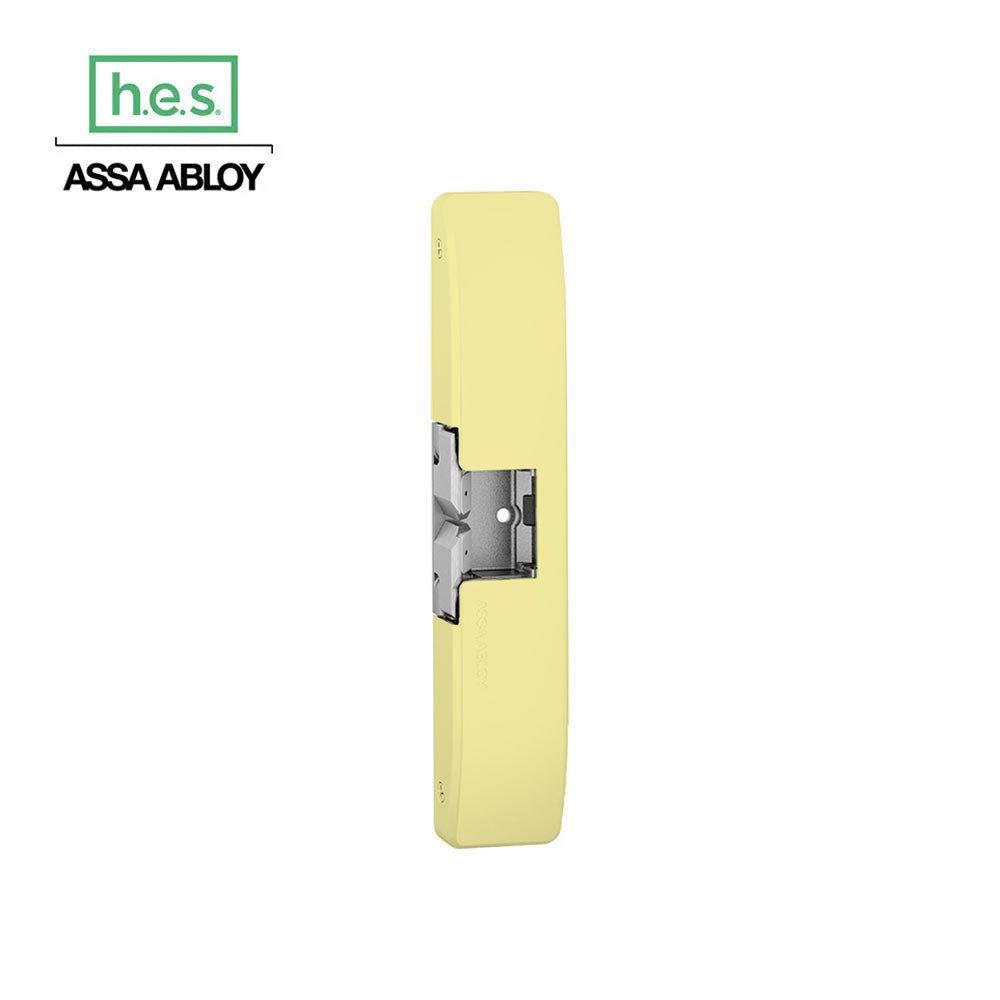

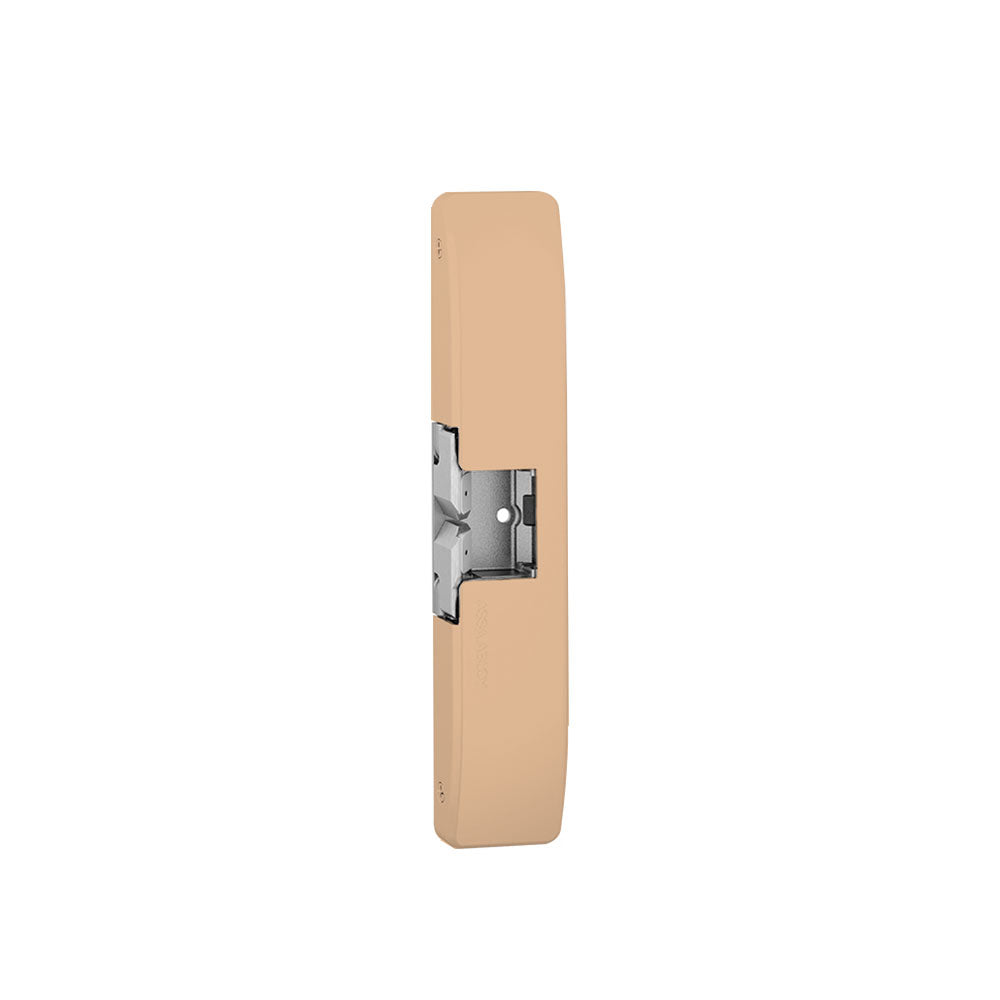

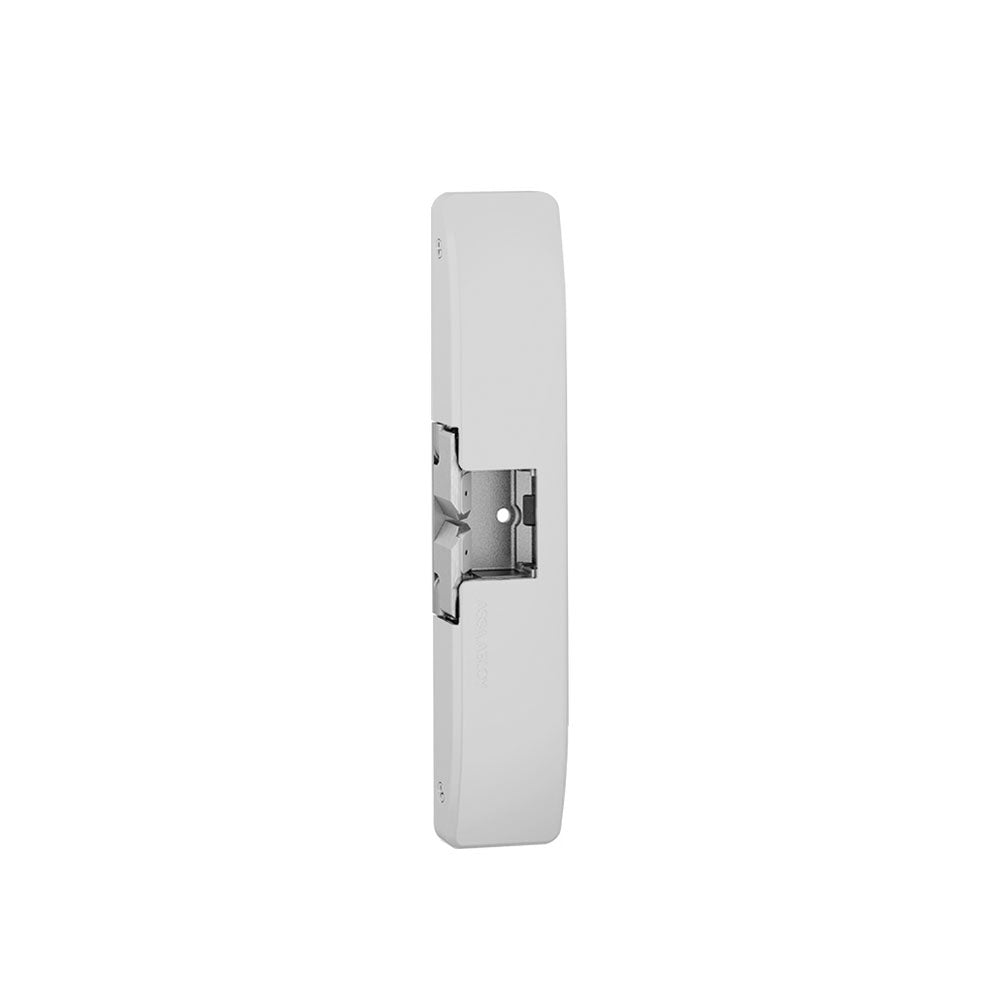

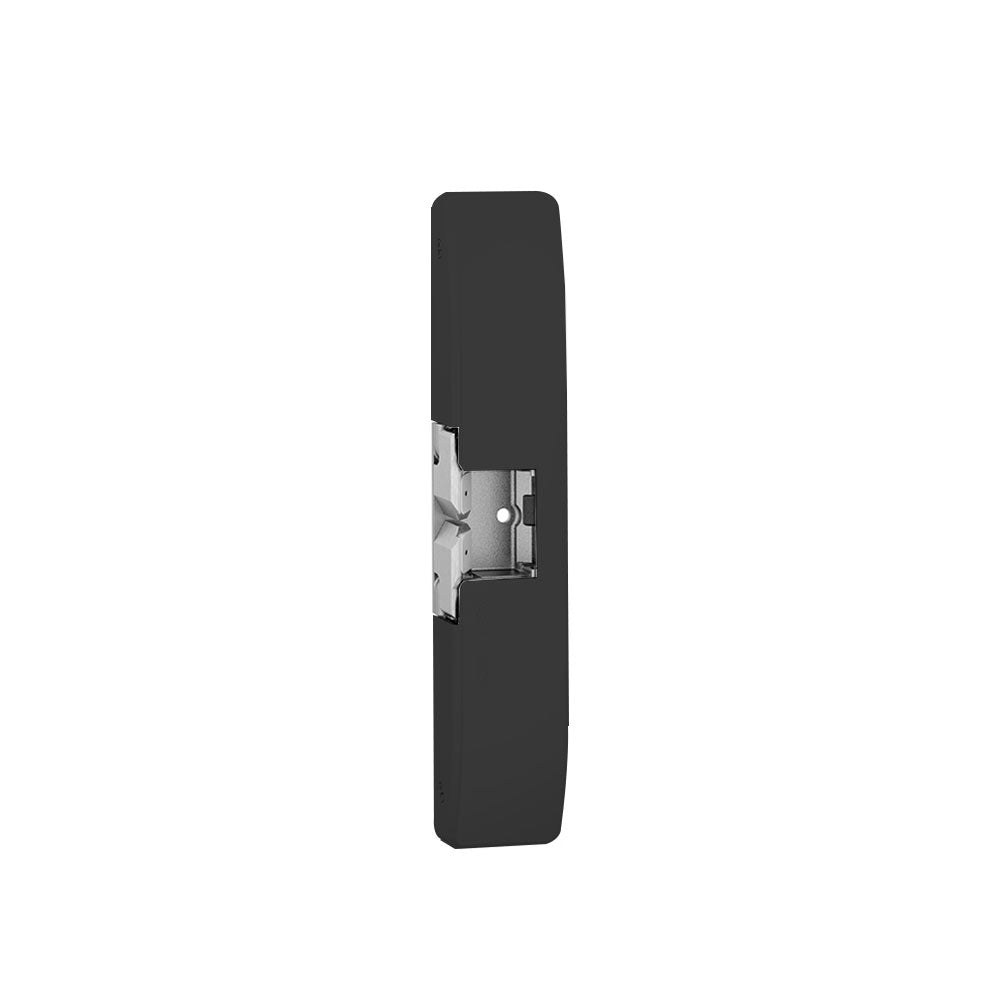

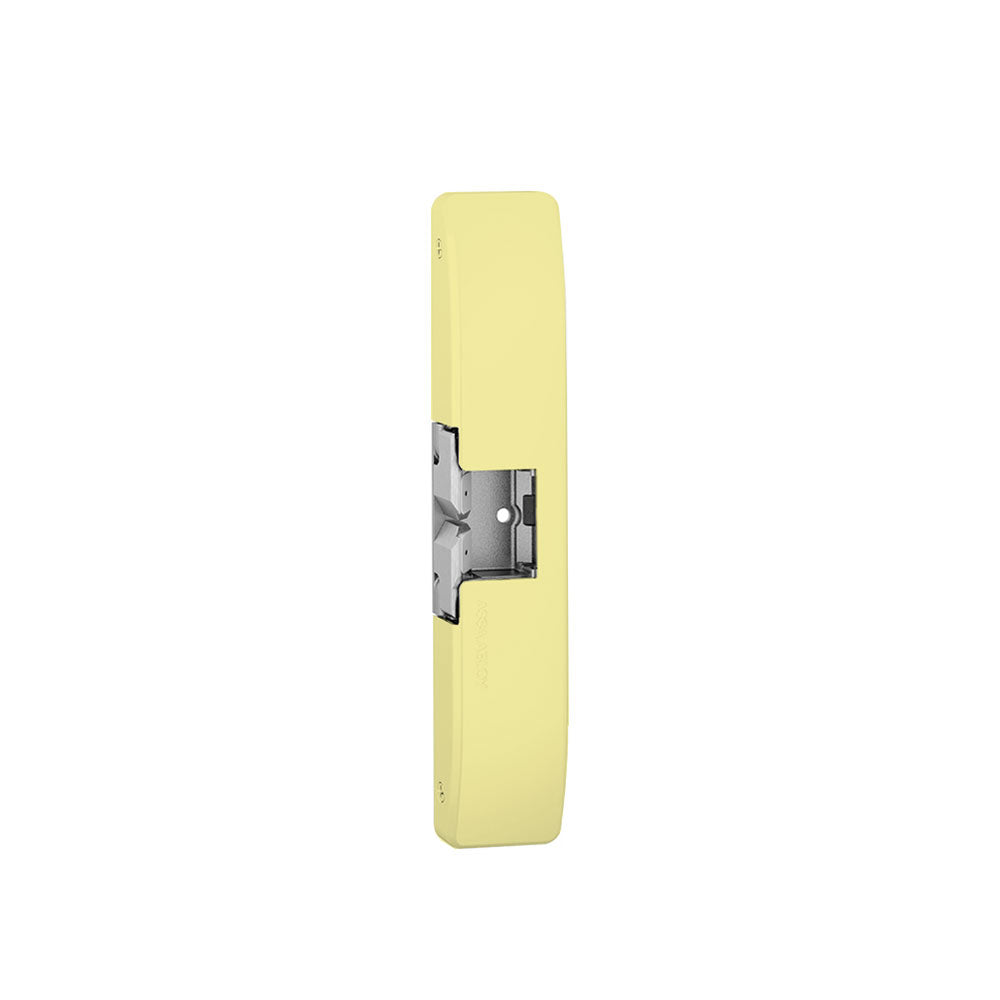

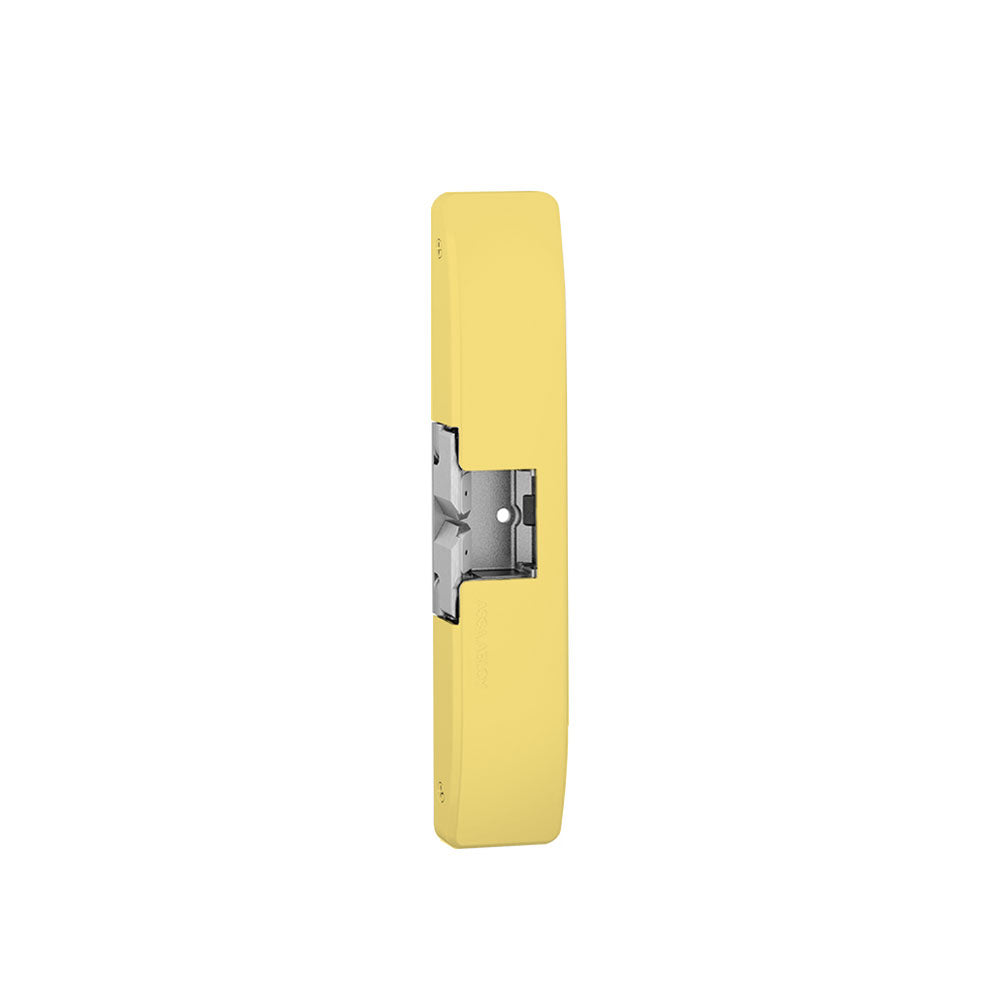

HES - 9500 Series - Electric Strike Body - Grade 1 - 12/24VDC

The 9500 Series is a 3 hour fire-rated, surface mounted electric strike designed to accommodate rim exit devices with a 3/4 Inch Pullman latch. All components are completely encased within its 3/4 Inch thick stainless steel housing, so no cutting on the frame is required for installation. Simply place the electric strike on the surface of the frame, align it with the exit latchbolt and install. Adjustments have never been easier as the base is now separate from the cover. The 9500 exceeds Grade 1 standards for strength and performance. It is field selectable for fail secure and fail safe operation, and for 12 or 24 VDC. This unique electric strike complies with NFPA 80-07 guidelines for retrofit into fire-rated frames.

Features:

Installs in metal or wood frames.
Separate base and decorative cover for easy adjustments.
9500 Stainless steel construction.
Tamper resistant.
Static strength 1,500 lbs.
Dynamic strength 70 ft-lbs.
Endurance 1,000,000 cycles.
Field selectable fail secure/fail safe.
Horizontal adjustability.
Non-handed.
Internally mounted solenoid.
Accommodates up to 3/4 Inch Pullman latch.
Dual voltage 12 or 24 VDC.

Product Specifications:

Manufacturer	HES
Grade	Grade 1
Installation	Commercial
Origin	USA
Unit of Measure	Each
Application	Rim Panic Device with Pullman Latch
Base Material	Stainless Steel
BAA Qualified	Yes
Limited Warranty	5 Years
Fire Rated	3 Hours (A)

Technical Specifications:

Function	Fail Safe/Fail Secure
Operating Voltage	12/24 VDC
Amp Draw	.45 @ 12V .25 @ 24V
Keeper Size	PK Keeper
Configuration	Centered
For Use With	Rim Exit Devices
Faceplate Size	9 Inch x 1-3/4 Inch
Fire Rated	Yes
Holding Force	1500 lbs.
Switch Type	Latchbolt Strike Monitor
Frame Application	Metal or Wood
Product Type	Electric Strikes
