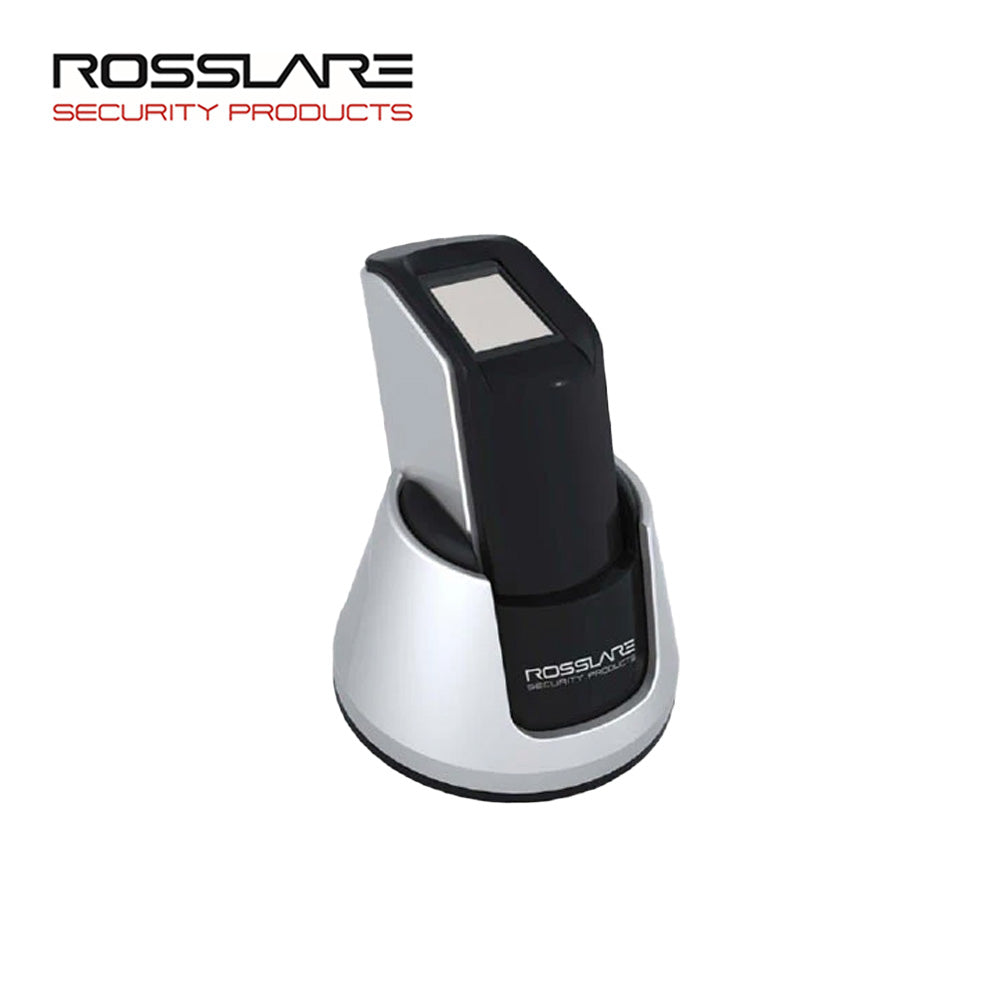

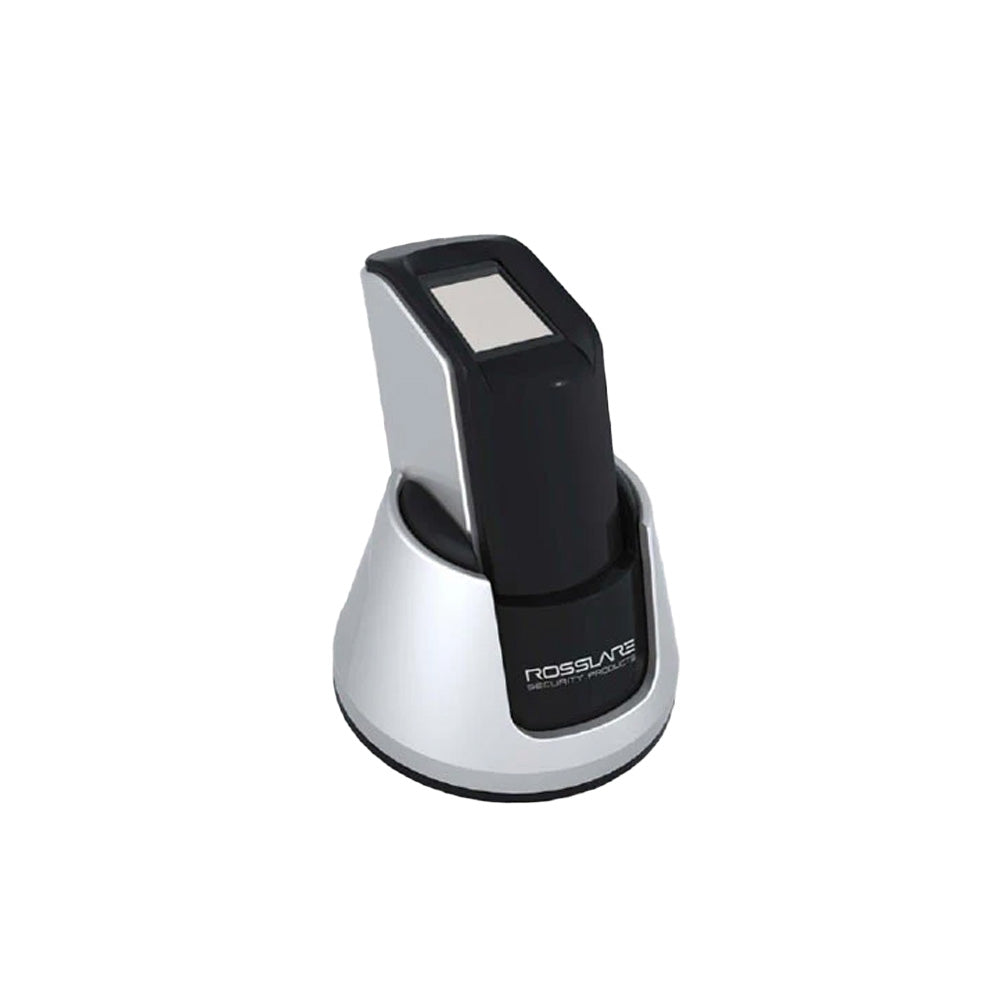

Rosslare - DR-B9000 - USB Fingerprint Enrollment Desktop Reader for Biometric Reader 9000 Series
The DR-B9000 is a USB scanner equipped with fingerprint identification module to acquire highresolution images with the most rugged and advanced optical sensor. The comfortable, ergonomic design ensures superior performance, accuracy, and durability based on unique Fingerprint Biometric Technology. This device can be used with Rosslare's AY-B9xxx series of biometric terminals and controllers, and can enroll fingerprints directly into the software.
Features:
- Compatible with Rosslare AxTraxNG management system.
- Scratch-proof glass scanning surface.
- Dual technology IR and camera scanning.
- Crystal clear finger scan image.
- Well designed for convenient use.
- USB 2.0 compliant and USB powered.
Specifications:
| Power | USB Bus Powered |
| Current Consumption (Normal) | 80 mA |
| Current Consumption (Standby) | < 5mA |
| Current Consumption (Capture Operation) | Max 120 mA |
| Resolution | 500 DPI - 8 bits/pixel (256 Gray Level) |
| ESD Tolerance | < +/- 8 KV |
| Platen Area | 14.8 (x) x 17.9mm (y) |
| Effective Sensing Area | 12.6 (x) x 14.8mm (y) |
| Effective Pixel Array | 248 x292 |
| Image Aspect Ratio | 0.85 (x / y) |
| Sensor Size | 14.8 x 17.9 mm |
| Light Source | White LED |
| Dimensions | 68 x 68 x 81 (w/stand) 30 x 48.5 x 70 (w/o stand) |
| Weight | 210 g (0.46 lbs) |
| Warranty | 2-Year Limited Manufacture Warranty |
