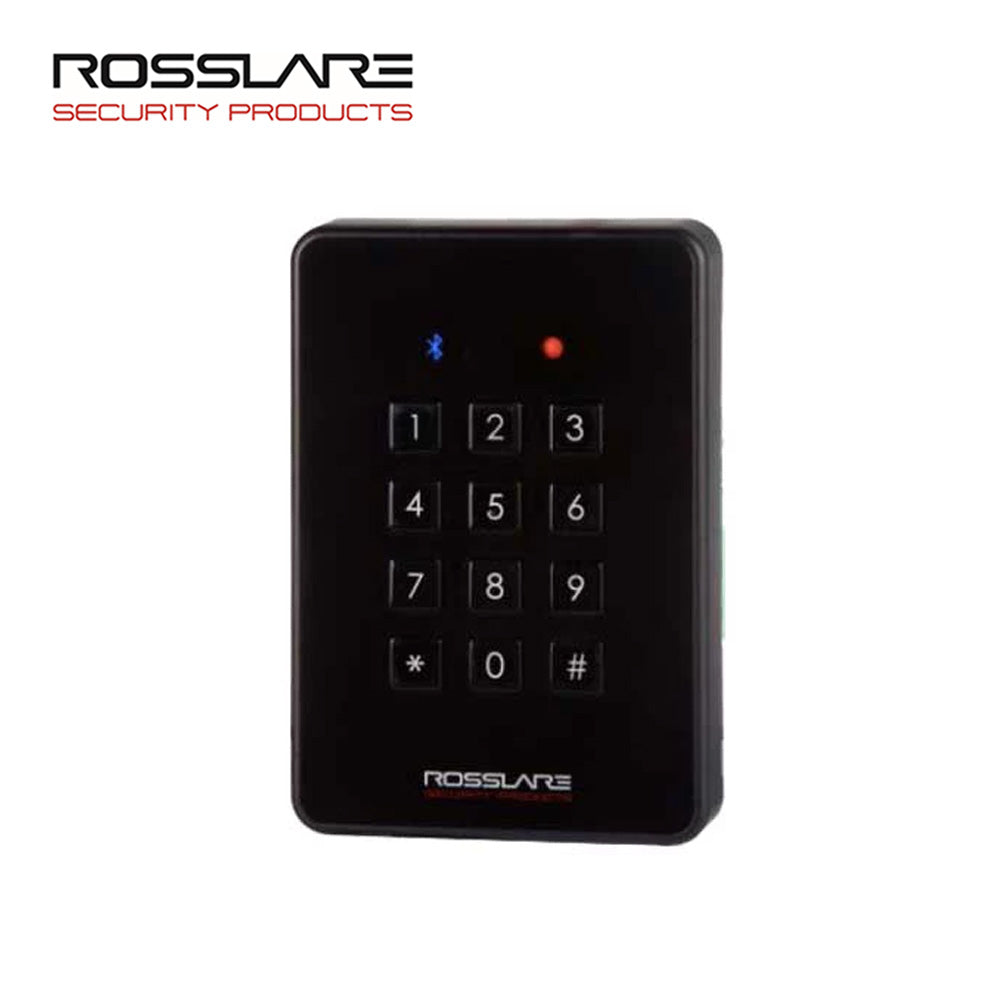

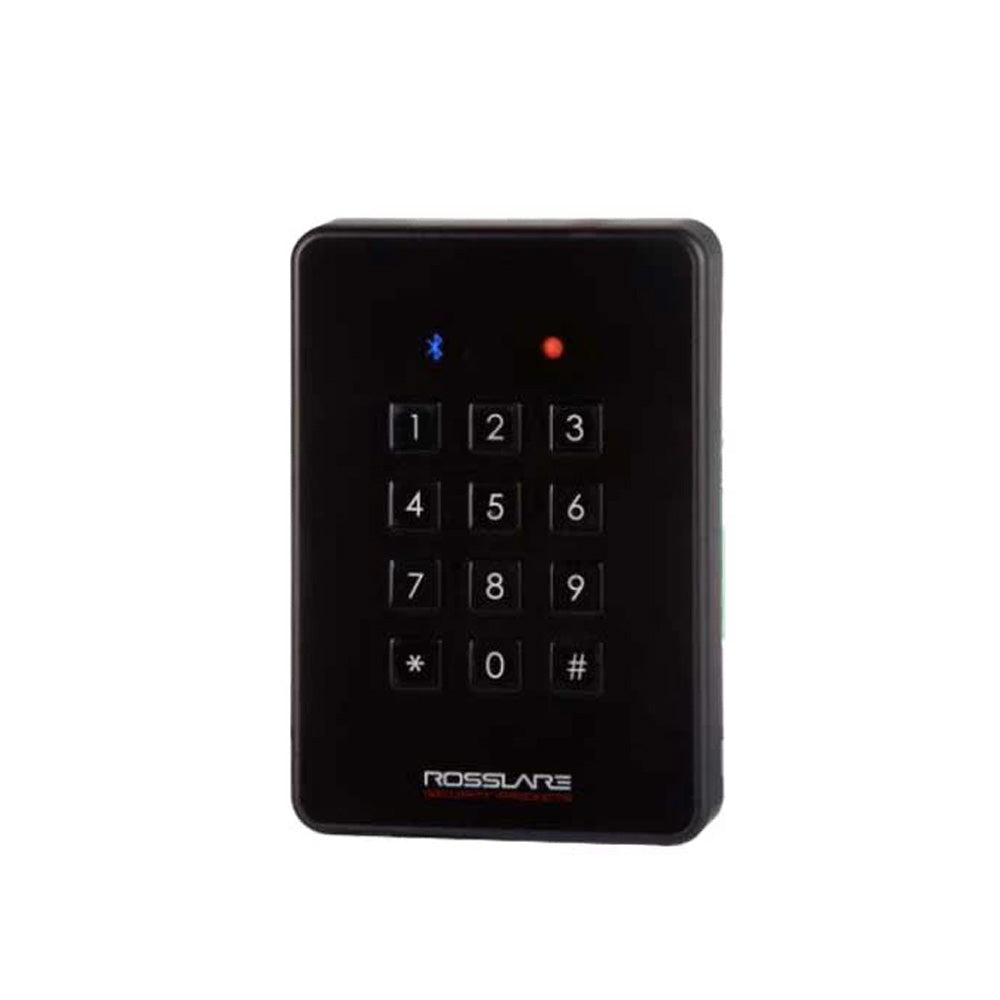

Rosslare - AY-H6355BT - CSN SMART Smart Card Reader with Keypad NFC and BLE-ID - 13.56 MHz
The innovative AY-H6355BT reader from Rosslare's CSN SMART series features support for four types of credentials - Rosslare BLE-ID, Rosslare NFC-IDâ„¢, backlit PIN code, and 13.56 MHz RFID contactless UID. Featuring IP-65 (all weather potted) construction, it is ideal for general purpose access control installations that want to take advantage of the latest convenience and flexibility features of mobility. The AYC H6355BT readers are compatible with a variety of Rosslare controllers, as well as with many third-party access control systems supporting Wiegand or OSDP interfaces.
Features:
- NFC-ID is supported with Rosslare's APP-A415 NFC-ID Credential App for Android in Host Card Emulation(HCE) mode.
- BLE-ID is supported with Rosslare BLE-ID Credential apps for iOS and Android OS.
- Eight keypad transmission formats are available.
- Mounting options for US gang-box.
- Sleek and modern design, tact keys, superior mechanics, 10-wire 5-m cable.
- Addressable OSDP connectivity, up to 32 addresses using DIP switches.
- Compatible with CS-HCT Hardware Configuration Tool for Windows application.
- Two tri-colored LED indicators, 1 audible buzzer.
- Optical wall tamper detection.
- Blue backlit keypad with power saving options (On, Off, Dimming).
- IP68 rated and made of tough polycarbonate UV-resistant plastic.
- Comes with mounting template and installation kit for easy installation.
Specifications:
| Operating Voltage Range | 8 to 16 VDC from a regulated power supply |
| Current at 12 VDC | Standby: 120 mA, Maximum: 220 mA |
| Read Range | Contactless 13.56 MHz and NFC - Up to 7 cm (2.8 in.) Bluetooth BLE 4.1 Connection - Up to 10 m ( 32 ft) open air |
| Tamper Output | Open collector, active low, max. sink current 16 mA |
| Keypad | 3x4 matrix backlit keypad - 8 modes of transfer to host panel |
| Reader Data Output Formats | CSN Wiegand 26-Bit and keypad with eight common output formats RS485 - OSDP |
| ISO14443A Smart Card | MIFARE Ultralight Nano/Ultralight EV1/ Ultralight C MIFARE Classic/ Classic EV1 MIFARE Plus S / SE / x / EV1 MIFARE DESFire EV1 / EV2 NFC N-TAG / Card Emulation |
| Control Inputs | Dry Contact, N.O. |
| ISO14443B Smart Card | China National ID |
| ISO15693 Smart Card | HID iClass, PicoPass, iCode, LEGIC |
| ISO18092 Smart Card | SONY FeliCa (Hong Kong Octopus) |
| Operating Environment | Weather-resistant, UV-resistant, meets IP65, epoxy-potted, suitable for indoor and outdoor use |
| Dimensions | 110.7 × 75 × 18.2 mm (4.4 x 3 x 0.7 in.) |
| Operating Temperature Range | 35°C to 66°C (-31°F to 150°F) |
| Device Certifications | IP65 |
| Weight | 190 g (6.7 oz.) |
