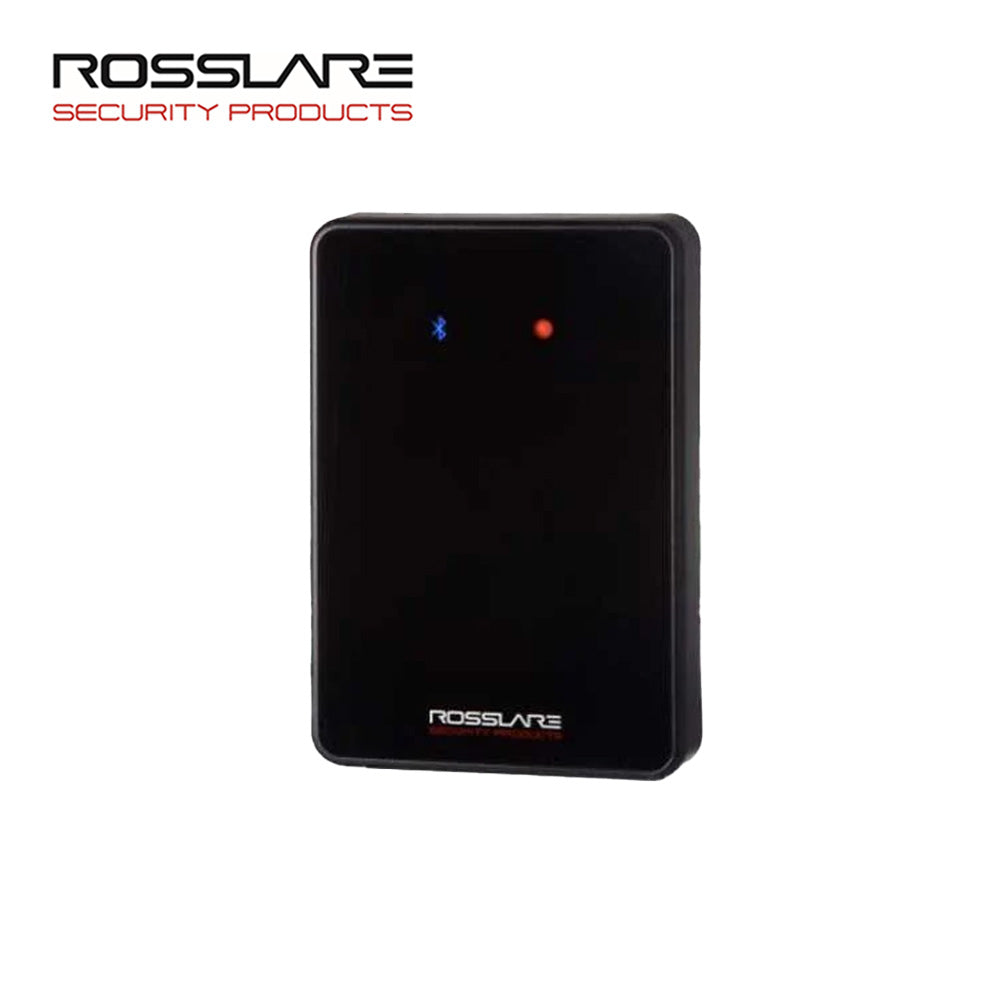

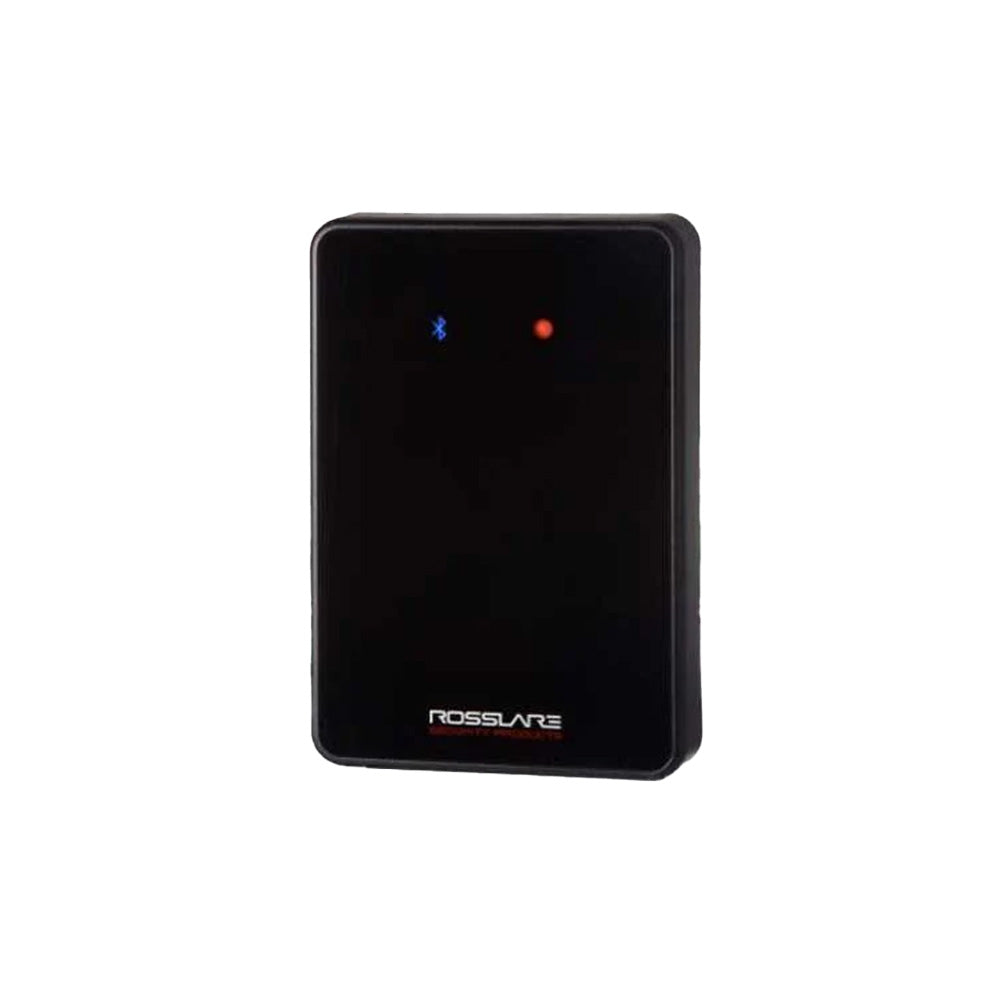

Rosslare - AY-H6255BT - CSN SMART - Smart Card Reader with NFC and BLE-ID
The innovative AY-H6255BT reader from Rosslare's CSN SMART series features support for three types of credentials – Rosslare BLE-ID™, Rosslare NFC-ID™, and 13.56 MHz RFID contactless UID. Featuring IP-65 (all-weather potted) construction, it is ideal for general purpose access control installations that want to take advantage of the latest convenience and flexibility features of mobility. The AYC-H6255BT readers are compatible with a variety of Rosslare controllers, as well as with many third-party access control systems supporting Wiegand or OSDP interfaces.
Features:
- NFC-ID is supported with Rosslare's APP-A415 NFC-ID Credential App for Android in Host Card Emulation(HCE) mode.
- BLE-ID is supported with Rosslare BLE-ID credential apps for iOS and Android OS.
- Eight keypad transmission formats are available.
- Mounting options for US gang-box.
- Reads the CSN from multiple smart cards.
- Sleek and modern design, superior mechanics, 10-wire 5-m cable.
- Addressable OSDP connectivity, up to 32 addresses using DIP switches.
- Compatible with CS-HCT Hardware Configuration Tool for Windows application.
- Two tri-colored LED indicators / 1 audible buzzer.
- Optical wall tamper detection.
- Blue backlit keypad with power saving options (On, Off, Dimming).
- IP65 rated and made of tough polycarbonate UV-resistant plastic.
- Comes with mounting template and installation kit for easy installation.
Specifications:
| Operating Voltage Range | 8 to 16 VDC from a regulated power supply |
| Current at 12 VDC | Standby 110 mA, max: 185 mA |
| Read Range | Contactless 13.56 MHz and NFC - Up to 7 cm (2.75 in.) Bluetooth BLE 4.1 Connection - Up to 12 m ( 39 ft) open air |
| Tamper Output | Open collector, active low, max. sink current 16 mA |
| Control Inputs | Dry Contact, N.O. |
| Reader Data Output Formats | CSN Wiegand 26-Bit and keypad with eight output formats and RS485 - OSDP |
| ISO14443A Smart Card | - MIFARE Ultralight Nano / Ultralight EV1/ Ultralight C - MIFARE Classic / Classic EV1 - MIFARE Plus S / SE / x / EV1 - MIFARE DESFire EV1 / EV2 - NFC N-TAG / Card Emulation |
| ISO14443B Smart Card | China National ID |
| ISO15693 Smart Card | HID iClass, PicoPassâ„¢, iCode, LEGIC |
| ISO18092 Smart Card | SONY FeliCa (Hong Kong Octopus) |
| Operating Temperature Range | -35°C to 66°C (-31°F to 150°F) |
| Dimensions | 110.7 x 75.0 x 17.0 mm (4.4 x 3.0 x 0.7 in.) |
| Device Certifications | IP65 |
| Weight | 177 g (6.2 oz) |
