Rosslare - AY-B9120BT - Fingerprint & Card Reader with 125 KHz ...
Description
Description

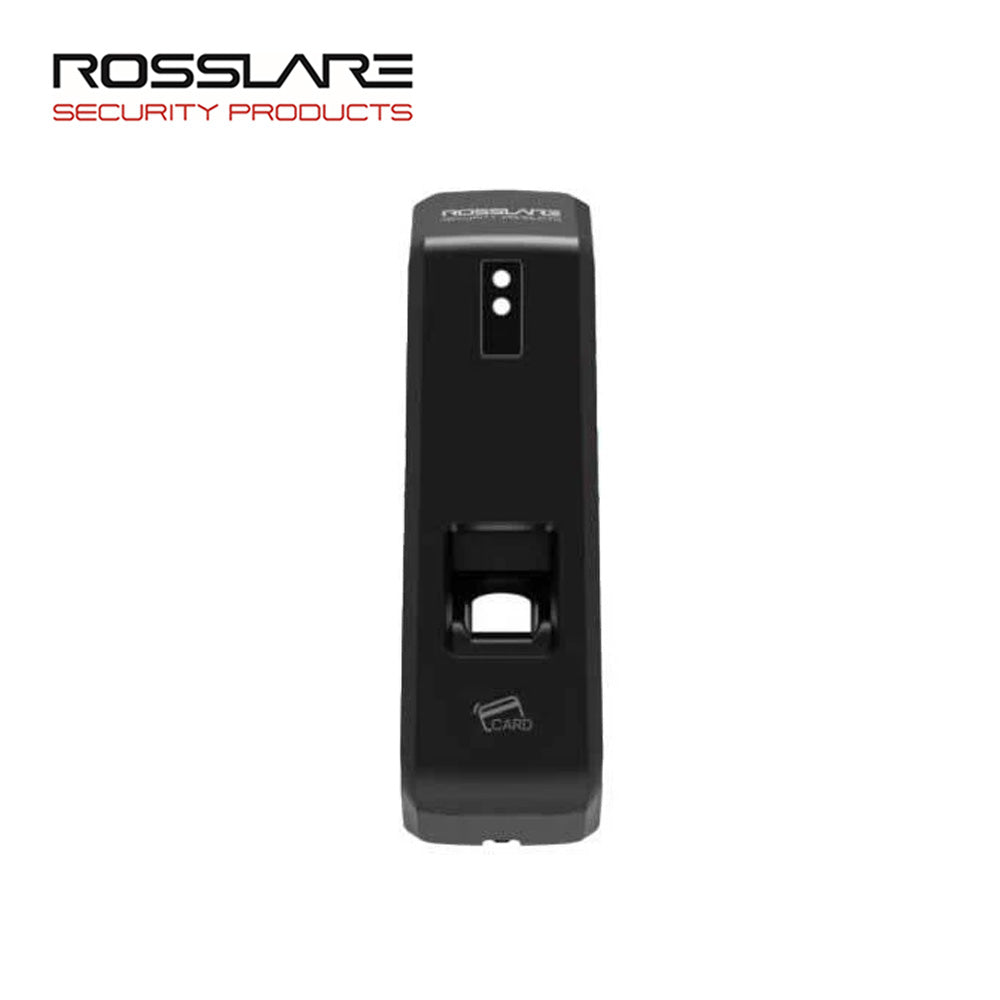

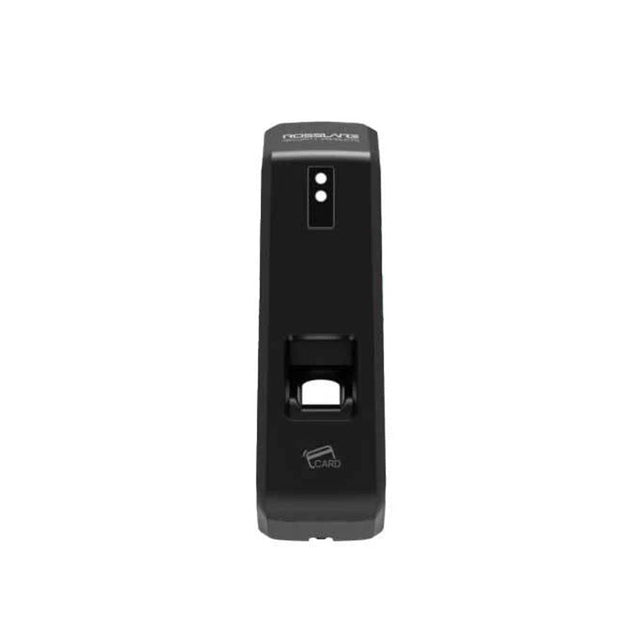

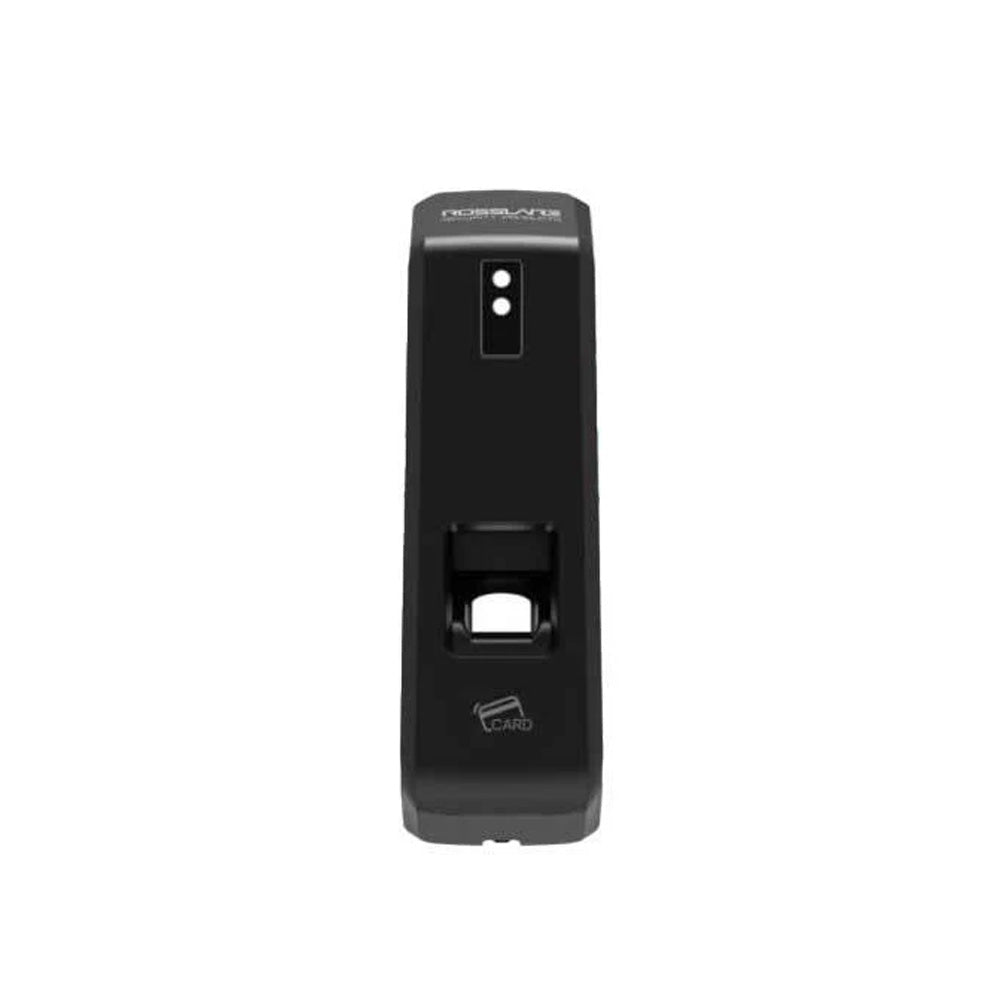

Rosslare - AY-B9120BT - Fingerprint & Card Reader with 125 KHz EM - 12VDC - IP65
This professional-grade fingerprint reader has a high-speed optical sensor with a capacity of 20,000 templates featuring powerful algorithms with liveness check and encrypted data storage. AY-B9120BT has a built-in 125 kHz EM RFID card reader and features an integrated Rosslare BLE-IDâ„¢ reader. It has RS-485, TCP/IP, and Wiegand 26 or 34-Bit connectivity. The terminal can be set up easily using the AxTraxNG Client software. Alternatively, it is compatible with Rosslare's standalone RosslareBio 9000 management software that is perfect for interfacing with existing third-party systems.
Features:
- Advanced optical sensor with fingerprint liveness check with algorithms to prevent spoofing.
- Capacity of 20,000 templates 1:N and support for 1:1 Matching, and encrypted memory.
- Built-in output relay for controlling a local device.
- High performance CPU and memory for high speed validation (searches 4000 1:N in less than 1 second).
- Built-in TCP/IP, RS-485, and Wiegand output connectivity.
- Non-volatile .event log of up to 100,000 entries.
- IP65 rated for indoor and outdoor use.
- Support for Rosslare BLE-IDTM smartphone credentials (both iOS and Android).
- Built-in tamper and buzzer.
- Modern design that blends into almost any architectural challenge.
Specifications:
| Input Voltage | Regulated DC12V~24V ± 5% Adaptor |
| Input Current | DC12V Input : Max 300 mA ± 10% |
| Technology | Optical |
| Image Resolution | 500 DPI |
| Scan Area | 15 x 18 mm |
| Liveness Detection | Yes – Detects and rejects fake fingerprints (silicon, rubber, paper, etc.) |
| Capacity | 20,000 templates (up to 10,000 users) Time: 1:N < 1 sec (4,000 templates) |
| EM Reader | Built-in RFID card reader for EM (125 kHz) ASK |
| Bluetooth Credentials | Supports Bluetooth 4.0 Rosslare BLE-IDâ„¢ credential for iOS and Android |
| Bluetooth Admin | Supports Bluetooth 4.0 BLE-Adminâ„¢ configuration apps for iOS and Android |
| Ingress Protection | IP65 |
| CPU | ATMEL 400 MHz |
| Memory | 64MB DRAM, 256MB flash |
| Communication | Wiegand (26-/34-Bit), RS-485, TCP/IP (10/100 Mbps), Bluetooth 4.0 (BLE) |
| LED-Indicator / Buzzer | 2 x RGB LED and one internal buzzer for audible indication |
| Relay Output | 1 x Form C Relay (N.O. / N.C.) rated 1A @ 30V for Lock Strike |
| Inputs | 3 x inputs ( 2 door monitor, 1 exit ) |
| Dimensions | 2.28 x 7.4 x 1.96 in |
| Interoperability | ISO 19794-2, ANSI378, Template Support |
| Certifications | CE, FCC |
| Weight | 700 g (1.54 lbs) |
