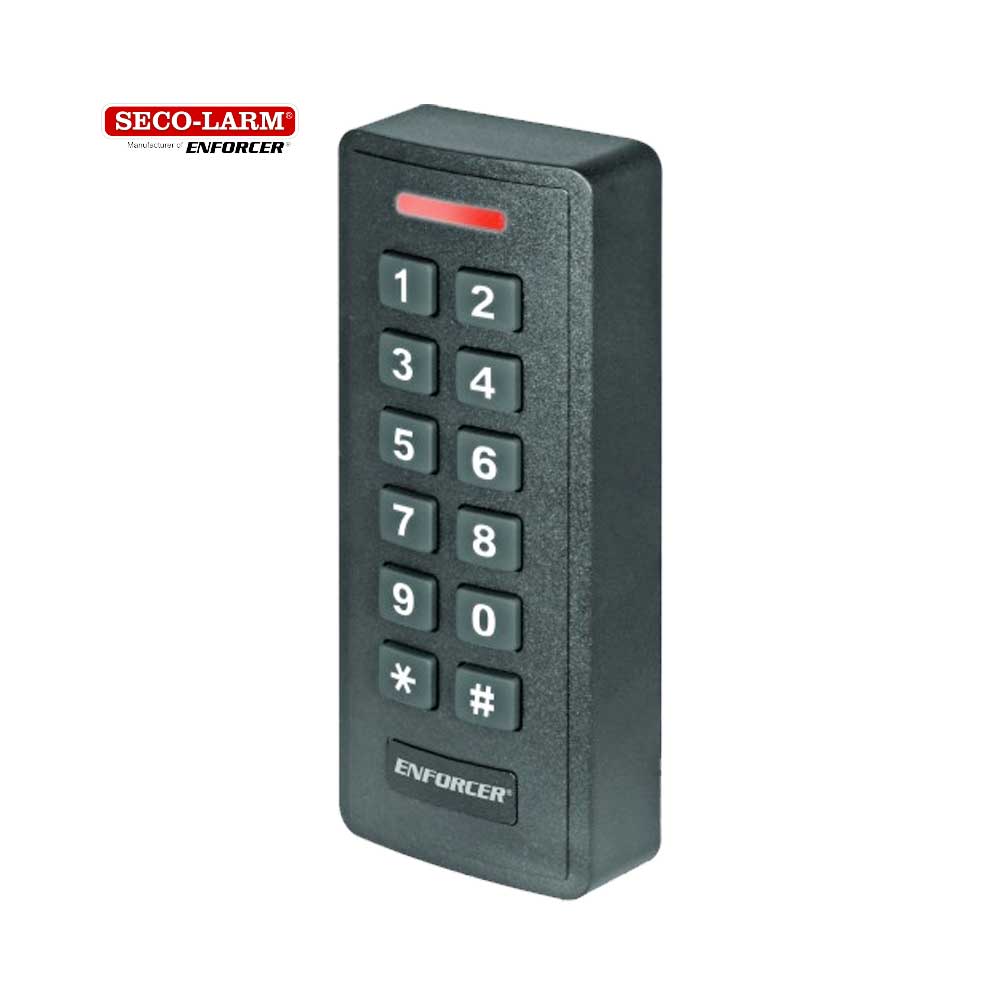

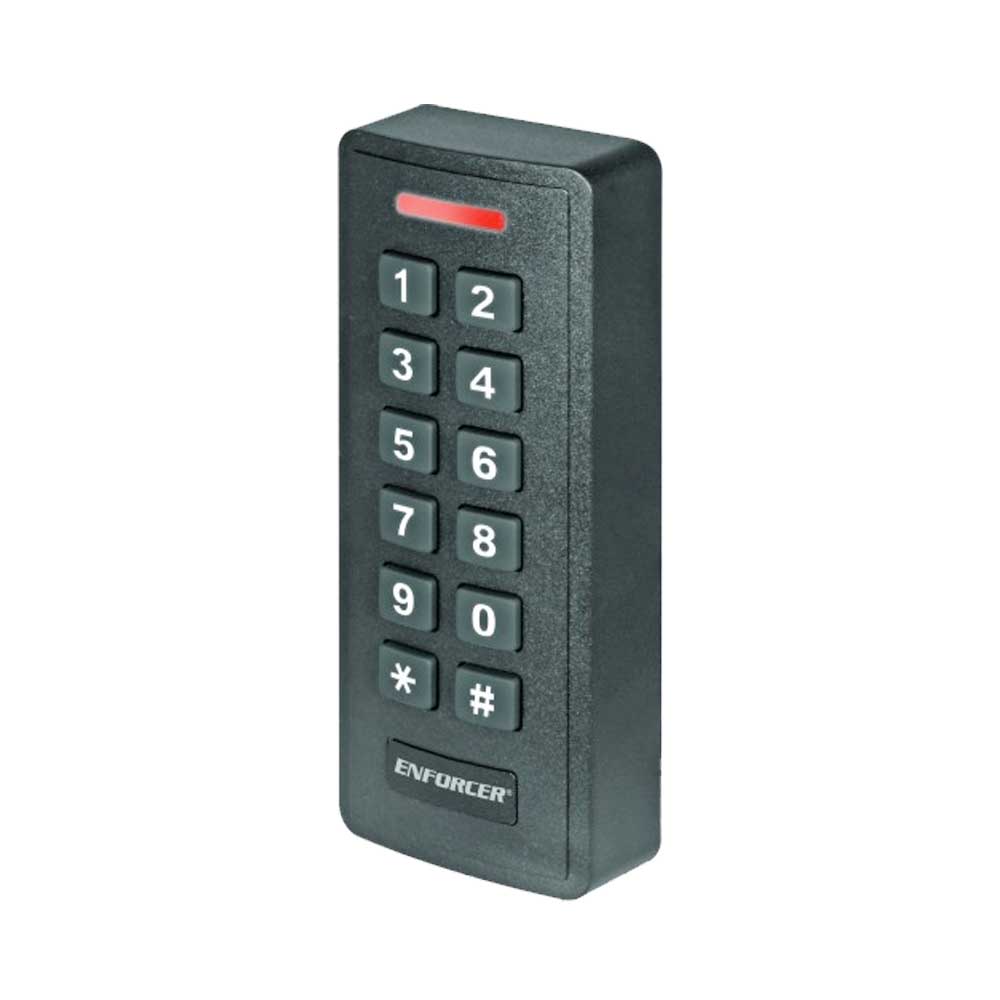

SECO-LARM SK-2612-SPQ Outdoor Stand-Alone / Wiegand Keypad with Proximity Reader

Name: SECO-LARM SK-2612-SPQ Outdoor Stand-Alone / Wiegand Keypad with Proximity Reader
Brand: SECO-LARM
SKU: SECO-SK-2612-SPQ
Price: 109.25 USD
Availability: OutOfStock

$109²⁵ ~~$131¹⁰~~

Shipping calculated at checkout.

Secure transaction

Found a better price? Call for Price Match!
Shop with confidence knowing you’re getting the best deal.

Delivery and Shipping

All orders are shipped between 24 hours or less Monday through Friday from 9:00 am to 6:00pm. Orders placed after 5 p.m. EST will be shipped next business day.
Learn more

Return Policy

At Locksmith Keyless, we prioritize your satisfaction and offer a simple return process. Returns are accepted within 30 days of purchase for unused items in original packaging. Certain items, including OEM keys, Lishi tools, and customized orders, are non-returnable. A restocking fee of up to 30% may apply. For a full list of non-returnable items and more details, please refer to our complete return policy.

For damaged, missing, or incorrect items, please contact us within 48 hours of delivery. All returns require an RMA number. Shipping costs for returns are the responsibility of the customer.

View Full Return Policy

Description

SECO-LARM SK-2612-SPQ Outdoor Stand-Alone / Wiegand Keypad with Proximity Reader

Feature:

1,000 Users (up to 998 users and 2 duress users)
User code length 4~6 digits
9~18 VDC Operation, low current draw – 105mA max.
Form C relay output – 2A@12VDC
Adjustable output time – 0.5~99s, or toggle
Built-in tamper alarm and external alarm (duress) output
Backlit keypad and multicolor status LED
EM 125kHz, Proximity cards (PR-K1S1-A) and Keyfobs (PR-K1K1-AQ) sold separately
Easy transfer of users to additional devices using Wiegand output
All features programmed directly on the keypad: No need for an external programmer
Egress input lets users exit the premises without a code/card
Can serve as either Wiegand reader or controller, both output and input are selectable 26~37 bits
2-Door interlock function
Extreme cold tolerance to -40° F (-40° C)
Epoxy-filled black ABS plastic housing –Weatherproof IP66

Specification:

IP Rating	Weatherproof IP66
Operating Voltage	9~18 VDC
Current Draw - Standby	40mA@12VDC
Current Draw - Active	105mA@12VDC (max.)
Output - Form C	NO/NC/COM, 2A@12VDC
Output - Alarm	Transistor ground, 2.5A@12VDC
Output - Wiegand	26~37 bits, PIN output bits – 4, 8, or 10
Input - Egress	N.O. Ground
Input - Door Sensor	N.C. Ground
Input - Wiegand	26~37 bits, PIN input bits – 4, 8, or 10
Card type	EM 125kHz
Enclosure / IP Rating	Epoxy-filled black ABS plastic, IP66
Operating temperature	-40°~140° F (-40°~60° C)
Operating humidity	10~90% non-condensing
Dimensions	1-15/16"x4-3/4"x15/16" (49x120x24 mm)
Weight	5.8-oz (165g)
