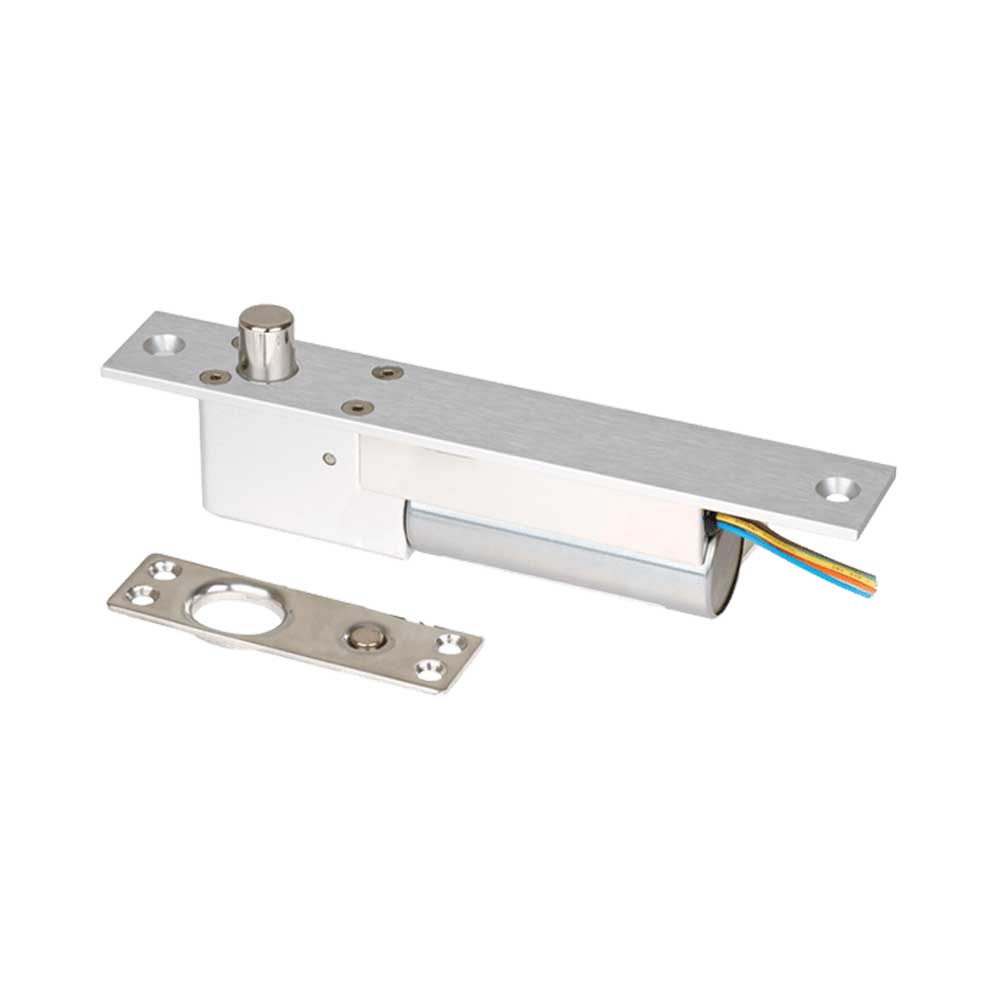

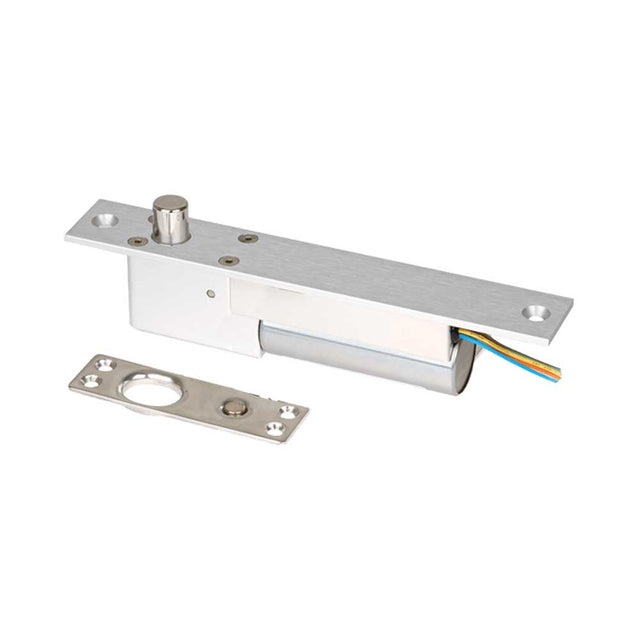

SECO-LARM SD-997B-GBQ Electric Deadbolt - Fail-Safe

Name: SECO-LARM SD-997B-GBQ Electric Deadbolt - Fail-Safe
Brand: SECO-LARM
SKU: SECO-SD-997B-GBQ
Price: 113.30 USD
Availability: InStock

$113³⁰ ~~$135⁹⁶~~

Shipping calculated at checkout.

Secure transaction

Pickup available at MIAMI MAIN WAREHOUSE

Usually ready in 1 hour

Found a better price? Call for Price Match!
Shop with confidence knowing you’re getting the best deal.

Delivery and Shipping

All orders are shipped between 24 hours or less Monday through Friday from 9:00 am to 6:00pm. Orders placed after 5 p.m. EST will be shipped next business day.
Learn more

Return Policy

At Locksmith Keyless, we prioritize your satisfaction and offer a simple return process. Returns are accepted within 30 days of purchase for unused items in original packaging. Certain items, including OEM keys, Lishi tools, and customized orders, are non-returnable. A restocking fee of up to 30% may apply. For a full list of non-returnable items and more details, please refer to our complete return policy.

For damaged, missing, or incorrect items, please contact us within 48 hours of delivery. All returns require an RMA number. Shipping costs for returns are the responsibility of the customer.

View Full Return Policy

Description

SECO-LARM SD-997B-GBQ Electric Deadbolt – Fail-Safe

SECO-LARM Electric Deadbolts add concealed deadbolt security with the added convenience of electrical operation. They are suitable for most wood or hollow metal doors.* Not recommended for use with wooden door frames.

Features:

Adds concealed deadbolt security to most wood or hollow metal doors,* with the added convenience of electrical operation
Fail-safe operation (unlocks if power is lost)
Status sensor (Door open/close monitor): SPDT, 500mA@12VDC(NO/NC/COM)
Adjustable door lock delay timer (0, 2.5, 5, or 9 sec)
Control wire allows release without cutting unit’s power
Magnetic switch determines door position for positive locking
Solenoid attempts to lock several times and then shuts off if door not closed properly to prevent burning out
Use with an optional digital keypad for high security without a key
Easily connects to SECO-LARM’s Electronic Keypads
Suitable for office-type applications
Shallow design for use with most metal door jambs
No limiting installation orientation
Powered by a solenoid
Stainless steel for strength and long life. Operatiing lifetime: 1,000,000 operations
Plastic material Tefulon Polymonochlorotrifluoethylene
Power 12/24 VDC (auto sensing), 900mA@12VDC / 440mA@24VDC on activation, 340mA@12VDC / 180mA@24VDC standby
Over-current protection 1.5A
Stainless steel bolt, 5/8” diameter, 5/8” throw
Lock body (faceplate) dimensions – 77/8“x15/16” (200×32 mm)
Lock body (cavity) dimensions – 53/4“x11/8“x11/2” (145x28x38 mm)
Strike plate dimensions – 39/16“x1″x11/8” (90x25x33 mm)
Plug: Special conic cavity stainless steel (thickness 1.5mm~1.8mm)

Specifications:

Operation	Fail-safe
Current Draw- Standby	340mA@12VDC/180mA@24VDC
Current Draw- Active	900mA@12VDC/440mA@24VDC
Status Sensor	SPDT, 250mA @ 12VDC (NO/NC/COM)
Operating Voltage	12/24 VDC
Adjustable Delay Timer	0, 2.5, 5, 9 seconds
Weight	1-lb 13-oz (0.8kg)

Troubleshooting:

Problem	Possible Cause	Solutions:
Deadbolt does not activate when the door closes.	The sensor in the lock body is too far from the magnet in the strike plate.	• Try adjusting the strike plate, lock body position, or shims.
Deadbolt activates when the door is closed, but does not lock the door	Deadbolt may not be properly going into the deadbolt hole in the door.	• Make sure the deadbolt is going into the hole and not hitting the strike plate. If not, you must reposition the strike plate. • If the deadbolt is going into the hole, it may be hitting the bottom of the hole (if it is in a wooden door). In this case, drill a deeper hole
How to reset unit.		• When testing, if necessary, reset the unit by grounding the orange wire momentarily.
For any other problems.		• Replace the unit, and test again. A problem unit can also be substituted for a working unit in another door frame to see if it works there.
