SECO-LARM | SKU:
SECO-SD-9163-KSQ
17% off

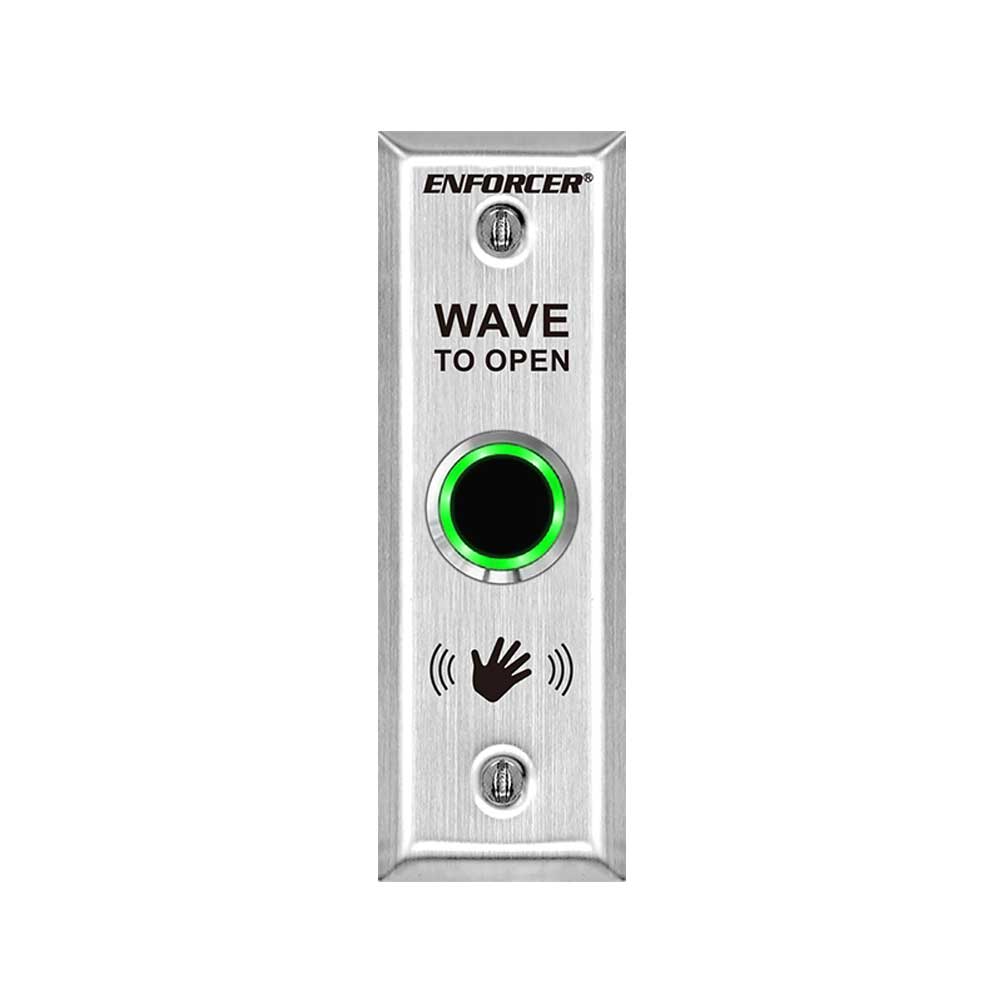

SECO-LARM SD-9163-KSQ Outdoor Wave-to-Open Sensor - Slimline - English
$4837
$5804
Unit price
/
Unavailable
Shipping calculated at checkout.
Secure transactionCouldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
All orders are shipped between 24 hours or less Monday through Friday from 9:00 am to 6:00pm. Orders placed after 4 p.m. EST will be shipped next business day.
Learn more
Description
Description
SECO-LARM SD-9163-KSQ Outdoor Wave-to-Open Sensor – Slimline – English
The ENFORCER Outdoor Wave-to-Open Sensor is a full-featured exit plate which uses IR technology to allow egress from a protected area or activate a device with the simple wave of a hand. Since no touch is required, this sensor is suitable for use in hospitals, clinics, labs, cleanrooms (to reduce the risk of contamination), schools, factories, or offices.
Features:
- Adjustable sensor range up to 7″ (18cm)
- Weatherproof (IP65) for outdoor use*
- Stainless steel plate
- 1.2A relay, adjustable trigger duration 0.8~30 seconds or toggle
- LED illuminated sensor area for easy identification
- Selectable LED colors (turns from red to green or green to red) to show sensor activated
*when properly installed
Specifications:
| Type | “Wave-To-Open” Request-to-Exit Plates with Adjustable Delay Timer, for Outdoor Use |
| Current Draw | Standby-16mA@12VDC/25mA@24VDC, Triggered-25mA@12VDC/32mA@24VDC |
| Sensing Range | 2″~7″ (5~18cm) |
| Operating Voltage | 12~24 VDC |
| Reaction time | 10mS |
| LEDs – Red | Standby (Colors are reversible.) |
| LEDs – Green | Triggered (Colors are reversible.) |
| Relay Type | Form C dry contact |
| Output Time | 0.5~30 s, toggle |
| Switching Capacity | 1.2A@24VDC |
| Operating Temperature | -4°~131° F (-20°~55° C) |
| Dimensions | 4-1/2″ x 1-1/2″ x 1-1/2″ (115 x 39 x 39 mm) |
| Weight | 61g |
| Enclosure | Weatherproof IP65 |
Download:
