Description

SECO-LARM MVE-AH1E1-01NQ HDMI Extender over Single Cat5e/6

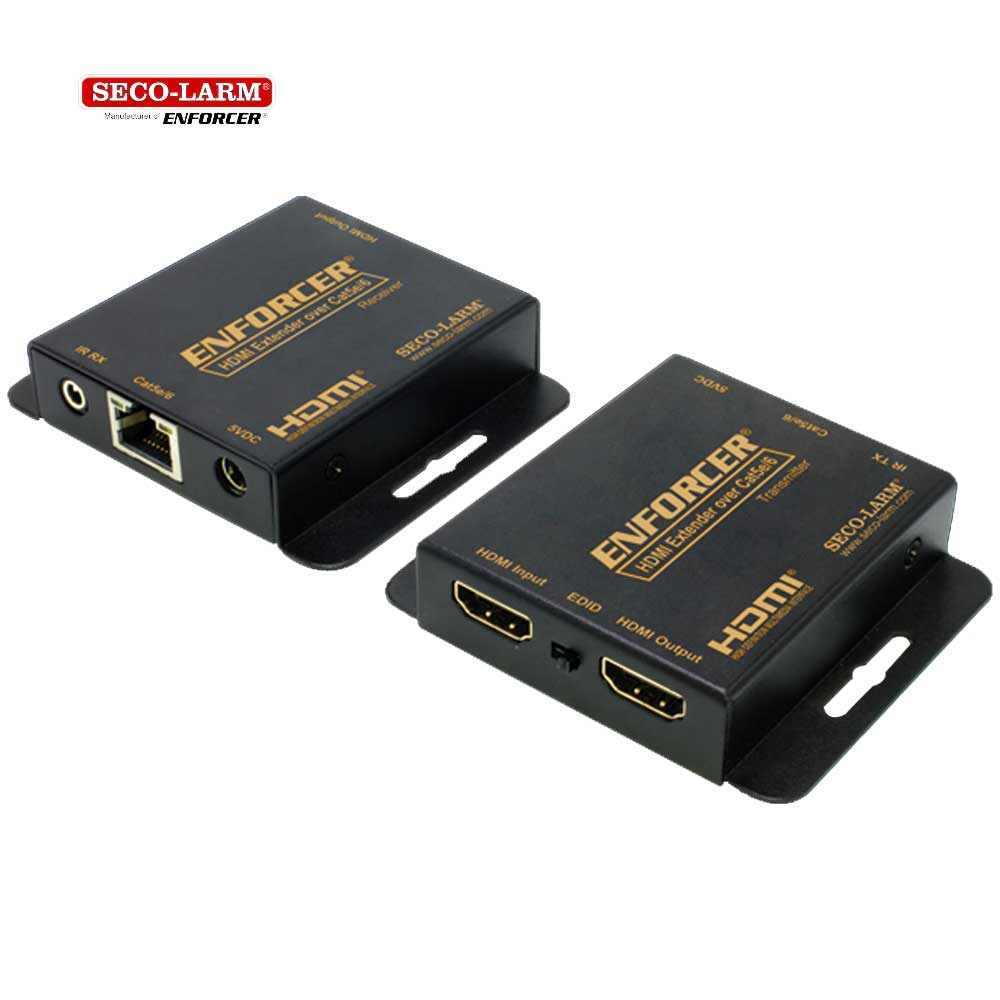

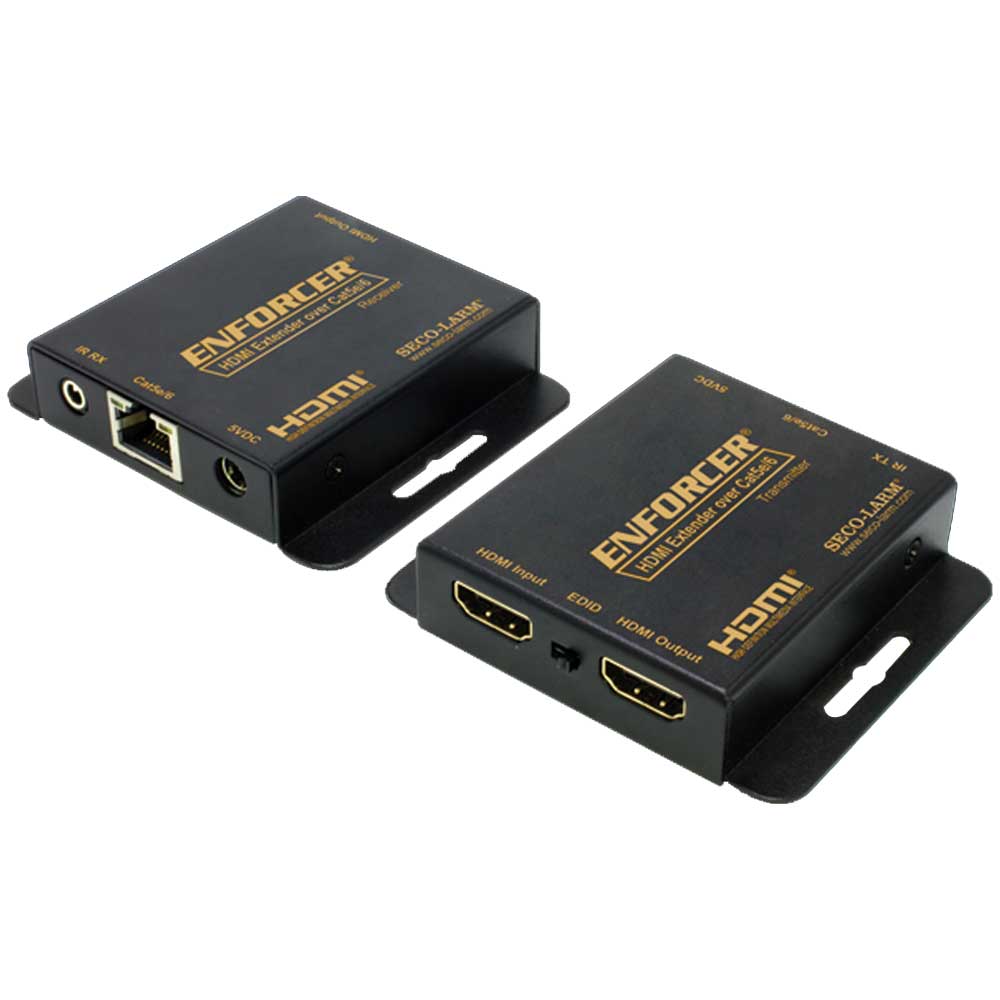

The ENFORCER HDMI Extender over Single Cat5e/6 extends the range of traditional HDMI cabling methods by using an active transmitter and receiver to send video and audio over a single Cat5e/6 cable. HDMI formats as large as 1080p can be transmitted up to 164ft (50m) between the two units with zero signal loss by using integrated circuits in the receiver and transmitter. The extender also supports HDMI loop output, EDID management settings, and one way IR control for remotely controlling HDMI sources and displays.

Feature:

Extend HDMI over a single Cat5e/6 cable
Supports resolutions from 480i to 1080p with zero signal loss
Transmits up to 164ft (50m) at 1080p over Cat5e/6 cable
HDMI Loop output for local HDMI display
Plug and play operation – comes as a complete set
IR Pass-through for remote control extension and operation
EDID Management switch
Two (2) 5VDC power supplies included

Specifications:

Input Video Signal	3.3V
Input DDC Signal	5Vp-p (TTL)
Deep Color	24-Bit
Video Format Supported	High-speed HDMI, HDCP 1.2
Audio Formats Supported	LPCM, Dolby-AC3, DTS7.1, DSD
Output Video	HDMI®
Resolutions Supported	1080p/1080i/720p/576p/576i/480p/480i
Range – 4K	Up to 164′ (50m)
Video Amplifier Bandwidth	4.95Gbps
Maximum Input Cable Length	24AWG (15m), 26AWG (10m), 28AWG (5m)
Video Input Connector	HDMI Type A 19-pin female
IR Pass-through Frequency	30~60 kHz
Operating Voltage	5VDC
Power Supply	1A@5VDC (2 Adapters) (2.1mm plug)
ESD Protection (Human Body Model)	±8kV (Air-gap discharge), ±4kV (contact discharge)
Cat5e/6 Wiring Standard	T568-B
Current Draw	Transmitter- 300mA@5VDC Receiver- 200mA@5VDC
Operating Temperature	32°~104° F (0°~40° C)
Operating Humidity	20~90% RH (no condensation)
Dimensions	31/8″x11/16″x25/8″ (79x17x67 mm)
Weight	5.3-oz (150g) (Each)
Maximum Single Link Range	1080p

Troubleshooting:

HDMI device does not function correctly	Use T568-B wiring standard Make sure the extender is powered on both sides Make sure the source and display are powered Test the Cat5e/6 cable between the receiver and the transmitter to make sure it is functional Make sure there are no problems with the HDMI source, HDMI cables, or HDMI display by plugging the source directly into the display using an HDMI cable
Screen flickering or brief image loss	Use a higher grade of twisted pair category cable (Cat6 is recommended) Switch the source device to a lower HDMI output (i.e., 1080p to 1080i) Power down the unit then move the EDID switch to the opposite position and re-power the unit Restart the handshake process by powering everything down then powering up and connecting each device in succession starting with the HDMI source
