Schlage - ND12DEL - Electrified Cylindrical Lock with Exit Function...
Description
Description

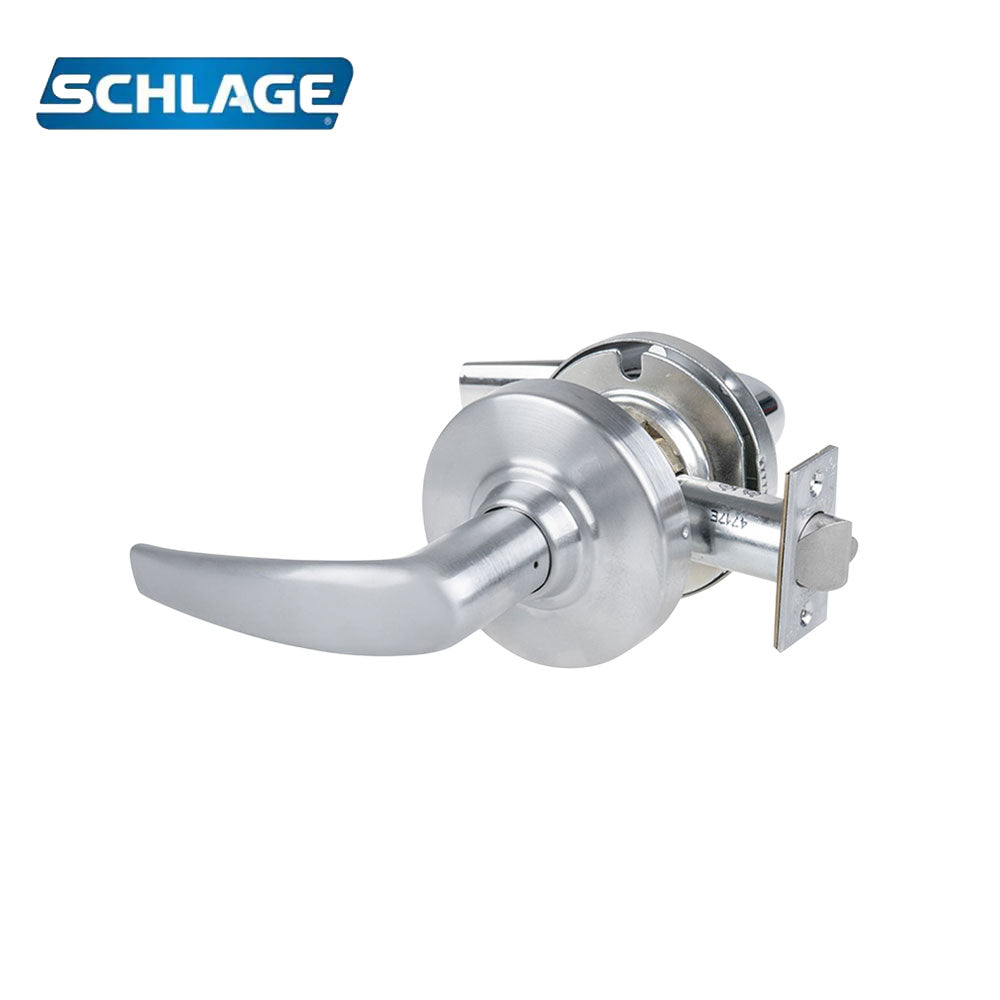

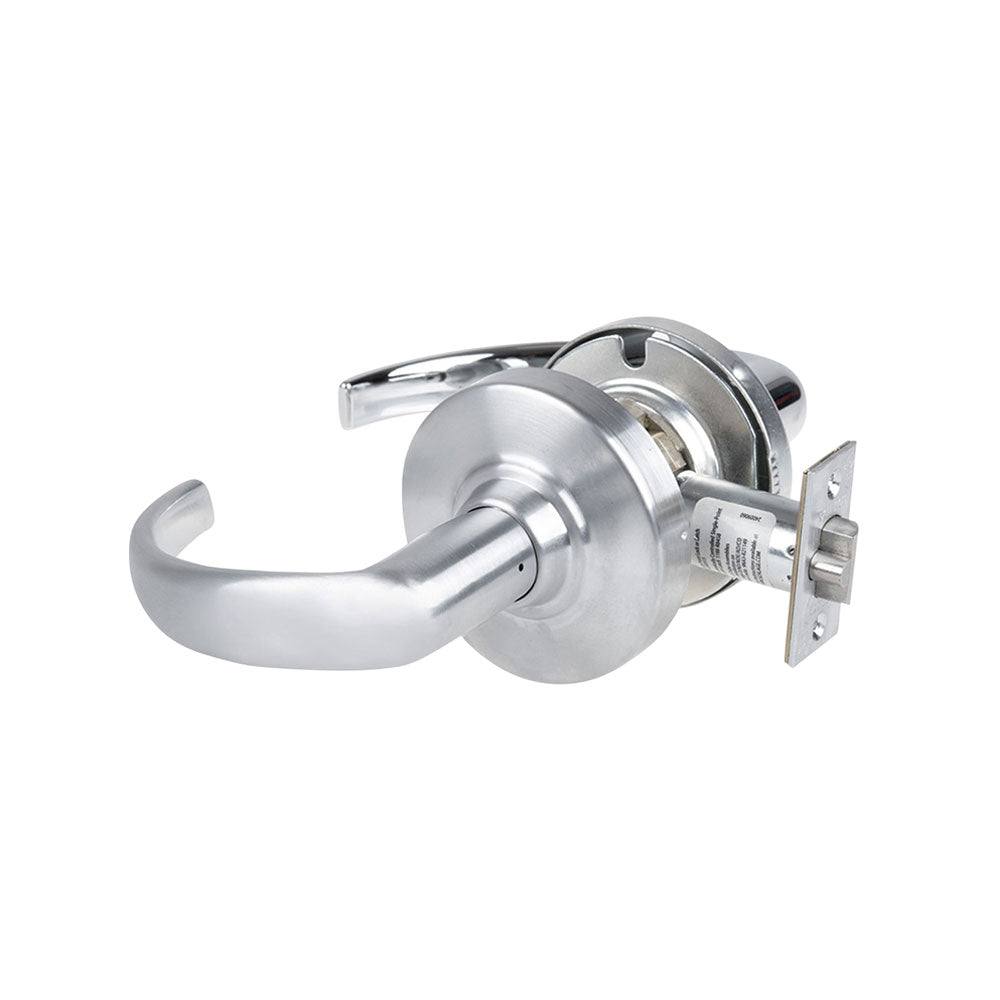

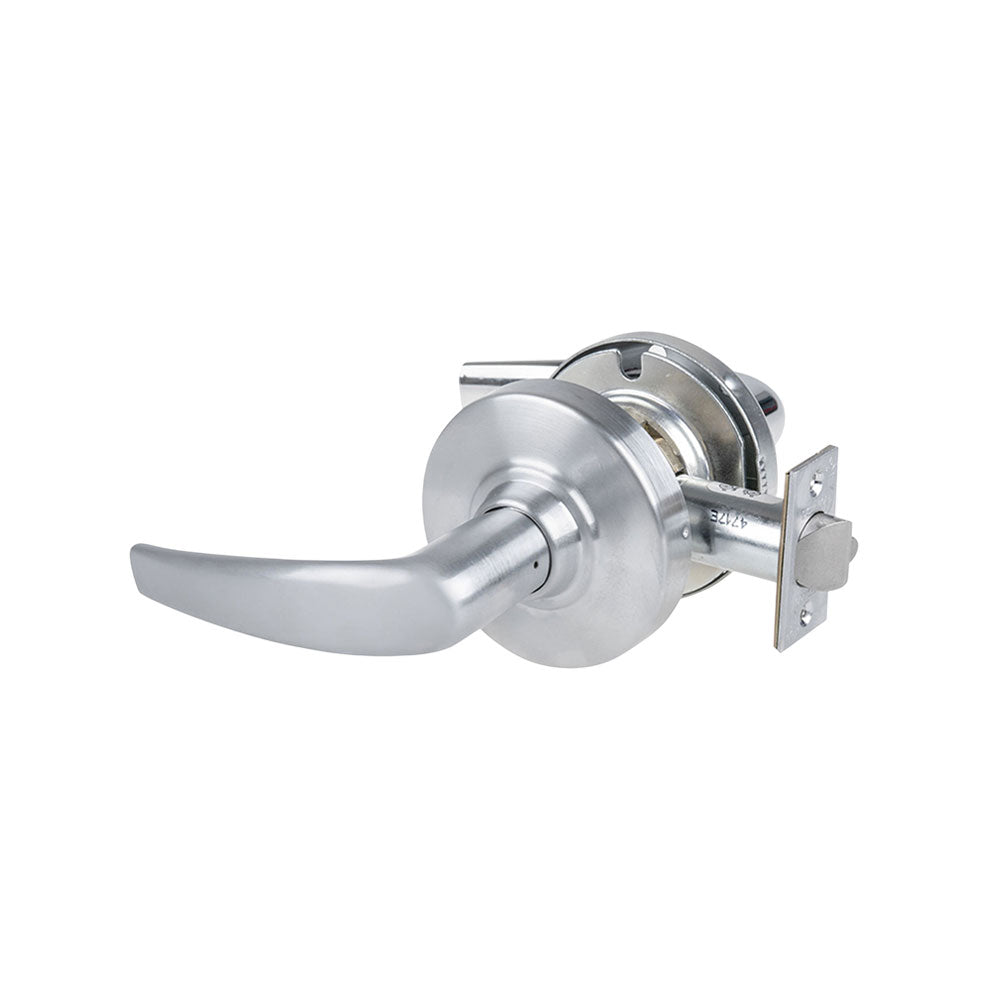

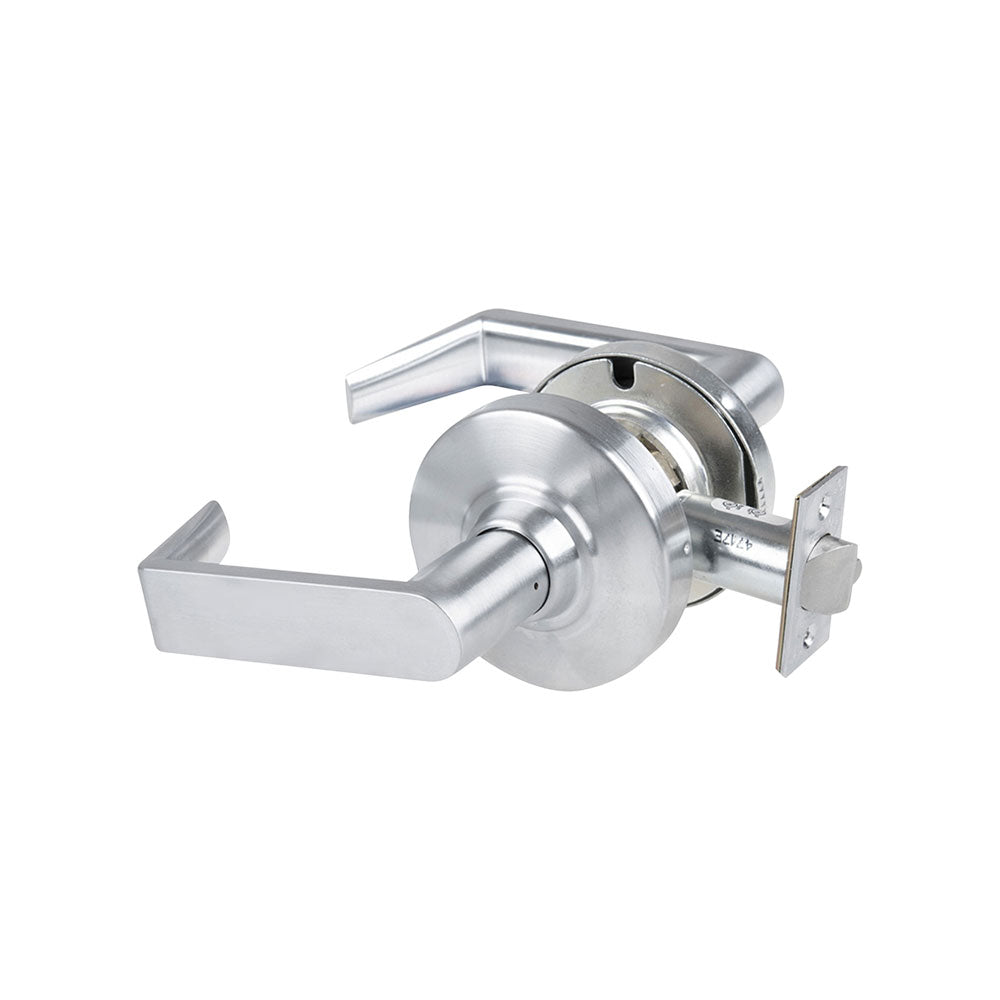

Schlage - ND12DEL - Electrified Cylindrical Lock with Exit Function and Fail Safe - Grade 1
Electrified Schlage cylindrical locks offer superior energy efficiency and flexibility in wired electrified applications. The Schlage ND Series offers a full breadth of commercial lock options with a suited combination of mechanical, electrified and electronic options. The Schlage ND is extremely versatile and is regularly used in healthcare, education, government, office, retail and other commercial applications.
Features:
- Auto-detecting 12-24VDC input
- Selectable EL/EU operation
- Low 0.23 amp max current draw that allows multiple locks on a single power supply
- Modular Request to Exit (RX) that can be added at any time
- Inventory friendly-one lock supports 12-24V, EL or EU, with or without RX
- Six electrified functions for application flexibility
Product Specifications:
| Manufacturer | Schlage |
| Grade | Grade 1 |
| BAA Qualified | Yes |
| Installation | Commercial |
| Base Material | Brass or Bronze |
| Application | Storeroom Lever |
Technical Specifications:
| Door Thickness | 1-3/4" to 2" |
| Std. Latch Type | Guarded Latch |
| Latch Backset Dim | 2-3/4" |
| Lock Face Size | 2-1/4" x 1-1/8" |
| Std. Strike Number | 10-025 |
| Std. Strike Type | ASA |
| Std. Strike Height | 4-7/8" |
| Std. Strike Width | 1-1/4" |
| Dust Box | None |
| Screws | Combination |
| Power | Hard Wired |
| Operating Voltage | 12VDC/24VDC |
| Function | 12EL-Fail Safe |
| Switch Type | None |
| Std. Latch Number | 14-047 |
| AMP Draw | 0.23 |
| Rose Design | 3-7/16" Diameter |
