AUTEL | SKU: AUTEL-MS-MS919-KIT1

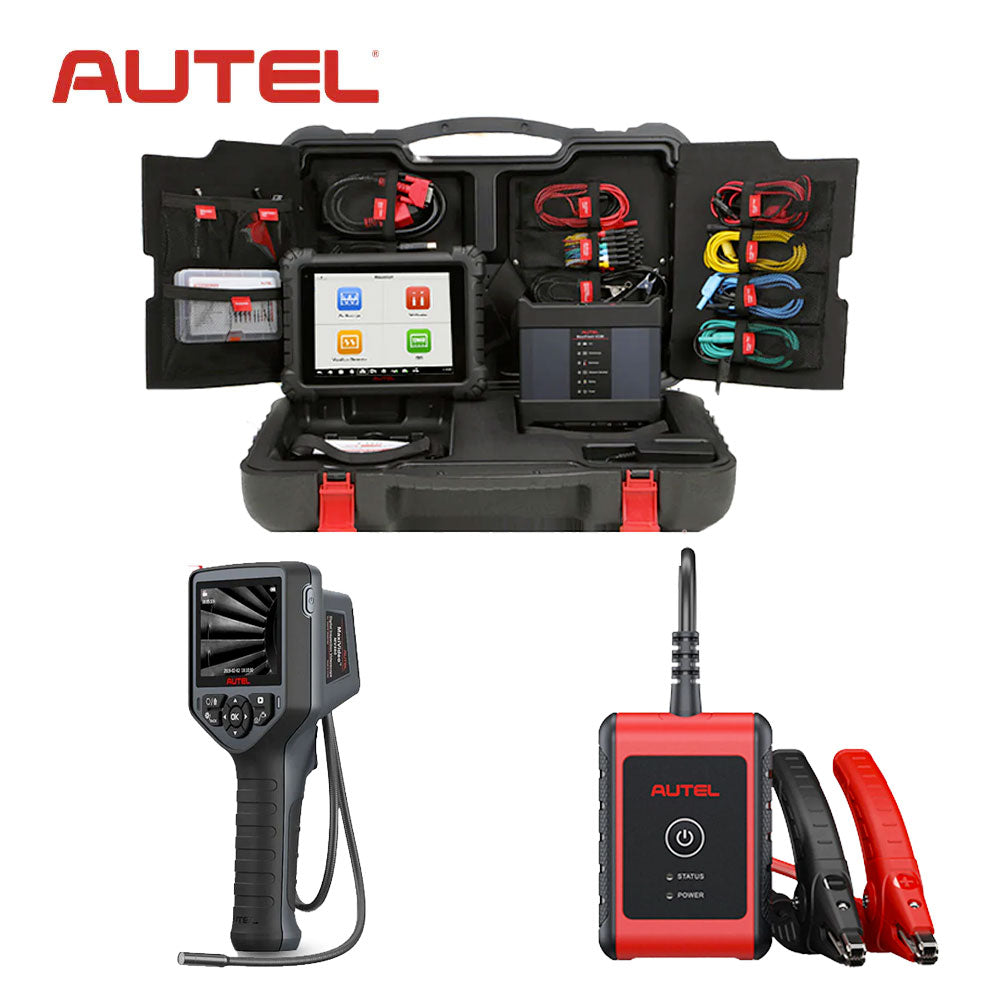

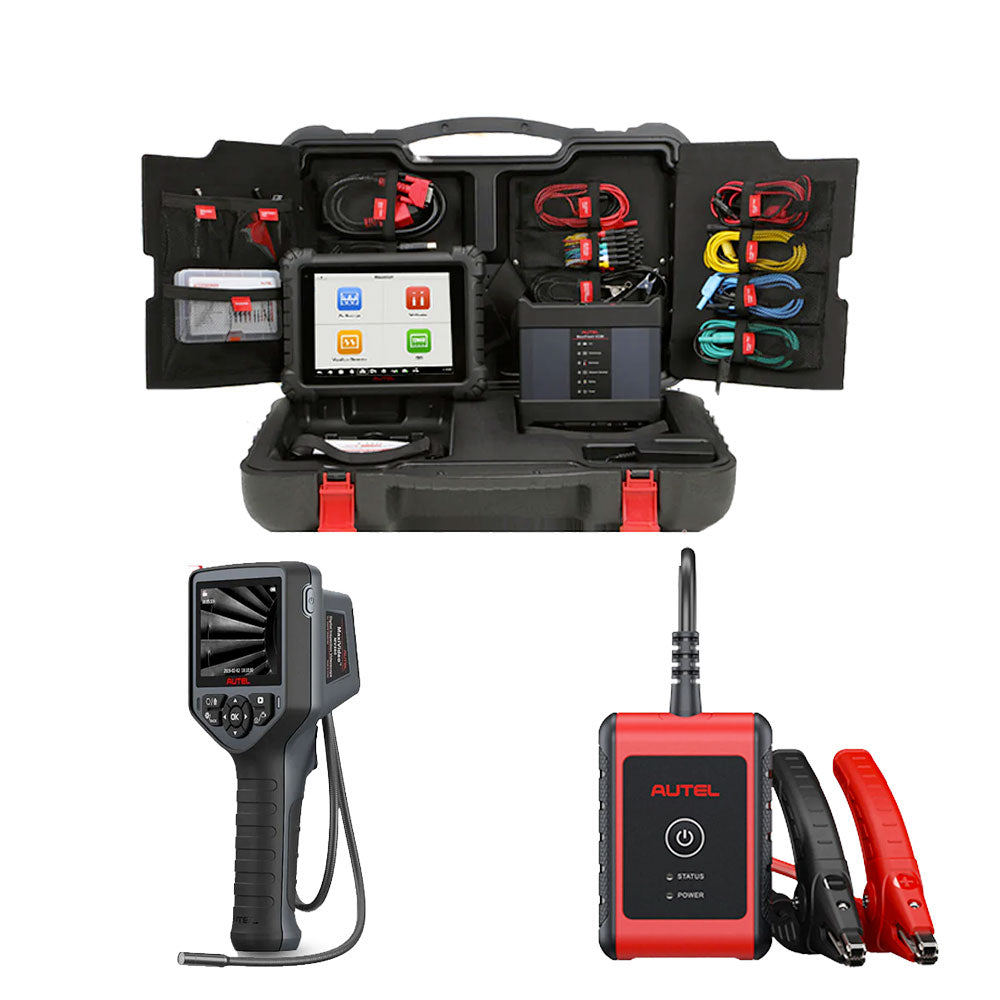

Autel MaxiSys MS919 Diagnostic Tablet with MaxiFlash VCMI and MV460 Digital Videoscope and MaxiBAS BT506 Battery Tester

Name: Autel MaxiSys MS919 Diagnostic Tablet with MaxiFlash VCMI and MV460 Digital Videoscope and MaxiBAS BT506 Battery Tester
Brand: AUTEL
SKU: AUTEL-MS-MS919-KIT1
Price: 3599.99 USD
Availability: OutOfStock

$3,599⁹⁹ ~~$5,465⁰⁰~~

Shipping calculated at checkout.

Secure transaction

Found a better price? Call for Price Match!
Shop with confidence knowing you’re getting the best deal.

Delivery and Shipping

All orders are shipped between 24 hours or less Monday through Friday from 9:00 am to 6:00pm. Orders placed after 5 p.m. EST will be shipped next business day.
Learn more

Return Policy

At Locksmith Keyless, we prioritize your satisfaction and offer a simple return process. Returns are accepted within 30 days of purchase for unused items in original packaging. Certain items, including OEM keys, Lishi tools, and customized orders, are non-returnable. A restocking fee of up to 30% may apply. For a full list of non-returnable items and more details, please refer to our complete return policy.

For damaged, missing, or incorrect items, please contact us within 48 hours of delivery. All returns require an RMA number. Shipping costs for returns are the responsibility of the customer.

View Full Return Policy

Description

Autel MaxiSys MS919 Diagnostic Tablet with MaxiFlash VCMI and MV460 Digital Videoscope and MaxiBAS BT506 Battery Tester

Includes:

Autel MaxiSys MS919 Diagnostic Tablet with Advanced MaxiFlash VCMI

MaxiSYS MS919 is a 9.7-inch touchscreen Android-based advanced diagnostic tablet powered by an Octa-core processor (2.2GHz Quad + 1.8GHz Quad), 128GB memory and features the MaxiFlash VCMI, a 5-in-1 communication and testing tool providing wireless vehicle communications between the vehicle and tablet and supporting the latest DoIP, D-PDU and Mega CAN vehicle communication protocols. The VCMI also functions as a 4-channel oscilloscope, waveform generator, multimeter and Can BUS tester. The MS919 features dynamic topology module mapping for supported vehicles and its Intelligent Diagnostics feature that guides the technician from code to repair to test with detailed repair information and illustrations, and Oscilloscope preset guides and tests and waveform library. The MS919 features a rechargeable Lithium battery proving 8 hours of continues use, and front and rear cameras.

Autel updates provide latest OE level coverage for more than 80 US Domestic, Asian and European vehicles, including supercar
Exceptional OE-Level functionality from comprehensive OBDII diagnostics & services to advanced ECU coding and programming
Automatic system and software updates with real-time push message notifications via internet
Interactive Data Logging sessions enable direct contact with Autel Support for first-hand troubleshooting of diagnostic bugs and error
One-stop multitasking designed for ideal management of workshop operations to keep all data files, customer info, and vehicle records well organized
Cloud-based Data Manager saves customer and vehicle records, scanner data and technician notes

Specification:

Operating System	Android 10.0
Processor	Qualcomm 660 Octa-coreProcessor (2.2GHzQuad-coreA73 +1.8GHzQuad-core A53)
Memory	4GB RAM & 128GB On-board Memory
Display	9.7 inch TFT-LCD with 1536 x 2048 resolution & capacitive touchscreen
Connectivity	Dual Wi-Fi (802.11 a/b/g/n/ac 2x2 MIMO) BT V5.0 + BR/EDR GPS USB 2.0 (2 USB TYPE-A ports and a Mini USB port) HDMI 2.0 SD Card (Support up to 256GB)
Camera (rear)	Rear: 16 Megapixel, Autofocus with Flashlight Front: 16 Megapixel
Sensors	Gravity Accelerometer, Ambient Light Sensor (ALS)
Audio Input/Output	Microphone Dual Speakers 3-Band 3.5 mm stereo/standard headset jack
Power and Battery	15000mAh 3.8V lithium-polymer battery Charging via 12V AC/DC power supply with the temperature between 0°C and 45°C
Input Voltage	12V/1.3A Adapter
Operating Temperature	0 to 50°C (32 to 122°F)
Storage Temperature	-20 to 60°C (-4 to 140°F)
Dimensions (WxHxD)	304.4 mm (11.98") x 227.8 mm (8.97") x 42.5 mm (1.67")
Weight	1.66kg (3.66lb.)
Protocols	DoIP, PLC J2497, ISO-15765, SAE-J1939, ISO-14229 UDS, SAE-J2411 Single Wire Can(GMLAN), ISO-11897-2, ISO-11897-3, SAE-J2819 (TP20), TP16, ISO-9141, ISO-14230, SAE-J2610 (Chysler SCI), UART Echo Byte, SAE-J2809 (Honda Diag-H), SAE-J2740 (GM ALDL), SAE-J1567 (CCD BUS), Ford UBP, Nissan DDL UART with Clock, BMW DS2, BMW DS1, SAE J2819 (VAG KW81), KW82, SAE J1708, SAE-J1850 PWM (Ford SCP), SAE-J1850 VPW (GM Class2)

MaxiSYS Comparison:

Download:

Autel MaxiBAS BT506 Battery Tester Electrical System Diagnostic & Analysis Tool

The BT506 is a battery and electrical system analysis tool that use as Adaptive Conductance an advanced battery analysis method, to produce a more accurate examination of the battery’s cold cranking ability and reserve capacity, vital to determining a battery’s true health. The BT506 enables technicians to view the health status of vehicle's battery and electrical system. Download the free and easy-to-use mobile app, available for iOS and Android devices, to use with the BT506 to perform testing and display test results.

Features:

Support in-vehicle and out-of-vehicle testing of passenger vehicle batteries
Test 12-volt batteries: 100 - 2000 CCA
Test 12-volt cranking/charging systems
Test Flooded, AGM, AGM Spiral, EFB and GEL batteries
Compatible with CCA, CA, SAE, EN, IEC, DIN, JIS and MCA

Specification:

Recommended Use	Indoor
Connectivity	USB 2.0, Type C Bluetooth V3.0 BR/EDR+ V4.2 LE Dual-Mode
Input Voltage	5 V DC
Working Current	<150 mA at 12 V DC
Internal Battery	N/A
CCA Range	100 to 2000 A
Voltage Range	6 to 36 V
Working Temperature	-10°to 50° C (14° to 122° F)
Storage Temperature	-20° to 60° C (-4° to 140° F)
Dimension (L x W x H)	107 mm (4.21“) x 75 mm (2.95”) x 26 mm (1.02”) (clamp cable not included)
Weight	320 g (0.7 lb.)

Comparison:

Downloads:

Autel MaxiVideo MV460 Next Generation of Digital Videoscope

The MaxiVideo MV460, the next generation of digital videoscope, is ideal for inspecting difficult-to-reach areas with its semi-rigid flexible cable and 10-level adjustable LED light. It features a 1920 x 1080 high resolution camera, a 3.5-inch 640 x 480 full color LCD display, an 8.5mm camera probe, and a built-in 2600mAh battery with up to 4 hours of continuous use. This multipurpose videoscope is an economical solution to inspect machinery, facilities, and infrastructure in the safest, quickest and most cost-effective manner possible.

Features:

High resolution images and videos (1920 x 1080)
3.5-inch full color LCD display (640 x 480)
1-button quick image capture and video recording
70-degree field of view for expanded viewing angle
Micro HDMI-output enables streaming to larger monitors
Freeze-frame camera stills or video recording
On-screen horizontal/vertical reverse
Records and plays back images and video clips
7X digital zoom for increased viewing
8GB Micro SD card (included), supports up to 128GB
Mini-USB cable (included) for uploading images and videos
More than 10,000 lux, adjustable 10-level LED illumination
Built-in, rechargeable 2,600 mAh battery for 4 hours of continuous use
1m (39.4") semi-rigid, flexible watertight cable
Includes magnet, hook, and mirror cable accessories
8.5mm (0.33’’) probe fits most spark plug holes
Compatible with 5.5mm (0.22’’) camera head (not included)

Specifications:

Recommended Use	Indoor
Optimal Viewing Distance	0.79" to 2" (2 cm to 5 cm)
Image Capture	JPG images (1920 x 1080 pixels) MP4 videos (1920 x 1080 pixels)
Display	3.5" TFT LCD
Display Resolution	640 x 480 pixels
Power Supply	Built-in rechargeable lithium-ion battery pack (3.7V/2600 mAh)
Tested Battery Life	Approximately 4 hours of continuous use
Dimensions	235 x 97 x 125mm (9.3" x 3.8" x 4.9" )
Weight	0.393kg (0.87lbs)
Recording Medium	Micro SD card (8GB Standard/128GB Max)
Image Controls	Zoom, low light vision
Lighting	Fully adjustable LED
Cable Reach	1m (39.4")
Imager Head	8.5mm (0.33"), 2 megapixel (1920 x 1080 pixels)
Waterproof	To a depth of 1m (39.4") (Imager heads and cable only)
Additional Ports	TF, Mini USB, Micro HDMI
Operating Temp	Main unit: 14°F to 122°F (-10°C to 50°C); Cable: 14°F to 140°F (-10°C to 60°C)
Storage Temp	-4°F to 158°F (-20°C to 70°C)
Operating Humidity	5% - 95% non-condensing
